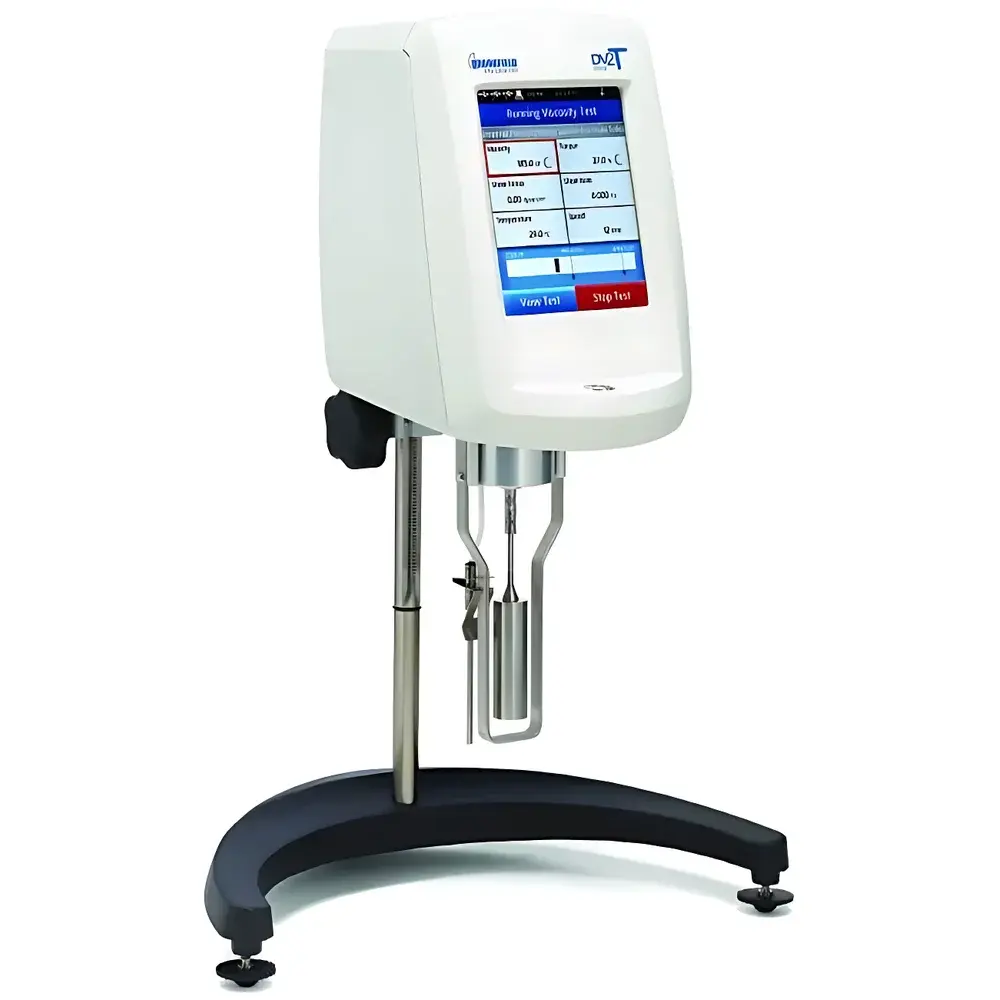

Brookfield DV2T Advanced Rotational Viscometer
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | DV2T |
| Instrument Type | Rotational Viscometer |
| Viscosity Range | 1 – 320 × 10⁶ mPa·s |
Overview
The Brookfield DV2T is a precision-engineered rotational viscometer designed for reliable, repeatable measurement of dynamic viscosity across a broad range of Newtonian and non-Newtonian fluids. Operating on the principle of Couette flow—where torque required to rotate a spindle at a defined speed in a sample is directly proportional to its shear viscosity—the DV2T delivers high reproducibility under controlled shear rate conditions. Its microprocessor-based architecture supports continuous real-time monitoring of viscosity, temperature (when paired with optional temperature probes), and torque, making it suitable for quality control laboratories, R&D environments, and production floor applications where consistency and traceability are critical. Unlike capillary or falling-ball instruments, the DV2T enables direct shear-rate-dependent characterization, supporting routine compliance with ASTM D2196, ISO 2555, and USP <911> methodologies.
Key Features
- Wide viscosity range: 1 to 320 million mPa·s (cP) using standard spindles and optional ultra-low or high-viscosity accessories
- USB 2.0 interface for direct communication with Windows-based PCs—no proprietary cables or adapters required
- Onboard memory stores up to 10 user-defined test programs, including preset speeds, dwell times, and auto-stop conditions
- Real-time graphical display of viscosity vs. time or shear rate during acquisition—viewable directly on the instrument’s LCD screen
- Integrated temperature input support (via PT100 or thermocouple probes) for viscosity-temperature profiling per ASTM D445
- Programmable speed ramping: linear or logarithmic increments across up to 10 discrete steps per test sequence
- Automatic torque limiting function to prevent spindle overload or sample disturbance during startup or transition phases
- Compliance-ready architecture: supports audit trail generation, electronic signatures, and user-level access control when used with RheocalcT software
Sample Compatibility & Compliance
The DV2T accommodates diverse sample geometries and rheological behaviors through interchangeable spindles (e.g., LV, RV, HA, HB series) and optional small-sample adapters, concentric cylinder fixtures, and vane spindles for structured gels or suspensions. It meets fundamental requirements for GLP and GMP environments when configured with appropriate documentation protocols. While the instrument itself does not enforce regulatory compliance, its data output structure—including timestamps, operator IDs, environmental metadata, and raw torque/speed values—is fully compatible with systems validated under FDA 21 CFR Part 11 when paired with RheocalcT software. Routine calibration verification follows Brookfield’s recommended procedures aligned with ISO/IEC 17025 traceability frameworks.
Software & Data Management
RheocalcT software transforms the DV2T into a comprehensive rheological workstation. It provides guided workflows via the Test Wizard—enabling rapid setup of thixotropy indices, yield stress approximations (via controlled-shear-rate ramping), gelation onset detection, and time-dependent structural recovery analysis. Data export options include native .rct files, CSV, Excel (.xlsx), and PDF reports with embedded charts and statistical summaries. The software supports multi-curve overlay, mathematical modeling (Bingham, Casson, Power Law, Herschel-Bulkley), and automated pass/fail evaluation against specification limits. All data entries include immutable timestamps, user authentication logs, and change history—facilitating internal audits and regulatory submissions.
Applications
- QC testing of coatings, inks, adhesives, and sealants for batch release consistency
- Rheological profiling of pharmaceutical suspensions, ointments, and injectables per USP monographs
- Food product development—monitoring starch gelatinization, emulsion stability, and sauce thickening kinetics
- Chemical process optimization: polymer solution behavior, surfactant micellization, and drilling mud formulation
- Educational labs requiring intuitive yet metrologically sound viscosity instruction platforms
- Materials science research involving temperature-dependent flow transitions in thermoplastics and composites
FAQ
Does the DV2T require external software to operate?
No—the instrument functions autonomously with full local control, data logging, and basic analysis. RheocalcT is optional but recommended for advanced method development and regulatory reporting.
Can the DV2T measure yield stress?
It does not calculate yield stress natively; however, yield point estimation is achievable via controlled shear-rate ramps and post-acquisition modeling in RheocalcT using Herschel-Bulkley or Bingham fits.
Is temperature control built-in?
No—the DV2T accepts external temperature sensor inputs but does not regulate sample temperature. Integration with Brookfield TC-series circulating baths or Peltier-based chambers is supported via software commands.
What spindle configurations extend the measurable viscosity range?
Ultra-low-viscosity measurements (down to 1 mPa·s) use LV spindles with low-speed settings; high-viscosity ranges (beyond 10⁷ mPa·s) require HB spindles, UL adapters, or cone-and-plate geometries.
How is calibration verified?
Calibration is performed using NIST-traceable silicone oil standards across multiple shear rates. Daily verification checks are advised using a certified reference fluid before critical measurements.
