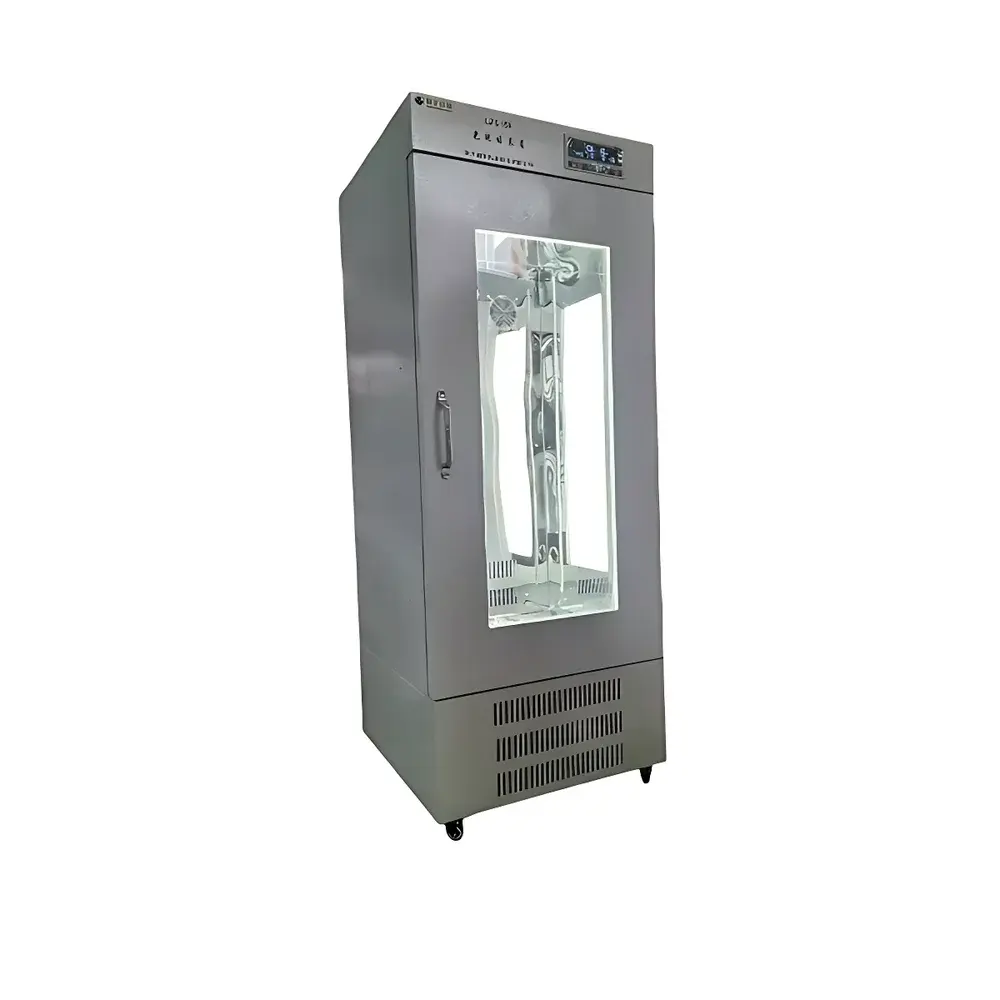

Brookfield GZX Series Plant Growth Chamber
| Brand | CZGY |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Model | GZX |
| Price Range | USD 700–1,000 |
| Light Configuration | Triple-Side Illumination |
| Light Source | High-Efficiency LED Array |
| Spectral Output | UV-Enhanced Full-Spectrum (365–780 nm) |
| Temperature Range | 5–60°C (dark), 10–60°C (with illumination) |
| Temperature Stability | ±0.5°C |
| Temperature Uniformity | ±1.0°C (at working volume center) |
| Humidity Range (optional) | 50–90% RH |
| Illuminance Range | 5,000–20,000 lux |
| Light Intensity Control | 6-Step Discrete or Continuous Dimming |
| Chamber Capacity | 150–1,000 L |
Overview
The Brookfield GZX Series Plant Growth Chamber is a precision-engineered environmental simulation system designed for controlled photobiological experimentation and long-term cultivation under reproducible temperature and light conditions. Based on the Couette-type air circulation principle with laminar flow distribution and PID-driven thermal regulation, the chamber maintains stable microclimatic conditions across its entire working volume. Its triple-side LED illumination architecture—comprising top, left, and right panels—enables uniform photon flux delivery critical for photomorphogenesis studies, seed germination assays, and circadian rhythm investigations. The system complies with core design principles outlined in ISO 17025 for laboratory environmental control equipment and supports GLP-compliant experimental workflows through traceable parameter logging and user-accessible calibration protocols.
Key Features
- Microprocessor-based control system with 4.3″ or 7″ true-color capacitive touchscreen interface, supporting multi-level user authentication (three-tier permission hierarchy)
- PID-controlled heating/cooling circuit with fast thermal response (<15 min to stabilize after door opening) and ±0.5°C setpoint accuracy

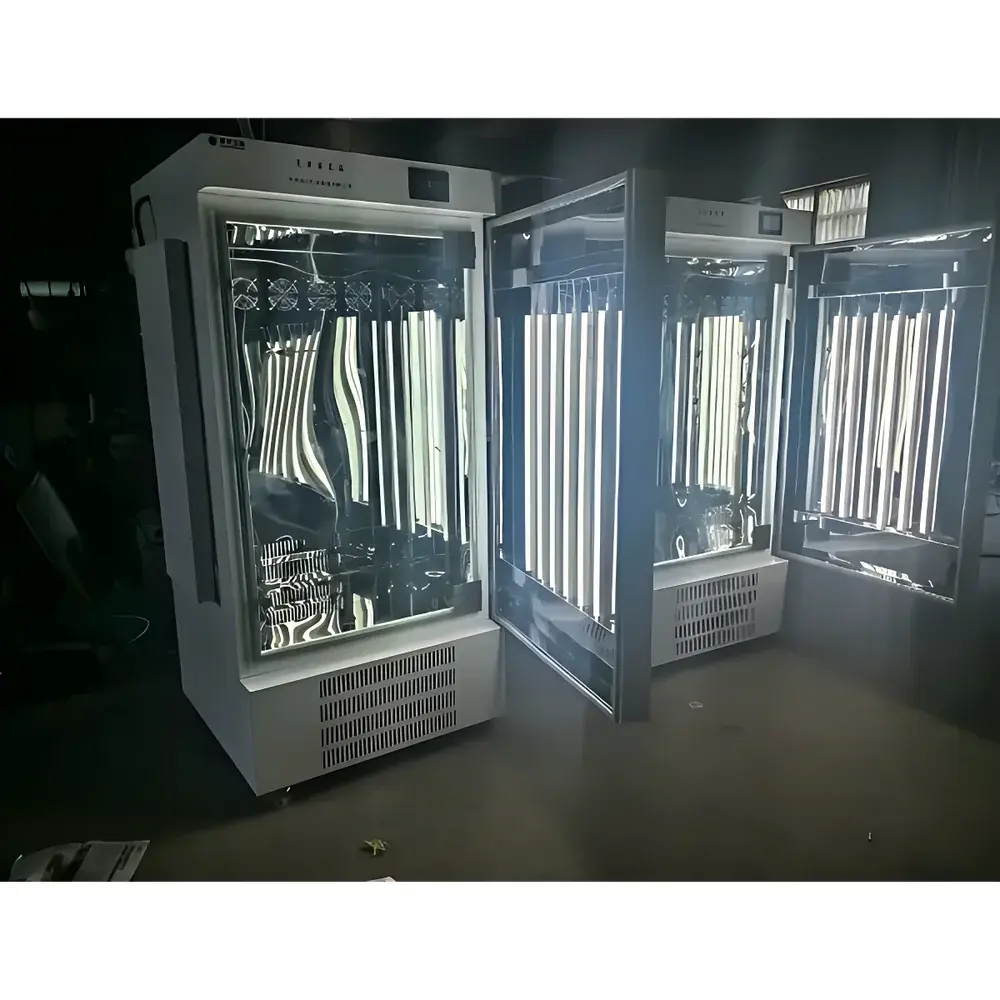

- Triple-side UV-enhanced full-spectrum LED arrays (365–780 nm), independently dimmable via 6-step discrete or continuous analog modulation
- Robust mechanical construction: cold-rolled steel outer shell with epoxy-polyester powder coating; mirror-finish 304 stainless steel interior; high-density rock wool insulation (≥50 mm thickness)
- Programmable environmental profiles: up to 5 independent programs, each containing ≤100 segments with configurable duration (1 min–999 h per segment), day/night cycle emulation, and automatic transition logic

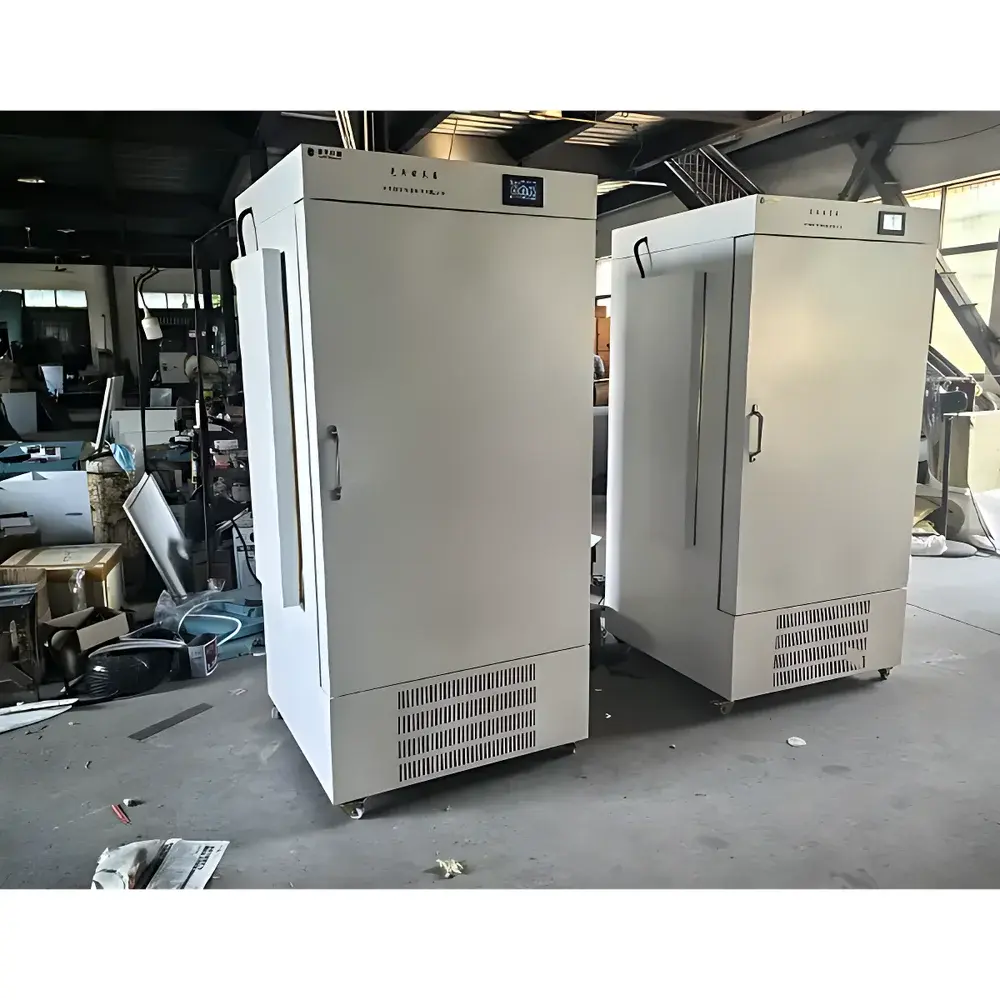

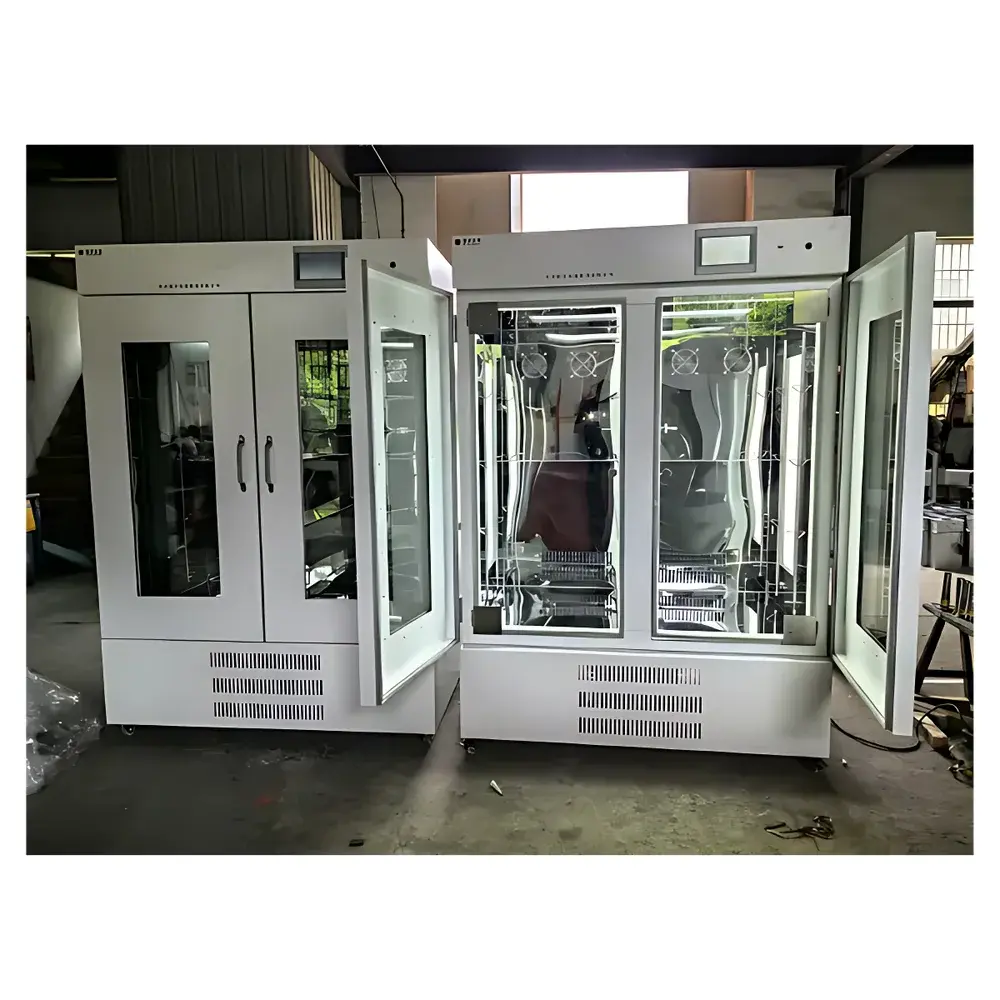

- Dual-door configuration (standard on GZX-700/GZX-1000 models): outer insulated door + inner tempered glass observation panel minimizing thermal leakage during visual monitoring
- Optional integrated humidity module with 15 L reservoir, auto-refill solenoid valve, dry-run protection, and closed-loop RH control (50–90% RH, ±3% RH accuracy)
Sample Compatibility & Compliance
The GZX chamber accommodates diverse biological specimens including plant seedlings (Arabidopsis, rice, maize), microbial cultures (bacteria, fungi), insect colonies (Drosophila, Tribolium), and small vertebrate models (zebrafish embryos, Xenopus tadpoles). Its internal dimensions (ranging from 450 × 450 × 750 mm to 1200 × 695 × 1200 mm) allow modular shelving configurations and optional 20 mm diameter access ports for sensor integration or gas exchange lines. All electrical components meet IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. Optional data logging modules support 21 CFR Part 11-compliant audit trails when paired with validated firmware versions.
Software & Data Management
Standard firmware includes local data storage on embedded SD card (≥16 GB) and USB export capability for time-stamped temperature, humidity, and illuminance logs (CSV format). Optional cloud-enabled remote monitoring is available via secure MQTT protocol with TLS 1.2 encryption. Firmware supports firmware-over-the-air (FOTA) updates and includes built-in diagnostics for fan speed verification, heater coil resistance checks, and LED driver health reporting. Calibration certificates for temperature and light sensors are issued per ISO/IEC 17025-accredited procedures upon request.
Applications
- Photoperiodic response studies in crop breeding programs (e.g., flowering time quantification under varying day-length regimes)
- Controlled-environment phenotyping for drought-tolerant or shade-adapted genotypes
- Standardized microbial growth curve analysis under defined spectral irradiance (e.g., UV-B stress assays)
- Preclinical toxicology screening using zebrafish larvae exposed to regulated light-dark cycles
- Long-term stability testing of biologics requiring photostability assessment per ICH Q5C guidelines
- Algal biomass production optimization under tunable PAR (Photosynthetically Active Radiation) spectra
FAQ
What is the maximum allowable ambient operating temperature for the GZX chamber?
The unit is rated for continuous operation in ambient environments up to 32°C with ≥60% relative humidity.
Can the GZX be configured for CO₂ enrichment?
No—this model lacks gas inlet/outlet ports and pressure-regulated mixing manifolds; CO₂-capable variants are available under the GZX-CO₂ product line.
Is NIST-traceable calibration included with shipment?
Factory calibration is performed using ISO/IEC 17025-accredited reference instruments; formal NIST-traceable certificates are available as an add-on service.
How often does the LED array require recalibration?
LED spectral output drift is <0.5% per 10,000 hours; annual verification using an external spectroradiometer is recommended for GLP audits.
Does the system support third-party SCADA integration?
Yes—Modbus RTU over RS-485 is supported as standard; optional OPC UA gateway firmware enables direct integration with Siemens Desigo, Honeywell Experion, or Schneider EcoStruxure platforms.
