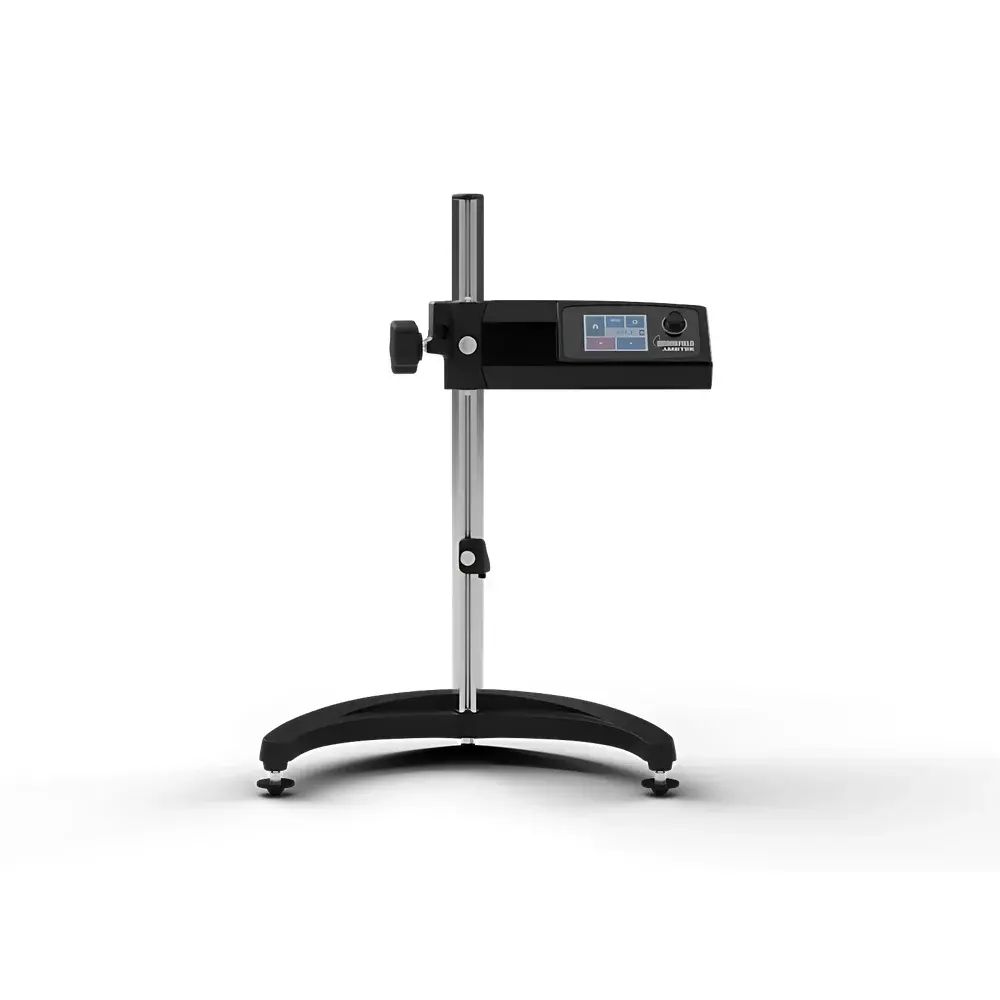

Brookfield HPQA Helipath Rapid-Actuation Lift Stand

Overview

The Brookfield HPQA Helipath Rapid-Actuation Lift Stand is an electromechanically driven vertical positioning system engineered for precision rheological and viscometric testing of structured, non-Newtonian, and highly viscous materials. It operates on the principle of controlled helical motion—where a rotating T-shaped spindle, mounted on a vertically translating platform, traces a continuous spiral path through the sample volume. This methodology eliminates localized shear history, minimizes wall effects, and mitigates air entrapment or particle settling—critical challenges when characterizing pastes, gels, waxes, putties, creams, and other yield-stress fluids. Unlike static immersion or fixed-depth measurements, the HPQA enables dynamic sampling across the full depth of the specimen, ensuring representative bulk rheology assessment under defined kinematic conditions. Its design aligns with fundamental requirements of ASTM D1093 (for paint consistency), ISO 2555 (for polymer solutions), and USP (for semi-solid dosage forms), supporting method validation in regulated QC environments.

Key Features

• Motor-driven vertical actuation with programmable speed range (0.1–40 mm/s), enabling rapid positioning and reproducible helical scanning protocols
• Integrated joystick controller and touchscreen interface for intuitive height programming, real-time position feedback, and one-touch return-to-home functionality
• High-resolution linear encoder ensures sub-millimeter positional repeatability (< ±0.05 mm) across repeated cycles

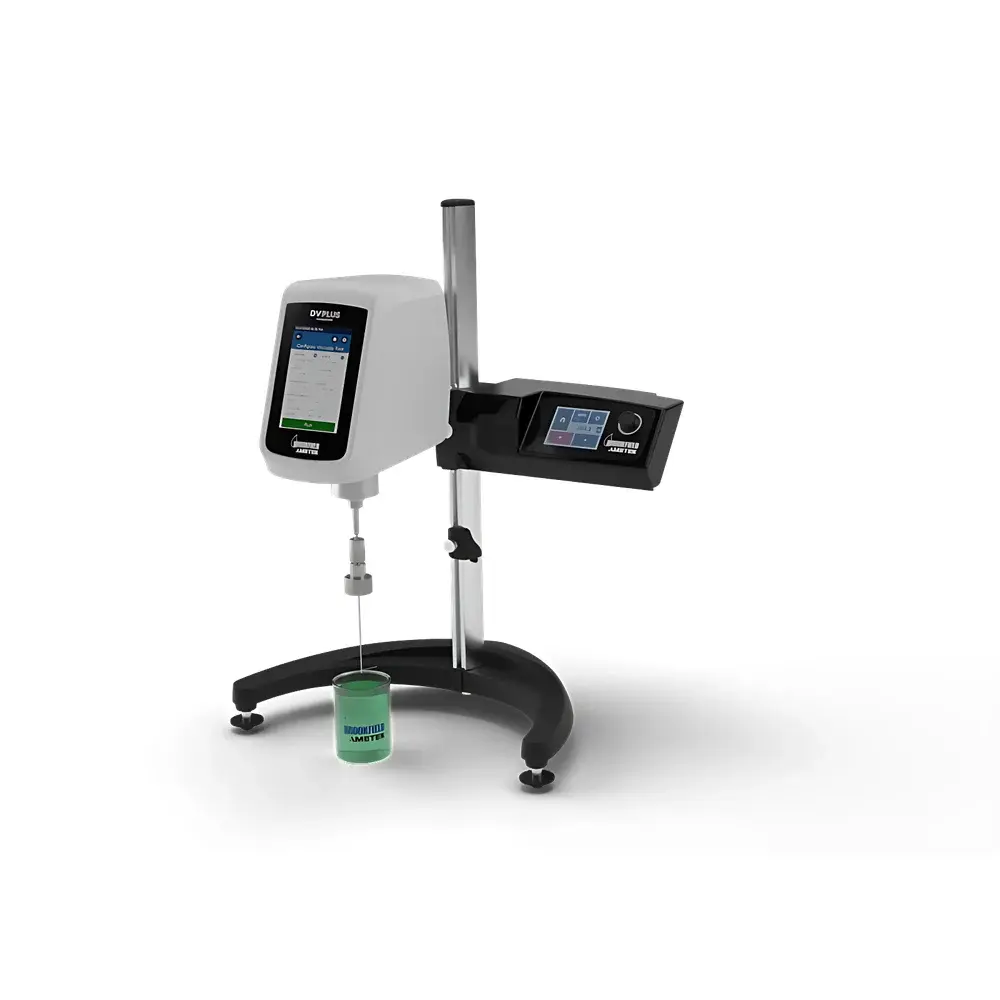

• Modular mounting architecture compatible with all Brookfield DVNext, DV2T, and RST series rheometers and viscometers via standard L-bracket interface
• Rugged aluminum alloy frame with corrosion-resistant surface treatment, designed for continuous laboratory use under GLP/GMP-aligned workflows
• No manual height adjustment required—eliminates operator-induced variability and accelerates test setup turnaround time by up to 70% compared to manual lift stands

Sample Compatibility & Compliance

The HPQA is specifically optimized for samples exhibiting pronounced thixotropy, yield stress, or structural recovery—such as pharmaceutical ointments, cosmetic emulsions, battery electrode slurries, dental impression materials, and industrial sealants. Its helical trajectory ensures consistent renewal of un-sheared material at the measurement zone, directly addressing ISO 16520-1 (rheology of structured fluids) and ASTM D2196 (viscosity of non-Newtonian materials). When used in conjunction with Brookfield’s certified T-spindles (e.g., T-C, T-D, T-E), the system supports traceable calibration per ISO/IEC 17025-accredited procedures. The device meets CE marking requirements for electrical safety (EN 61000-6-2/6-3) and carries RoHS compliance certification. Its control firmware supports audit trail logging and user access levels—facilitating compliance with FDA 21 CFR Part 11 for electronic records in regulated laboratories.

Software & Data Management

The HPQA integrates seamlessly with Brookfield’s Rheo3000 and ViscoQC software suites via RS-232 or USB virtual COM port. All lift parameters—including target height, dwell time, ascent/descent velocity, and cycle count—are fully scriptable within test methods. Software-generated reports include synchronized torque, rotational speed, and vertical position timestamps, enabling post-hoc correlation of structural breakdown kinetics with axial displacement. Data export conforms to ASTM E1447-compliant CSV format, supporting integration into LIMS platforms. Firmware updates are delivered via secure HTTPS endpoint, and configuration backups can be stored locally or on network drives—ensuring version control and method integrity across multi-user installations.

Applications

• Quality control of semi-solid pharmaceutical formulations (creams, gels, suppositories) per USP monographs
• Process development of lithium-ion battery cathode slurries, where homogeneity and dispersion stability dictate coating performance
• Evaluation of architectural coatings for sag resistance and leveling behavior under simulated application shear profiles
• Characterization of food-grade hydrocolloid systems (e.g., pectin gels, starch pastes) during thermal ramping or storage stability studies
• Research into soft matter physics—quantifying yield strain evolution and structural memory in colloidal glasses and wormlike micellar solutions

FAQ

Is the HPQA compatible with non-Brookfield rheometers?
Yes—mechanical mounting is adaptable via custom adapter plates; however, full functional integration (speed synchronization, position-triggered data capture) requires Brookfield instrument firmware and communication protocol support.
Can the HPQA perform automated multi-height viscosity profiling?
Yes—users can define up to 16 discrete height positions per method, each with independent speed and dwell settings, enabling stratified rheological mapping of layered or sedimenting samples.
What maintenance is required for long-term operational reliability?
Annual verification of motor encoder linearity and joystick potentiometer calibration is recommended; no lubrication or consumable parts are required under normal operating conditions.
Does the HPQA support GLP-compliant electronic signatures?
When deployed with Rheo3000 v4.2+ and configured with role-based user accounts, it supports 21 CFR Part 11-compliant electronic signatures, audit trails, and data immutability controls.
How is thermal drift compensated during extended helical tests?
The system does not incorporate active temperature control; users must stabilize sample temperature externally (e.g., using Brookfield TC-650 AP or equivalent Peltier bath) prior to initiating HPQA motion.
