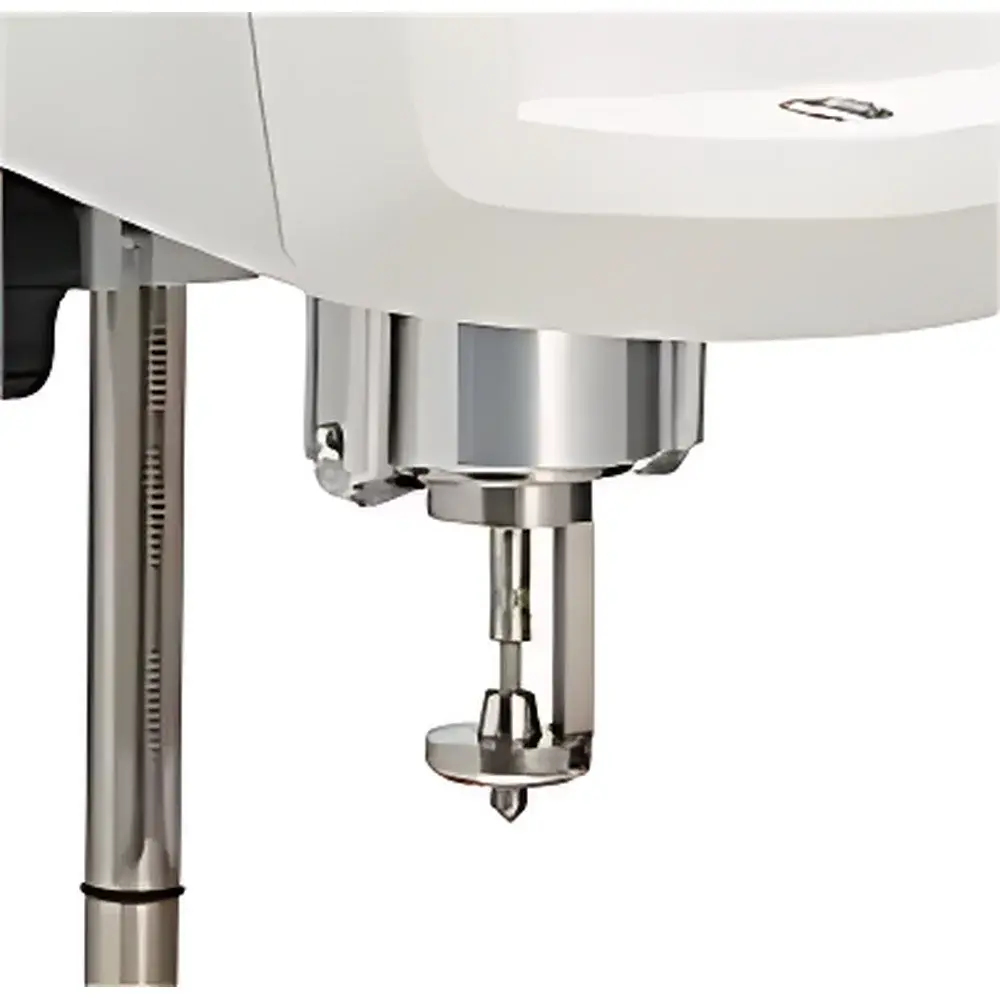

Brookfield Spiral Adapter for Viscometers and Rheometers

Overview

The Brookfield Spiral Adapter is a precision-engineered geometry accessory designed for rotational viscometers and rheometers to enable reliable, standardized measurement of highly structured, non-Newtonian fluids—particularly those exhibiting pronounced pseudoplasticity, thixotropy, or yield stress behavior. Unlike conventional spindles, the Spiral Adapter operates on the principle of controlled helical flow, generating a well-defined shear field across the sample volume while minimizing wall slip and particle settling effects. This geometry is especially suited for suspensions, pastes, gels, and high-viscosity emulsions where conventional spindle geometries yield inconsistent torque response or poor sample retention. The adapter is fully compatible with Brookfield’s full portfolio of digital viscometers and rheometers—including the DVNext Advanced Rotational Rheometer, DV3T Rheometer, and CAP2000+ Cone & Plate systems—enabling seamless integration into existing laboratory workflows without hardware modification.

Key Features

• Helical geometry optimized for enhanced sample retention and uniform shear distribution in structured fluids
• Direct compatibility with all Brookfield standard viscometer and rheometer models via standard quick-coupling interface
• Validated repeatability of ±2% under controlled temperature and rotational speed conditions per ASTM D2196 and ISO 2555
• Material construction: anodized aluminum body with stainless steel spiral element—corrosion-resistant and autoclavable for regulated environments
• No recalibration required when switching between standard spindles and Spiral Adapter; instrument auto-detects geometry via firmware recognition (DV3T/DVNext)
• Enables direct determination of apparent viscosity at multiple shear rates through programmable ramp and step-shear protocols

Sample Compatibility & Compliance

The Spiral Adapter supports routine characterization of materials including pharmaceutical ointments (per USP ), food pastes (e.g., tomato concentrate, mustard), battery electrode slurries, ceramic green bodies, and polymer melts. Its geometry mitigates common artifacts associated with yield-stress materials—such as wall slip, edge fracture, and elastic recoil—thereby improving data fidelity for QC release testing and formulation development. The adapter complies with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) documentation requirements when used with Brookfield instruments equipped with 21 CFR Part 11–compliant software (e.g., Rheo3000 v4.2+). Traceable calibration certificates are available upon request, aligned with NIST-traceable standards.

Software & Data Management

When paired with Brookfield’s Rheo3000 or ViscoQC software suite, the Spiral Adapter enables automated shear sensitivity index (SSI) calculation—a dimensionless parameter quantifying viscosity change across defined shear rate intervals. Software-driven protocols support time-sweep thixotropy recovery analysis, hysteresis loop generation, and real-time viscosity vs. shear rate curve fitting using Power Law or Herschel-Bulkley models. All raw torque, speed, temperature, and time-stamped metadata are stored in .csv and .rheo binary formats, supporting audit-ready export for regulatory submissions. Optional GLP audit trail logging captures user ID, method version, calibration status, and environmental conditions for each test sequence.

Applications

• Pharmaceutical: Quantifying thixotropic recovery of topical gels and suspensions for bioequivalence assessment
• Food Science: Evaluating structural breakdown in ketchup, mayonnaise, and dairy-based spreads under simulated dispensing conditions
• Electronics Manufacturing: Monitoring rheological stability of conductive silver pastes during screen printing process validation
• Coatings & Inks: Assessing sag resistance and leveling behavior of high-solids architectural paints
• Academic Research: Investigating structure–property relationships in colloidal gels and biopolymer networks

FAQ

Is the Spiral Adapter compatible with older Brookfield models such as the DV-II+ Pro?
Yes—the adapter functions mechanically with all Brookfield viscometers equipped with the standard ULA (Universal Low-Angle) coupling; however, advanced features like auto-geometry recognition and SSI calculation require firmware v3.1+ (available on DV3T, DVNext, and CAP2000+ platforms).
Can it be used for yield stress estimation?
While not a dedicated yield stress geometry, the Spiral Adapter provides robust low-shear-rate viscosity data that—when combined with Herschel-Bulkley regression in Rheo3000—supports empirical yield stress approximation for quality control screening.
What cleaning protocol is recommended between samples?
Rinse thoroughly with compatible solvent (e.g., isopropanol for organic systems; deionized water for aqueous formulations), followed by air-drying or low-temperature oven drying (<60°C); avoid ultrasonic cleaning to preserve geometric tolerance.
Does Brookfield provide application-specific validation protocols?
Yes—application notes covering ASTM D1475-compliant paint viscosity, USP -aligned gel testing, and ISO 16520-1 paste rheology are available through Brookfield’s Technical Support Portal (access requires registered instrument serial number).
