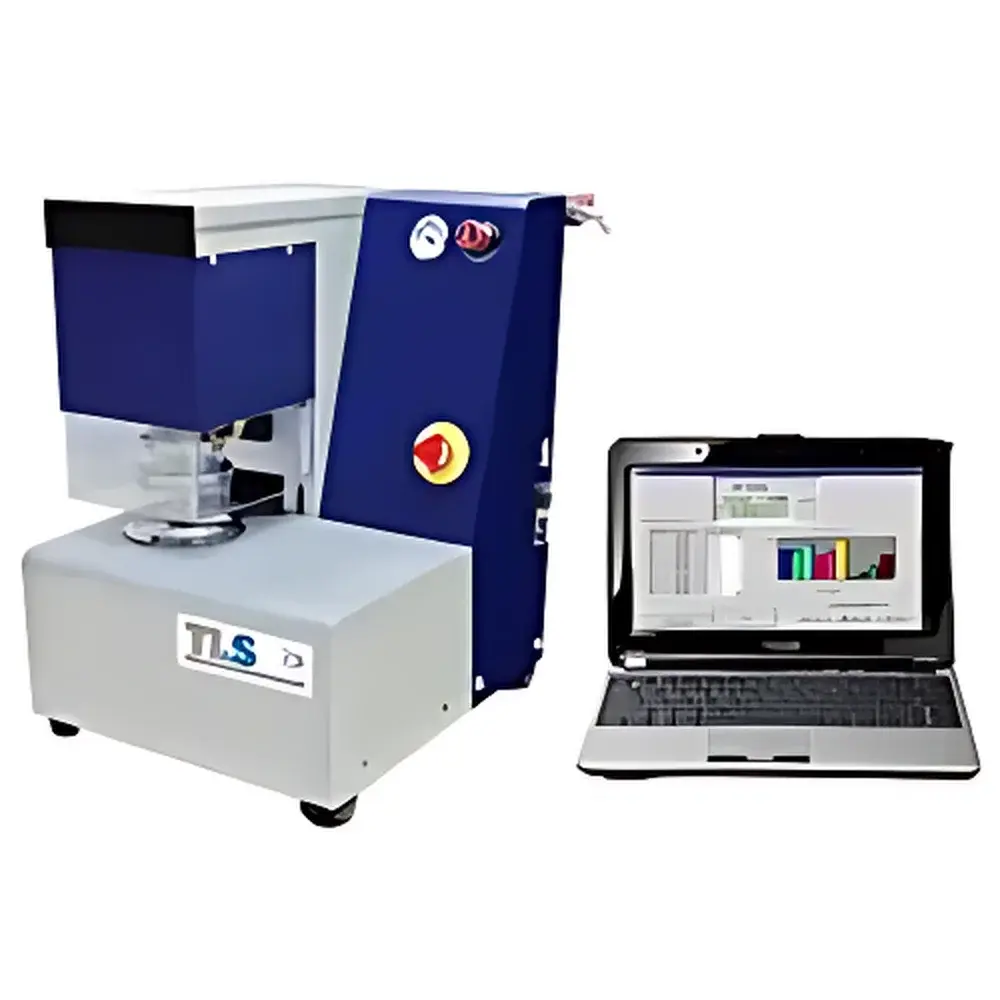

Brookfield TLS T-5333 Burst Strength Tester

Overview

The Brookfield TLS T-5333 Burst Strength Tester is a precision-engineered instrument designed for the quantitative determination of burst strength—the maximum uniform, perpendicular pressure a sheet of paper or paperboard can withstand before rupture—according to internationally recognized standards including ISO 2758, ISO 2759, TAPPI T403, and ASTM D726. It operates on the fundamental principle of hydraulic (or pneumatic-assisted hydraulic) diaphragm expansion: a clamped specimen is subjected to gradually increasing fluid pressure beneath a flexible rubber diaphragm until failure occurs. The instrument measures the peak pressure (in kPa) at rupture, which is directly reported as burst strength. Engineered for laboratory-grade reproducibility and long-term mechanical stability, the T-5333 integrates a high-fidelity pressure transducer, zero-drift clamping mechanism, and calibrated hydraulic circuitry to ensure traceable, repeatable results across shifts and operators.

Key Features

• Compliant dual-clamp system with adjustable torque control ensures consistent specimen seating and eliminates edge slippage during pressurization.
• High-resolution digital pressure sensor with ±0.5% full-scale accuracy and real-time analog output for external data logging.
• Automated pressure ramping profile (programmable rate: 95–115 kPa/s per ISO 2758), minimizing operator influence on test dynamics.
• Integrated burst strength calculation engine automatically converts raw pressure readings into standardized burst index (kPa·m²/g) when grammage is entered.
• Rugged cast-aluminum frame with corrosion-resistant surface treatment, rated for continuous operation in QC lab environments (20–25°C, 40–60% RH).
• Front-panel LED display with intuitive menu navigation; supports English-language UI and unit switching (kPa / psi / kgf/cm²).

Sample Compatibility & Compliance

The T-5333 accommodates standard test specimens measuring 100 mm × 100 mm (ISO/TAPPI) or 145 mm × 145 mm (optional large-area clamp kit). It is validated for use with all common paper grades—including newsprint, corrugating medium, linerboard, kraft packaging, coated offset, and tissue—and accepts basis weights from 40 g/m² to 500 g/m². All mechanical and electronic components meet CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). Test reports generated by the instrument satisfy audit requirements for ISO/IEC 17025-accredited laboratories and support GLP documentation workflows. Optional calibration certificate (traceable to NIST or PTB standards) is available upon request.

Software & Data Management

While the T-5333 operates as a standalone benchtop instrument, its RS-232 and optional USB-C interface enable bidirectional communication with third-party LIMS or QA software platforms. Raw pressure vs. time datasets (sampled at 100 Hz) can be exported in CSV format for post-test analysis in MATLAB, Python (Pandas), or Minitab. The firmware includes built-in audit trail functionality: each test record stores timestamp, operator ID (user-defined), calibration date, clamp torque setting, and environmental conditions (if connected to optional ambient sensor module). Data integrity complies with FDA 21 CFR Part 11 requirements when deployed with validated user access controls and electronic signature protocols.

Applications

• Quality assurance of incoming pulp and recycled fiber lots prior to paper machine startup.
• Process optimization in paper mills—correlating burst strength with refining degree, filler loading, and wet-end chemistry.
• Package development for e-commerce shipping—validating carton board resistance to stacking and handling stresses.
• Regulatory submission support for food-contact paperboard (e.g., compliance with EU Regulation No. 10/2011 Annex I migration testing prerequisites).
• Research into fiber network reinforcement mechanisms, including nanocellulose or lignin-based additives.
• Supplier qualification audits requiring objective, non-destructive (pre-burst) tensile-to-burst ratio trending.

FAQ

What standards does the T-5333 comply with?
ISO 2758, ISO 2759, TAPPI T403, ASTM D726, and GB/T 454—all verified via factory-installed calibration routines.
Can the instrument test corrugated board?
Yes, using the optional double-faced clamp adapter (part no. TLS-ADP-CB); flat crush resistance must be measured separately per ISO 3037.
Is manual zeroing required before each test?
No—the system performs automatic zero compensation during the pre-clamp phase, eliminating drift-related baseline errors.
How often should calibration verification be performed?
Daily verification with certified reference discs (included) is recommended; full recalibration every 6 months or after 500 tests, whichever occurs first.
Does the T-5333 support multi-language firmware?
English and Spanish language packs are preloaded; additional languages require firmware update through authorized TLS service centers.
