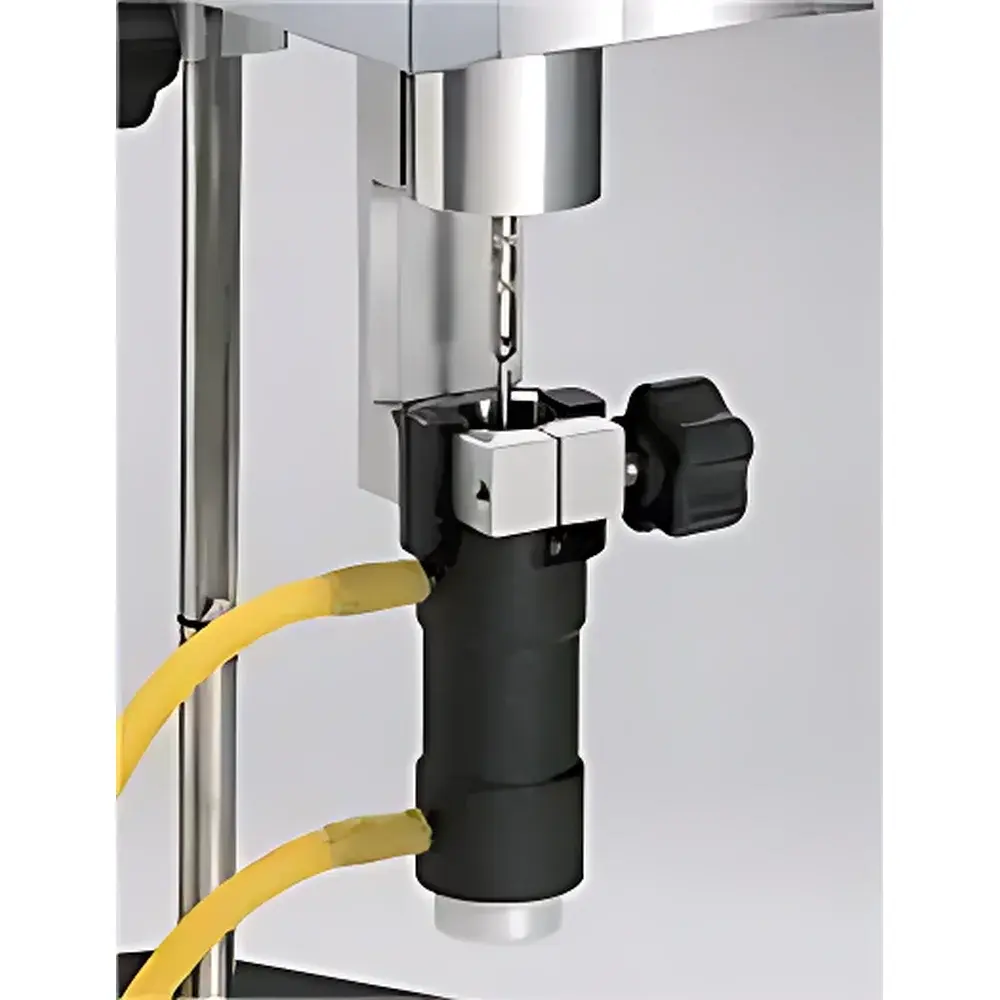

Brookfield ULA Ultra-Low Viscosity Adapter for DV Series and DVNext Rheometers

Overview

The Brookfield ULA (Ultra-Low Viscosity Adapter) is an engineered mechanical interface designed to extend the low-end viscosity measurement capability of Brookfield rotational viscometers—including the DV-I, DV-II, DV-III, and DVNext platforms—into the sub-10 cP regime. It operates on the principle of controlled Couette flow between a rotating cylindrical spindle and a concentric, stationary sample cup. Unlike standard spindle geometries that rely on torque generation in higher-viscosity fluids, the ULA leverages increased surface area interaction and reduced gap geometry to enhance sensitivity at low shear stress levels. This enables reproducible quantification of Newtonian and mildly non-Newtonian fluids such as solvents, thin coatings, ink carriers, pharmaceutical suspensions, and aqueous polymer solutions where conventional LV spindles reach their detection limit. The adapter is not a standalone instrument but a precision-machined accessory requiring calibration traceability through the host viscometer’s certified torque sensor and temperature-controlled environment.

Key Features

• Extends measurable viscosity range down to 1.0 cP (mPa·s), contingent upon host instrument model and spindle selection (e.g., LV spindles with ULA achieve lower limits than RV/HA configurations)
• Stainless steel construction ensures chemical resistance, dimensional stability, and compliance with laboratory cleaning protocols including autoclaving and solvent rinsing
• Modular bottom cap design supports either reusable stainless steel or disposable LDPE caps—reducing cross-contamination risk in QC environments handling volatile or reactive samples
• Ergonomic extended mounting nut and re-engineered bracket assembly provide improved hand-torque control during rotor installation and alignment
• Quick-release sample cup mechanism: loosening a single knob allows lateral sliding ejection of the cup without detaching the rotor from the viscometer shaft
• Integrated coaxial alignment system—comprising a rigid clamping ring, centering universal joint, and adjustable water bath jacket mount—ensures ≤0.1 mm radial runout and verticality within ±0.5° under operational load

Sample Compatibility & Compliance

The ULA accommodates homogeneous, low-sedimentation liquids with minimal particle loading (<5% v/v, <50 µm max particle size). It is routinely deployed in applications governed by ASTM D2196 (Standard Test Methods for Rheological Properties of Non-Newtonian Materials), ISO 2555 (Plastics — Dilute Solution Viscosity), and USP (Rheology). When used with temperature-controlled circulators and calibrated DVNext systems, the configuration supports GLP-compliant data acquisition per FDA 21 CFR Part 11 requirements when paired with compliant software (e.g., Rheo3000 or PC-based Brookfield software with audit trail enabled). The stainless steel components meet ISO 8573-1 Class 3 purity standards for compressed air–assisted cleaning cycles.

Software & Data Management

The ULA functions transparently within Brookfield’s native software ecosystem. When installed on DVNext instruments, it appears as a recognized geometry in the Rheo3000 interface, auto-applying appropriate shear rate and viscosity conversion algorithms based on selected spindle and cup dimensions. Real-time torque, speed, and temperature data are logged with timestamping, user ID tagging, and optional electronic signature workflows. Export formats include CSV, PDF reports (with embedded calibration certificates), and XML for LIMS integration. All raw data retains metadata linkage to instrument serial number, transducer calibration date, and geometry identification code—enabling full traceability in regulated manufacturing settings.

Applications

• Quality control of low-viscosity solvents (e.g., acetone, ethanol, THF) in fine chemical synthesis
• Rheological screening of inkjet ink carriers and UV-curable monomer blends prior to jetting trials
• Batch release testing of ophthalmic solutions and injectable vehicle formulations per USP monographs
• Process development of battery electrolyte formulations where ionic conductivity correlates with dynamic viscosity below 5 cP
• Stability assessment of nanofluid dispersions via time-dependent low-shear viscosity monitoring
• Validation of cleaning-in-place (CIP) rinse efficiency through residual solvent viscosity profiling

FAQ

Is the ULA compatible with all Brookfield viscometers?
The ULA is validated for use with LVT, DV-I+, DV-II+, DV-III+, and DVNext series instruments equipped with LV, RV, HA, or HB spindles. It is not compatible with CAP-series cone-and-plate systems or programmable rheometers lacking mechanical spindle-mounting interfaces.
What is the minimum sample volume required?
The standard configuration requires 16 mL of sample to fully immerse the rotor within the cup geometry. Reduced-volume variants are not offered; underfilling compromises shear field uniformity and invalidates calibration.
Can the ULA be used in temperature-controlled measurements?
Yes—when paired with Brookfield’s SC4-18 or SC4-27 temperature jackets, the ULA maintains thermal equilibrium across the cup wall. Jacket alignment is secured via the integrated clamping ring, ensuring axial concentricity even during thermal expansion cycles.
Does the ULA require recalibration when switching between instruments?
No recalibration is performed on the ULA itself. However, the host viscometer must undergo full torque calibration prior to ULA deployment, and spindle identification must be confirmed in software to apply correct geometric constants.
Is the LDPE bottom cap supplied with the ULA?
The LDPE cap is an optional accessory (Part No. ULA-LDPE-CAP), sold separately. Standard delivery includes stainless steel bottom cap and mounting hardware only.
