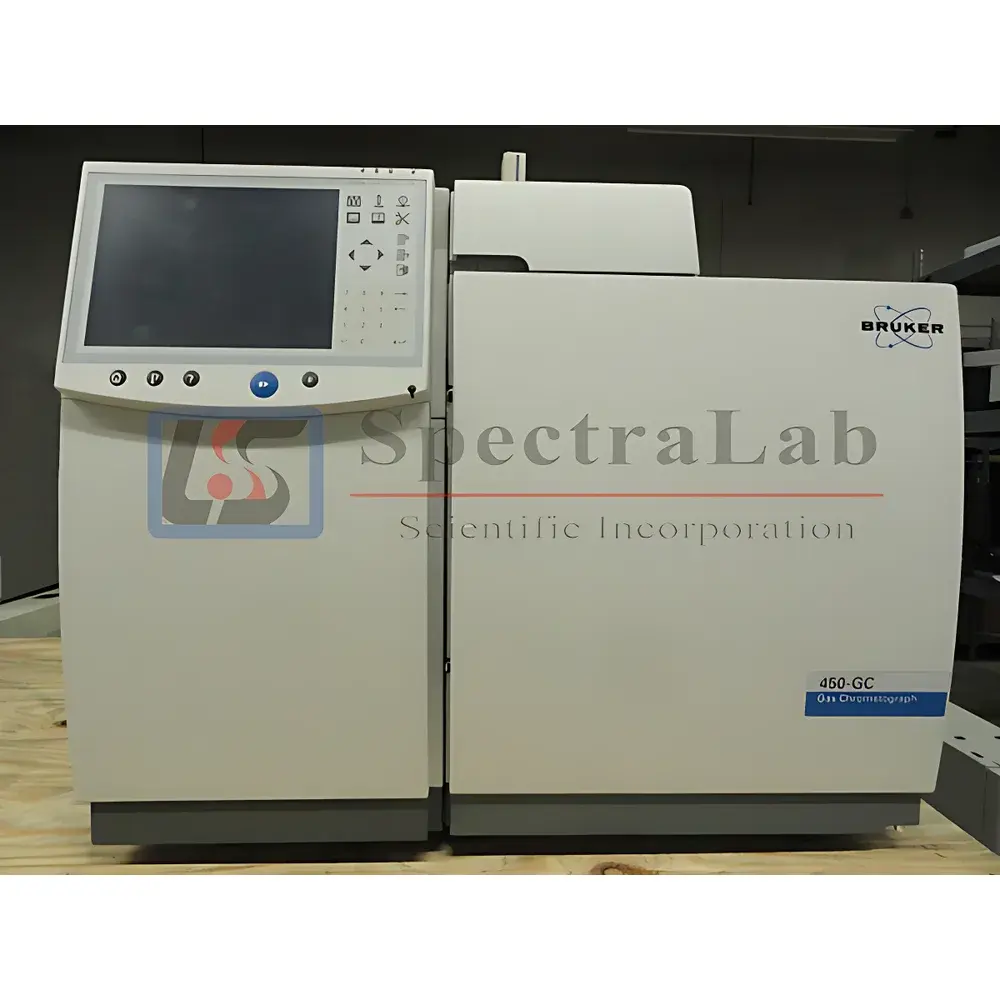

Bruker 450 GC System
| Brand | Bruker |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | 450 GC |
| Product Category | Chromatography |
| Operational Age | 3–4 Years |
| Warranty | 6 Months |
| Condition | Refurbished & Fully Tested |
Overview
The Bruker 450 GC is a high-performance, benchtop gas chromatography system originally engineered by Bruker Daltonics (Canada) for routine and research-grade volatile and semi-volatile compound analysis. Built on a robust, modular architecture, the 450 GC integrates a precision temperature-controlled oven, programmable electronic pressure control (EPC) for carrier gas flow management, and compatibility with a broad range of detection technologies—including flame ionization detection (FID), thermal conductivity detection (TCD), and electron capture detection (ECD). Its core measurement principle relies on differential partitioning of analytes between a mobile gas phase (helium, hydrogen, or nitrogen) and a stationary phase coated inside a fused-silica capillary column. Separation resolution is governed by column chemistry, temperature ramp profiles, and carrier gas linear velocity—parameters precisely regulated via Bruker’s proprietary GC control firmware. Designed for laboratory environments requiring regulatory compliance and method reproducibility, the 450 GC supports method transfer from legacy Bruker systems and interoperates with standard chromatographic data systems (CDS) through ASTM E1987-compliant instrument drivers.
Key Features
- Stable, low-drift oven temperature control (±0.01 °C stability over 30 min at 250 °C)
- Electronic pressure control (EPC) with dual-channel capability for split/splitless injection and column backflush configurations
- Compatible with standard 0.1–0.53 mm ID fused-silica columns up to 60 m length
- Integrated auto-sampler interface supporting 100+ vial capacity (optional, not included in base configuration)
- Modular detector bays enabling field-upgradable detection options without system downtime
- Pre-calibrated pneumatic modules verified per ISO/IEC 17025 traceable procedures during refurbishment
Sample Compatibility & Compliance
The Bruker 450 GC is validated for analysis of environmental samples (e.g., EPA Method 8260D VOCs), petrochemical fractions (ASTM D3606, D5186), pharmaceutical residual solvents (ICH Q3C), and food safety volatiles (AOAC 2012.01). All refurbished units undergo full functional validation per Bruker’s Factory Acceptance Test (FAT) protocol, including retention time reproducibility (<0.02 min RSD, n=10 injections), peak area precision (<1.5% RSD), and baseline noise verification (<0.05 pA @ 1 s time constant). Systems are supplied with documentation packages aligned with GLP and GMP audit requirements—including calibration certificates, test reports, and maintenance logs. While not pre-configured for 21 CFR Part 11 compliance, the platform supports integration with compliant CDS software (e.g., Chromeleon, OpenLab CDS) when deployed with appropriate user access controls and electronic signature workflows.
Software & Data Management
The Bruker 450 GC operates with Bruker’s Compass GC software (v2.5 or later), providing intuitive method development, real-time chromatogram visualization, peak integration using iterative tangent skim algorithms, and customizable report templates. Raw data files (.baf format) are structured for long-term archival and comply with FAIR data principles (Findable, Accessible, Interoperable, Reusable). The system exports ASCII (.csv) and AIA/ANDI formats for cross-platform data exchange. During refurbishment, all firmware is updated to the latest production release, and software licenses are re-validated for perpetual use under Bruker’s refurbished instrument support policy. Audit trail functionality—including user login history, method modification timestamps, and sequence execution logs—is enabled and configurable per laboratory SOP requirements.
Applications
- Environmental monitoring: Quantification of BTEX, chlorinated hydrocarbons, and PAHs in soil/water extracts
- Quality control of industrial solvents and polymer additives per ISO 10528 and ASTM D2369
- Residual solvent testing in active pharmaceutical ingredients (APIs) and excipients
- Fatty acid methyl ester (FAME) profiling in biodiesel feedstocks (EN 14103)
- Flavor and fragrance compound profiling in essential oils and beverages
- Forensic toxicology screening for volatile drugs of abuse (e.g., ethanol, acetone, isopropanol)
FAQ
Is this instrument covered by Bruker’s original factory warranty?
No—the 450 GC is sold as a refurbished unit with a 6-month limited hardware warranty administered directly by SpectraLab Scientific.
Has the system undergone full performance qualification (PQ)?
Yes—each unit completes a comprehensive PQ protocol covering injector linearity, detector sensitivity (e.g., <5 pg C/sec for FID), column bleed profile, and retention index stability before shipment.
Can I integrate this GC with my existing LIMS or CDS platform?
Yes—the system includes standard RS-232, Ethernet, and USB interfaces and supports ASTM E1987 and ASTM E2500 communication protocols for seamless integration.
Are consumables and spare parts still available?
Yes—Bruker continues to supply OEM columns, septa, liners, and detector components globally; third-party alternatives meeting ASTM D6299 specifications are also widely supported.
Does the refurbishment include replacement of critical wear items?
Yes—injector seals, column nuts, detector filaments (for TCD/FID), and oven insulation are replaced; GC oven heaters and EPC modules are functionally tested and certified.
