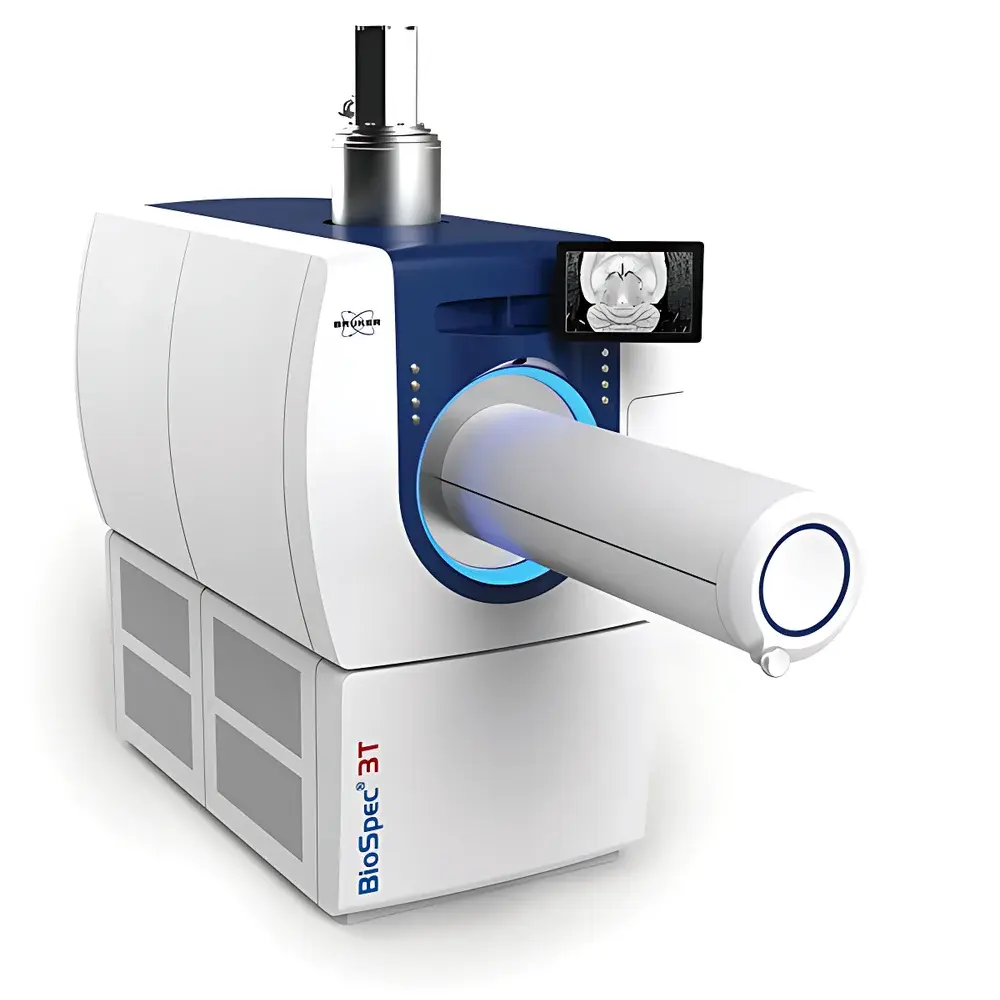

Bruker BioSpec® 3T Preclinical MRI System

Overview

The Bruker BioSpec® 3T Preclinical MRI System is a cryogen-free, high-performance magnetic resonance imaging and spectroscopy platform engineered specifically for small-animal in vivo research. Operating at a stable 3 Tesla field strength, it bridges the functional and anatomical imaging capabilities between low-field (e.g., 1T) systems and ultra-high-field (>7T) instruments—delivering optimal signal-to-noise ratio (SNR), spatial resolution, and spectral fidelity without the operational complexity of liquid helium dependency. Its self-shielded, compact magnet architecture (180 mm bore) enables installation in standard laboratory spaces without dedicated RF shielding rooms or quench pipe infrastructure. The system employs permanent magnet technology combined with active shim and gradient subsystems, ensuring field stability and homogeneity (±0.1 ppm within a 50 mm diameter spherical volume) critical for quantitative MRI and MRS applications such as diffusion tensor imaging (DTI), dynamic contrast-enhanced (DCE) MRI, and ¹H/¹³C/³¹P metabolic profiling.

Key Features

• Cryogen-free 3T superconducting magnet with >4-hour passive hold time following power or cooling failure—eliminating routine liquid helium refills and associated safety and logistical constraints.
• Integrated MRICryoProbe™ low-temperature RF receiver technology, delivering up to 3× SNR improvement over conventional room-temperature coils for enhanced detection sensitivity in neuroimaging and metabolic studies.
• Modular RF coil ecosystem comprising over 30 application-specific probes—including phased-array head coils, cardiac gating-compatible body coils, and multinuclear (e.g., ¹⁹F, ²³Na) configurations—optimized for murine and rat models across brain, heart, abdomen, and orthotopic tumor studies.
• High-fidelity gradient system (900 mT/m maximum amplitude, ±3.5% linearity in 50 mm DSV) enabling sub-100 µm isotropic resolution in structural imaging and robust diffusion-weighted acquisitions.
• ParaVision® 360 software platform with >1000 experimentally validated pulse sequences—including IntraGate™ for motion-robust cardiac imaging without ECG leads, ultrashort echo time (UTE/ZTE) sequences for short-T₂ tissue contrast, and advanced spectroscopic localization techniques (e.g., PRESS, STEAM, LASER).
• Touchscreen-enabled animal positioning system with automated multi-stage scanning and whole-body coverage—reducing setup variability and improving inter-scan reproducibility in longitudinal studies.

Sample Compatibility & Compliance

The BioSpec® 3T accommodates live mice (15–35 g) and rats (200–500 g) under isoflurane anesthesia with integrated physiological monitoring (respiratory gating, temperature control, ECG). Its 180 mm bore provides unobstructed access for stereotactic holders, infusion pumps, and multimodal integration (e.g., simultaneous PET-MRI via compatible gantry interfaces). The system complies with IEC 61000-6-3 (EMC) and IEC 61000-6-4 emission standards. While not a medical device, its hardware and software architecture support GLP/GMP-aligned workflows: ParaVision® optionally integrates with electronic lab notebook (ELN) systems and offers configurable audit trails, user access controls, and 21 CFR Part 11–compliant electronic signatures when deployed with validated IT infrastructure.

Software & Data Management

ParaVision® serves as the unified acquisition, reconstruction, and analysis environment. It supports DICOM export (including enhanced MR format), NIfTI conversion, and vendor-neutral data archiving. Built-in tools include automated brain extraction (BET), DTI tensor fitting, pharmacokinetic modeling (Tofts, Patlak), and spectral quantification (LCModel, jMRUI). Batch processing pipelines enable high-throughput analysis across longitudinal cohorts. Data integrity is maintained through version-controlled sequence libraries, metadata-rich acquisition logs, and checksum-verified raw data storage. Optional Bruker BioSpec Connect enables remote monitoring, queue management, and centralized license administration across multi-system facilities.

Applications

The BioSpec® 3T supports a broad spectrum of translational research domains: oncology (orthotopic tumor growth, anti-angiogenic therapy response), neuroscience (ischemic stroke evolution, neurodegeneration biomarkers), cardiology (myocardial infarction remodeling, stem cell engraftment), metabolism (hepatic steatosis, pancreatic β-cell function), and developmental biology (embryonic organogenesis). Its multinuclear capability facilitates ³¹P MRS for energy metabolism assessment and ¹⁹F MRI for cell tracking using perfluorocarbon-labeled immune cells. Combined with PET or bioluminescence imaging, it enables cross-modal validation of molecular targets and pharmacodynamic endpoints.

FAQ

Is the BioSpec® 3T certified for use in regulated GLP studies?
Yes—when configured with validated ParaVision® modules and operated within a documented quality management system, it meets core GLP requirements for instrument qualification (IQ/OQ/PQ), data traceability, and electronic record integrity.
Does the system require external RF shielding?
No—the self-shielded magnet design eliminates the need for a dedicated RF cage, significantly reducing facility modification costs and permitting installation in standard laboratory environments.
Can the BioSpec® 3T perform functional MRI (fMRI)?
Yes—it supports BOLD fMRI in rodents using optimized EPI sequences with real-time motion correction and statistical parametric mapping (SPM)-compatible output formats.
What level of technical support does Bruker provide post-installation?
Bruker offers comprehensive global service coverage, including 24/7 hotline support, on-site application specialists, annual preventive maintenance, and customizable training programs—from basic operation to advanced pulse sequence programming and quantitative analysis.
Are third-party RF coils compatible with the BioSpec® 3T?
Only Bruker-manufactured RF coils are fully supported and guaranteed for performance, safety, and regulatory compliance; third-party coils may compromise image quality, gradient duty cycle limits, and system warranty terms.
