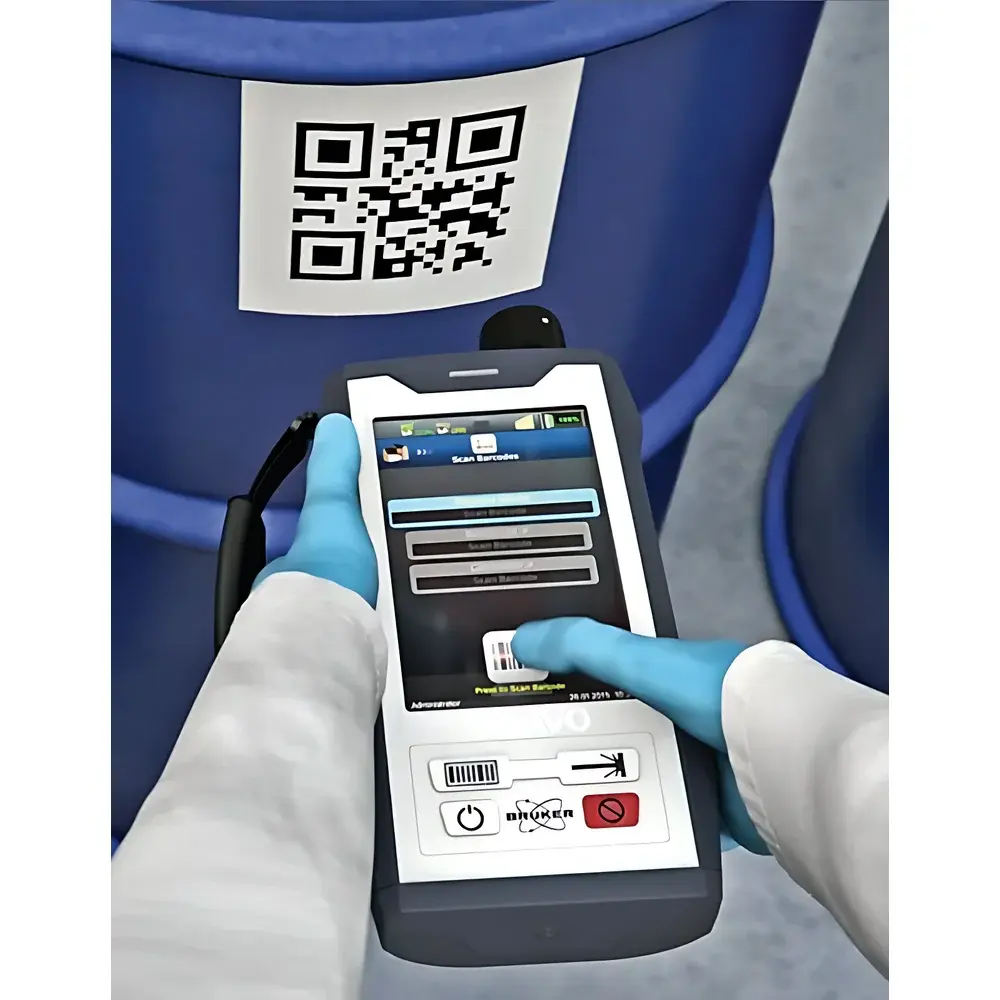

Bruker BRAVO Handheld Raman Spectrometer

Overview

The Bruker BRAVO Handheld Raman Spectrometer is an engineered solution for rapid, non-destructive, and regulatory-compliant raw material identification (RMI) in GMP, pharmaceutical, chemical, and logistics environments. Based on confocal dispersive Raman spectroscopy with dual-laser excitation (785 nm and 830 nm), the BRAVO delivers high-fidelity spectral data without requiring sample preparation, packaging removal, or laboratory relocation. Its optical architecture incorporates a thermally stabilized spectrograph, real-time neon-lamp-based wavenumber calibration, and patented Shifted Excitation Raman Difference Spectroscopy (SERDS) — enabling robust fluorescence suppression and reliable detection of weak Raman signals across the full 300–3200 cm⁻¹ range. Designed from inception for validation-driven workflows, the BRAVO meets stringent requirements for analytical instrument qualification (AIQ), including IQ/OQ/PQ documentation support and alignment with USP , ASTM E1840, and ISO/IEC 17025 frameworks.

Key Features

• Dual-Wavelength Excitation (785 nm / 830 nm): Optimizes signal-to-noise ratio across diverse chemical classes; mitigates resonance effects and photodegradation in sensitive APIs and excipients.
• Real-Time Wavenumber Calibration: Integrated neon lamp provides continuous spectral axis verification, ensuring long-term calibration stability (< ±0.5 cm⁻¹ drift over 8 hours at 25 °C).
• IntelliTip™ Automatic Probe Recognition: Detects and logs probe type (e.g., vial, pouch, tablet holder) upon physical connection—enforcing method-specific acquisition parameters and eliminating operator-dependent configuration errors.
• Class 1M Laser Safety Certification: Fully compliant with IEC 60825-1:2014 across all operational modes; no external eyewear, interlocks, or access restrictions required.
• Touch-Optimized UI with 17-Language Support: Intuitive icon-driven workflow navigation; context-sensitive guidance for method selection, measurement initiation, and pass/fail interpretation per USP criteria.
• Battery-Optimized Architecture: High-capacity Li-ion battery supports >4 hours of continuous spectral acquisition and wireless data transfer (Wi-Fi 5, Bluetooth 5.0) without thermal throttling.

Sample Compatibility & Compliance

The BRAVO accommodates solid, semi-solid, and liquid samples in original packaging—including HDPE/PP bottles, aluminum blisters, laminated pouches, and glass vials—without unpacking or contact. Its 1–2 mm laser spot enables targeted analysis of heterogeneous blends, coated tablets, or layered films. All firmware and software modules comply with FDA 21 CFR Part 11 requirements, including electronic signatures, audit trails (full timestamped action logs), role-based user permissions, and immutable data archiving. The system supports GxP-aligned validation packages, including risk assessments per ICH Q9 and traceability matrices mapped to ISO/IEC 17025:2017 clause 5.5.2.

Software & Data Management

BRAVO Control Software (v3.x) provides embedded spectral library creation, management, and search functionality. Users may build proprietary reference libraries with metadata tagging (batch ID, supplier, packaging format, storage condition), enforce spectral similarity thresholds (Cosine, Euclidean, or Correlation-based matching), and generate GLP-compliant PDF reports with embedded spectra, acquisition parameters, and analyst credentials. Data export supports ASTM E1346, JCAMP-DX v5.01, and CSV formats. Wireless synchronization with LIMS or ELN systems is supported via secure HTTPS API endpoints with TLS 1.2+ encryption.

Applications

• Pharmaceutical raw material identity testing per USP and Ph. Eur. 2.2.48
• In-process verification of excipient homogeneity during blending and granulation
• Counterfeit detection of active pharmaceutical ingredients (APIs) and finished dosage forms
• Chemical inventory screening in warehouse and receiving areas
• Forensic material identification in customs and border control operations
• Quality assurance of catalysts, polymers, and battery materials in R&D and production

FAQ

Does the BRAVO require annual recalibration by Bruker service engineers?
No—its self-calibrating neon lamp and factory-traceable wavelength reference eliminate scheduled recalibration; only periodic performance verification per internal SOP is recommended.
Can BRAVO spectra be imported into third-party chemometric platforms like MATLAB or Unscrambler?
Yes—JCAMP-DX and ASCII CSV exports preserve full spectral fidelity, including x-axis (cm⁻¹) and y-axis (intensity) metadata, enabling seamless integration with multivariate analysis toolkits.
Is spectral library sharing between multiple BRAVO units supported?
Yes—libraries are stored in encrypted, version-controlled .brl files; synchronized via secure network share or USB drive with automatic integrity checksum validation.
What environmental conditions affect measurement reproducibility?
Ambient temperature fluctuations > ±5 °C from calibration baseline may induce minor peak shift (< 1 cm⁻¹); the system includes ambient temperature compensation algorithms active during acquisition.
How does BRAVO handle samples with strong auto-fluorescence, such as herbal extracts or dyes?
SERDS technology acquires two offset spectra (Δλ = 0.3 nm) and computes their difference—effectively canceling broadband fluorescence while preserving narrow Raman bands, even in highly fluorescent matrices.
