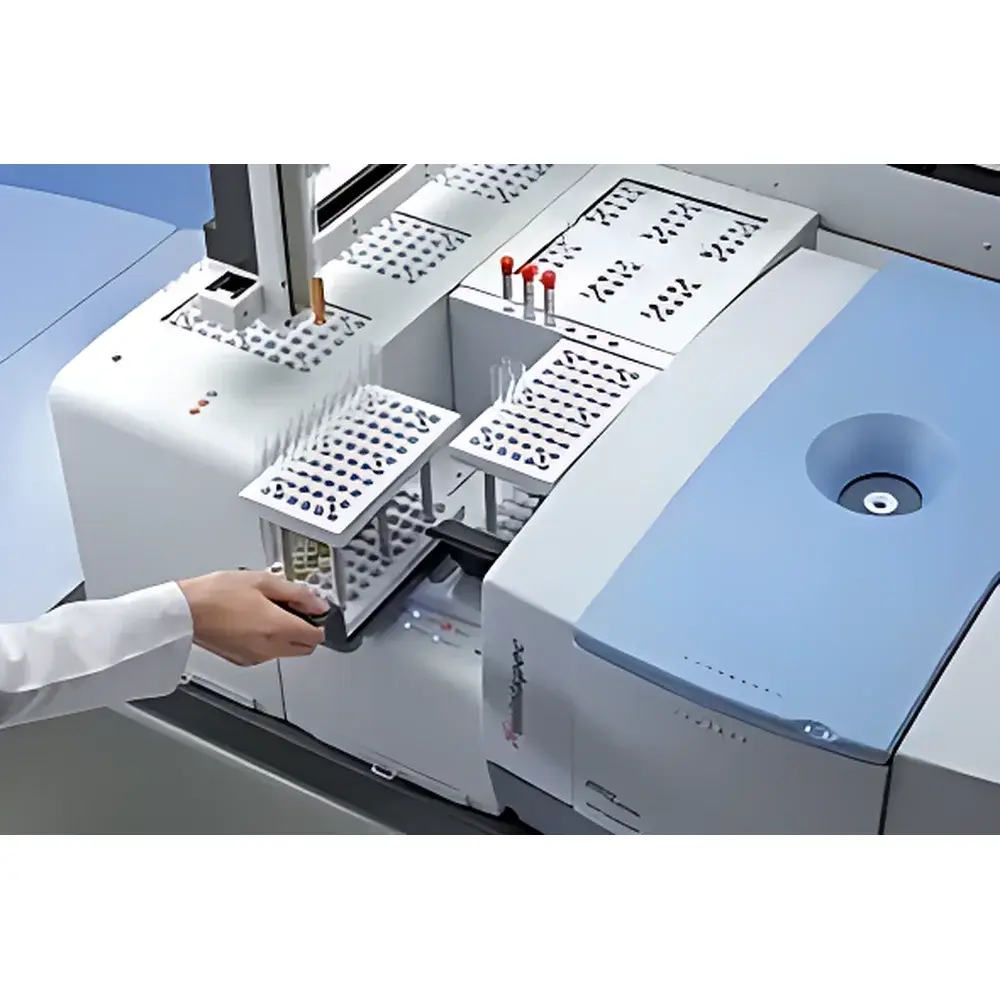

Bruker minispec Automation Sample Changer System
| Brand | Bruker |
|---|---|
| Origin | France |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | minispec Automation |
| Pricing | Upon Request |
Overview
The Bruker minispec Automation Sample Changer System is a purpose-built, modular automation solution engineered exclusively for time-domain nuclear magnetic resonance (TD-NMR) benchtop spectrometers — specifically the minispec mq and mq-one series. It implements precise robotic sample handling based on x-y-z motion control architecture to enable unattended, high-reproducibility measurements in routine quality control and research environments. Unlike generic liquid handlers or third-party robotics, this system integrates at the firmware and software level with Bruker’s proprietary pulse sequence engine and temperature-controlled measurement protocols. Its core function is to automate sequential sample loading, thermal equilibration (via Peltier-based heating/cooling), positional verification, and data acquisition triggering — all while maintaining strict compliance with internationally recognized TD-NMR methodology frameworks including ISO 16584 (fat content in food), AOAC 986.23 (SFC in cocoa butter), and ASTM D7900 (solid fat content by NMR). Designed for operational robustness in regulated laboratories, the system supports GLP-compliant audit trails, method versioning, and electronic signature-ready workflows.
Key Features
- Integrated x-y-z robotic sample changer mounted on a vibration-damped, TÜV-certified mechanical platform
- Peltier-based heating/cooling module with ±0.1 °C temperature stability across 0–100 °C range; programmable up to six discrete setpoints per assay
- Dual-tray configuration support: independent input/output trays or combined dual-layer tray operation for SFC workflows
- Optional barcode reader for sample ID traceability and LIMS integration (GS1-128, Code 128, EAN-13 compatible)
- Position-sensing input/output racks with real-time status feedback to software (empty/full/occupied detection)
- CE- and UL-listed safety enclosure option featuring interlocked sliding door, emergency stop button, and light curtain compatibility
- Firmware-level synchronization between sample positioning, temperature ramping, and NMR pulse sequence initiation
Sample Compatibility & Compliance
The minispec Automation system accommodates standard 10–15 mm OD NMR tubes (e.g., Wilmad 528-PP, Bruker 300-0018) and custom SFC sample holders (e.g., 10 mL cylindrical vials with magnetic susceptibility-matched caps). It supports both solid and semi-solid matrices — including dairy fats, margarines, chocolate, polymers, and pharmaceutical excipients — without modification. All hardware and software components comply with IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emission), and EN 61010-1:2010 (safety requirements for electrical equipment). The system meets FDA 21 CFR Part 11 requirements when deployed with validated software configuration, including electronic signatures, audit trail logging, and role-based access control. Documentation packages include IQ/OQ protocols aligned with ISO/IEC 17025 and GMP Annex 11 expectations.
Software & Data Management
The minispec Automation Software is a Windows-native application built on .NET Framework 4.8, offering native integration with Bruker’s TopSpin-derived acquisition engine. It provides method-driven automation: users import existing mq/mq-one pulse sequences (e.g., SFC inversion-recovery, CPMG decay, single-point T₂), assign them to sample groups, and define priority queues. The software logs every action — tray insertion, temperature stabilization duration, NMR signal-to-noise ratio, and deviation flags — into a structured SQLite database with export to CSV, XML, or LIMS-compatible ASTM E1384 format. Real-time graphical displays include temperature vs. time plots with configurable alarm thresholds, automated water-bath calibration curves, and color-coded result annotation (green = within spec, yellow = warning, red = out-of-tolerance). Daily system self-check routines verify sensor calibration, motor homing accuracy, and heater response time — generating PDF reports timestamped with digital signatures.
Applications
- Solid Fat Content (SFC) analysis per ISO 8588, AOAC 986.23, and IDF 141:2018 standards
- Fat crystallinity profiling in confectionery and edible oils
- Moisture content quantification in powders, tablets, and lyophilized biologics
- Oil binding capacity in meat analogs and plant-based proteins
- Hydration dynamics in hydrogels and polymer networks
- Quality assurance of lubricants, greases, and elastomers
FAQ
Is the minispec Automation system compatible with legacy mq-series instruments?
Yes — it supports all mq and mq-one models manufactured from 2012 onward via RS-232 and Ethernet interfaces.
Can the system operate without the optional safety enclosure?
Yes, though TÜV certification applies only when the enclosure is installed; standalone operation requires local risk assessment per ISO 12100.
Does the software support multi-method scheduling within a single run?
Yes — users may assign different pulse sequences and temperature profiles to individual samples or batches in one queue.
What barcode symbologies are supported?
Code 128, GS1-128, EAN-13, UPC-A, and Interleaved 2 of 5; custom symbology integration available upon request.
Is remote monitoring possible?
Yes — the software includes HTTP API endpoints for status polling and event notification via RESTful calls; compatible with LabVantage and STARLIMS integrations.
