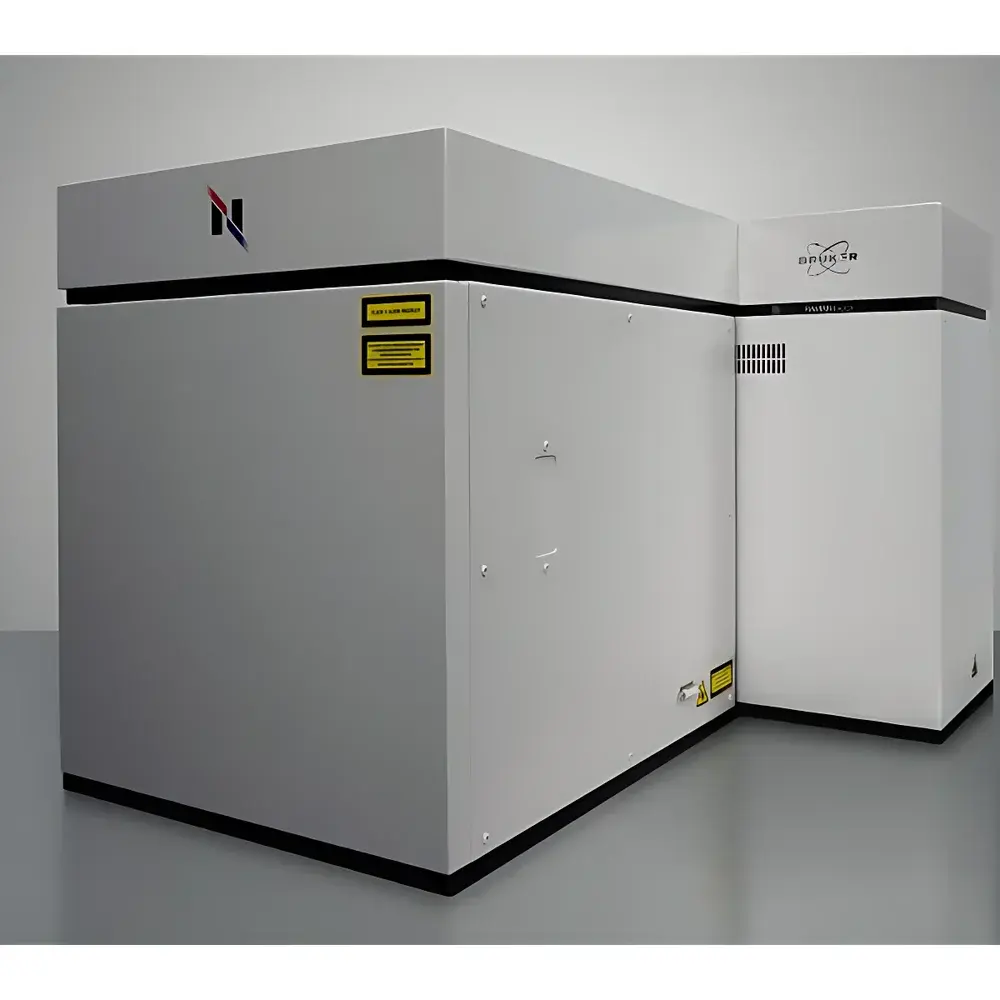

Bruker Nanophoton RAMANtouch Raman Microscope
| Brand | Bruker |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Nanophoton RAMANtouch |
| Instrument Type | Fourier Transform Raman Spectrometer |
| Spatial Resolution | 350 nm (X), 500 nm (Y), 1 µm (Z) |
| Detection Method | Line-illumination + 2D CCD Acquisition |
| Imaging Speed | Full-spectrum mapping of >100,000 pixels in minutes |
| Automation Level | Fully motorized stage, autofocus, auto-alignment, auto-calibration |
Overview
The Bruker Nanophoton RAMANtouch Raman Microscope is a high-performance, line-scanning confocal Raman imaging system engineered for quantitative chemical mapping at sub-micron spatial fidelity. Unlike conventional point-scanning or widefield Raman microscopes, the RAMANtouch employs a proprietary line-illumination optical architecture coupled with a scientific-grade 2D CCD detector—enabling simultaneous acquisition of 400 spectral channels per exposure without electron multiplication. This design eliminates the signal-to-noise trade-off inherent in EMCCD-based systems while preserving full spectral integrity (wavenumber accuracy ±0.2 cm⁻¹, spectral resolution ≤2 cm⁻¹ FWHM) and diffraction-limited spatial resolution. The system operates on standard 785 nm or optional 532 nm excitation lasers, with integrated notch filtering and thermoelectrically cooled CCD detection (−60 °C), ensuring high photon collection efficiency and low dark current. Its confocal geometry supports true 3D volumetric reconstruction, making it suitable for layered material analysis, pharmaceutical polymorph distribution, and semiconductor defect characterization under ambient or controlled atmosphere conditions.
Key Features
- Fully automated optical alignment and wavelength calibration—performed in <60 seconds without user intervention
- Motorized XYZ stage with piezo-driven Z-focus (1 nm step resolution) and integrated thermal drift compensation
- Real-time spectral registration during scanning to correct for laser wavelength drift and detector pixel shift
- Hardware-synchronized galvanometric mirror scanning for distortion-free raster mapping across fields up to 100 × 100 µm²
- Embedded spectral preprocessing engine: cosmic ray removal, baseline correction (asymmetric least squares), and fluorescence subtraction (iterative polynomial fitting)
- Modular laser port supporting dual-wavelength excitation (532 nm / 785 nm) with automatic filter switching and power stabilization (±0.5% RMS)
Sample Compatibility & Compliance
The RAMANtouch accommodates solid, thin-film, powder, and liquid samples mounted on standard 1″ × 3″ microscope slides or custom sample holders. It supports vacuum-compatible stages (optional) and integration with environmental chambers (temperature range: −196 °C to +400 °C). All firmware and control software comply with ISO/IEC 17025:2017 requirements for analytical instrument validation. Data acquisition logs include timestamped metadata (laser power, integration time, objective ID, grating position), satisfying audit-trail requirements per FDA 21 CFR Part 11 and GLP/GMP documentation standards. Spectral libraries are compatible with ASTM E1840-22 reference spectra for polymer identification and USP guidelines for pharmaceutical raw material verification.
Software & Data Management
Control and analysis are performed via the Bruker OPUS™ Raman Imaging Suite v8.5+, which provides native support for HDF5-based data storage (lossless compression, metadata embedding). The software enables batch processing of hyperspectral cubes using multivariate algorithms—including PCA, cluster analysis (k-means, hierarchical), and spectral unmixing (non-negative matrix factorization). Export formats include CSV (spectra), TIFF (intensity maps), and MRC (3D volume stacks) for interoperability with third-party platforms such as MATLAB, Python (scikit-learn, HyperSpy), and Thermo Scientific Avizo. All processing steps are scriptable via Python API, enabling integration into automated QC workflows and LIMS connectivity through OPC UA protocol.
Applications
- Pharmaceutical: Polymorph distribution mapping in tablet cross-sections; API-excipient interaction analysis; counterfeit drug screening
- Materials Science: Strain mapping in 2D materials (graphene, MoS₂); grain boundary chemistry in polycrystalline alloys; carbon nanotube chirality assignment
- Semiconductors: Dopant profiling in Si wafers; stress-induced Raman shifts in FinFET structures; contamination identification on photomasks
- Geology & Forensics: Mineral phase discrimination in thin sections; pigment identification in historical artwork; trace evidence analysis (e.g., paint chips, fibers)
- Life Sciences: Label-free cellular lipid droplet quantification; amyloid β aggregation kinetics in tissue sections; bacterial strain differentiation via spectral fingerprinting
FAQ
Does the RAMANtouch require EMCCD or ICCD detectors to achieve fast imaging?
No. The line-illumination + 2D CCD architecture eliminates dependence on intensified or electron-multiplying detectors while maintaining single-spectrum SNR > 1000:1 (at 1 s integration, 785 nm, 100 mW).
Can the system perform depth-resolved (3D) Raman tomography?
Yes. With motorized Z-stage and confocal pinhole optimization, it acquires serial optical sections with axial resolution of 1 µm, enabling volumetric reconstruction and layer-by-layer compositional analysis.
Is spectral calibration traceable to NIST standards?
Yes. Internal neon-argon hollow-cathode lamp provides daily auto-calibration traceable to NIST SRM 2241 (Raman shift standard), with certificate of calibration included per instrument shipment.
What level of technical support and service coverage is available outside Germany?
Bruker offers global service contracts including remote diagnostics, on-site preventive maintenance, and application-specific training—available in North America, EMEA, and APAC regions through authorized service centers certified to ISO 9001:2015.
