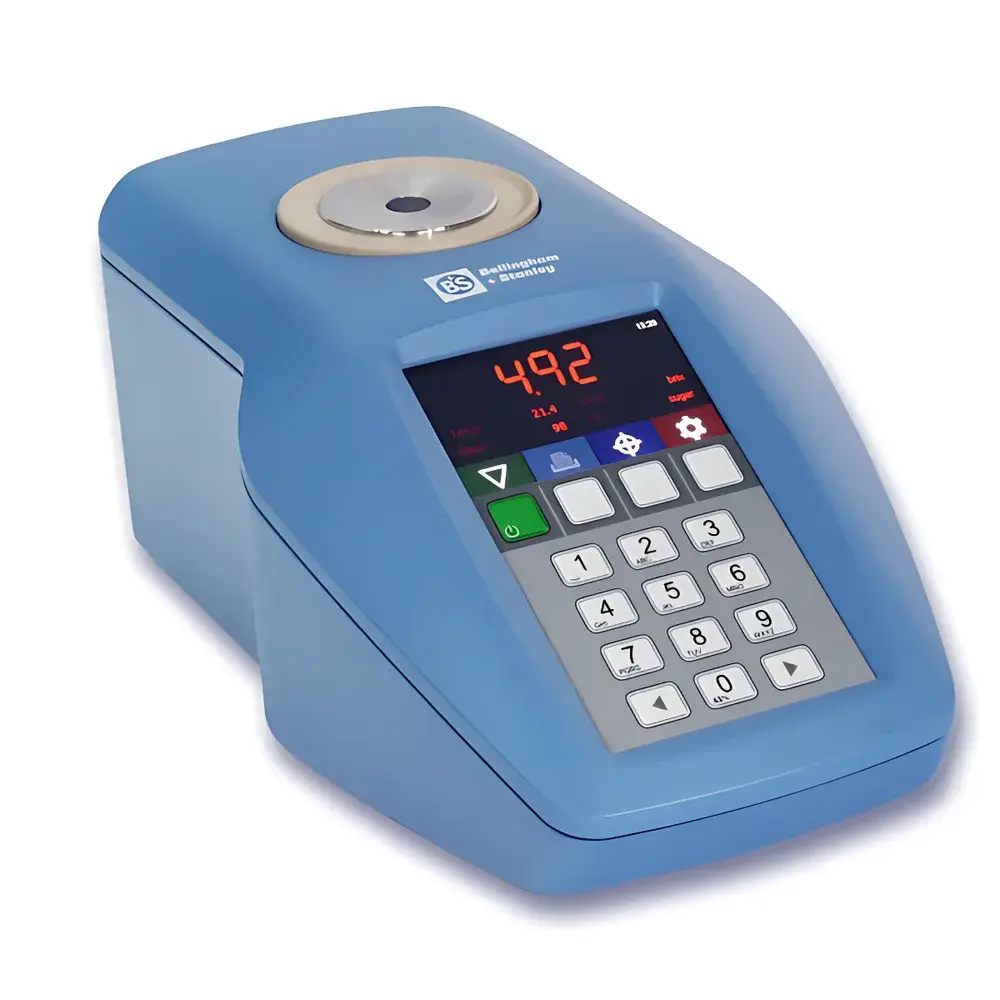

B+S RFM742-M(74F) Desktop Digital Refractometer

Overview

The B+S RFM742-M(74F) is a benchtop digital refractometer engineered for high-reproducibility optical measurement of refractive index (RI) and °Brix in non-temperature-critical applications. It operates on the principle of total internal reflection at the prism–sample interface, where incident light undergoes critical angle deviation proportional to the sample’s optical density. Unlike thermally regulated instruments, the RFM742-M(74F) employs an advanced AG (Automatic Gain) temperature compensation algorithm compliant with ICUMSA Method GS3/3-12, enabling accurate correction of raw RI readings to the standard reference temperature of 20 °C—without requiring built-in thermoelectric cooling or heating. This architecture prioritizes mechanical robustness, operational simplicity, and long-term calibration stability, making it suitable for routine quality control in food, beverage, sugar refining, pharmaceutical excipient testing, and industrial chemical screening where ambient temperature variation remains within acceptable process limits.

Key Features

• Sapphire prism mounted on corrosion-resistant stainless steel sample stage with integrated splash guard barrier—designed for rapid cleaning and protection against accidental overflow or environmental contamination
• 4-inch high-resolution color LCD display with adjustable brightness, supporting both classic red-backlit and modern full-color UI modes for optimal visibility under varied lighting conditions
• Alphanumeric keypad for direct entry of sample IDs, batch numbers, and user-defined scale parameters—eliminating reliance on external software for basic configuration
• Multi-scale measurement capability: simultaneous display and storage of °Brix, RI, urine specific gravity, wine-specific scales (e.g., Oechsle, Baumé), and fully customizable user scales defined via empirical polynomial or point-mapping inputs
• Integrated audit trail functionality compliant with GLP documentation requirements: each measurement record automatically logs date, time, operator ID, batch identifier, and instrument serial number
• USB 2.0 interface supporting direct connection to PCs and compatible thermal or laser printers; data export options include comma-separated values (CSV) for LIMS integration, password-protected PDF reports, and native printer-ready formats

Sample Compatibility & Compliance

The RFM742-M(74F) accommodates liquid, semi-liquid, and low-viscosity suspensions with minimal surface tension constraints—ideal for syrups, fruit juices, soft drinks, fermentation broths, glycerol solutions, and aqueous pharmaceutical preparations. Its sapphire prism ensures resistance to abrasion, chemical etching, and thermal shock across repeated cleaning cycles. While not certified for ISO 17025 accredited calibration laboratories without external verification, the instrument supports traceable calibration using NIST-traceable sucrose standards and meets functional requirements outlined in ASTM D1218 (refractive index of hydrocarbon liquids) and AOAC 932.12 (°Brix in fruit products). The absence of active temperature control aligns with applications where ambient lab or production-floor conditions remain stable within ±3 °C over measurement intervals.

Software & Data Management

No proprietary PC software installation is required—the device functions as a USB Human Interface Device (HID) and mass-storage class peripheral. Raw measurement data, including timestamped audit logs and operator metadata, are stored internally (up to 10,000 records) and synchronizable via drag-and-drop file transfer. Exported CSV files conform to ANSI/ISO 8601 date-time formatting and include column headers compatible with Excel, MATLAB, and laboratory information management systems (LIMS). Password-protected PDF reports embed digital signatures and support configurable header/footer fields (e.g., company logo, QA approval line). All firmware updates are delivered as signed binary packages verified via SHA-256 checksums, ensuring integrity during field deployment.

Applications

• Quality assurance in sugar mills and confectionery plants: real-time °Brix monitoring of cane juice, molasses, and invert syrup batches
• Wine and cider production: rapid determination of must sugar content using Oechsle or Klosterneuburg Must Weight (KMW) scales
• Pharmaceutical manufacturing: concentration verification of simple syrup vehicles, saline solutions, and ethanol–water mixtures per USP
• Chemical distribution: incoming inspection of glycols, ethylene glycol antifreeze, and propylene glycol-based heat transfer fluids
• Clinical research labs: semi-quantitative assessment of urine specific gravity in metabolic studies (non-diagnostic use)
• Academic teaching labs: demonstration of optical dispersion principles and empirical correlation between RI and solute concentration

FAQ

Does the RFM742-M(74F) support automatic temperature control?
No. It lacks integrated Peltier elements or fluid circulation systems. Temperature compensation is algorithmic (AG mode), referencing ambient sensor input and applying ICUMSA-standard polynomial correction to 20 °C.
Can I import custom calibration curves from third-party instruments?
Yes—user-defined scales accept up to 20 paired data points or second-order polynomial coefficients entered directly via the alphanumeric keypad.
Is the audit trail exportable in machine-readable format?
Yes. Full audit logs—including operator ID, timestamp, and measurement value—are embedded in every exported CSV and PDF file.
What is the expected service life of the sapphire prism under daily use?
With proper cleaning using lint-free wipes and deionized water, the sapphire prism maintains optical performance for >10 years or 50,000+ measurements, per B+S accelerated wear testing protocols.
Does this model comply with FDA 21 CFR Part 11 requirements?
It supports core elements (electronic signatures, audit trails, secure export), but full Part 11 compliance requires site-specific validation documentation and administrative controls—not inherent to the hardware alone.
