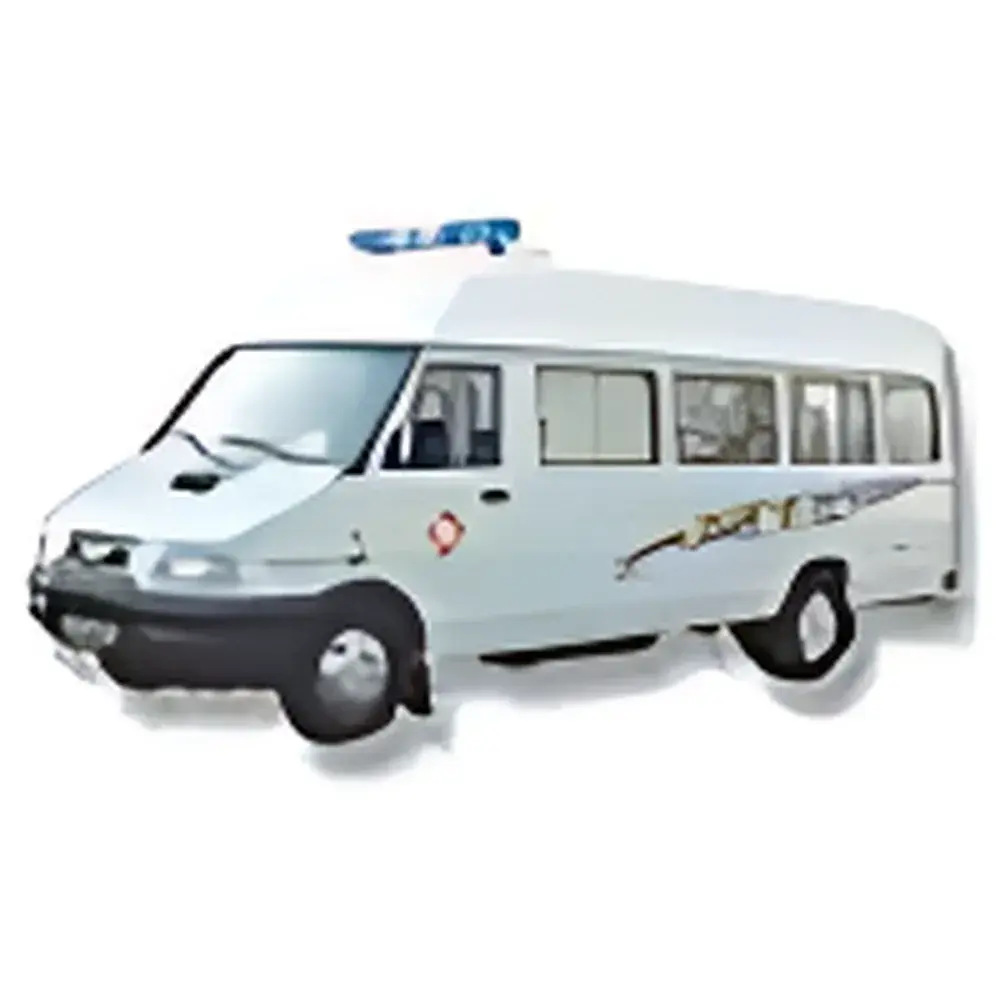

CA-9000A Mobile Food & Environmental Compliance Monitoring Vehicle

Overview

The CA-9000A Mobile Food & Environmental Compliance Monitoring Vehicle is a fully integrated, vehicle-mounted analytical platform engineered for real-time, on-site regulatory enforcement and rapid quality assurance screening. Based on a modified mid-size passenger van chassis, the system houses a certified gas chromatograph—either the GC-4010A or GC-4011A model—alongside dedicated high-purity carrier gas supply systems (helium or nitrogen), uninterruptible power conditioning, climate-stabilized instrument enclosures, and vibration-damped optical-grade workbenches. The vehicle’s mechanical and electrical architecture complies with ISO 5343 (mechanical vibration of mobile analytical platforms) and meets structural integrity requirements for transport of Class II laboratory instrumentation. Designed explicitly for Chinese market regulatory workflows, the CA-9000A supports field-deployable analysis per GB/T 5009, GB 5749, GB 2760, GB 2761, GB 2762, and GB/T 23492 standards—covering pesticide residues in grains and oils, ethanol content in alcoholic beverages, mycotoxins in cereals, benzoic acid/sorbic acid in condiments, phthalates in cosmetics, and volatile organic compounds (VOCs) in drinking water.

Key Features

• Vibration-isolated instrumentation bay featuring dual-stage passive damping mounts compliant with ISO 20486-2 for mobile GC stability, minimizing baseline drift and retention time variability during transit and operation.
• Integrated power management system including 3 kVA online UPS, voltage regulation (220 V ± 2%), and EMI/RFI filtering to maintain GC detector sensitivity and column oven temperature accuracy (±0.1 °C) under variable grid conditions.
• Dedicated gas delivery infrastructure: two independent high-pressure cylinders (N₂ and He), stainless-steel regulators, moisture/oil traps, and leak-tested stainless tubing conforming to ASTM D6167 specifications for carrier gas purity (≤0.1 ppm H₂O, ≤0.1 ppm hydrocarbons).
• Onboard industrial control computer (IPC) preloaded with validated chromatographic data system (CDS) software supporting method templates, peak integration per USP , and audit-trail-enabled reporting aligned with GLP and GB/T 27404–2018 laboratory quality requirements.
• Modular consumables storage compartment housing certified reference materials (CRMs), QC check standards, spare columns (DB-5ms, HP-INNOWAX), septa, liners, and syringe filters—all cataloged and expiry-tracked via onboard inventory module.

Sample Compatibility & Compliance

The CA-9000A accommodates liquid, semi-solid, and headspace-volatilized samples across food, beverage, cosmetic, and environmental matrices. Sample introduction supports split/splitless injection, purge-and-trap (for water VOCs), and solid-phase microextraction (SPME) accessories. All analytical methods implemented are traceable to national metrological standards maintained by the National Institute of Metrology (NIM), PRC. The platform supports full compliance with GB/T 27404–2018 (General Requirements for Laboratory Quality Control), GB/T 27417–2017 (Guidance on Uncertainty Evaluation), and fulfills evidentiary requirements for administrative law enforcement under the PRC Food Safety Law (Article 87) and Market Supervision General Administration (MSGA) Directive No. 12/2021 on On-Site Inspection Protocols.

Software & Data Management

The embedded CDS operates under Windows IoT Enterprise LTSB with role-based user access control (administrator, analyst, reviewer). Data acquisition, processing, and reporting modules include electronic signatures compliant with GB/T 31596.1–2015 (equivalent to FDA 21 CFR Part 11 Annex 11 principles). Audit trails record all method modifications, calibration events, integration parameter changes, and report generation timestamps—with immutable log export capability in CSV and PDF/A-2b formats. Raw data files (.cdf) are automatically archived with SHA-256 hash verification and synchronized to secure central servers via TLS 1.3 encrypted WAN links.

Applications

• Rapid screening of methanol adulteration in bulk spirits at rural distribution hubs.
• Field quantification of aflatoxin B₁ in rice shipments using immunoaffinity cleanup coupled to GC-ECD detection.
• Real-time monitoring of residual solvents (e.g., hexane, acetone) in edible oil refining facilities.
• Emergency response analysis of benzene/toluene/ethylbenzene/xylene (BTEX) in groundwater following fuel spill incidents.
• Surveillance testing of preservative overuse (e.g., sodium nitrite in cured meats) during routine market inspections.

FAQ

Is the CA-9000A certified for use in official administrative penalty proceedings?
Yes—the system’s measurement uncertainty budget, calibration traceability, and procedural documentation meet evidentiary thresholds defined in MSGA Administrative Penalty Procedures Regulation (Order No. 27, 2019).
Can the vehicle operate continuously during extended field deployments?
It supports up to 8 hours of uninterrupted GC analysis on auxiliary battery + generator hybrid power; refueling/recharging intervals are documented in the onboard operational manual per GB/T 27404 Annex F.
Does the platform support remote method validation by provincial metrology institutes?
Yes—integrated network diagnostics and secure remote desktop access (via NIST SP 800-46 compliant tunneling) enable real-time technical oversight during inter-laboratory comparison exercises.
