Caikon GCK-HD High-Definition Rigid Industrial Endoscope

Overview

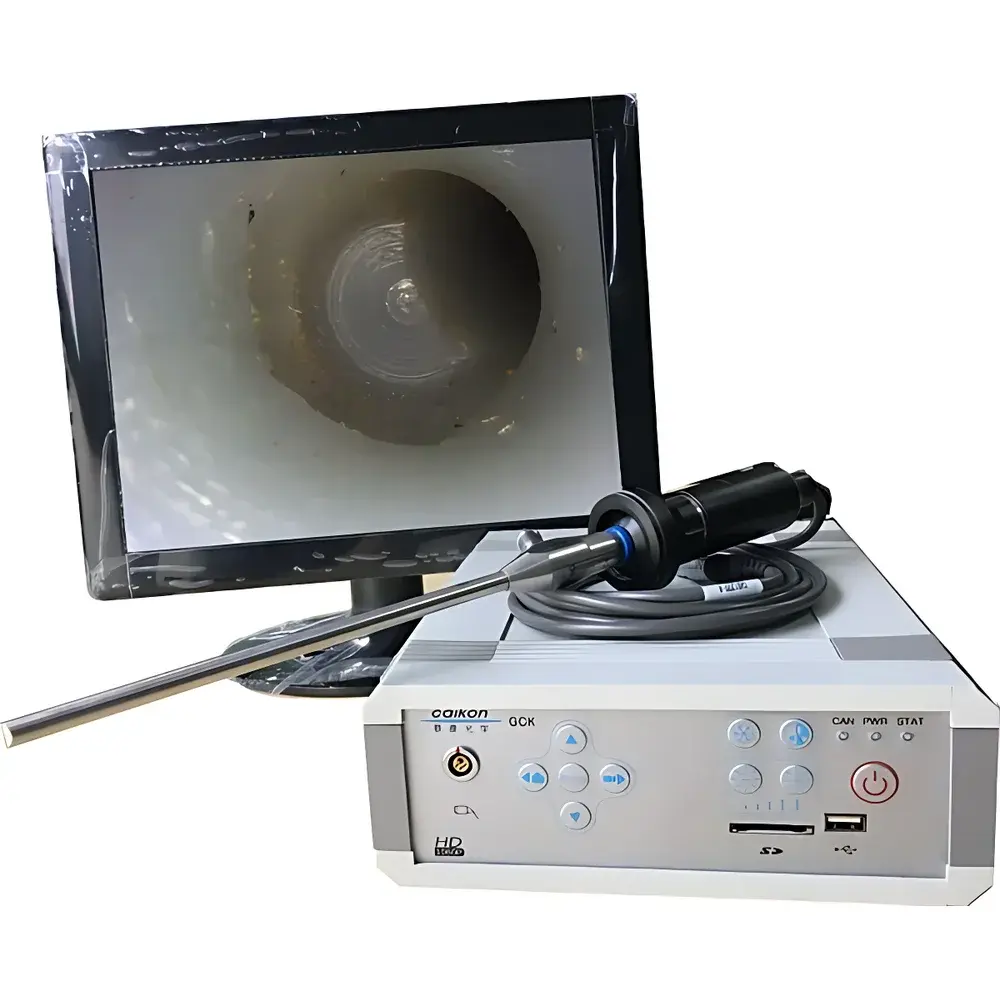

The Caikon GCK-HD High-Definition Rigid Industrial Endoscope is an optomechanically engineered inspection system designed for precision internal visual assessment of inaccessible components in aerospace, power generation, automotive manufacturing, and precision machining environments. Built upon rigid optical rod lens architecture—distinct from flexible fiberoptic or video-based articulating endoscopes—the GCK-HD delivers diffraction-limited image fidelity through a fixed-focus, zero-articulation optical path. Its core imaging chain integrates a scientific-grade 1/1.8″ Sony CMOS sensor with true 1080p native resolution (1920 × 1080), coupled to a high-numerical-aperture (NA) relay lens system optimized for minimal geometric distortion (<1.5% pincushion/barrel), chromatic aberration suppression, and consistent MTF performance across the full field of view (>70°). Unlike consumer-grade borescopes, the GCK-HD employs medical-grade stainless steel sheathing (AISI 304/316 equivalent), vacuum-brazed optical assemblies, and IP65-rated sealing—ensuring mechanical robustness during repeated insertion into turbine blades, hydraulic valve bodies, weld joints, and cast housings under controlled NDT workflows.

Key Features

• Rigid probe construction with diameters ranging from 1.9 mm to 10 mm and working lengths up to 600 mm—enabling selection based on access port constraints and depth-to-target requirements
• Selectable viewing angles (0°, 30°, 45°, 70°, 90°) calibrated per ISO 8600-1:2013 for standardized orientation reporting in inspection records
• Dual-output digital interface: simultaneous HDMI (uncompressed 1080p60) and VGA (for legacy display compatibility), supporting real-time monitoring without host PC dependency

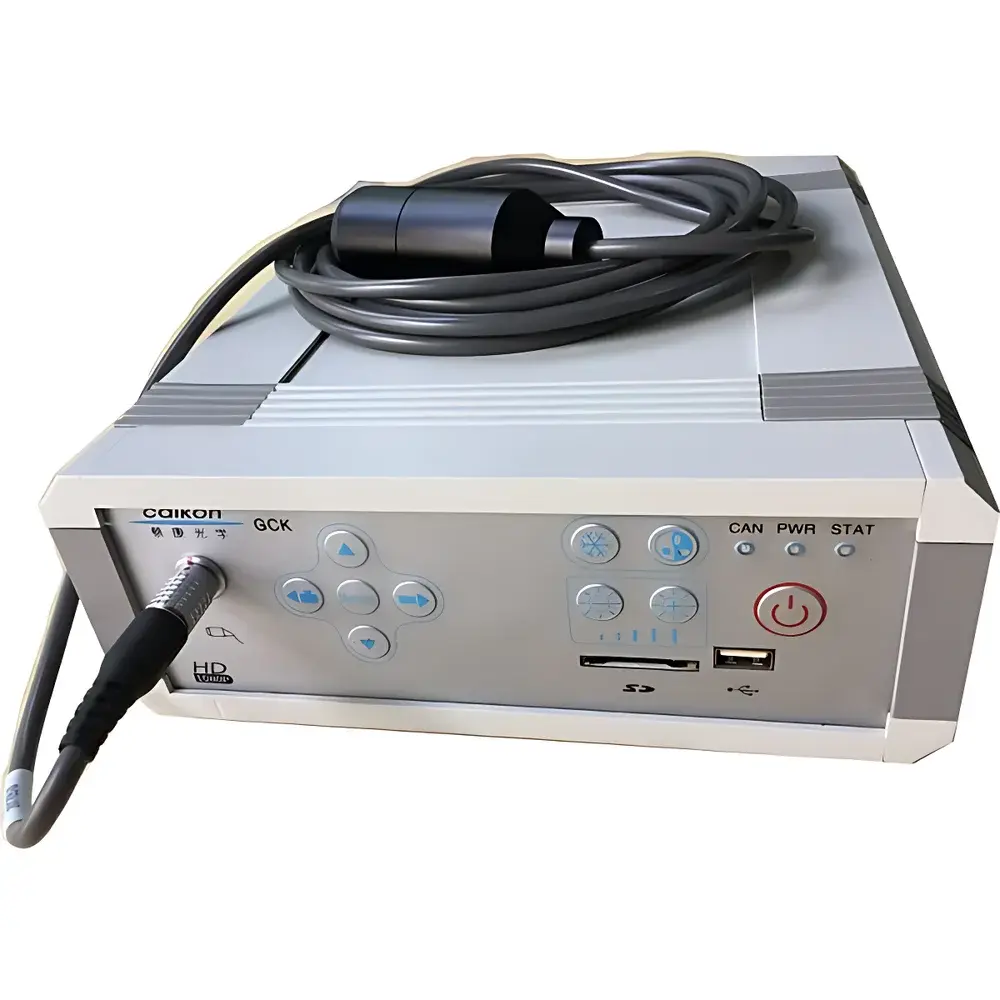

• Integrated HD host box with embedded firmware featuring timestamped image capture, white balance calibration presets, frame freeze, and user-assignable function keys—all accessible via sealed membrane keypad
• Modular illumination architecture: interchangeable light sources including XD-303 cold LED benchtop unit (5,000 K CCT, <5 °C surface temperature rise), KD-202 waist-mounted battery-powered unit (8 hr runtime), and CK-202B penlight-style emitter for confined-space use
• On-device SD card storage (up to 128 GB) with lossless JPEG stills and MKV-encoded video—supporting audit-ready media export compliant with ASNT SNT-TC-1A documentation protocols

Sample Compatibility & Compliance

The GCK-HD accommodates metallic, ceramic, and composite substrates typical in industrial asset integrity programs—including nickel-alloy turbine vanes, aluminum extrusion dies, stainless steel piping welds, and carbon-fiber-reinforced polymer (CFRP) layup inspections. Its rigid probe geometry ensures repeatable positioning within boreholes and threaded ports, satisfying repeatability requirements outlined in ASTM E2578–22 (Standard Practice for Determining the Repeatability of Visual Inspection Systems). All optical components comply with ISO 10940:2018 (Endoscopes — Requirements and test methods), while the host electronics meet IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity). The system supports GLP-aligned data traceability when used with timestamped media files and configurable operator ID fields.

Software & Data Management

No proprietary software installation is required for basic operation; however, optional Caikon EndoView Manager v3.2 (Windows/Linux/macOS) enables batch metadata tagging, DICOM-SR structured reporting, measurement overlay (distance, angle, area), and integration with enterprise CMMS platforms via CSV/XML export. Video recordings include embedded SMPTE timecode and EXIF-compliant metadata (exposure, gain, white balance mode, probe ID). Firmware updates are delivered via FAT32-formatted SD card and validated using SHA-256 checksums—ensuring integrity per FDA 21 CFR Part 11 electronic record controls where applicable.

Applications

• Pre- and post-machining verification of internal thread form, chamfer consistency, and burr presence in CNC-milled engine blocks
• Weld root inspection in ASME B31.4/B31.8 pipeline girth welds using 90° oblique probes for sidewall coverage
• Turbine blade cooling channel integrity assessment in gas turbine maintenance shops
• Cast porosity detection in investment-cast aerospace structural brackets (per AMS 2640)
• Quality gate inspection of additive-manufactured metal parts for internal support structure removal verification
• Tooling cavity inspection in injection molding die sets prior to production ramp-up

FAQ

Is the GCK-HD compatible with third-party monitors or recording devices?
Yes—HDMI and VGA outputs support direct connection to commercial displays, digital signage systems, or external HDMI capture cards (e.g., Blackmagic Intensity Shuttle) without driver dependencies.
Can the viewing angle be changed without swapping probes?
No—viewing angle is fixed per probe assembly; interchangeable probes must be selected at time of order or via accessory kit.
What is the maximum operating distance between the probe tip and target surface?
Optimal focus range is 10–100 mm; extended working distances beyond 100 mm require optional telecentric extension lenses (sold separately).
Does the system support regulatory audit trails for ISO 9001 or AS9100 environments?
Yes—timestamped media files, operator ID input, and firmware-logged calibration events satisfy objective evidence requirements for Clause 7.1.5.2 (Monitoring and measuring resources).
Are replacement probes and light guides available as spare parts?
Yes—Caikon maintains a full catalog of OEM-certified probes, sterile sleeves (for cleanroom use), and quartz fiber optic light guides with 10,000-hour rated lifetime.
