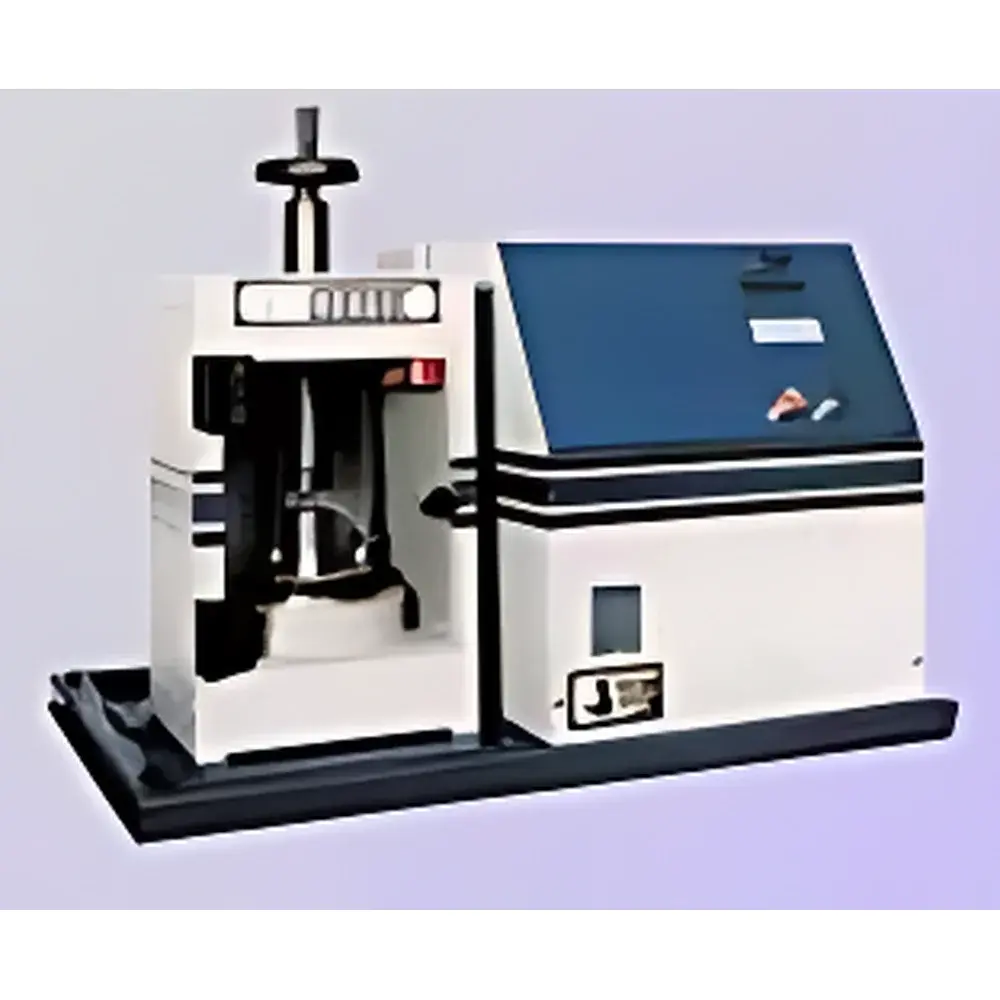

Carver 38874387 Fully Automatic Hydraulic Pellet Press

Overview

The Carver 38874387 Fully Automatic Hydraulic Pellet Press is an industrial-grade, benchtop hydraulic press engineered for high-precision, repeatable sample compaction in analytical laboratories. It operates on a dual-circuit electric-hydraulic principle: a dedicated motor-driven hydraulic power unit delivers controlled, pulse-free pressure to the main cylinder, while a separate low-pressure circuit manages platen positioning and safety interlocks. This architecture eliminates hydraulic lag and ensures consistent force application across the full stroke—critical for producing homogeneous, binder-free pellets for X-ray fluorescence (XRF), Fourier-transform infrared (FTIR), and wavelength-dispersive spectroscopy (WDS) applications. The press features a rigid, welded steel frame with reinforced side guards and precision-ground platens, guaranteeing parallelism within ±0.002 in over the entire 5-inch platen surface. All mechanical interfaces—including die cavity alignment, platen leveling, and ram guidance—are designed to minimize lateral drift and maintain concentricity during compression cycles.

Key Features

• Independent electric-hydraulic power unit with variable-speed motor and pressure-compensated pump for smooth, noise-reduced operation and extended component life.
• 5-inch diameter hardened steel platens with ground-flat surfaces (Ra ≤ 0.4 µm) and integrated T-slot grooves for secure die holder mounting.
• Integrated safety viewing window rated to ANSI Z87.1 impact standards, providing real-time visual monitoring without compromising operator protection.
• SD microprocessor-based control system with backlit LCD display showing real-time pressure (in tons or psi), elapsed time, and programmed setpoints; supports up to 9 user-defined press cycles.
• Upgraded PD controller option adds programmable ramp-up/down profiles, hold-time sequencing, and adjustable pressure release thresholds—enabling automated multi-step compaction protocols (e.g., pre-compression → dwell → final compression → controlled decompression).
• Adjustable platen spacing (1.5–7.25 in) accommodates custom die stacks, spacer rings, and multi-layer pellet configurations without mechanical recalibration.

Sample Compatibility & Compliance

The Carver 38874387 is validated for use with standard analytical pellet matrices including KBr, CsI, and polyethylene for FTIR transmission discs; boric acid and cellulose binders for XRF fused beads; and high-purity graphite for WDS calibration standards. Its modular die interface accepts industry-standard Carver-compatible dies (13 mm, 31 mm, and optional 40 mm diameters), as well as third-party dies conforming to ASTM E1053 (Standard Practice for Preparation of Solid Samples for Spectrochemical Analysis). The press meets CE machinery directive requirements (2006/42/EC) and complies with OSHA 1910.212 guarding standards. For regulated environments, the PD controller supports audit-trail logging (via RS-232/USB) and optional 21 CFR Part 11-compliant software integration for electronic signatures and data integrity validation.

Software & Data Management

While the base SD controller operates as a standalone embedded system, the PD controller provides native ASCII protocol communication for integration with laboratory information management systems (LIMS) and enterprise quality management software (QMS). Pressure-time profiles, cycle timestamps, operator IDs, and fault logs are exportable in CSV format. Optional Carver LabLink™ software (Windows-based) enables remote parameter configuration, batch report generation, SPC charting of compression force variability (±0.5% full scale repeatability), and GLP-compliant electronic record retention. All firmware updates are delivered via signed USB firmware packages to ensure traceability and version control.

Applications

• Routine preparation of 13-mm KBr pellets for quantitative FTIR analysis of pharmaceutical actives and polymers.
• High-throughput production of 31-mm pressed powder pellets for geological and metallurgical XRF screening (ASTM D5630, ISO 29581-2).
• Controlled compaction of ultra-low-density ceramic powders requiring precise dwell-time and gradient pressure profiles—enabled by PD controller’s multi-segment programming.
• Research-scale development of solid-state battery electrode composites, where uniform density distribution across 40-mm pellets is critical for electrochemical testing reproducibility.
• ISO/IEC 17025-accredited labs performing method validation per ISO 17034 for reference material certification.

FAQ

What safety certifications does this press carry?

It is CE-marked per Machinery Directive 2006/42/EC and conforms to ANSI B11.1 and OSHA 1910.212 for point-of-operation guarding.
Can I use non-Carver dies with this press?

Yes—any die assembly with standard 1.25-in–12 UNF top-threading and compatible platen clearance will mount securely; dimensional compatibility must be verified against the provided platen spacing envelope.
Is maintenance documentation available in English?

Full OEM technical manuals, hydraulic schematics, and preventive maintenance checklists are supplied digitally in English upon shipment.
Does the PD controller support external trigger inputs?

Yes—opto-isolated digital I/O ports allow synchronization with external devices such as balance triggers, camera shutters, or PLC-controlled feed hoppers.
How is calibration traceability established?

Each unit ships with a NIST-traceable pressure calibration certificate (valid for 12 months), referencing direct-load cell verification at three points across the operating range.
