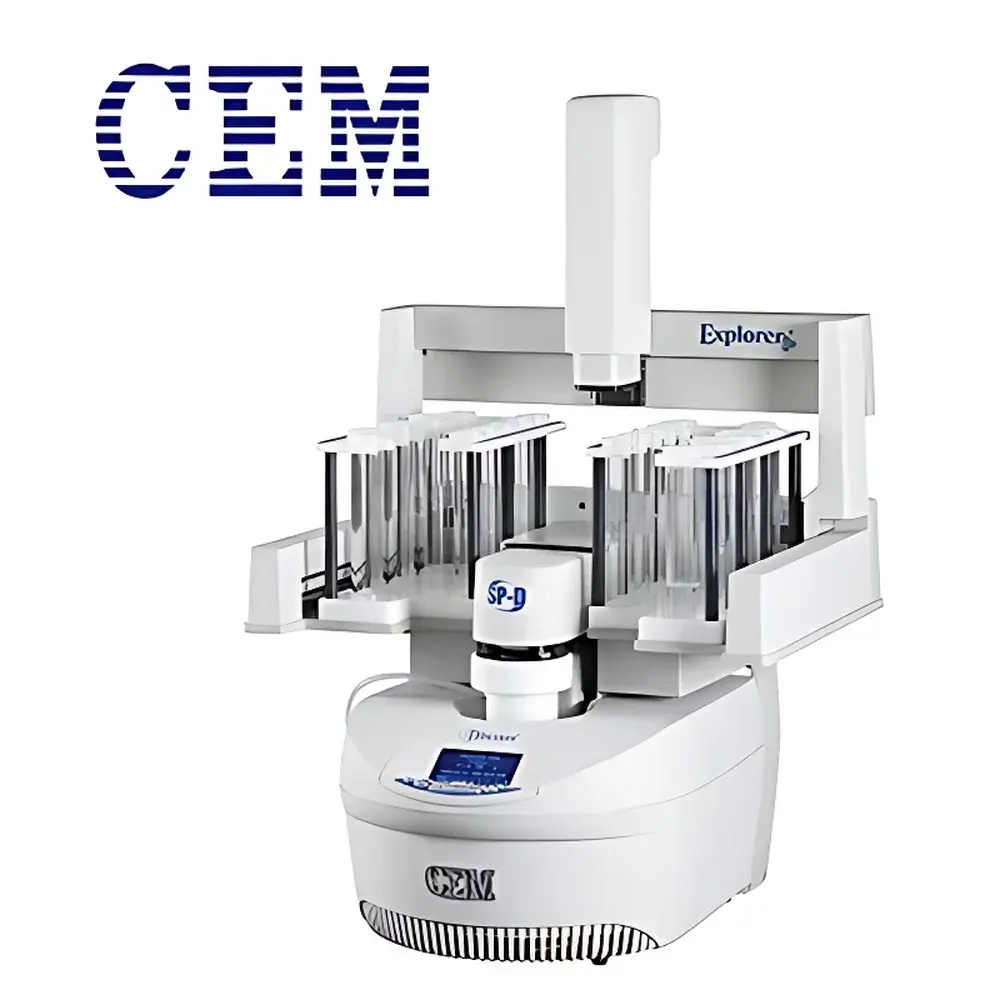

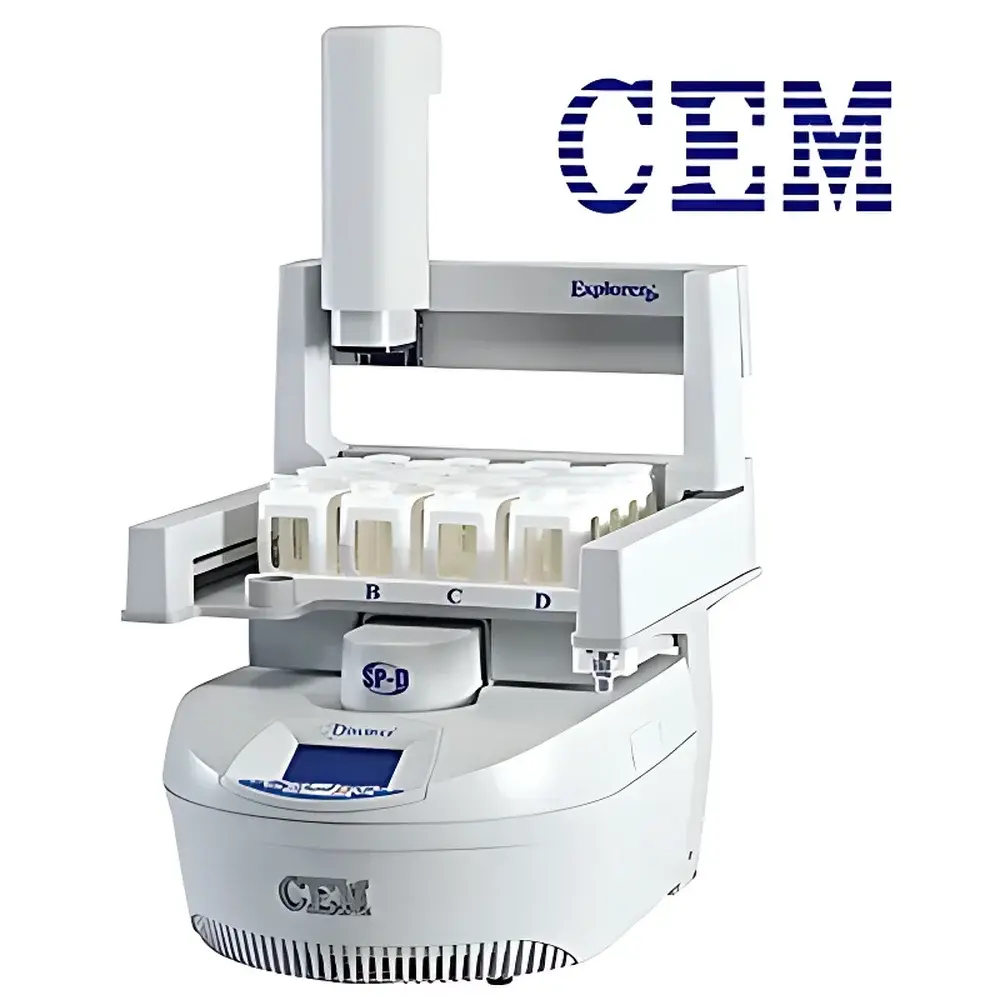

CEM DISCOVER SP-D Ring-Focused Single-Mode Microwave Digestion System

Overview

The CEM DISCOVER SP-D Ring-Focused Single-Mode Microwave Digestion System represents a paradigm shift in closed-vessel microwave-assisted sample preparation for elemental analysis. Engineered on the principle of single-mode microwave resonance—where electromagnetic energy is precisely concentrated into a defined cylindrical cavity—the DISCOVER SP-D delivers unmatched field homogeneity and power density per unit volume. Unlike conventional multimode systems that rely on mode stirrers and cavity tuning, this ring-focused architecture ensures deterministic coupling between microwave energy and individual reaction vessels, enabling true vessel-specific thermal and pressure control. Designed for laboratories requiring high-throughput, trace-level accuracy (e.g., ICP-MS, ICP-OES, AAS), the system supports rapid, reproducible digestion of complex matrices—including soils, biological tissues, polymers, and pharmaceutical excipients—while maintaining quantitative recovery of volatile elements (e.g., As, Se, Hg, Pb). Its sequential digestion architecture eliminates batch-to-batch variability inherent in parallel systems, making it particularly suited for regulated environments where method traceability and process consistency are mandated.

Key Features

• Ring-focused single-mode cavity: Optimized electromagnetic field geometry for >92% microwave energy utilization—reducing power consumption and thermal load on surrounding components.
• ActiVent™ intelligent venting technology: Patented pressure-actuated, non-mechanical release mechanism that vents only when preset thresholds are exceeded—preserving analyte integrity without elemental loss or cross-contamination.
• Independent real-time monitoring: Each vessel equipped with dual-sensor feedback (fiber-optic temperature + piezoresistive pressure) synchronized at 100 Hz sampling rate for closed-loop control.
• Automated sample handling: Motorized 48/72/96-position carousel with RFID-enabled rack recognition—auto-detects vessel type (10 mL or 35 mL), material (quartz, Pyrex®, PTFE-lined), and program assignment.
• PowerMAX™ air-cooling system: Integrated high-flow (≥20 L/min @ ≥25 psi) forced-air circuit enables full digestion + cooling cycle completion within ≤10 minutes—validated per ASTM D5511 and ISO 11885 protocols.
• No-tools assembly: Tool-free vessel loading/unloading; screwless sealing design compliant with ISO 17025 mechanical integrity requirements.

Sample Compatibility & Compliance

The DISCOVER SP-D accommodates diverse sample types across environmental, clinical, food safety, and materials science workflows. Vessels support organic loads up to 0.5 g (35 mL configuration) and inorganic matrices up to 1.0 g (10 mL quartz), compatible with HNO₃, HCl, HF, H₂O₂, and aqua regia mixtures. All digestion methods adhere to EPA Methods 3050B, 3051A, 3052; ASTM D3682, D5511; and ISO 11885. The system’s hardware and firmware architecture comply with FDA 21 CFR Part 11 for electronic records/signatures, including audit-trail logging of all parameter changes, user authentication, and method versioning. Mechanical cavity construction—solid stainless-steel monoblock with non-planar waveguide interface—meets IEC 61000-4-3 immunity standards and UL 61010-1 safety certification.

Software & Data Management

Controlled via CEM’s DiscoverLink™ software (Windows-based), the system provides GxP-ready data governance: full method encryption, role-based access control (admin/operator/auditor), and timestamped electronic signatures. All run logs—including raw sensor data (temperature/pressure/time), power modulation profiles, vent events, and cooling curves—are exported in .csv or .xlsx format with embedded metadata (user ID, instrument serial, calibration status). Software supports method validation per ICH Q2(R2), including repeatability assessment (n ≥ 6) and intermediate precision testing across operators/days/instruments. Optional integration with LIMS via ASTM E1384-compliant HL7 messaging or direct SQL database export.

Applications

• Environmental labs: Total metal extraction from sediments, sludges, and airborne particulates per EPA 6010D/6020B.
• Clinical toxicology: Quantitative recovery of trace metals (Cd, Pb, Ni) in whole blood and urine matrices under CLIA and CAP requirements.
• Food & agriculture: Multi-element analysis (Ca, Mg, Fe, Zn, Cu) in fortified cereals and dairy products per AOAC 999.10.
• Geochemistry: Rare earth element (REE) dissolution from silicate rocks using HF-containing protocols—enabled by quartz vessel compatibility and precise T/P ramping.
• Materials R&D: Digestion of Li-ion battery cathodes (NMC, LFP) and polymer composites for impurity screening per ISO 18503.

FAQ

What distinguishes single-mode from multimode microwave digestion?
Single-mode systems generate a resonant standing wave with spatially fixed electric field maxima—enabling deterministic, vessel-specific energy delivery. Multimode cavities produce statistical field distributions requiring stirring and averaging, resulting in higher inter-vessel variability.
Is ActiVent™ compatible with HF-based digestions?
Yes—ActiVent™’s inert ceramic vent path and pressure-triggered actuation eliminate metallic contact points, ensuring compatibility with hydrofluoric acid and preventing fluorosilicate precipitation.
Can the system be validated for GLP compliance?
Yes—the integrated audit trail, electronic signature workflow, and IQ/OQ documentation package (per ASTM E2500) support full GLP validation, including temperature uniformity mapping per USP .
What cooling gas specifications are required for PowerMAX™ operation?
Compressed air or nitrogen at ≥25 psi and ≥20 L/min flow rate, oil-free and dew-point controlled to ≤−40 °C (ISO 8573-1 Class 2).
Does the software support method transfer between DISCOVER platforms?
Yes—method files (.dsm) are backward-compatible across DISCOVER SP-D, SP, and S-series instruments, preserving ramp rates, hold times, and sensor setpoints.
