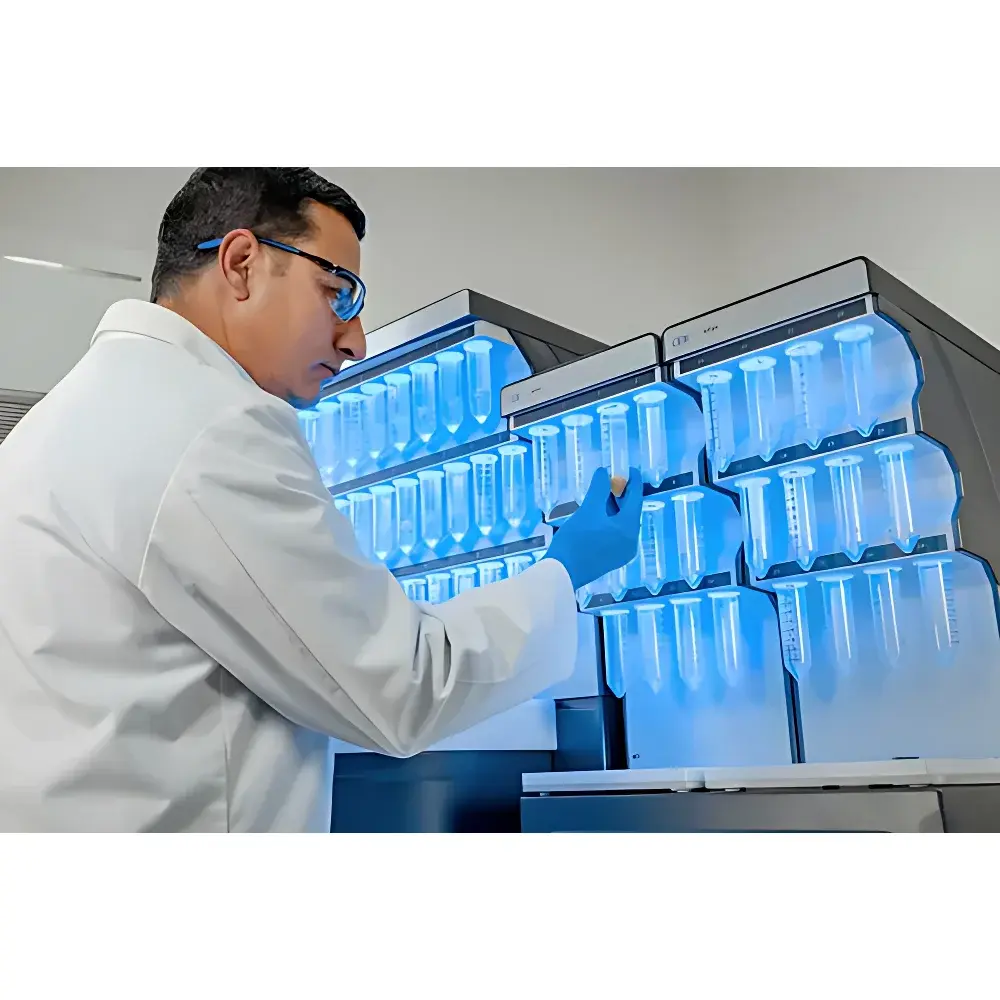

CEM Liberty Lite 2.0 Automated Microwave Peptide Synthesizer
| Brand | CEM |
|---|---|
| Origin | USA |
| Model | Liberty Lite 2.0 |
| Amino Acid Addition | Automated |
| Reagent Addition | Automated |
| Synthesis Scale | 0.005–5 mmol |
| Reactor Count | 4 |
| Reactor Volume Range | 10–125 mL |
Overview
The CEM Liberty Lite 2.0 Automated Microwave Peptide Synthesizer is an entry-level, fully automated platform engineered for rapid, reproducible solid-phase peptide synthesis (SPPS) under controlled microwave irradiation. Built upon the proven architecture of the Liberty Blue 2.0 system, it employs single-mode microwave technology to deliver uniform, volumetric heating—enabling accelerated coupling and deprotection kinetics without thermal gradients or resin degradation. Unlike conventional conduction-heated synthesizers, the Liberty Lite 2.0 applies microwave energy directly to reaction mixtures in microwave-transparent reactors, promoting molecular agitation that enhances diffusion-limited reactions while minimizing side-product formation. Its design targets laboratories requiring high-fidelity synthesis across diverse scales—from milligram-scale discovery peptides to gram-scale intermediates—while maintaining full compatibility with Fmoc- and Boc-based chemistries and standard resins including DCA-Trt-SpheriTide®.
Key Features
- Flex-Add Liquid Delivery System: Patented positive-displacement pumping enables precise, calibration-free dispensing of amino acids, activators, and solvents across variable volumes—eliminating fixed-loop constraints and ensuring stoichiometric accuracy across all synthesis scales.
- Insertion-Type Fiber-Optic Temperature Monitoring: Real-time, in-situ temperature feedback via embedded optical probes delivers sub-second response times and ±0.5 °C stability—superior to infrared or thermocouple-based systems—and requires no routine recalibration.
- Dual-Stage Microwave Activation: Independent microwave control for both coupling and deprotection steps ensures optimal energy delivery per chemical transformation, reducing cycle time to as low as 4 minutes per amino acid addition (vs. conventional 12+ min).
- Integrated Solvent Efficiency Architecture: Optimized fluidics and closed-loop solvent recovery pathways reduce overall solvent consumption by up to 50% compared to legacy platforms—lowering operational cost and environmental footprint.
- Modular Upgradability: Hardware and software architecture supports seamless field upgrade to full Liberty Blue 2.0 functionality—including expanded reagent capacity, enhanced method libraries, and advanced process analytics.
Sample Compatibility & Compliance
The Liberty Lite 2.0 accommodates standard SPPS resins (e.g., Wang, Rink amide, 2-Cl-Trt) and supports all common protecting groups (Fmoc, t-Bu, Trt, Pbf). It complies with Good Laboratory Practice (GLP) documentation requirements through timestamped audit trails, user-access logging, and electronic signature support. While not certified for GMP manufacturing, its software architecture adheres to FDA 21 CFR Part 11 principles for data integrity—enabling traceable method execution, version-controlled protocols, and secure archival of synthesis logs. All fluidic components meet USP Class VI biocompatibility standards; reactor vessels are constructed from chemically inert, microwave-transparent quartz and PTFE.
Software & Data Management
The intuitive Liberty Control Software provides a graphical workflow interface with pre-validated method templates spanning 0.005–5 mmol synthesis scales. Users can define custom cycles—including iterative coupling, double couplings, capping steps, and resin swelling protocols—with real-time monitoring of temperature, pressure, and reagent dispense volumes. The integrated reagent calculator automatically computes required concentrations and volumes based on resin loading, scale, and excess ratios. All synthesis records—including raw sensor data, method parameters, and error logs—are exported in CSV/JSON format for LIMS integration or offline analysis. Software updates are delivered via secure HTTPS channels with SHA-256 signature verification.
Applications
- Rapid synthesis of peptide antigens and epitope mapping libraries for immunology studies
- Production of labeled peptides (e.g., isotopic, fluorescent) for structural biology and binding assays
- Parallel synthesis of SAR-focused analogs in medicinal chemistry campaigns
- Preparation of constrained cyclic peptides and peptidomimetics using microwave-accelerated cyclization
- Scale-up of lead sequences from screening hits to preclinical material (up to 5 mmol)
- Teaching laboratories requiring robust, low-maintenance instrumentation for graduate-level SPPS training
FAQ
Can the Liberty Lite 2.0 synthesize peptides longer than 50 residues?
Yes—sequence length is primarily limited by resin quality and coupling efficiency, not instrument capability. Users routinely achieve >70-mer syntheses using optimized microwave protocols and high-loading resins.
Is remote monitoring supported?
The system includes Ethernet connectivity and supports SNMP-based network status polling; however, live video or interactive remote control requires optional VNC licensing and local IT policy approval.
What maintenance is required for the microwave cavity?
No routine cavity cleaning is needed—the quartz reactor assembly isolates all reagents from the magnetron path. Annual inspection of waveguide seals and fiber-optic probe integrity is recommended.
Does it support third-party resin cartridges?
Yes—standard 10–125 mL threaded glass or PTFE reactors are compatible, provided they meet dimensional and microwave-transparency specifications outlined in the Operator’s Manual.
How is method validation performed?
CEM provides IQ/OQ documentation templates aligned with ASTM E2500 and ISO/IEC 17025 guidelines. Users may perform performance qualification using standardized test peptides (e.g., Leu-enkephalin) with HPLC and MS verification.
