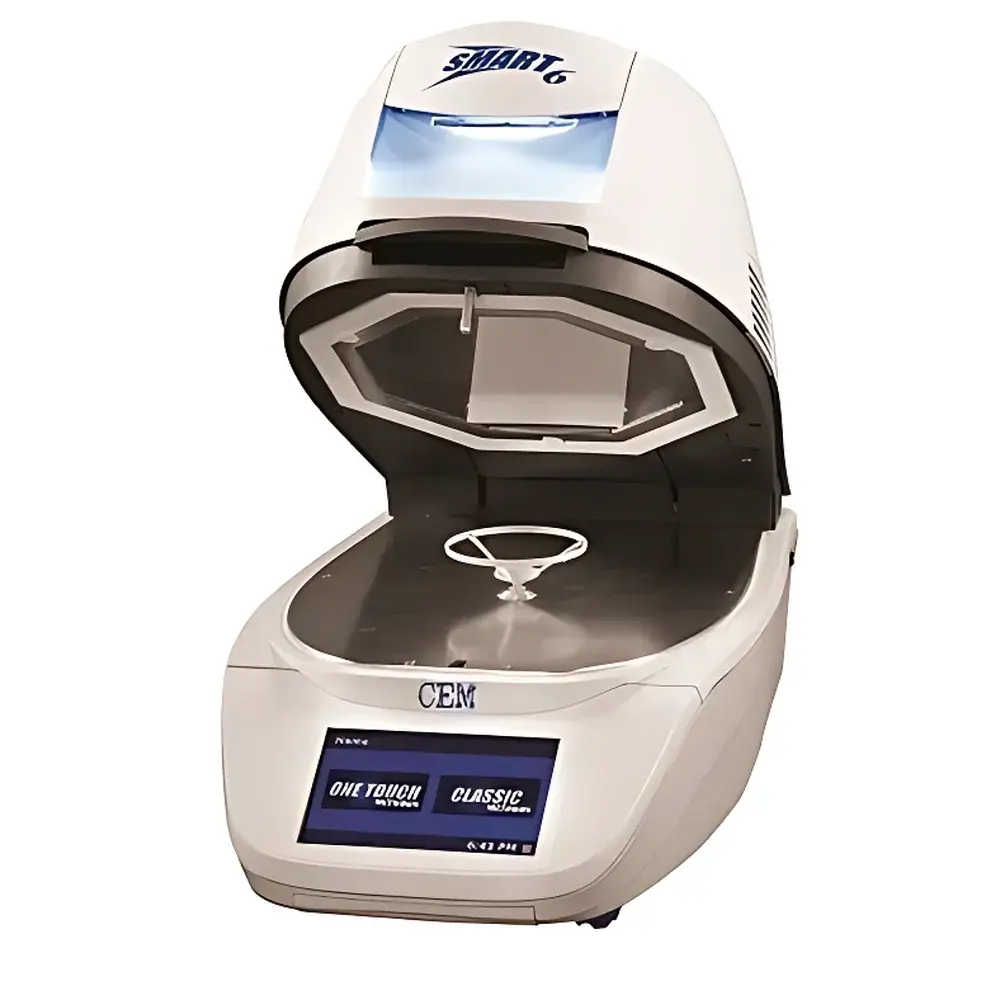

CEM Smart 6 Microwave Moisture Analyzer

Overview

The CEM Smart 6 Microwave Moisture Analyzer is a fifth-generation, high-precision instrument engineered for rapid, non-destructive quantification of moisture, total solids, and volatile content in heterogeneous and thermally sensitive samples. Unlike conventional halogen or infrared drying methods—which rely on surface heating and prolonged thermal exposure—the Smart 6 employs dual-frequency microwave energy (operating across a broad electromagnetic spectrum from 0.3 mm to 100 cm wavelength) to achieve volumetric, selective, and controlled sample excitation. This principle enables simultaneous removal of both free water (via low-frequency microwaves with deeper penetration and efficient bulk heating) and bound water/volatiles (via high-frequency microwaves with enhanced molecular coupling), all while minimizing thermal degradation. Designed for compliance-driven laboratories, the Smart 6 implements AOAC Official Methods of Analysis® (OMA) validated protocols—ensuring method traceability, regulatory acceptance, and alignment with ISO 5530-1, ASTM D4442, and USP guidelines for moisture determination.

Key Features

• iPower Dual-Frequency Microwave Technology: Integrates independently controllable low- and high-frequency microwave generators to optimize energy delivery—low frequency (e.g., ~915 MHz) for rapid bulk heating and free-water evaporation; high frequency (e.g., ~2.45 GHz) for precise temperature stabilization and bound-water dissociation without charring.
• Sub-Second Thermal Response: Achieves target drying temperature in ≤5 seconds via dynamic power modulation, eliminating pre-heating delays and reducing total analysis time to 30–90 seconds per run—significantly faster than conventional gravimetric or NIR-based analyzers.
• Advanced Method Development Suite: Enables granular control over heating profiles—including ramp rate, dwell time per frequency band, multi-stage power zoning, active cooling fan sequencing, and real-time impedance monitoring—to accommodate complex matrices such as dairy powders, polymer resins, pharmaceutical granules, and viscous coatings.

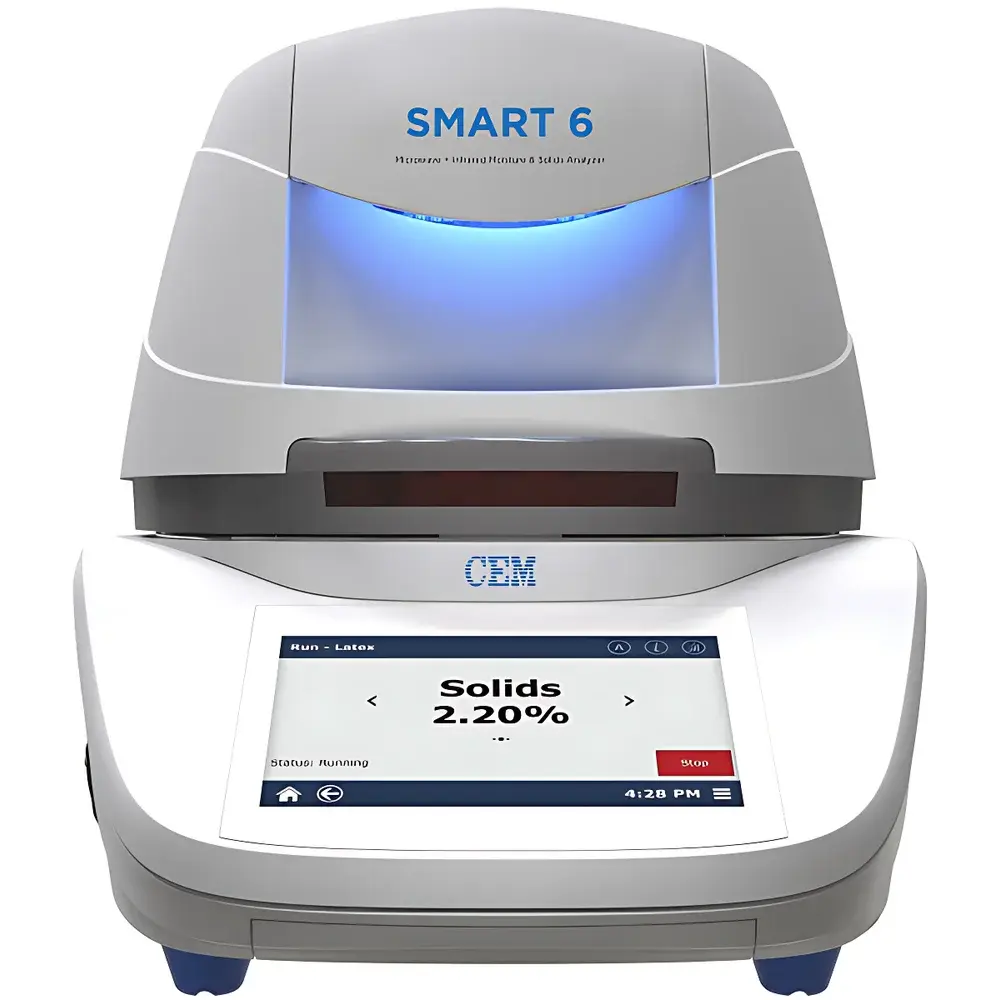

• 10.1″ Capacitive Touchscreen Interface: Features embedded instructional videos, context-aware diagnostics, statistical process control (SPC) dashboards, and GLP-compliant audit trails—including operator ID, method version, environmental logs, and raw weight/time-series data.
• DC Power Isolation Module: Mitigates voltage fluctuations and ground-loop interference in industrial or field-deployed environments, ensuring stable RF output and measurement reproducibility under variable AC supply conditions.

Sample Compatibility & Compliance

The Smart 6 accommodates solid, semi-solid, and slurry-phase samples with moisture content ranging from 0.1% to 99.9% w/w—including heat-labile formulations (e.g., probiotic yogurts, enzyme blends), hygroscopic materials (e.g., milk protein isolates, lithium battery cathode precursors), and highly viscous or particulate-laden systems (e.g., paint emulsions, pet food pastes). Its closed-cavity design meets IEC 61000-4-3 EMC immunity standards and complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with iLink-enabled network authentication. All AOAC-validated methods are documented per GLP/GMP Annex 11 and support full traceability for regulatory submissions.

Software & Data Management

CEM’s iLink software platform provides secure, encrypted remote access to instrument data via web browser or mobile application. It supports LIMS integration through ASTM E1482-compliant XML/CSV export, real-time dashboard visualization, automated trend analysis (e.g., Shewhart X-bar/R charts), and configurable alert thresholds. Audit logs capture every parameter change, result export, and user login event with immutable timestamps—enabling full forensic reconstruction during internal audits or FDA inspections. Data integrity safeguards include role-based permissions, digital signature workflows, and cryptographic hash verification of exported datasets.

Applications

The Smart 6 delivers quantitative moisture and solids data across regulated and industrial sectors: quality control of infant formula and whey protein concentrates (per ISO 8587); moisture mapping in polymer film extrusion lines; residual solvent analysis in API drying steps; shelf-life modeling of baked goods and snack foods; incoming raw material verification for adhesives and coating resins; and R&D screening of novel hydrogel formulations. Its ability to resolve subtle differences in hydration states makes it especially valuable in battery electrode manufacturing, where ppm-level moisture directly impacts cell impedance and cycle life.

FAQ

Does the Smart 6 require calibration with certified reference standards?

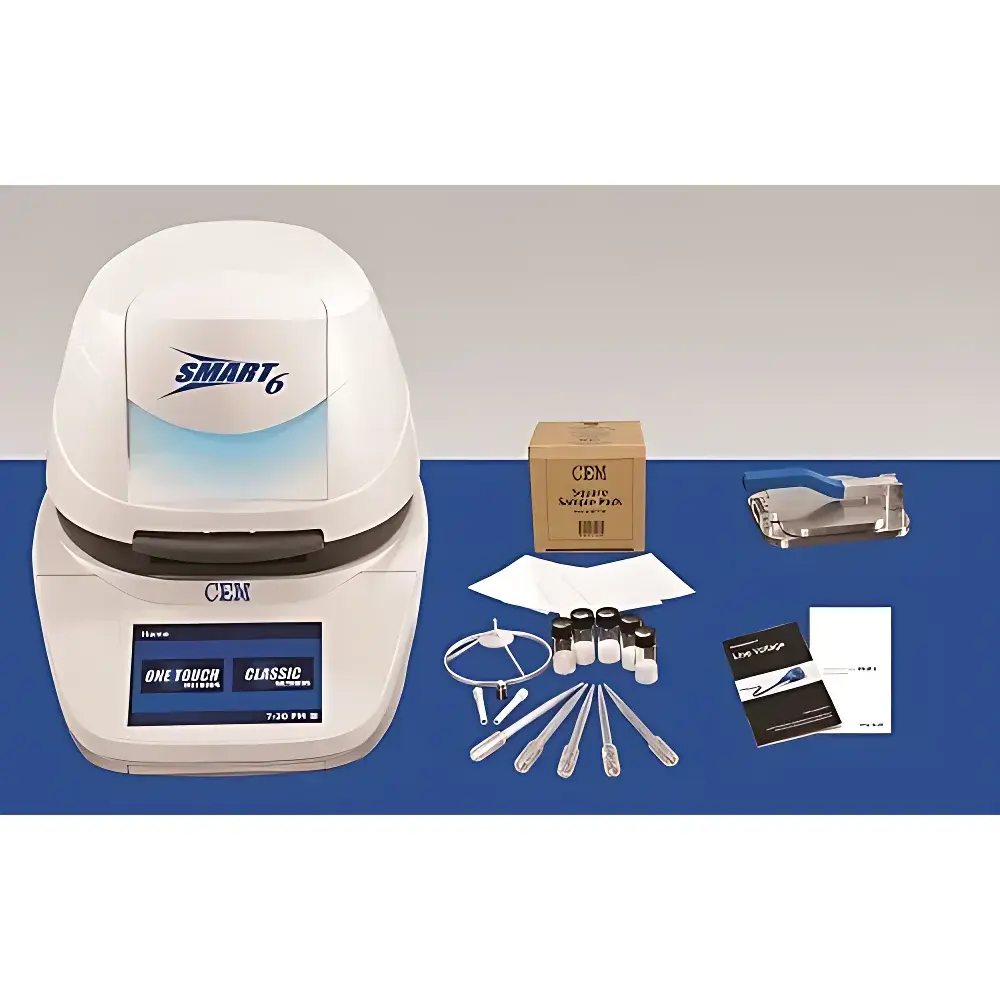

Yes—routine calibration uses NIST-traceable moisture standards (e.g., potassium hydrogen phthalate, sodium tartrate dihydrate) and is supported by CEM’s Method Validation Kit, which includes uncertainty budget templates aligned with ISO/IEC 17025.
Can the Smart 6 be integrated into an existing ERP or MES environment?
Yes—via OPC UA or RESTful API interfaces, enabling bidirectional data exchange with SAP QM, Siemens Opcenter, or Rockwell FactoryTalk systems for automated batch release workflows.
Is method transfer from Smart 5 to Smart 6 possible?
Yes—backward-compatible method files can be imported; however, new iPower parameters (e.g., dual-band power ratios, adaptive cooling triggers) must be optimized per sample matrix using CEM’s Method Optimization Wizard.
What safety certifications does the Smart 6 hold?
It is CE-marked per EN 61000-6-3 (EMC emission), EN 61000-6-4 (industrial immunity), and UL 61010-1 (electrical safety), with full RF shielding verified per IEEE Std 299.
How is data integrity ensured during network transmission?
All iLink communications use TLS 1.3 encryption, HMAC-SHA256 message authentication, and certificate-pinning to prevent man-in-the-middle attacks or unauthorized payload injection.
