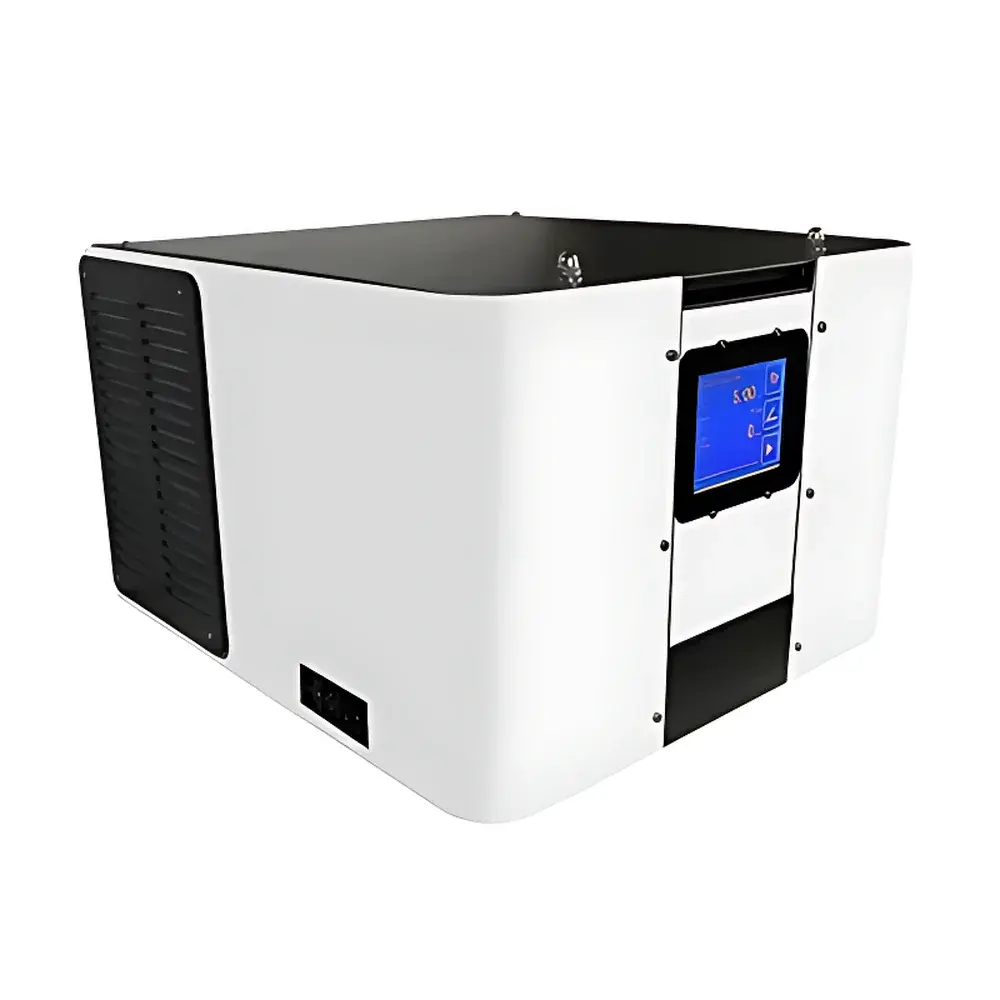

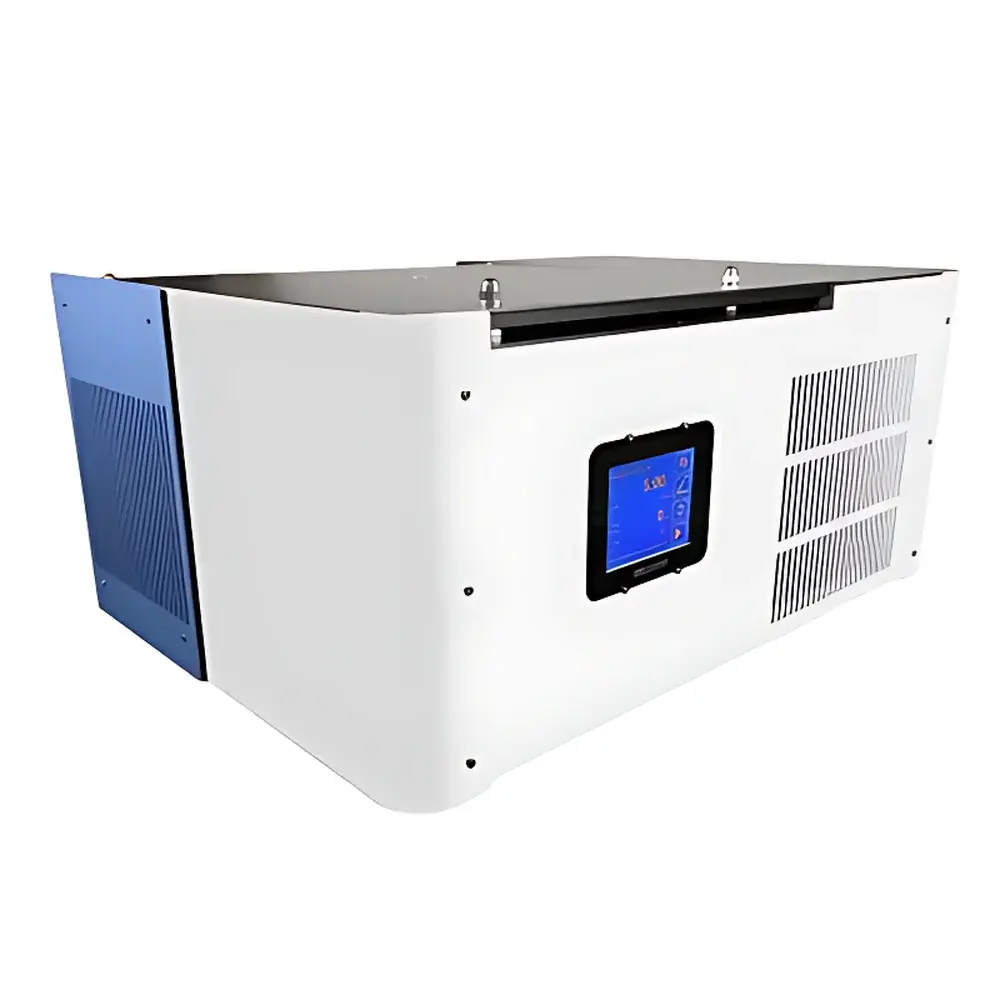

Centurion Scientific K243R High-Capacity Refrigerated Benchtop Centrifuge

Overview

The Centurion Scientific K243R is a high-capacity refrigerated benchtop centrifuge engineered for demanding separation workflows in molecular biology, clinical diagnostics, biopharmaceutical development, and academic research laboratories. It operates on the principle of sedimentation under controlled gravitational force (RCF), enabling precise isolation of biomolecules—including nucleic acids, proteins, organelles, and subcellular particles—based on differences in density, size, and shape. With a maximum capacity of 4 × 750 mL using the BRK3000 horizontal rotor and a top speed of 15,000 rpm (22,000 × g), the K243R bridges the performance gap between standard benchtop units and floor-standing preparative systems—without requiring dedicated utility infrastructure. Its refrigerated variant (K243R) maintains sample integrity across a wide thermal range (−9 °C to +40 °C), critical for temperature-sensitive applications such as RNA extraction, enzyme purification, and live-cell fractionation.

Key Features

• Intuitive 7-inch capacitive touchscreen interface with multilingual support and real-time parameter visualization
• 10 independent acceleration and deceleration ramp profiles, configurable in 1-rpm increments for optimized pelleting and gradient resolution
• 108 user-programmable methods with password-protected access levels for SOP adherence and operator accountability
• “Pulse” function (1–90 seconds) for rapid re-suspension or gentle mixing of pellet interfaces prior to full-speed runs
• Dual display mode: simultaneous or toggleable RPM and RCF readouts, ensuring method reproducibility across instrument platforms
• Robust stainless-steel centrifuge chamber and reinforced steel-alloy chassis for long-term mechanical stability and corrosion resistance
• Integrated safety architecture: four-point lid locking mechanism, lid-open interlock, automatic imbalance compensation, overspeed monitoring, and motor thermal cutoff
• Low-noise operation (<60 dB[A]) achieved through precision-balanced rotor mounting and acoustic-dampened housing design

Sample Compatibility & Compliance

The K243R accommodates a broad spectrum of sample formats via interchangeable rotors—including fixed-angle, swing-out, and microplate carriers—supporting volumes from 0.2 mL PCR tubes to 750 mL disposable bottles. All rotors are CE-marked and certified to ISO 13485:2016 for medical device manufacturing environments. The system meets IEC 61010-1 safety standards for laboratory equipment and is compatible with Good Laboratory Practice (GLP) and current Good Manufacturing Practice (cGMP) workflows. When paired with validated LIMS integration or Centurion’s optional CentriLog™ software, the K243R supports 21 CFR Part 11 compliance through electronic signatures, audit trails, and secure data export (CSV, PDF, XML).

Software & Data Management

CentriLog™ (optional) provides centralized control, remote monitoring, and automated reporting for multi-instrument labs. It records timestamped run logs—including setpoints, actual values, error codes, and environmental conditions—with tamper-evident digital signatures. Data exports are structured for seamless import into ELN platforms (e.g., LabArchives, Benchling) and statistical analysis tools (e.g., JMP, GraphPad Prism). Firmware updates are delivered via encrypted USB or network push, maintaining traceability per ISO/IEC 17025:2017 calibration management requirements.

Applications

• Large-volume cell harvesting (e.g., mammalian suspension cultures, microbial pellets)
• Plasma and serum separation from whole blood in clinical specimen processing
• Crude lysate clarification prior to chromatography or ultracentrifugation
• Preparative isolation of exosomes and extracellular vesicles using differential centrifugation protocols
• High-throughput nucleic acid purification from tissue homogenates or environmental samples
• Stability testing of biologics under controlled thermal conditions (−9 °C to 40 °C)
• Microplate-based assays requiring low-g pelleting (e.g., antibody-coated beads, immunoassay carriers)

FAQ

What is the difference between the K243 and K243R models?
The K243 is the non-refrigerated version; the K243R includes a compressor-based cooling system enabling temperature control from −9 °C to 40 °C.
Can the K243R accommodate custom or third-party rotors?
No—only Centurion-certified rotors (e.g., BRK-series) are approved for use to ensure mechanical integrity, balance validation, and safety certification compliance.
Is the K243R suitable for continuous operation?
Yes, it is rated for extended duty cycles under ambient temperatures ≤30 °C and relative humidity ≤80%, provided proper ventilation and maintenance intervals are observed.
How is calibration and verification performed?
Centurion provides factory-calibrated tachometers and NIST-traceable RCF verification kits; routine checks follow ASTM E2915-20 guidelines for centrifuge performance validation.
Does the system support remote diagnostics?
With CentriLog™ enabled and network connectivity configured, engineers can perform secure remote health assessments, firmware diagnostics, and log file retrieval—subject to institutional IT policies.
