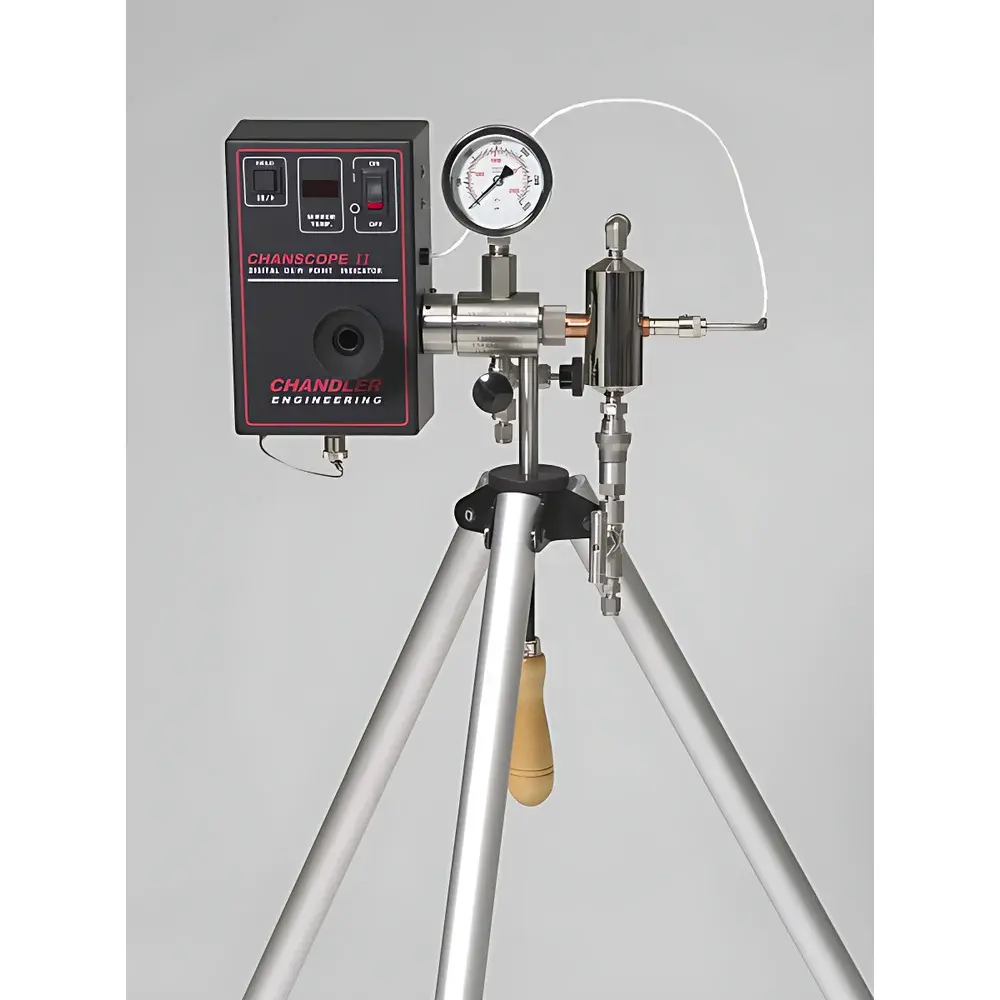

Chandler Chanscope II Portable Chilled-Mirror Dew Point Meter

Overview

The Chandler Chanscope II is a field-deployable, chilled-mirror dew point meter engineered for high-accuracy moisture measurement in compressed air, industrial gases, natural gas transmission lines, and calibration laboratories. Based on the fundamental thermodynamic principle of chilled-mirror hygrometry, the instrument directly measures the temperature at which water vapor in a sampled gas phase condenses onto a precisely temperature-controlled, optically polished mirror surface. This primary measurement method—recognized as a reference standard by ASTM D1142, ISO 8573-3, and IEC 62271-1—ensures traceable, absolute dew point determination without reliance on empirical calibration curves or sensor drift compensation algorithms. Unlike capacitive or aluminum oxide sensors, the Chanscope II delivers inherently stable, physics-based readings with no inherent hysteresis or long-term baseline drift. Its compact, ruggedized enclosure enables reliable operation across ambient conditions from –20 °C to +40 °C, making it suitable for both indoor QA/QC labs and outdoor pipeline commissioning sites.

Key Features

• Primary-standard chilled-mirror sensing technology with real-time optical condensation detection via integrated photodiode array
• High-stability Peltier thermoelectric cooling stage with closed-loop mirror temperature control (resolution: 0.01 °C)
• Auto-focus optical path and mirror contamination monitoring system with audible/visual alert for maintenance scheduling
• Integrated sample flow control (0.5–2.0 L/min) with pressure regulation and particulate filtration (0.1 µm inline filter)
• Internal rechargeable lithium-ion battery supporting >8 hours of continuous operation; also operable via 100–240 VAC universal power adapter
• IP54-rated housing with shock-absorbing elastomer overmold for drop resistance and dust/moisture ingress protection

Sample Compatibility & Compliance

The Chanscope II is validated for use with non-corrosive, particle-free gases including compressed air, nitrogen, argon, helium, CO₂, and natural gas (up to 10 MPa with optional high-pressure sampling module). It complies with ASTM D1142 (“Standard Test Method for Water Vapor Content of Gaseous Fuels”) and supports conformance testing per ISO 8573-3 (compressed air purity Class 0–5), ISO 8573-4 (measurement methods), and EN 15971 (natural gas quality). For regulated environments—including pharmaceutical cleanroom compressed air systems and semiconductor fab gas delivery networks—the instrument’s built-in audit trail, user-access controls, and data encryption meet core requirements of FDA 21 CFR Part 11 and EU Annex 11 when used with validated software workflows.

Software & Data Management

The Chanscope II interfaces via USB-C or Bluetooth 5.0 to the vendor-supplied DewPoint Studio™ desktop application (Windows/macOS). The software provides real-time dew point trending, automatic report generation (PDF/CSV), configurable alarm thresholds, and full GLP-compliant electronic records—including operator ID, timestamp, environmental conditions, and raw mirror temperature vs. reflectance profiles. All stored measurements include embedded metadata for full traceability. Data export supports integration into LIMS platforms via ODBC or REST API. Firmware updates are delivered through digitally signed packages to ensure integrity and version control.

Applications

• Verification of desiccant dryer and refrigerated dryer performance in manufacturing facilities
• Pre-commissioning moisture validation of pipelines and storage vessels prior to hydrotesting or gas injection
• Periodic auditing of medical-grade compressed air systems per ISO 8573-1:2010 Class 2 or ISO 7503
• Field calibration of secondary humidity sensors (e.g., capacitive or tunable diode laser analyzers)
• Moisture content verification in SF₆-insulated switchgear per IEC 60480
• Supporting root-cause analysis of corrosion failures linked to elevated dew point exposure

FAQ

What is the recommended calibration interval for the Chanscope II?
Annual calibration against NIST-traceable chilled-mirror standards is recommended; however, users may extend intervals to 18 months if supported by documented in-field verification using certified zero-air and saturated salt standards.
Can the Chanscope II measure dew point below –60 °C?
Yes—the instrument achieves a typical lower limit of –70 °C under dry nitrogen purge and optimized thermal stabilization; extended-range operation requires optional cryo-cooling accessory kit.
Is the mirror cleaning procedure user-serviceable?
Yes—mirror reconditioning is performed using vendor-supplied optical-grade solvent and lint-free wipes; full mirror replacement kits are available with factory recalibration certificate.
Does the device support pressure compensation?
Yes—built-in absolute pressure transducer (0–2.5 MPa range) enables automatic dew point correction to standard reference conditions (e.g., 101.325 kPa) per ISO 6327.
How does the Chanscope II handle condensable hydrocarbons or oil vapors?
Hydrocarbon-laden samples require pre-filtration via activated carbon scrubber (optional accessory); persistent oil mist necessitates coalescing filter installation upstream to prevent mirror fouling and measurement artifact.
