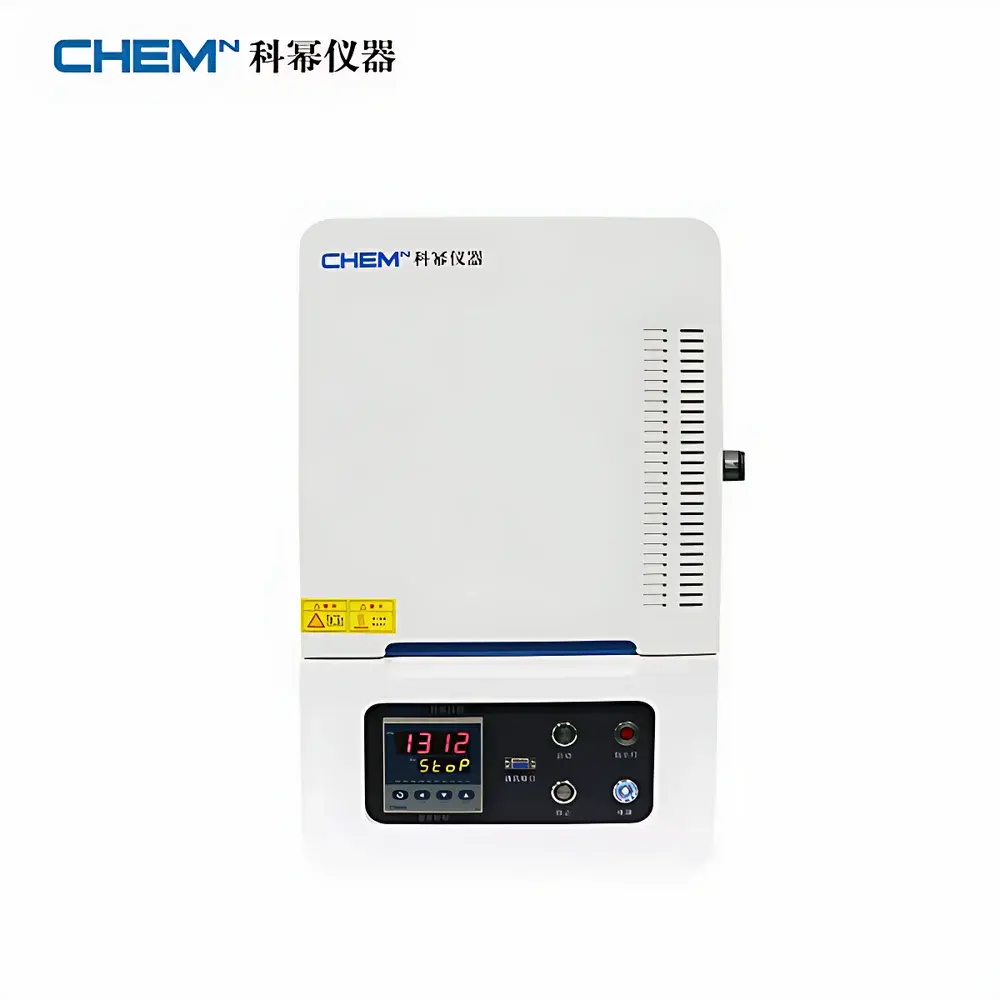

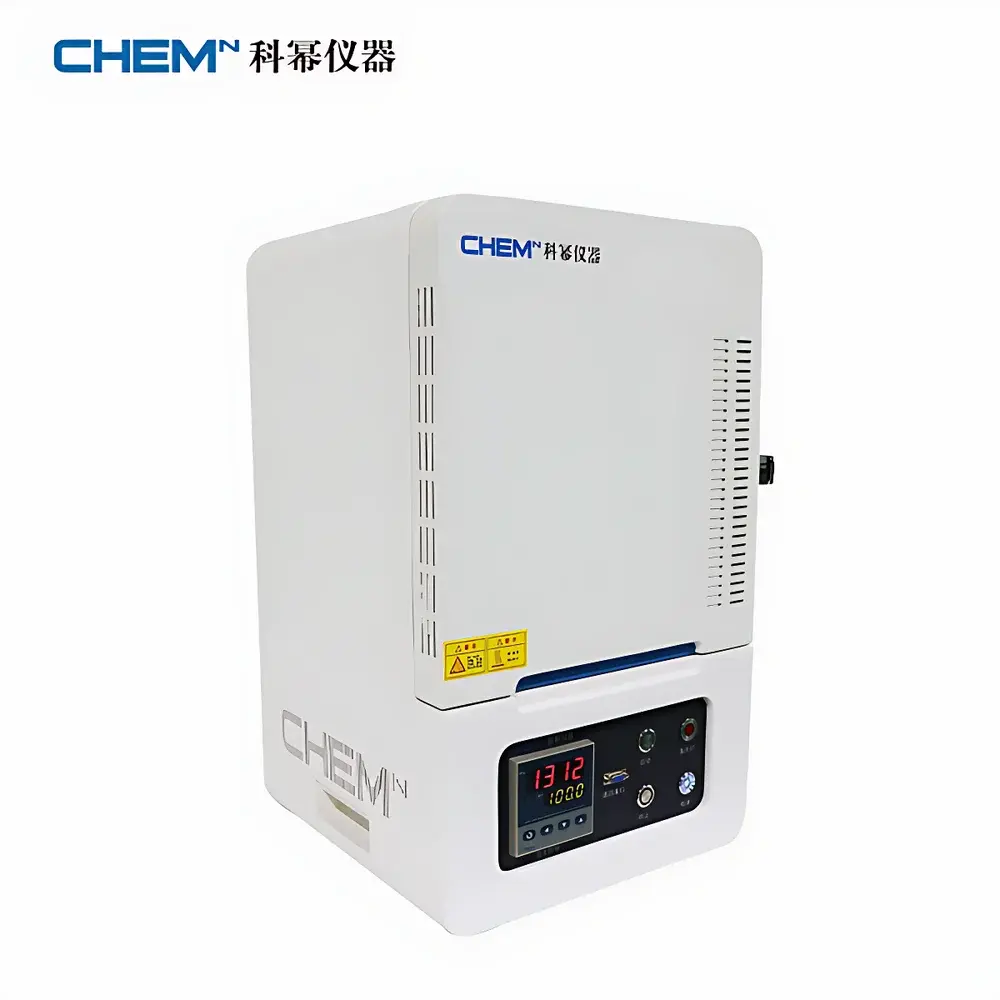

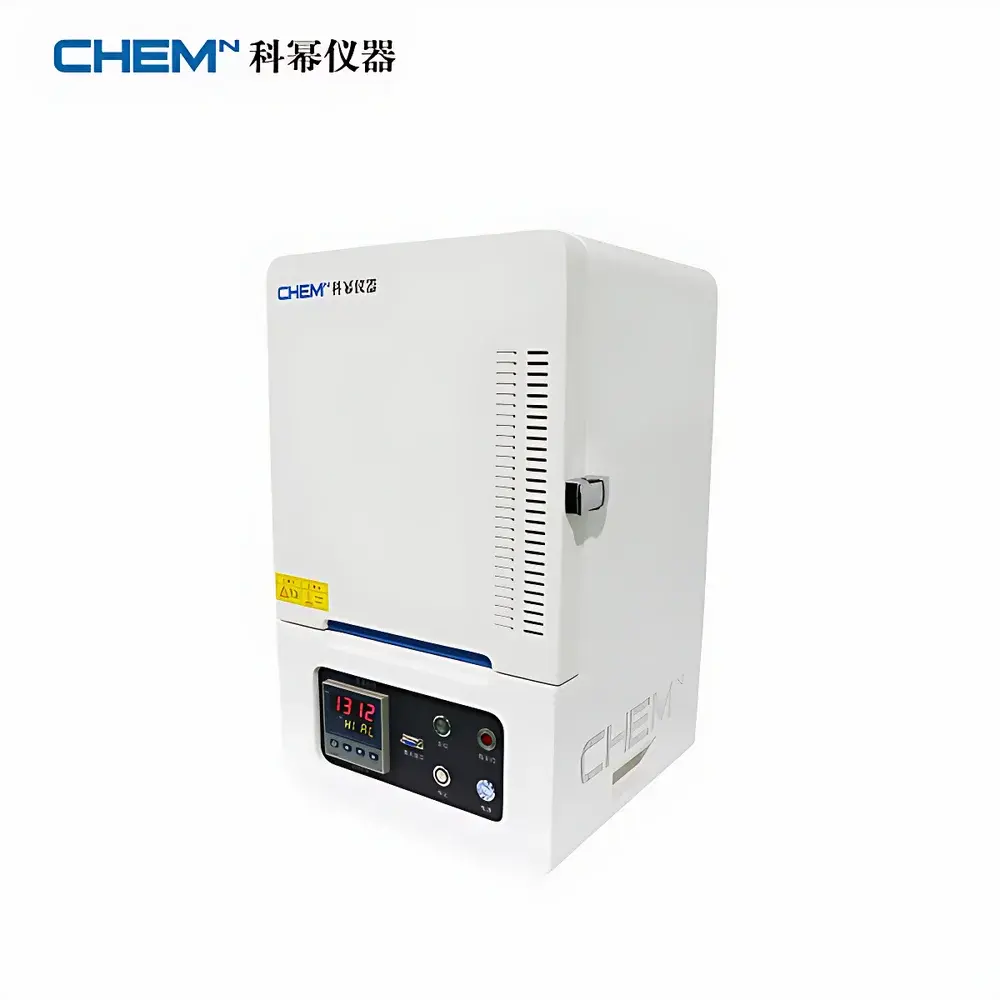

Chemn BFC-1200-1L Compact Benchtop Muffle Furnace

Overview

The Chemn BFC-1200-1L is a compact, benchtop muffle furnace engineered for precision thermal processing in academic laboratories, quality control environments, and small-scale R&D settings. It operates on the principle of resistive heating via high-stability HRE alloy heating elements—strategically mounted on the left, right, and top interior surfaces—to achieve rapid thermal response and superior temperature uniformity across the 1-liter chamber. Designed for continuous operation at up to 1000 °C and short-term exposure to 1200 °C, the furnace integrates a microprocessor-based digital temperature controller with K-type thermocouple feedback, delivering stable setpoint maintenance within ±1 °C under steady-state conditions. Its all-in-one mechanical and control architecture eliminates external wiring complexity, reduces footprint, and supports seamless integration into limited-space workflows—making it particularly suitable for ashing, calcination, sintering, heat treatment of ceramics or catalysts, and pre-conditioning of analytical samples prior to ICP-OES, XRD, or TGA analysis.

Key Features

• Triple-sided resistive heating configuration (left, right, and top) ensures symmetrical thermal flux distribution and minimizes axial temperature gradients.

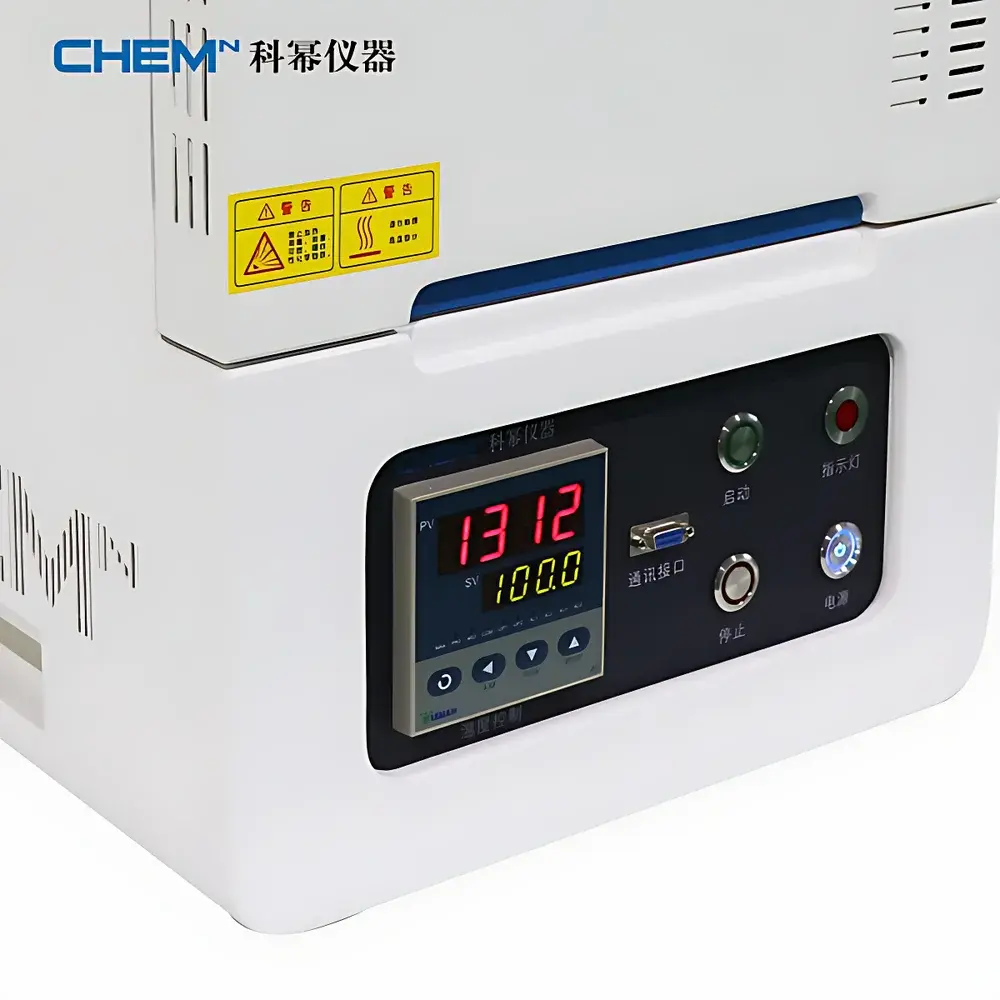

• Digital PID temperature controller with real-time display, programmable ramp-soak profiles, and auto-tuning capability for consistent thermal reproducibility.
• Integrated safety architecture includes over-temperature cut-off, thermocouple break detection (open-circuit alarm), and front-panel emergency stop button compliant with IEC 61000-6-2 electromagnetic immunity standards.
• Benchtop form factor (290 × 270 × 450 mm) and low mass (14 kg) enable portability between labs without requiring structural anchoring or dedicated utility infrastructure.
• Ceramic fiber insulation lining provides low thermal mass and high thermal resistance—supporting energy-efficient operation with typical power draw ≤1 kW during stabilization.
• Front-loading design with reinforced ceramic door gasket ensures minimal heat leakage and maintains chamber integrity during repeated thermal cycling.

Sample Compatibility & Compliance

The BFC-1200-1L accommodates standard crucibles (alumina, quartz, or stainless steel) up to 80 mm in diameter and 60 mm in height. Its 100 × 100 × 100 mm chamber supports batch processing of multiple small-volume samples—ideal for ASTM E1662 (ash content determination), ISO 1171 (determination of ash in coal and coke), and USP heavy metals testing protocols. The furnace complies with general laboratory electrical safety requirements per IEC 61010-1 and incorporates fail-safe logic aligned with GLP/GMP documentation practices. While not certified for Class I Div 1 hazardous locations, its sealed construction and thermal cutoffs meet baseline safety expectations for non-explosive ambient lab use.

Software & Data Management

The unit operates via standalone digital interface; no PC connection is required for basic operation. However, optional RS485 serial output (Modbus RTU protocol) enables integration with LabVIEW, MATLAB, or SCADA systems for remote monitoring and data logging. When interfaced, temperature readings, setpoint history, alarm events, and runtime counters can be timestamped and exported in CSV format—supporting audit-ready records for FDA 21 CFR Part 11–aligned workflows where electronic signatures and audit trails are implemented at the host system level. Firmware updates are performed locally via USB port using manufacturer-provided utilities.

Applications

• Ash residue quantification in food, pharmaceutical, and environmental matrices per AOAC 942.05 and EPA Method 200.2.
• Thermal decomposition studies of polymers, battery cathode materials, and MOFs under controlled oxidative or inert atmospheres (when used with optional purge gas adapter).
• Pre-firing of ceramic substrates and sensor elements prior to thin-film deposition or electrode patterning.
• Calibration verification of thermogravimetric analyzers (TGA) using NIST-traceable reference materials such as calcium oxalate monohydrate.
• Routine annealing of metallographic specimens and metallurgical powders in metallurgy teaching labs.

FAQ

What is the recommended maximum continuous operating temperature?
The furnace is rated for continuous operation at 1000 °C. Short-term excursions to 1200 °C are permissible for ≤30 minutes per cycle, provided cooling intervals exceed 60 minutes between cycles.
Can inert or reducing atmospheres be introduced?
Yes—the chamber features a 6 mm threaded port on the rear panel for optional gas inlet/outlet tubing. Users must supply external mass flow controllers and compatible gas lines; furnace itself does not include gas regulation hardware.
Is calibration certificate included with shipment?
A factory-as-tested temperature uniformity report (measured at three points: center, top corner, bottom corner) is supplied. NIST-traceable calibration certification is available upon request at additional cost.
How often should the thermocouple be verified or replaced?
K-type thermocouples typically maintain accuracy for ≥2000 hours at ≤1000 °C. Verification against a reference thermometer is advised every 6 months in regulated environments or after 50 thermal cycles exceeding 900 °C.
Does the unit support multi-step temperature programs?
Yes—up to 8 segments (ramp-hold sequences) can be programmed directly on the controller, with ramp rates adjustable from 0.1 to 20 °C/min and hold times ranging from 1 minute to 99 hours 59 minutes.
