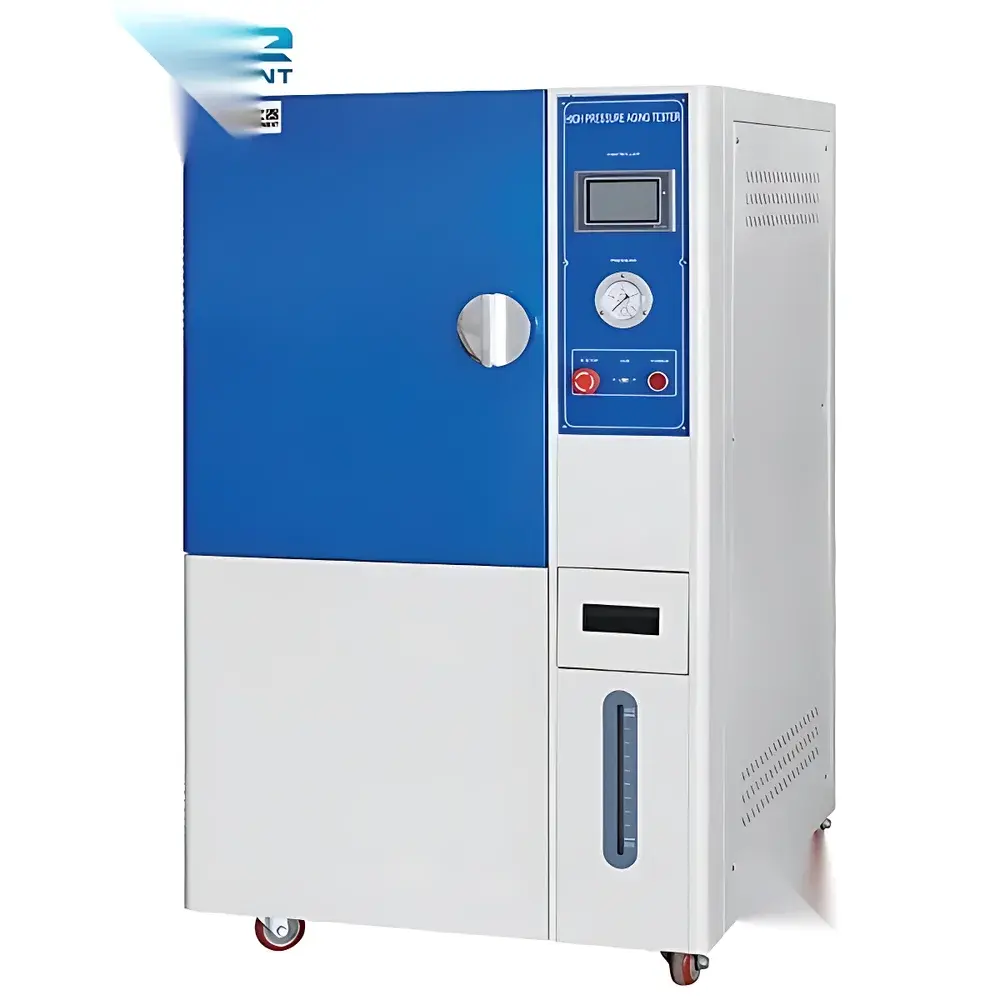

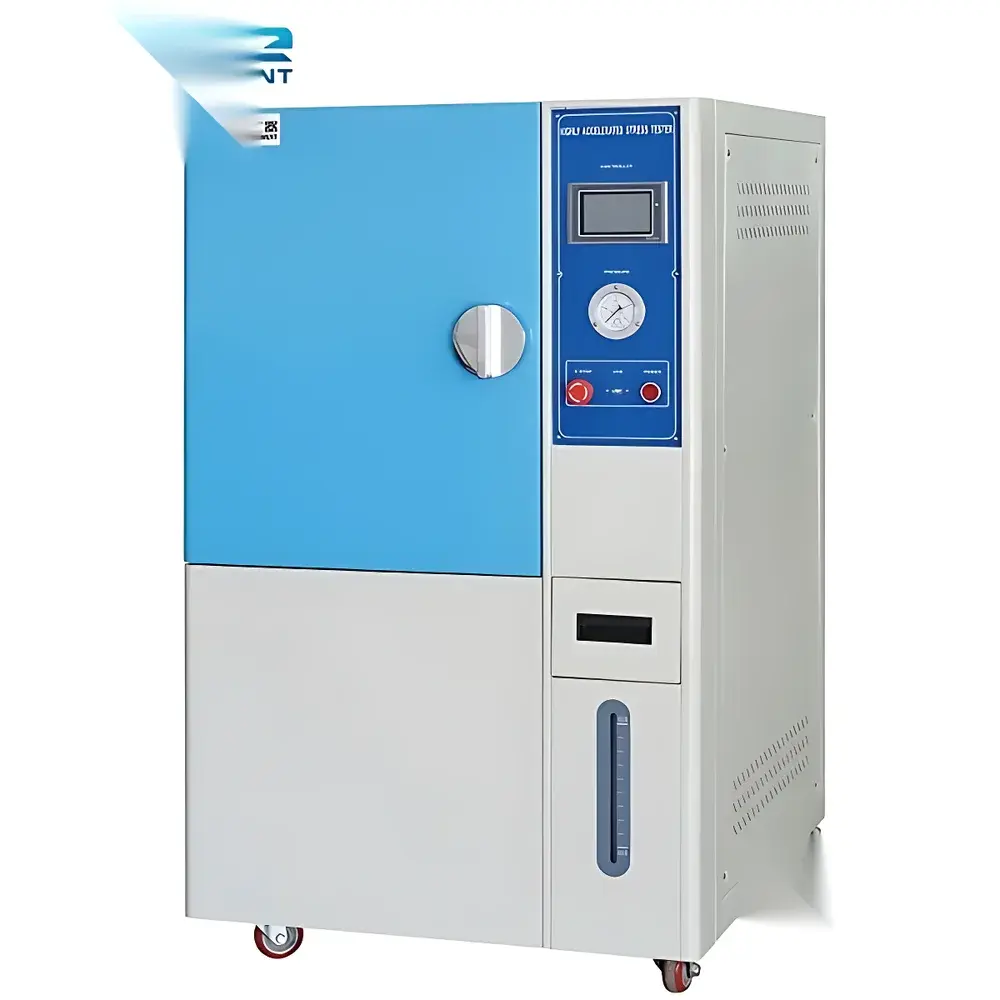

ChipPCT-45 Accelerated Pressure Cooker Test Chamber

Overview

The ChipPCT-45 Accelerated Pressure Cooker Test Chamber is an engineered environmental stress test system designed specifically for reliability validation of semiconductor devices, integrated circuits (ICs), and packaged microelectronic components under high-pressure, high-humidity, elevated-temperature conditions. It operates on the principle of saturated steam pressurization—generating a controlled atmosphere where temperature, relative humidity, and absolute pressure are precisely coupled to accelerate moisture ingress and hydrolytic degradation mechanisms in dielectrics, wire bonds, and mold compounds. Unlike conventional humidity chambers, the ChipPCT-45 maintains thermodynamic saturation equilibrium inside the cylindrical stainless-steel chamber, enabling reproducible exposure to 100% RH at temperatures up to 130 °C and pressures up to 2.0 bar (gauge), per industry-standard PCT protocols. Its vertical upright configuration optimizes floor space utilization while supporting full compliance with JEDEC JESD22-A102 and A110 requirements when configured with calibrated traceable sensors and audit-ready data logging.

Key Features

• Cylindrical inner chamber constructed from 3 mm-thick ASTM A240 SUS316 stainless steel—resistant to chloride-induced pitting and steam-induced corrosion during prolonged exposure to saturated condensate.
• Dual-layer thermal insulation comprising mineral wool (density ≥100 kg/m³) and rigid polyurethane foam (thermal conductivity ≤0.022 W/m·K), minimizing heat loss and ensuring uniform axial/radial temperature distribution (±1.5 °C across working volume).
• Titanium-sheathed heating elements within the steam generator compartment—immune to scaling, oxidation, or electrolytic degradation in deionized water environments, ensuring long-term stability of steam generation rate.
• Delta DOP-107SV color touchscreen HMI with embedded PLC logic, supporting real-time monitoring and closed-loop PID control of saturation temperature (via PT100 Class A sensors) and chamber pressure (via calibrated analog transducer input).
• Integrated auto-refill system with solenoid-controlled inlet valve and level-sensing float switch—enabling uninterrupted multi-day testing cycles without manual intervention or process interruption.
• Analog Bourdon-tube pressure gauge (0–3.0 bar, Class 1.6 accuracy) installed on front panel for independent mechanical verification—required for GLP/GMP audit trails and cross-validation against digital readings.

Sample Compatibility & Compliance

The ChipPCT-45 accommodates standard JEDEC trays (JEDEC STD-22, MO-118), 8”/12” wafer carriers (FOUPs/FOSBs), and bare-die test boards mounted on perforated stainless-steel sample racks. Its internal geometry supports unrestricted steam circulation and condensate drainage—critical for eliminating localized dry spots or stagnant condensate pools that compromise test validity. The system meets mandatory requirements for qualification testing per IEC 60749-18 (Moisture Sensitivity Level – MSL), IPC/JEDEC J-STD-020, and automotive AEC-Q100 stress test profiles. All electrical components comply with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and structural design adheres to ISO 13857 safety clearance standards for operator access zones.

Software & Data Management

Data acquisition is performed via the onboard Delta DVP-PLC with RS-485 Modbus RTU interface, exporting timestamped records (pressure, saturation temperature, chamber humidity, elapsed time) at user-defined intervals (1–60 seconds). Export formats include CSV and Excel-compatible .xls files, compatible with LIMS integration and statistical process control (SPC) platforms such as Minitab or JMP. Optional Ethernet module enables remote supervision via web browser (HTTP/HTTPS), with configurable user roles and password-protected access levels. Audit trail functionality logs all parameter changes, operator logins, and alarm events—fully compliant with FDA 21 CFR Part 11 requirements when paired with electronic signature-enabled software add-ons.

Applications

• Preconditioning of plastic-encapsulated microcircuits (PEMs) prior to reflow soldering simulation (MSL classification per J-STD-020).
• Failure analysis root cause investigation of popcorn cracking, bond lift, and intermetallic delamination in QFN, BGA, and WLCSP packages.
• Qualification of underfill materials, molding compounds, and conformal coatings under combined thermal-hygric-mechanical stress.
• Reliability screening for automotive-grade ICs subjected to AEC-Q100 Rev H condition E (highly accelerated temperature and humidity stress test – HAST variant).
• Validation of hermeticity assurance methods for MEMS sensors and optoelectronic modules exposed to humid tropical environments.

FAQ

What is the maximum allowable test duration for continuous operation?
The system supports unattended operation for up to 168 hours (7 days) when connected to a stable DI water supply and ambient cooling airflow ≥300 m³/h.
Does the chamber support programmable ramp-and-soak profiles?
Yes—the Delta PLC firmware includes multi-step program mode with up to 99 segments, each defining target pressure, saturation temperature, and dwell time.
Is third-party calibration certification available?
Factory calibration certificates (NIST-traceable PT100 and pressure transducers) are included; UKAS-accredited field calibration services can be arranged upon request.
Can the system be integrated into an existing MES or factory automation network?
Standard Modbus TCP/IP and optional OPC UA server modules enable seamless integration with Siemens SIMATIC, Rockwell FactoryTalk, or custom SCADA architectures.
What maintenance intervals are recommended for titanium heating elements and insulation integrity?
Titanium heaters require no scheduled replacement; insulation integrity should be verified annually via thermal imaging or surface temperature mapping per ISO 17749.
