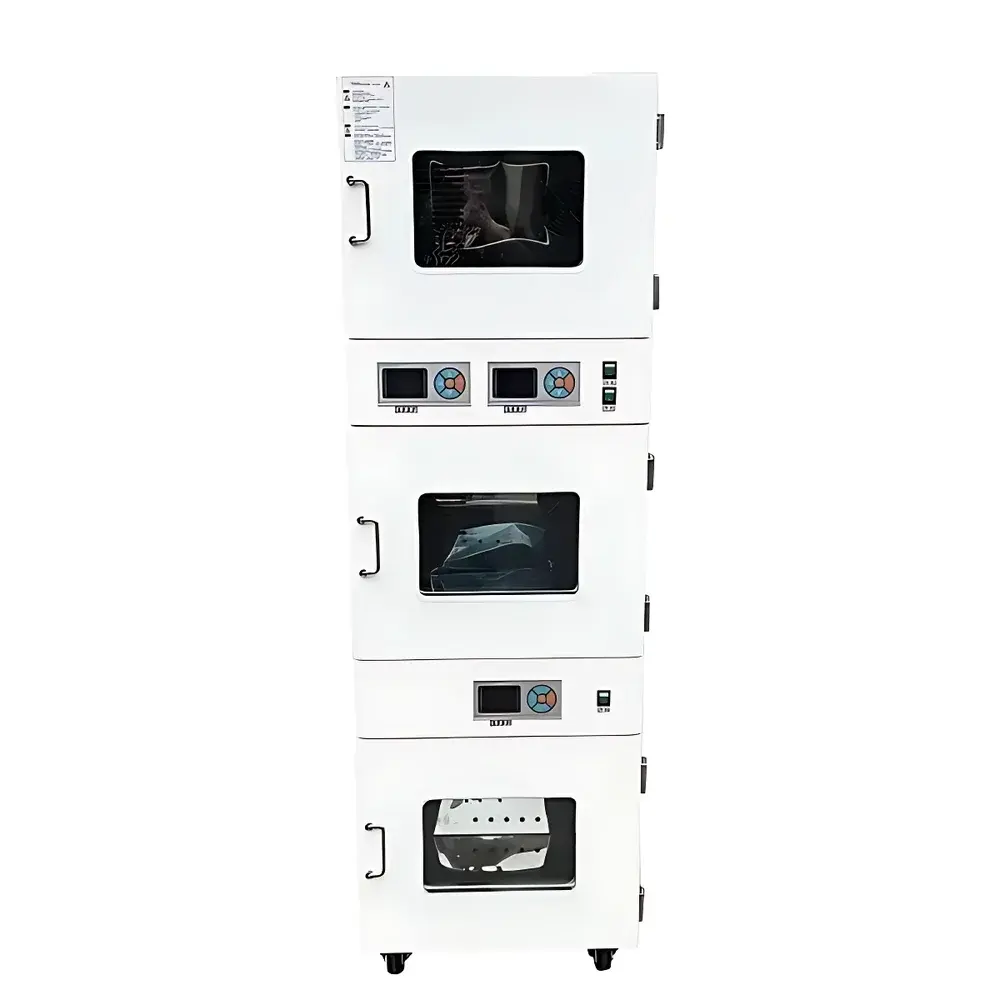

Chuanheng CNSX-50-3 Triple-Stack Biochemical Incubator (Single-Zone Control per Chamber)

Overview

The Chuanheng CNSX-50-3 Triple-Stack Biochemical Incubator is an engineered solution for laboratories requiring scalable, thermally stable environments across multiple independent experimental conditions. Designed around a modular air-jacketed architecture with three vertically stacked 50-liter chambers, each chamber operates under its own dedicated temperature control loop—enabling simultaneous maintenance of distinct thermal setpoints (e.g., 4°C for sample storage, 37°C for mammalian cell culture, and 55°C for thermophilic microorganism propagation). This configuration eliminates cross-chamber thermal interference and supports parallel experimental workflows without compromising precision. The system employs compressor-based refrigeration combined with PID-controlled resistive heating, ensuring rapid thermal recovery after door openings and high reproducibility in long-term incubation protocols. Its forced-air convection system—driven by low-noise, brushless DC fans—guarantees uniform airflow distribution and minimizes vertical/horizontal temperature gradients within each chamber, meeting the spatial uniformity requirements specified in ISO 15189 and CLSI EP25-A for clinical microbiology applications.

Key Features

• Triple-stack modular design with physically isolated chambers—each equipped with independent air-jacketed heating, compressor-driven cooling, and microprocessor-based PID control for true multi-condition operation.
• Mirror-finish SUS#304 stainless steel interior with seamless, radius-corner construction—resistant to corrosion, biofilm adhesion, and chemical disinfectants; compliant with ISO 13485 cleanroom-compatible surface standards.
• High-density polyurethane insulation (≥80 mm thickness, in-situ foamed) delivering thermal resistance (R-value) >2.5 m²·K/W—reducing ambient heat gain and stabilizing internal conditions during power fluctuations or facility HVAC variations.
• LCD touch interface with real-time graphing capability, programmable ramp/soak profiles, and event logging—including door-open duration, temperature deviation alerts, and compressor runtime statistics.
• Dual-tier thermal safety architecture: primary electronic over-temperature cutoff (adjustable threshold) plus secondary mechanical fuse mounted directly inside each chamber cavity—ensuring biological sample integrity under fault conditions.
• Low-vibration, ultra-quiet operation (<45 dB[A] at 1 m)—achieved via anti-resonance mounting of compressors and acoustic dampening in air ducts—critical for sensitive suspension cultures and embryology applications.

Sample Compatibility & Compliance

The CNSX-50-3 accommodates standard microbiological and cell culture formats—including Petri dishes (up to 150 mm), multi-well plates (6–96-well), Erlenmeyer flasks (50–1000 mL), and tissue culture roller bottles—without obstructing airflow paths. Its validated temperature uniformity (±1.0°C across full volume per chamber, per ASTM E145-22 Annex A4 methodology) supports compliance with USP <61>/<62>, ISO 8573-1 (air purity class 5), and GLP-regulated BOD₅ testing per EPA Method 405.1. The unit’s non-condensing humidification design (optional add-on) avoids water pooling while maintaining ≥60% RH stability—essential for fungal cultivation and plant tissue culture. All electrical components conform to IEC 61010-1:2010 safety standards; CE marking documentation available upon request.

Software & Data Management

Data integrity is maintained through embedded audit-trail functionality compliant with FDA 21 CFR Part 11 requirements: all parameter changes, alarm events, and manual interventions are time-stamped, user-ID logged, and non-erasable. Optional RS-485/Modbus RTU or Ethernet (TCP/IP) connectivity enables integration into laboratory information management systems (LIMS) or centralized environmental monitoring platforms. Raw temperature logs export as CSV files with millisecond-resolution timestamps, supporting statistical process control (SPC) analysis using JMP or Minitab. Firmware updates are performed via secure USB key with cryptographic signature verification—preventing unauthorized modifications.

Applications

• Microbial culture and preservation (aerobic/anaerobic bacteria, yeasts, molds) per ISO 7218 and APHA Standard Methods.
• BOD₅ and COD incubation for wastewater quality assessment (EPA 405.1, ISO 5815-1).
• Seed germination and plant growth studies under controlled photoperiod (when paired with optional LED light modules).
• Vaccine stability testing per ICH Q5C guidelines (real-time and accelerated conditions).
• Enzyme activity assays requiring precise thermal staging (e.g., 4°C activation → 37°C reaction → 95°C denaturation).
• Quality control of diagnostic reagents and biologics in GMP manufacturing environments.

FAQ

What is the recommended maintenance schedule for the compressor and condenser coils?
Compressor oil levels and refrigerant pressure should be verified annually by certified service personnel; condenser coils require vacuum cleaning every 3 months in dusty lab environments.
Can this incubator operate continuously at 4°C with high ambient temperatures (e.g., 35°C room)?
Yes—the dual-stage compressor and optimized air-jacket design maintain 4°C setpoint at up to 35°C ambient, provided minimum clearance (10 cm rear/side, 20 cm top) is maintained for heat dissipation.
Is validation support (IQ/OQ/PQ protocols) included with purchase?
A complete IQ/OQ protocol package—including calibration certificate traceable to NIST standards, sensor mapping templates, and alarm response test procedures—is supplied digitally with each unit.
How does the system handle door-opening-induced temperature recovery?
Average recovery time to ±0.5°C of setpoint after 30-second door opening is ≤8 minutes at 37°C, verified per ISO 14644-3 Class 5 recovery testing methodology.
Are replacement parts (e.g., fan motors, PID controllers) stocked internationally?
Critical spares—including fan assemblies, temperature sensors, and main control boards—are held in regional distribution hubs across EU, NA, and APAC regions with 48-hour dispatch SLA.
