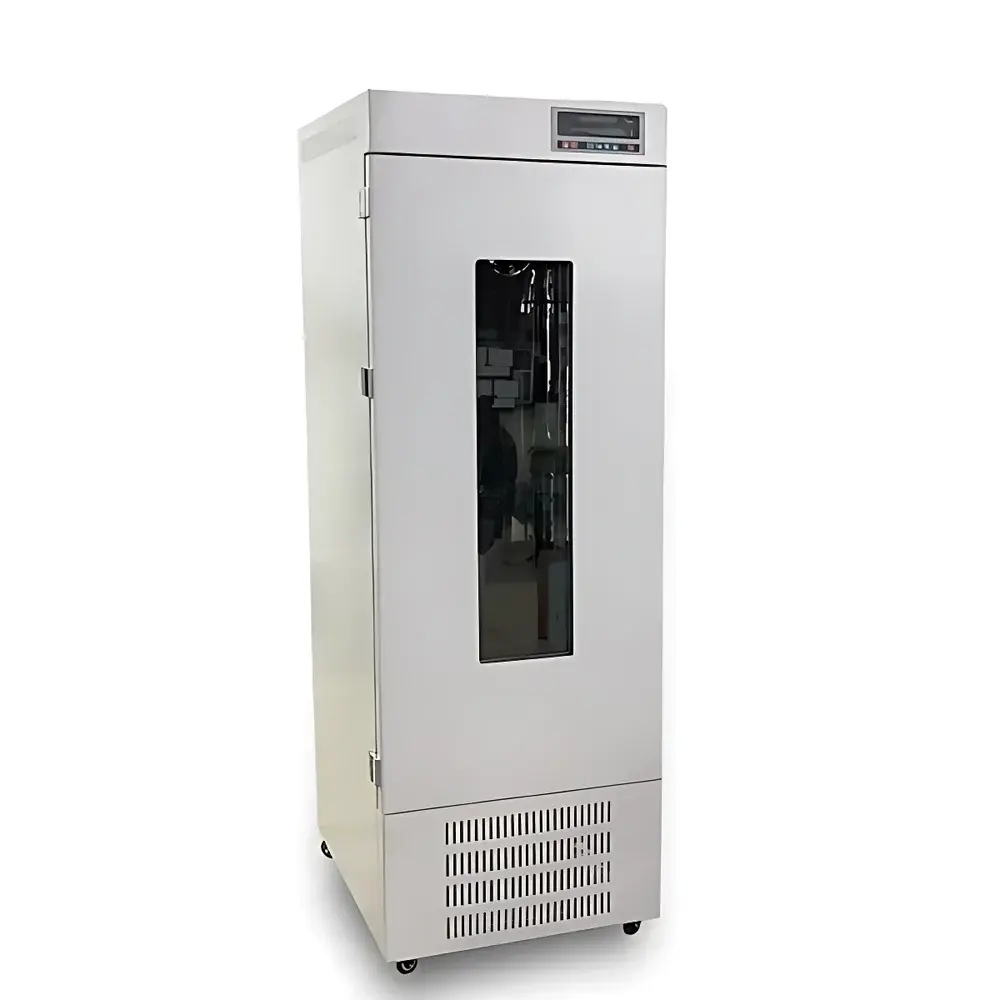

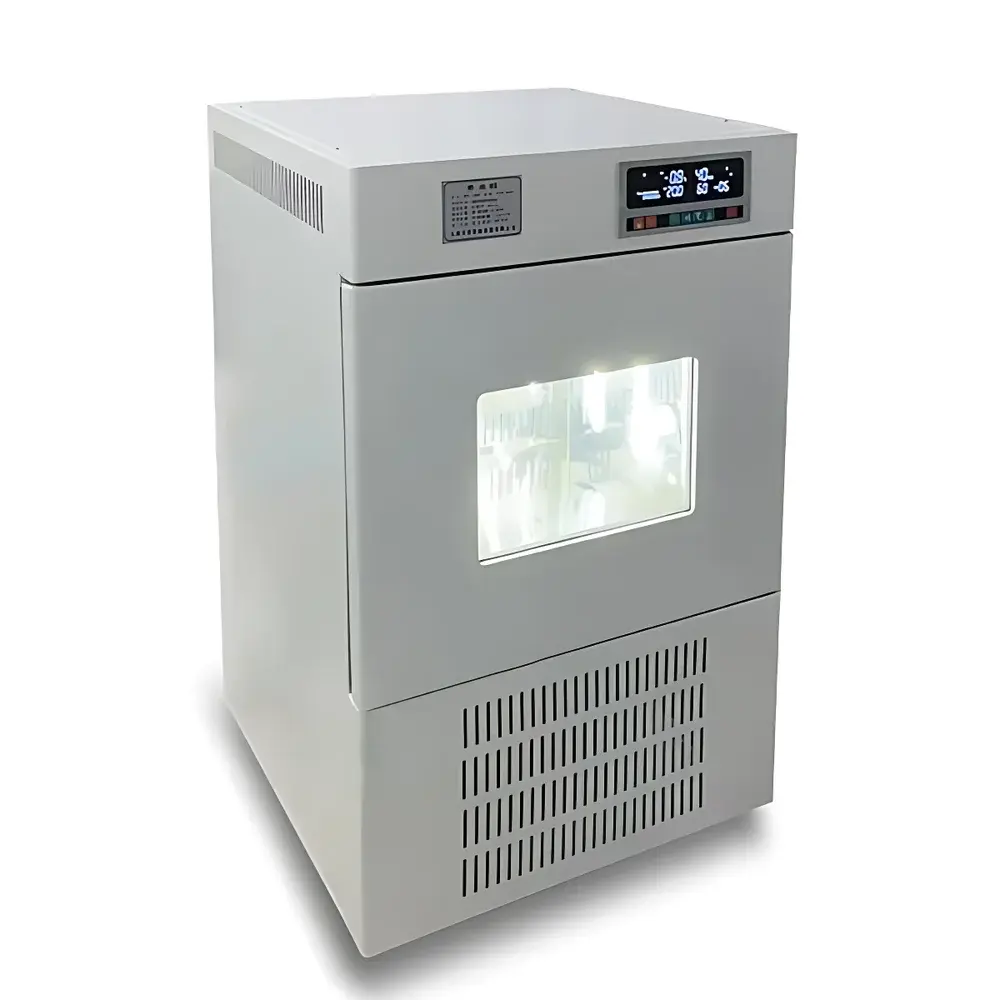

Chuanhong MJX-600 Mold Incubator

Overview

The Chuanhong MJX-600 Mold Incubator is a precision-engineered environmental chamber designed specifically for controlled fungal propagation, microbiological assay validation, and accelerated mold growth testing in compliance with international standards such as ASTM D3273, IEC 60068-2-10, and ISO 846. Unlike general-purpose incubators, this unit operates on a dedicated temperature-regulated principle—employing a dual-mode Peltier-assisted refrigeration and PID-controlled resistive heating system—to maintain stable thermal conditions across its 600 L working volume. Its primary function is to simulate high-risk ambient conditions that promote rapid hyphal development of Aspergillus niger, Penicillium chrysogenum, and other common test fungi within 4–6 hours, enabling standardized evaluation of mold resistance in electrical components, packaging materials, pharmaceutical excipients, and medical device housings. The absence of active humidity control reflects its targeted use case: reproducible, low-moisture, thermally driven fungal challenge testing—not long-term mycelial cultivation or moisture-dependent strain maintenance.

Key Features

• Dual-door configuration with triple-layer tempered glass observation windows ensures minimal thermal disturbance during sample access while maintaining optical clarity for real-time colony morphology assessment.
• Electropolished 304 stainless steel inner chamber resists corrosion from repeated disinfectant exposure and facilitates GLP-compliant cleaning validation.
• PID-based microprocessor controller delivers ±0.8 °C temperature uniformity across the full volume (verified per ISO 15272 Annex B), with programmable ramp-hold profiles and password-protected parameter locking.
• Mechanical door lock prevents unauthorized access during critical exposure cycles—essential for audit-ready testing protocols in regulated environments.
• Energy-efficient insulation (≥80 mm polyurethane foam, λ ≤ 0.022 W/m·K) minimizes thermal drift under continuous operation at boundary temperatures (e.g., 0 °C or 50 °C).

Sample Compatibility & Compliance

The MJX-600 accommodates standard ISO/IEC 17025-compliant test substrates including ceramic tiles, PVC enclosures, polymer films, printed circuit boards (PCBs), and sterile Petri dishes (up to 150 mm diameter). It supports multi-tier rack configurations for parallel exposure of up to 48 samples per cycle. The unit complies with electrical safety requirements per IEC 61010-1 and electromagnetic compatibility per EN 61326-1. While not certified for GMP manufacturing environments, its construction and control architecture meet prerequisite conditions for FDA 21 CFR Part 11–aligned data integrity when paired with external validated logging systems. It is routinely deployed in third-party testing laboratories accredited to ISO/IEC 17025 for material biodegradation, antimicrobial efficacy, and product shelf-life validation.

Software & Data Management

The MJX-600 operates via an embedded 4.3-inch TFT LCD interface with non-volatile memory storing up to 10 user-defined programs (each with 8 segments). Real-time temperature logging is available through RS-485 Modbus RTU output, enabling integration with SCADA platforms or laboratory information management systems (LIMS). Optional USB data export (CSV format) supports traceability for ISO 9001 internal audits. Though the base model lacks built-in Ethernet or Wi-Fi, it is compatible with Chuanhong’s optional CHTempLink™ software suite (v3.2+), which provides electronic signature capability, alarm event timestamping, and automated PDF report generation aligned with ALCOA+ principles.

Applications

• Accelerated mold susceptibility testing of electronic assemblies per MIL-STD-810H Method 508.7.
• Validation of antifungal coatings on medical devices under ISO 10993-5 cytotoxicity screening workflows.
• Environmental stress screening of pharmaceutical packaging per USP <797> and Ph. Eur. 5.1.3.
• Teaching laboratory implementation for undergraduate microbiology courses—focusing on selective isolation of Actinomycetes using Gauze No. 1 medium and Aspergillus spp. using malt extract agar.
• Reference incubation for AOAC Official Method 997.01 (mold and yeast enumeration in foods) when used in conjunction with humidity-controlled ancillary chambers.

FAQ

Does the MJX-600 support humidity control?
No—the MJX-600 is a temperature-only incubator. For combined temperature/humidity applications, consider the MJX-600S variant (40–95% RH, ±5% RH accuracy).
Is the stainless steel chamber electropolished or passivated?
Yes—the interior surface undergoes electropolishing to Ra ≤ 0.4 µm, verified per ASTM A967, ensuring cleanability and minimizing biofilm nucleation sites.
Can this unit be used for bacterial culture incubation?
It meets basic requirements for mesophilic bacterial growth (e.g., E. coli at 37 °C), but lacks CO₂ regulation or humidity feedback; therefore, it is not recommended for fastidious organisms requiring enriched atmospheres.
What calibration documentation is provided?
Each unit ships with a factory-issued temperature uniformity verification report (NIST-traceable probe, 9-point grid mapping per ISO 15272), valid for 12 months from date of shipment.
Is the door lock compliant with ISO/IEC 17025 access control requirements?
The mechanical lock satisfies physical security clauses of ISO/IEC 17025:2017 Section 6.2.5; however, electronic access logs require integration with external authentication hardware.
