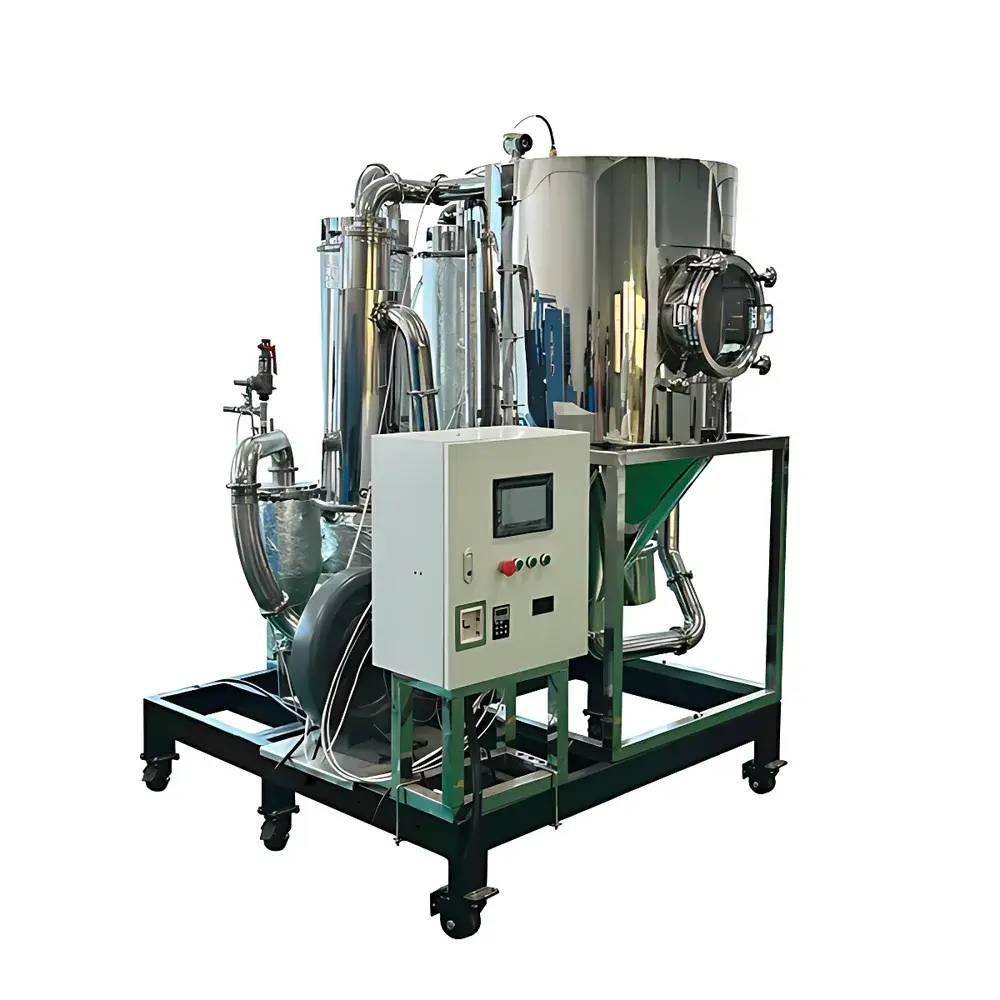

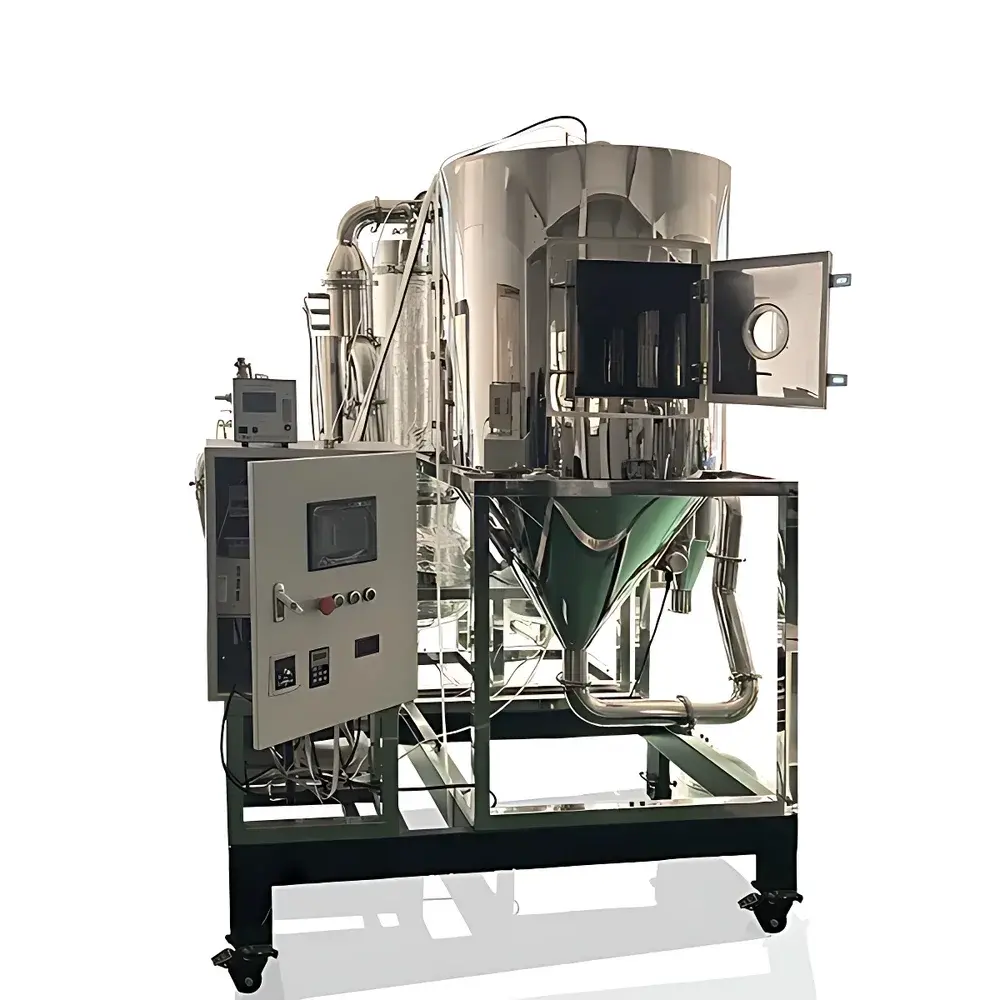

Chuanyi CY-8000YT Inert-Gas Closed-Cycle Organic Solvent Spray Dryer

Overview

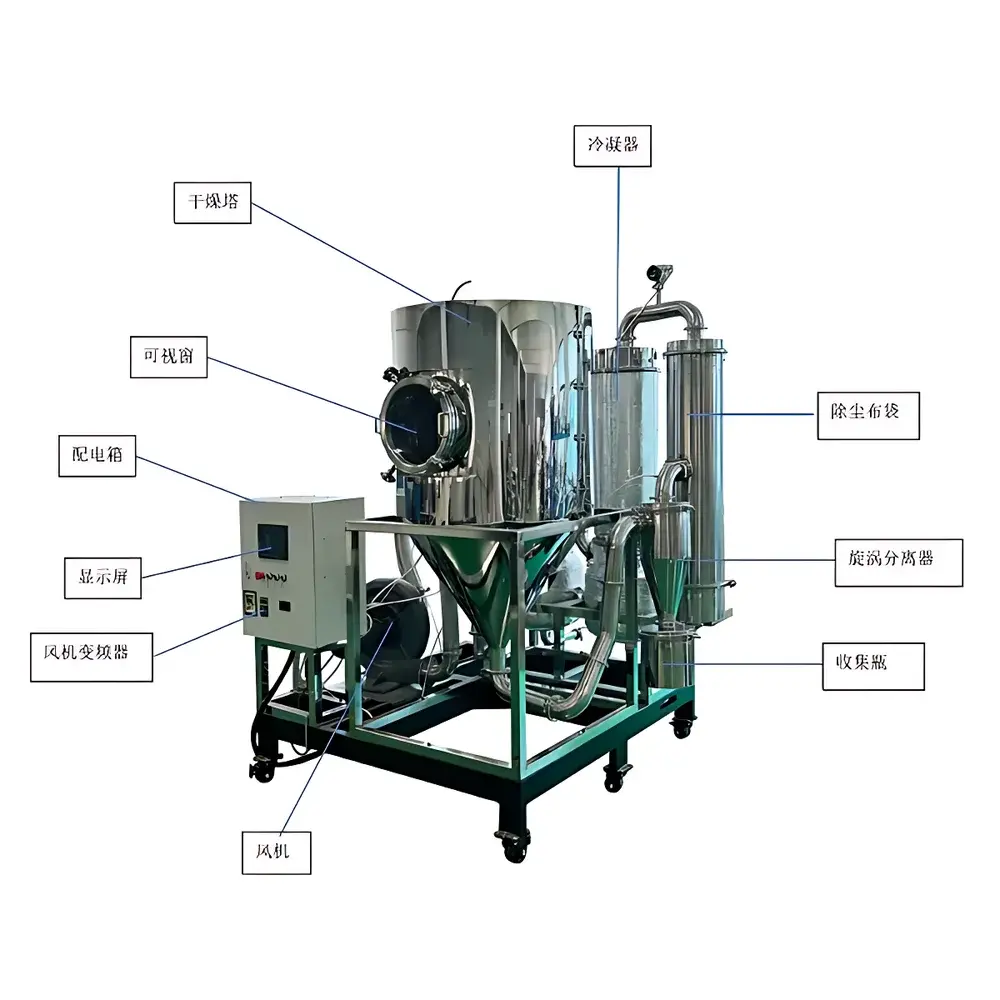

The Chuanyi CY-8000YT is a bench-scale, inert-gas closed-cycle spray dryer engineered for the safe, reproducible, and scalable production of fine particulate powders from heat-sensitive, oxidation-prone, or flammable feedstocks—including aqueous solutions, organic solvent-based suspensions (e.g., ethanol, acetone, ethyl acetate), emulsions, and high-viscosity herbal extracts. Unlike conventional open-loop spray dryers, the CY-8000YT operates under a fully sealed nitrogen atmosphere, eliminating oxygen exposure and mitigating explosion risk during drying of volatile solvents. Its core principle follows co-current spray drying: atomized feed is introduced into a controlled stream of heated nitrogen; rapid solvent evaporation occurs within milliseconds (<30 s residence time), preserving thermolabile functional groups, enzymatic activity, and structural integrity of biologics, natural products, and pharmaceutical intermediates. The system integrates real-time thermal management, inert gas recirculation, cryogenic solvent condensation, and cyclonic particle recovery—making it suitable for method development, formulation screening, and small-batch GMP-aligned pilot production in academic labs, CROs, and R&D departments.

Key Features

• 7-inch full-color touchscreen HMI with bilingual (English/Chinese) interface, supporting intuitive PID-controlled inlet/outlet temperature regulation, adjustable nitrogen flow rate, peristaltic pump speed, and automatic needle-clearing frequency scheduling.
• Two-fluid nozzle design with interchangeable orifices (0.5–2.0 mm) optimized for wide viscosity range (up to 500 cP), minimizing clogging and enabling consistent droplet size distribution—even for concentrated botanical extracts and polymer solutions.
• Full SUS304 stainless steel construction—including drying chamber, cyclone separator, collection vessel, and viewing port—ensuring corrosion resistance, cleanability, and compliance with ISO 14644-1 Class 7 cleanroom-compatible handling protocols.
• Integrated nitrogen recirculation loop with refrigerated solvent trap (−20 °C condenser) and activated carbon post-filter, achieving >95% solvent recovery efficiency and reducing VOC emissions to <10 ppmv in exhaust.
• Dual-mode operation: fully automated sequence control with dynamic process animation display, plus manual override for parameter fine-tuning during method optimization.
• Anti-wall deposition geometry: vertically adjustable nozzle alignment and laminar airflow design prevent material impaction on chamber walls, improving powder yield consistency and reducing cleaning downtime.

Sample Compatibility & Compliance

The CY-8000YT accommodates diverse sample matrices including protein-containing buffers, polysaccharide-rich plant extracts, nanoparticle colloids, pesticide formulations, and API suspensions in chlorinated or polar aprotic solvents. Its closed-loop architecture meets essential safety requirements for handling Class I–III flammable liquids per NFPA 30 and OSHA 1910.106. While not certified to ATEX or IECEx standards out-of-the-box, the system is field-upgradable with explosion-proof components (e.g., Ex-d motors, intrinsically safe sensors) upon request. All electronic controls log timestamped operational data compliant with FDA 21 CFR Part 11 expectations for electronic records and signatures when paired with validated software configuration. Hardware design adheres to ISO 22000 and USP <1117> guidance for equipment suitability in pharmaceutical development.

Software & Data Management

Process parameters—including inlet/outlet temperature, nitrogen pressure, feed rate, and chamber humidity—are continuously recorded at 1 Hz resolution and exportable as CSV or Excel files via USB. The embedded controller maintains an onboard audit trail with user authentication, change history, and session timestamps—enabling traceability for internal QA reviews or regulatory submissions. Optional Ethernet connectivity allows remote monitoring through Modbus TCP or OPC UA protocols, facilitating integration into LabVantage or Thermo Fisher SampleManager LIMS environments. No cloud storage or third-party telemetry is enabled by default, preserving data sovereignty per GDPR and HIPAA-aligned institutional policies.

Applications

• Stabilization of monoclonal antibodies and vaccine adjuvants via trehalose- or mannitol-enabled spray drying under nitrogen.
• Rapid prototyping of inhalable dry powder formulations using ethanol-based nanosuspensions.
• Production of oxidation-sensitive metal-organic framework (MOF) nanoparticles from DMF solutions.
• Conversion of traditional Chinese medicine (TCM) decoctions into standardized granules without Maillard degradation or caramelization artifacts.
• Encapsulation of probiotics and enzymes in enteric-coated microparticles using acetone/water co-solvent systems.
• Development of battery cathode precursors (e.g., NMC, LFP) from nitrate-based hydrosols under inert atmosphere.

FAQ

Can the CY-8000YT dry chloroform-based solutions?
Yes—provided the condenser temperature is set below −63.5 °C (chloroform’s boiling point) and nitrogen purge rates are adjusted to maintain sub-atmospheric pressure in the solvent trap. Custom low-temp condenser options are available.
Is validation documentation (IQ/OQ) provided?
Factory-applied IQ templates and test protocols are included. OQ execution requires site-specific environmental verification and must be performed by qualified personnel per ASTM E2500.
What maintenance intervals are recommended?
Nozzle inspection every 20 operating hours; O-ring replacement every 6 months; refrigerant charge verification annually; full system leak test prior to first use of new solvent batches.
Does it support continuous feed mode?
No—it is designed for batch-mode operation with programmable start/stop cycles. Continuous throughput requires integration with external feed tanks and level-controlled peristaltic pumps.
Can glassware be substituted for stainless steel components?
Not recommended. Glass parts compromise pressure integrity, thermal stability, and solvent compatibility. All wetted surfaces are engineered in electropolished SUS304 to ensure uniform surface finish (Ra ≤ 0.4 µm) and ease of cleaning verification.
