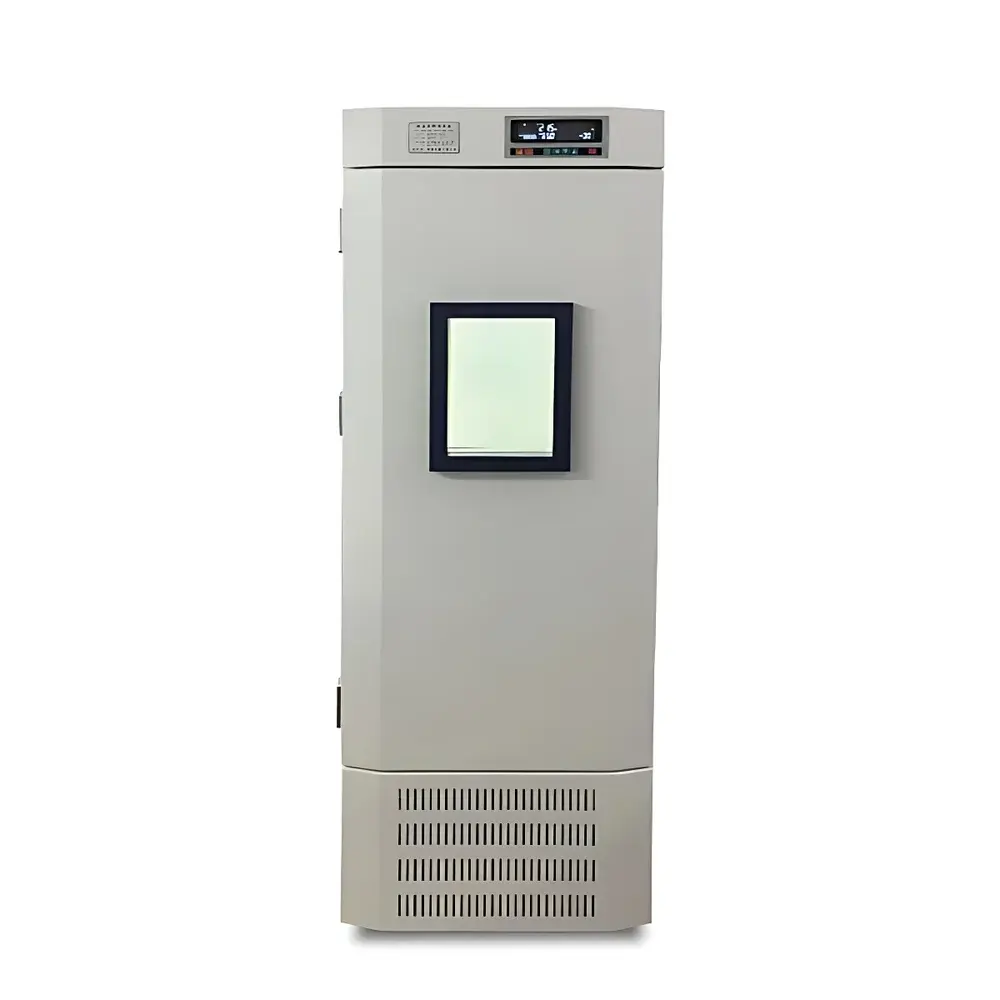

Chuanyu HWS-450BC Temperature and Humidity Controlled Plant Seed Germination Incubator

Overview

The Chuanyu HWS-450BC is a precision-engineered temperature and humidity controlled incubator designed specifically for plant seed germination, photoperiod-sensitive growth studies, and long-term biological sample conditioning in academic, agricultural research, and seed certification laboratories. It operates on a dual-control principle: air-jacketed thermal regulation combined with compressor-driven cooling and external ultrasonic humidification—enabling stable, repeatable environmental profiles across extended durations. Unlike basic dry incubators, the HWS-450BC maintains active humidity control within physiologically relevant ranges (50–95 %RH), critical for mimicking natural seed imbibition conditions and supporting uniform embryo activation. Its forced-air convection system ensures rapid equilibration after door opening and minimizes vertical/horizontal gradients—key for reproducible germination assays and comparative phenotyping experiments.

Key Features

• Microprocessor-based PID temperature controller with real-time display of setpoint and actual values; resolution of 0.1 °C and automatic parameter retention after power interruption.
• Air-jacketed heating architecture with distributed heating elements and high-efficiency centrifugal fan for uniform airflow and fast thermal recovery (<3 min to re-stabilize after 30-sec door opening).
• Hermetically sealed, low-GWP refrigerant (R134a or equivalent) compressor system with high/low pressure protection, delayed startup logic, and thermal overload safeguards.

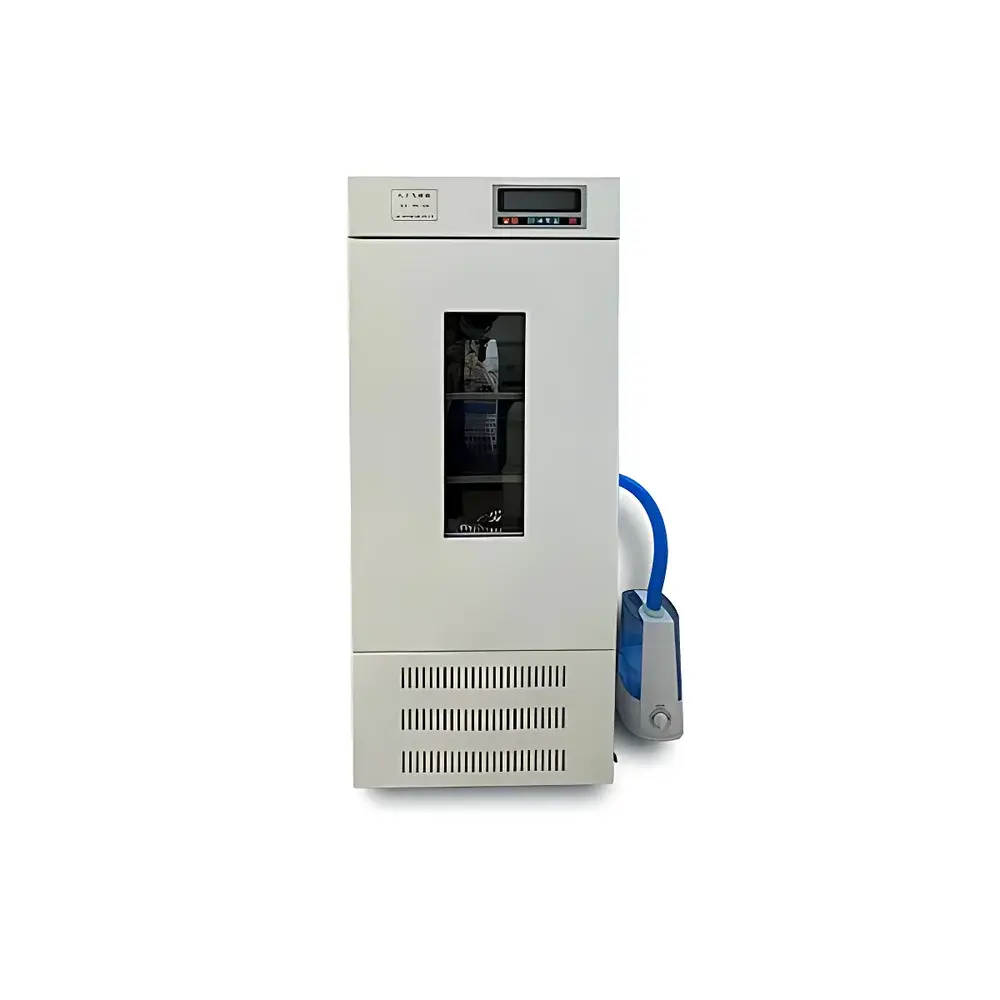

• Externally mounted ultrasonic humidifier with large-capacity water reservoir—designed to minimize condensation risk inside the chamber while delivering rapid, non-contact humidity ramping.
• Double-layer tempered glass observation window with magnetic door gasket ensuring >95 % sealing efficiency and visual monitoring without compromising environmental integrity.
• Interior constructed from electropolished 304 stainless steel (mirror finish); exterior coated with epoxy-polyester electrostatic powder coating for corrosion resistance and cleanroom-compatible surface hygiene.
• Programmable multi-segment control: up to 30 user-defined cycles, each with 99 configurable steps—supporting complex diurnal/seasonal simulation protocols (e.g., stratification followed by warm-moist germination).
• Configurable timer function (0–9999 minutes/hours) with auto-shutdown, over-temperature tracking alarm, and independent high/low temperature alerts for sample integrity assurance.

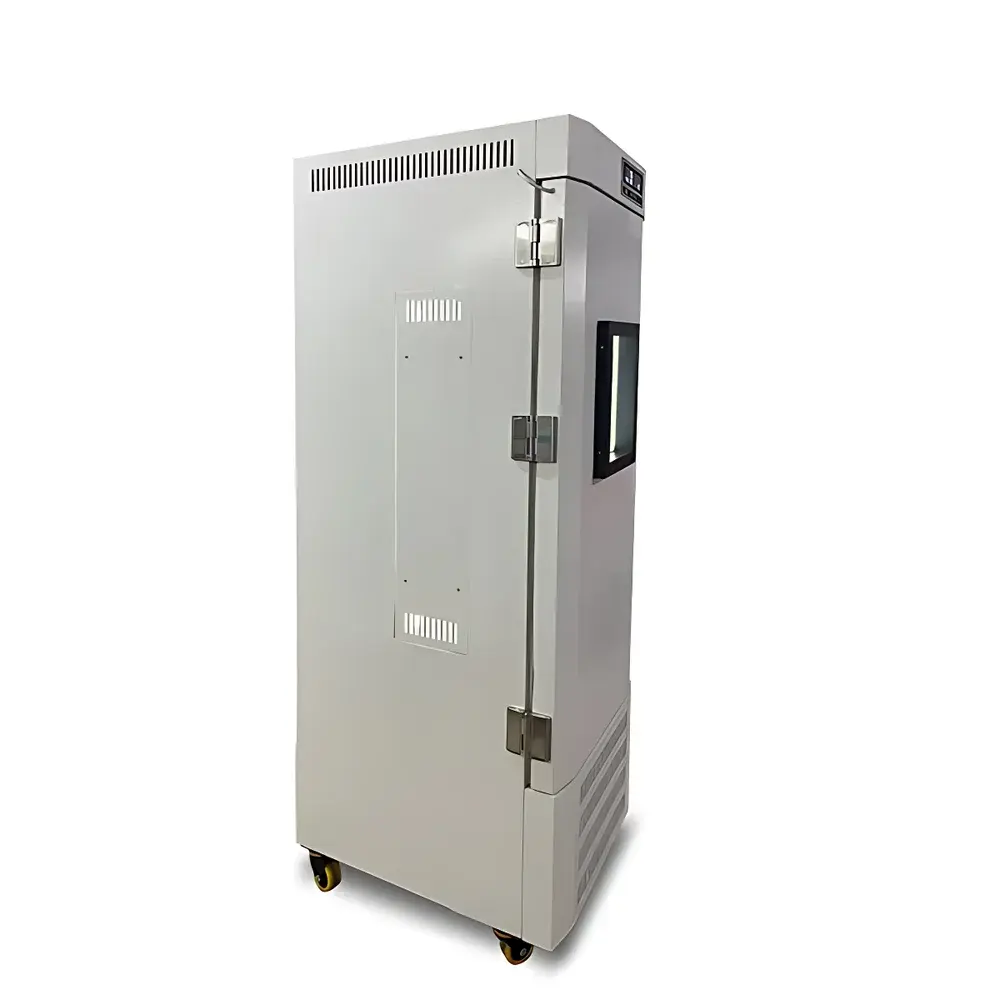

• Four-locking casters with load-rated swivel wheels facilitate safe relocation within shared lab spaces without requiring disassembly or recalibration.

Sample Compatibility & Compliance

The HWS-450BC accommodates standard seed trays (up to 10 × 10 cm), petri dishes, germination paper rolls, and multi-well plates. Its 450 L internal volume supports parallel testing of multiple species or genotypes under identical climatic conditions—essential for ISO 11260 (seed germination testing), ISTA Rules, and national seed quality standards. The unit complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its operational design aligns with GLP documentation requirements when paired with validated data logging. While not certified to FDA 21 CFR Part 11 out-of-the-box, audit-ready operation is achievable via external compliant data loggers recording timestamped T/RH values at ≤1-min intervals.

Software & Data Management

The built-in LCD controller provides local parameter configuration and real-time monitoring but does not include embedded Ethernet or USB export. For regulatory-compliant data capture, integration with third-party validated environmental monitoring systems (e.g., DeltaTrak, DicksonOne, or Siemens Desigo CC) is recommended. All setpoints, alarms, and runtime logs are retained in non-volatile memory during power loss. Optional RS-485 Modbus RTU interface (available upon request) enables centralized supervision in multi-incubator facilities using SCADA platforms—supporting traceability, deviation logging, and electronic batch records per GMP Annex 11 principles.

Applications

• Standardized seed germination testing per ISO 11260, AOSA, andISTA protocols.
• Pre-germination treatments including cold stratification (0–10 °C), scarification conditioning, and moisture priming.
• Growth chamber pre-conditioning for Arabidopsis, rice, maize, wheat, and legume model systems.
• Stability assessment of coated seeds, bio-primed inoculants, and pelleted formulations under accelerated aging conditions.
• Controlled environment studies on dormancy break mechanisms, abscisic acid (ABA) response kinetics, and light–humidity interaction effects.
• Supporting phytosanitary quarantine protocols requiring precise RH-dependent fungal suppression or pathogen activation.

FAQ

What is the minimum operating temperature with active humidity control?
Humidification is disabled below 10 °C to prevent condensation-related instability; therefore, full T/RH co-regulation is guaranteed only within 10–50 °C.
Can the incubator maintain humidity at 50 %RH in ambient laboratory conditions above 30 °C?
Yes—the compressor cooling system actively manages heat load from the humidifier, enabling stable low-RH operation even in warm rooms (tested up to 35 °C ambient).
Is calibration certificate included with shipment?
A factory-as-tested report is provided; NIST-traceable calibration (temperature/humidity) is available as an optional service with documented uncertainty budgets.
How often does the external humidifier tank require refilling during continuous 95 %RH operation?
At maximum output, the 4.5 L reservoir supports approximately 36–42 hours of uninterrupted humidification—dependent on chamber loading and ambient dew point.
Does the unit support validation protocols such as IQ/OQ/PQ?
Yes—mechanical design, sensor layout, and control architecture are fully compatible with standard qualification frameworks; validation templates and test protocols can be supplied upon request.
