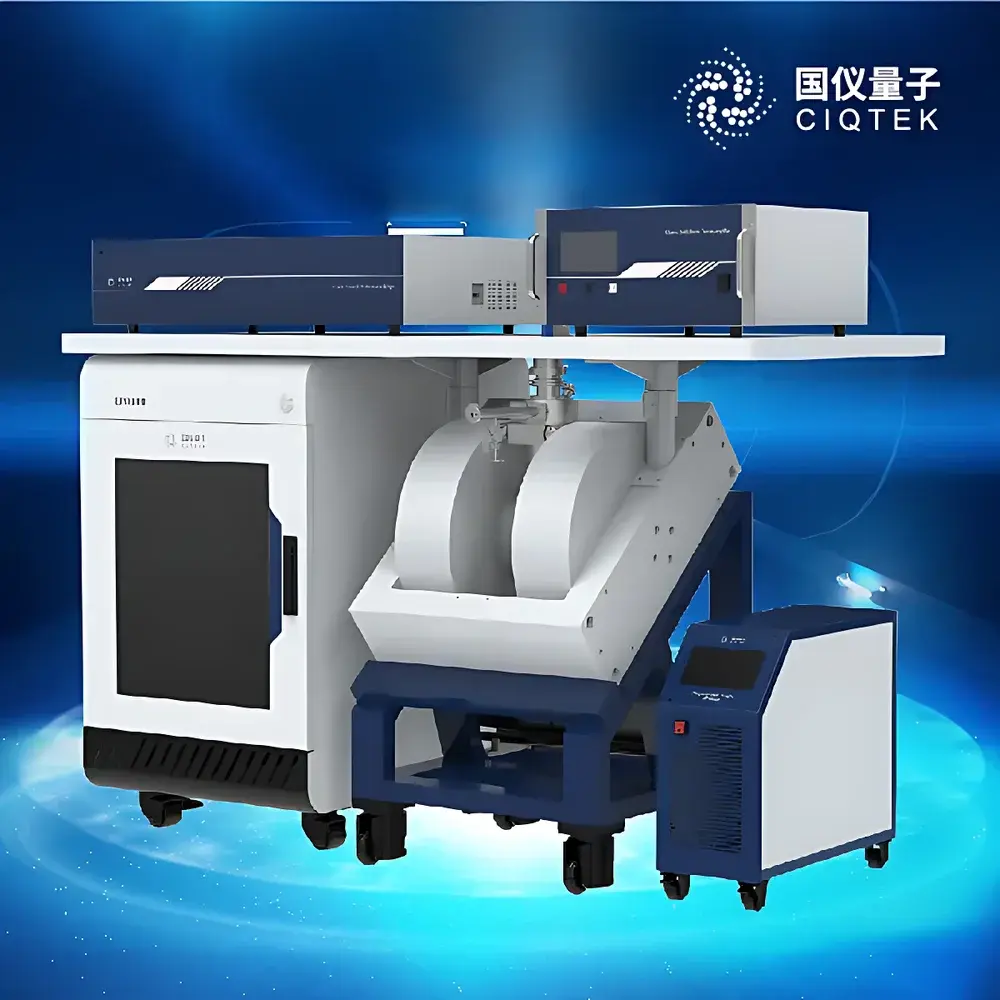

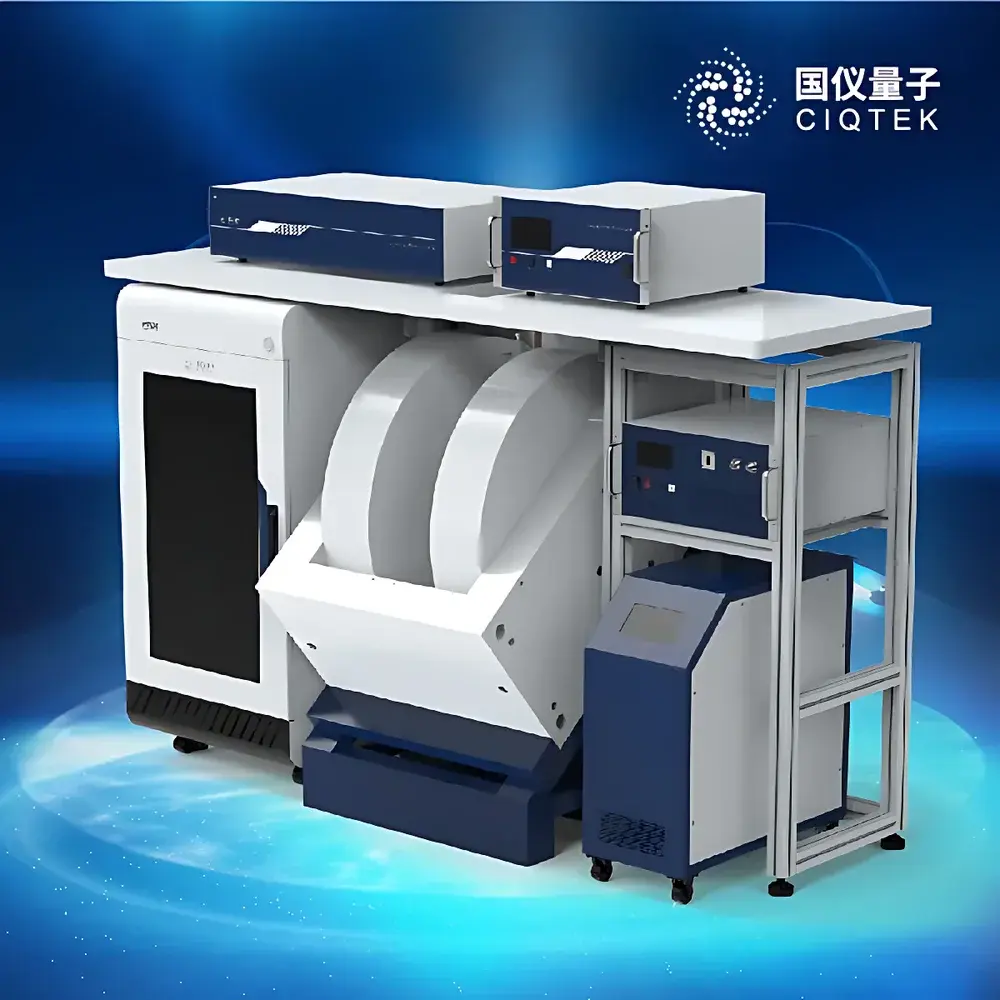

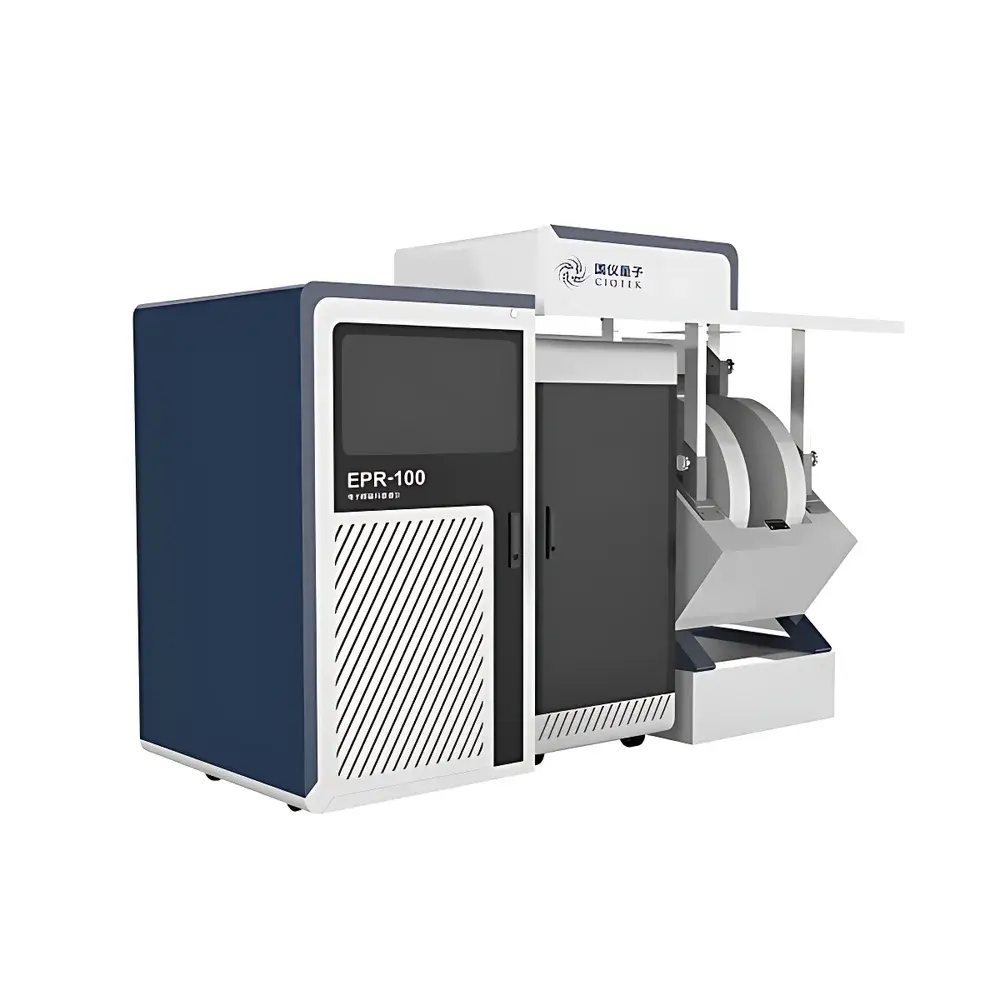

CIQTEK EPR100 X-Band Pulsed Electron Paramagnetic Resonance Spectrometer

Overview

The CIQTEK EPR100 is a high-performance X-band pulsed electron paramagnetic resonance (EPR) spectrometer engineered for advanced quantum spin characterization in condensed-phase systems. Operating at ~9.5 GHz, it implements both continuous-wave (CW) and time-domain pulsed EPR methodologies within a single, integrated platform. Its core architecture leverages coherent microwave excitation, phase-stable digital pulse generation, and low-noise heterodyne detection to resolve spin dynamics with nanosecond temporal fidelity. Unlike conventional CW-EPR instruments limited to static spectral line shape analysis, the EPR100 enables direct interrogation of electron spin coherence, relaxation pathways, and multi-spin correlations—essential for probing molecular structure, radical reaction mechanisms, quantum coherence lifetimes, and spin–spin distances in disordered or dilute systems.

Key Features

• Unified CW/pulsed EPR capability: Supports routine g-factor and hyperfine coupling measurements alongside advanced pulse sequences including inversion recovery (T₁), Hahn echo (T₂), stimulated echo, and multi-pulse coherence transfer schemes.
• 12-channel ultrafast pulse control: Delivers sub-0.1 ns timing resolution with full phase, amplitude, and frequency modulation across all microwave channels; supports arbitrary waveform synthesis via optional AWG integration.
• Cryogenic compatibility: Fully integrated with closed-cycle helium cryostats enabling stable operation from 4 K to ambient temperature—critical for suppressing phonon-induced decoherence and resolving thermally broadened transitions.
• High-fidelity signal acquisition: Real-time digitization with >10,000:1 signal-to-noise ratio and sensitivity of 5×10⁹ spins/(G·√Hz) at X-band ensures robust detection of low-concentration paramagnetic centers in complex matrices.
• Modular hardware expansion: Native support for ENDOR, DEER/PELDOR, TR-EPR, and HYSCORE accessories through standardized RF/microwave interconnects and synchronized timing architecture.

Sample Compatibility & Compliance

The EPR100 accommodates standard quartz EPR tubes (3 mm and 4 mm OD), flat cells, and custom sample holders compatible with variable-temperature insert (VTI) dewars. It meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 and adheres to safety standards outlined in IEC 61010-1 for laboratory electrical equipment. Data integrity protocols align with GLP and GMP principles, supporting audit trails, user access controls, and electronic signature capabilities when paired with compliant LIMS or ELN environments. While not pre-certified for FDA 21 CFR Part 11, its software architecture permits configuration to satisfy regulatory data governance requirements upon site-specific validation.

Software & Data Management

The instrument is operated via CIQTEK’s proprietary SpinSight™ software suite—a Python-based, modular platform supporting sequence design, real-time visualization, automated calibration routines, and batch processing pipelines. Pulse sequences are defined using human-readable syntax or graphical drag-and-drop editors, with built-in libraries for common experiments (e.g., Davies ENDOR, 4-pulse DEER, Mims ESEEM). Raw time-domain data are stored in HDF5 format with embedded metadata (field, temperature, microwave power, sequence parameters), ensuring FAIR (Findable, Accessible, Interoperable, Reusable) compliance. Export options include ASCII, MATLAB (.mat), and Bruker-compatible .DTA/.SPC formats for third-party spectral simulation (e.g., EasySpin, SIMPSON) and machine learning preprocessing.

Applications

• Quantum materials science: Characterization of molecular qubits, defect centers in wide-bandgap semiconductors (e.g., SiC, diamond NV⁻), and coherence times (T₂, T₂*) under controlled thermal and magnetic environments.
• Structural biology: Distance mapping between spin-labeled residues via DEER/PELDOR to determine conformational ensembles, protein folding intermediates, and macromolecular complex stoichiometry.
• Catalysis & reaction mechanisms: Identification and kinetic profiling of transient radicals and triplet states in photocatalytic CO₂ reduction, C–H activation, and metalloenzyme mimics using TR-EPR and time-resolved ESEEM.
• Materials chemistry: Quantitative analysis of ligand-field symmetry, nuclear quadrupole coupling, and weak hyperfine interactions in transition-metal complexes, MOFs, and single-atom catalysts.
• Pharmaceutical R&D: Detection and structural assignment of radiation-induced or oxidation-derived free radicals in APIs and excipients—supporting stability studies and ICH Q5C guidelines.

FAQ

What is the minimum detectable spin concentration under standard operating conditions?
At 4 K and optimal microwave power, the EPR100 achieves a detection limit of approximately 10⁹–10¹⁰ spins in a 5 µL sample volume for typical organic radicals with g ≈ 2.00 and A ≈ 1–5 mT.
Does the system support automatic field/frequency locking during long-duration experiments?
Yes—integrated field-frequency lock circuitry maintains resonance condition stability over multi-hour acquisitions, compensating for magnet drift and cavity detuning.
Can the EPR100 be upgraded to Q-band or W-band frequencies?
No—the EPR100 is an X-band-dedicated platform; however, CIQTEK offers complementary Q-band (EPR200) and W-band (EPR300) systems with shared software and pulse programming paradigms.
Is remote operation and monitoring supported?
Yes—SpinSight™ includes secure SSH-based remote desktop access and RESTful API endpoints for integration into automated lab workflows and cloud-based data aggregation platforms.
What level of technical support and application assistance is provided post-installation?
CIQTEK provides on-site installation, operator training, and 24-month comprehensive warranty coverage; extended application support—including pulse sequence development and data interpretation—is available through annual service contracts with certified EPR physicists.
