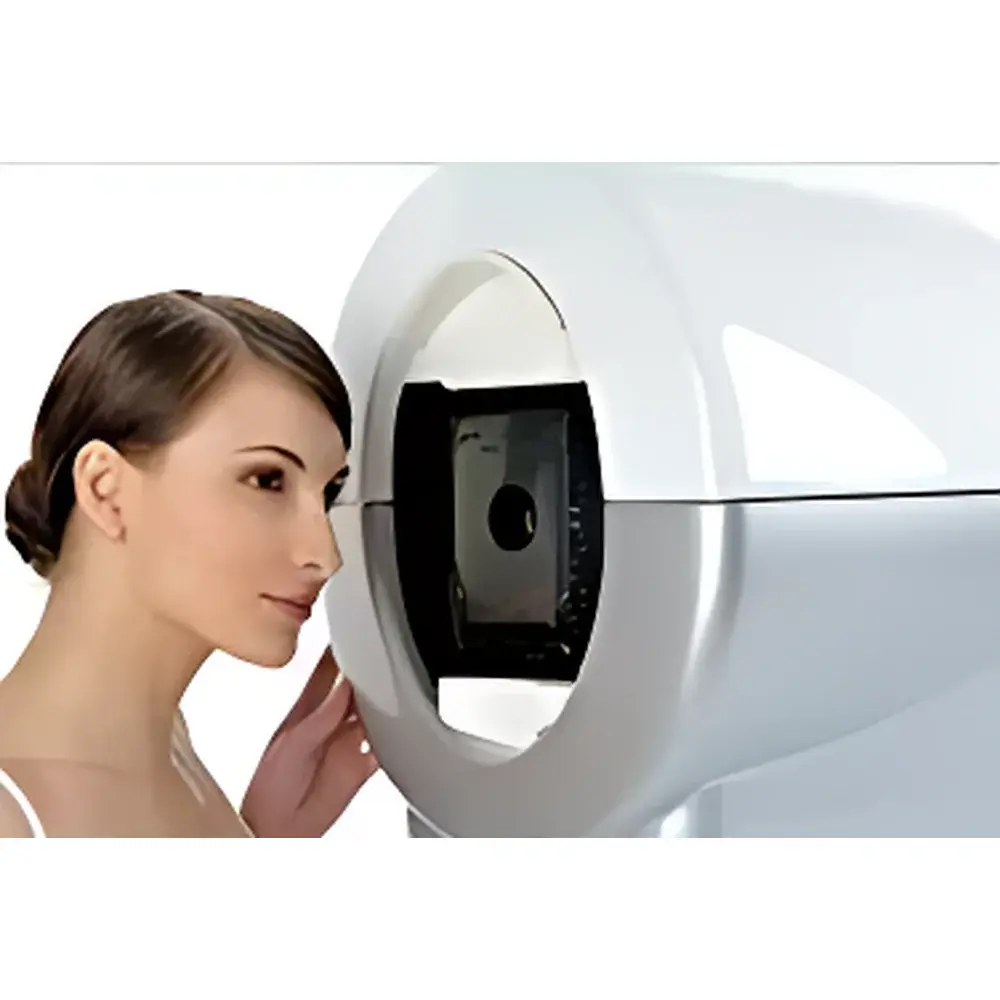

CK Visioface1000D Facial Imaging Analyzer
| Brand | CK |
|---|---|
| Origin | Germany |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | Visioface1000D |
| Pricing | Upon Request |
Overview
The CK Visioface1000D Facial Imaging Analyzer is a high-precision, non-invasive clinical imaging system engineered for objective, quantitative assessment of facial skin morphology and chromatic properties. Built upon multi-spectral digital imaging and structured-light 3D surface reconstruction principles, the device captures standardized frontal and oblique-view images under controlled illumination (including cross-polarized visible light and UVA-induced fluorescence). It delivers spatially resolved, pixel-accurate metrics for epidermal topography—including pore architecture, wrinkle geometry, pigmentary lesion distribution—and surface optical properties such as gloss and color uniformity. Designed for dermatological research, cosmetic efficacy testing, and clinical trial support, the Visioface1000D operates within a validated measurement framework aligned with ISO 20462-3 (image quality assessment) and ASTM E308 (colorimetric computation), ensuring inter-laboratory comparability and regulatory traceability.
Key Features
- Multi-angle, multi-illumination imaging module: Captures synchronized frontal and lateral views under polarized white light, diffuse ambient light, and 365 nm UVA excitation to visualize epidermal vs. dermal pigmentation patterns.
- Active stereo photogrammetry: Generates sub-millimeter-resolution 3D surface maps (Z-axis precision ±5 µm) for volumetric wrinkle quantification and pore depth profiling.
- Automated segmentation algorithms: ISO/IEC 17025-aligned image processing engine classifies pores, wrinkles, and hyperpigmented spots based on morphological thresholds (area ≥0.01 mm², aspect ratio >1.5, intensity deviation >15% from surrounding epidermis).
- Dual-point spectrophotometric analysis: Computes ΔL* (lightness difference) and ΔE*ab (CIELAB color difference) between user-defined ROI pairs, supporting objective evaluation of treatment-induced tonal shifts.
- Modular hardware architecture: Interchangeable lens assemblies (25 mm, 50 mm, 100 mm macro) enable consistent framing across diverse face sizes and ethnic skin types (Fitzpatrick I–VI).
Sample Compatibility & Compliance
The Visioface1000D is optimized for human facial skin assessment in seated or supine positions. It supports subject cohorts aged 18–75 years, with no contraindications for Fitzpatrick skin types I–VI. All imaging protocols comply with ICH E6(R3) Good Clinical Practice (GCP) guidelines for endpoint documentation in cosmetic and dermatopharmaceutical trials. Data acquisition workflows meet FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with CK’s validated software suite. Device calibration is traceable to NIST-certified reference standards for luminance (NIST SRM 2045) and color (NIST SRM 2035), with annual recalibration recommended per ISO/IEC 17025 clause 6.5.
Software & Data Management
The integrated CK SkinStudio v5.2 software provides audit-trail-enabled analysis, including version-controlled report generation, longitudinal trend visualization, and statistical comparison (paired t-test, ANOVA) across up to four time-point datasets. Raw image data are stored in DICOM-compliant format with embedded EXIF metadata (exposure time, aperture, white balance, lens ID). Software modules support GLP/GMP-compliant environments: role-based access control, electronic signature capture, and immutable audit logs meeting Annex 11 and ALCOA+ principles. Export options include CSV (for SPSS/SAS integration), PDF (signed clinical reports), and PNG/TIFF (publication-ready annotated images).
Applications
- Efficacy evaluation of topical retinoids, peptides, and depigmenting agents in Phase II/III cosmetic clinical trials.
- Objective monitoring of fractional laser resurfacing outcomes—tracking collagen remodeling via wrinkle volume reduction and pore retraction metrics over 12-week intervals.
- Standardized assessment of melasma progression or post-inflammatory hyperpigmentation response to hydroquinone or tranexamic acid regimens.
- Supporting regulatory submissions to EMA, Health Canada, and PMDA with instrumentally derived primary endpoints compliant with ISO 16128 and CosIng Annexes.
- Academic dermatology research on biophysical correlates of skin aging, including correlation of 3D pore geometry with sebum excretion rates measured via Sebumeter® SM815.
FAQ
Is the Visioface1000D certified for use in FDA-regulated clinical trials?
Yes—the system’s software validation package includes IQ/OQ/PQ documentation, 21 CFR Part 11 compliance reports, and evidence of analytical method validation per ICH Q2(R2).
Can it be integrated with existing LIMS or ELN platforms?
Yes—via HL7 v2.5 and RESTful API interfaces; CK provides documented integration blueprints for LabVantage, Benchling, and Veeva Vault.
What is the minimum required operator training for GCP-compliant operation?
CK offers a 16-hour certified training program covering protocol adherence, image acquisition SOPs, and audit-readiness preparation; completion qualifies users for GCP endorsement.
Does the system support masked/blinded study designs?
Yes—randomized subject ID masking, blinded image review mode, and independent evaluator assignment are built into SkinStudio’s workflow engine.
How frequently must the optical calibration be performed?
Initial calibration at installation, followed by quarterly verification using CK-certified test charts; full recalibration annually or after lens replacement.
