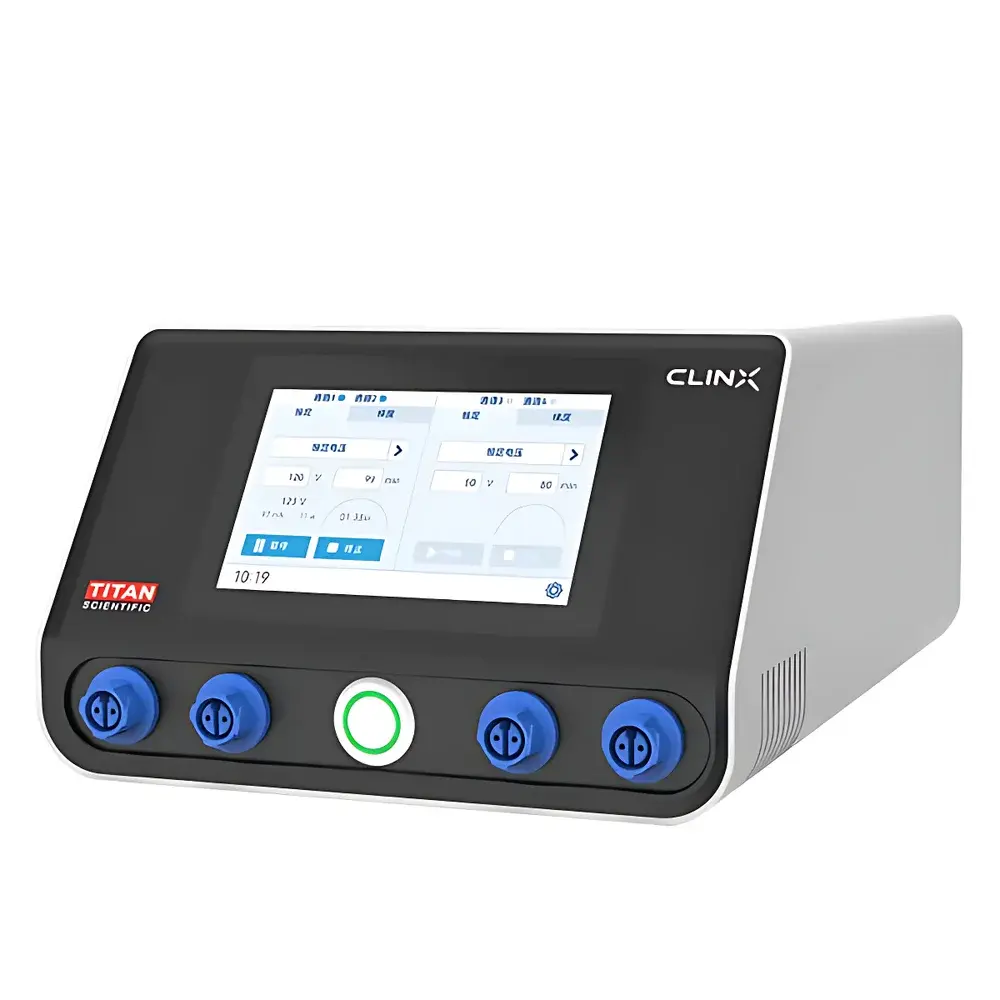

Clinkx XinPower 610 Electrophoresis Power Supply

Overview

The Clinkx XinPower 610 Electrophoresis Power Supply is an engineered power source designed for precise, stable, and safe operation of slab gel electrophoresis systems—including SDS-PAGE, native PAGE, agarose gel electrophoresis, and isoelectric focusing (IEF) applications. It delivers regulated DC output based on closed-loop feedback control architecture, ensuring consistent voltage, current, or power delivery throughout the entire run—critical for reproducible band resolution and migration kinetics. Unlike basic benchtop supplies, the XinPower 610 integrates real-time load monitoring and adaptive response logic to maintain setpoint fidelity under dynamic resistance conditions (e.g., buffer depletion, gel heating, or electrode polarization). Its dual independent output channels (4-pair terminal configuration) support parallel electrophoresis runs with isolated parameter control, reducing inter-run variability in high-throughput laboratory environments.

Key Features

• Triple-mode output control: Selectable constant voltage (CV), constant current (CC), or constant power (CP) operation—enabling optimal protocol alignment across diverse gel matrices and sample types.
• Intelligent micro-current hold function: Automatically transitions to ≤10 µA standby current upon timer completion or manual pause, minimizing post-electrophoresis diffusion and preserving band sharpness without manual intervention.
• Integrated safety architecture: Real-time detection of open-circuit, short-circuit, overvoltage (>610 V), overcurrent (>1275 mA), and ground-fault leakage (≥1 mA); immediate shutdown with audible/visual alert and non-volatile fault logging.
• 5-inch IPS capacitive touchscreen interface: Full-view 800 × 480 display with glove-compatible responsiveness, intuitive icon-driven navigation, and on-screen parameter validation before execution.
• Single-cable terminal design: Proprietary low-inductance, color-coded banana-to-alligator cable system reduces clutter, eliminates misconnection risk, and supports rapid setup across multiple gel tanks (e.g., Mini-PROTEAN®, Hoefer SE260, or custom rigs).
• Resume/pause capability with state retention: Interrupted runs preserve elapsed time, output mode, and setpoints; restoration requires only one touch—essential for scheduled maintenance or unexpected workflow interruptions.

Sample Compatibility & Compliance

The XinPower 610 is compatible with standard vertical and horizontal electrophoresis apparatuses operating within 1–600 V and 1–1250 mA limits, including polyacrylamide gels (up to 20 cm), agarose gels (0.5–3.0%), and capillary electrophoresis interfaces with appropriate adapters. It meets IEC 61010-1:2010 safety requirements for electrical equipment used in laboratory settings and incorporates reinforced isolation barriers compliant with EN 61010-2-030 for electrophoresis-specific hazards. While not certified for GMP manufacturing environments, its audit-trail-capable timer and deterministic output behavior support GLP-aligned documentation practices. The device adheres to electromagnetic compatibility (EMC) standards per EN 61326-1:2013 for laboratory use and includes built-in transient voltage suppression per IEC 61000-4-5.

Software & Data Management

The XinPower 610 operates as a standalone instrument with no proprietary PC software dependency. All operational parameters—including voltage, current, power, elapsed time, and fault history—are stored in non-volatile memory with timestamped entries (YYYY-MM-DD HH:MM:SS format). The unit supports manual export via USB-C port (firmware update and log retrieval only; no live data streaming). For laboratories requiring electronic recordkeeping, the timer and mode selection logs can be manually transcribed into LIMS or ELN platforms. Future firmware updates—distributed through Clinkx’s authorized service network—may introduce optional RS-232 or Ethernet connectivity modules compliant with FDA 21 CFR Part 11 Annex 11 principles (electronic signatures, audit trails, and data integrity controls), pending regulatory validation.

Applications

• High-resolution SDS-PAGE of complex protein lysates under controlled current ramping protocols.
• Long-duration DNA fragment separation in 1–2% agarose gels at constant voltage (e.g., 120 V for 90 min).
• Native gel electrophoresis of multi-subunit complexes where current stability prevents denaturation.
• Preparative electrophoresis workflows requiring synchronized dual-gel operation (e.g., replicate analytical gels or gradient optimization studies).
• Teaching laboratories emphasizing safety-first operation and intuitive interface design for undergraduate instruction.
• Field-deployable diagnostics setups leveraging compact footprint and robust thermal management (operating range: 10–40 °C, <80% RH non-condensing).

FAQ

What safety certifications does the XinPower 610 hold?

It complies with IEC 61010-1:2010 and EN 61010-2-030 for laboratory electrical safety, including dielectric strength testing and protective earth continuity verification.
Can the XinPower 610 power two separate electrophoresis tanks simultaneously?

Yes—its 4-pair output terminals are electrically isolated and configurable as two independent channels, each supporting full 1–600 V / 1–1250 mA range.
Is the micro-current hold mode adjustable?

No—the post-run hold current is fixed at ≤10 µA and activates automatically; it is not user-configurable to ensure consistent sample integrity across labs.
Does the device support programmable multi-step methods?

Not natively—only single-stage timed runs are supported. Multi-step protocols require external sequencing via timer-integrated gel tanks or manual intervention.
What is the calibration interval recommendation?

Annual calibration is advised using NIST-traceable multimeters; Clinkx-certified service centers provide traceable calibration certificates aligned with ISO/IEC 17025 requirements.
