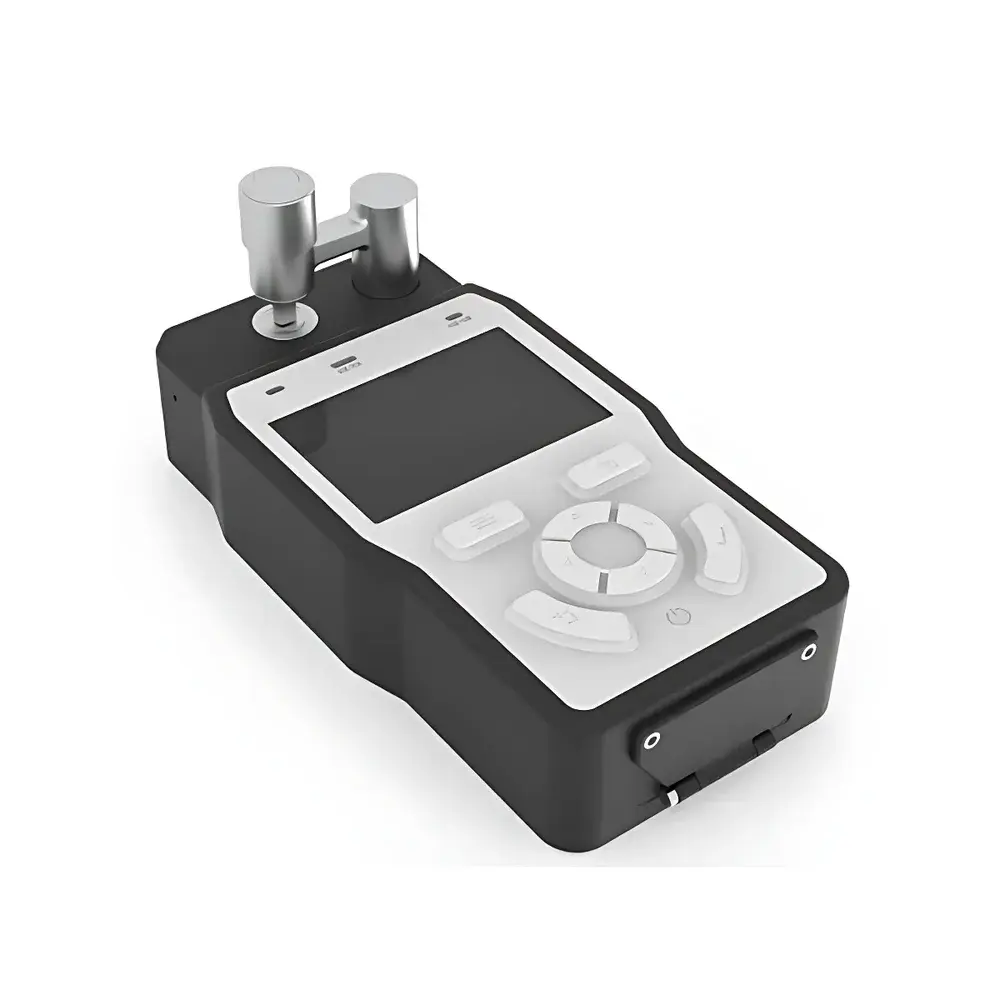

Cloudoptek FTIR-800 Handheld Fourier Transform Infrared (FTIR) Chemical Analyzer

Overview

The Cloudoptek FTIR-800 is a purpose-engineered handheld Fourier Transform Infrared (FTIR) chemical analyzer designed for rapid, on-site molecular identification of unknown substances in operational environments where laboratory access is impractical. Unlike dispersive IR systems, the FTIR-800 employs a miniaturized interferometer core operating on the principle of Michelson interferometry, enabling high spectral resolution (typically <4 cm⁻¹ unapodized) and inherent wavelength calibration stability via He–Ne laser referencing. Its compact optical path integrates a thermoelectrically cooled DTGS detector and a diamond-coated attenuated total reflectance (ATR) crystal—optimized for robust contact-based sampling of solids, pastes, gels, and liquids without solvent extraction or KBr pellet preparation. The instrument delivers full mid-infrared spectra (typically 4000–600 cm⁻¹) in under 15 seconds per acquisition, supporting real-time spectral matching against embedded reference libraries compliant with NATO AEP-97, ASTM E1421, and IUPAC-recommended functional group assignments.

Key Features

• Field-ruggedized portable design: IP54-rated enclosure with shock-absorbing polymer housing and integrated ergonomic grip for extended single-handed operation.
• ATR sampling module with monolithic diamond crystal: Enables direct surface contact analysis of dark-colored, highly absorbing, or thermally labile materials—including explosives precursors, nitroaromatics, peroxides, and alkaloid-containing botanicals—without spectral distortion or thermal degradation.
• Multi-component deconvolution engine: Embedded chemometric algorithms (including constrained least-squares fitting and spectral subtraction) allow simultaneous identification and relative abundance estimation of ≥3 co-present analytes in heterogeneous mixtures—critical for forensic screening of clandestine drug synthesis residues or industrial contaminant profiling.
• Fluorescence-immune detection: Optical architecture excludes UV excitation pathways and utilizes narrow-band mid-IR illumination, eliminating interference from fluorescent dyes, pigments, or biological matrices commonly encountered in customs, hazmat, or environmental field surveys.
• Battery-operated autonomy: Rechargeable Li-ion pack supports ≥6 hours of continuous spectral acquisition and library search at 25°C; hot-swappable battery option available for extended deployments.

Sample Compatibility & Compliance

The FTIR-800 accommodates diverse physical states without sample preparation: powders, tablets, films, viscous liquids, gels, and coated surfaces. Its ATR geometry eliminates the need for transmission cells or beam alignment—reducing operator dependency and cross-contamination risk. All spectral data files adhere to JCAMP-DX v5.01 format, ensuring interoperability with third-party cheminformatics platforms (e.g., BioRad KnowItAll, Thermo OMNIC). The system supports audit-trail-enabled operation per FDA 21 CFR Part 11 requirements when paired with optional cloud-synced software licenses, including electronic signature capture, user-role-based access control, and immutable metadata logging (acquisition time, GPS coordinates, operator ID, instrument serial number). Reference libraries are curated from NIST SRM-certified standards, EPA Compendium Method TO-15 analogs, and UNODC precursor compound databases.

Software & Data Management

Pre-installed Cloudoptek ChemID™ firmware provides intuitive touchscreen navigation, real-time spectral visualization, and offline library search using >12,000 validated IR reference spectra across chemical warfare agent simulants, toxic industrial chemicals (TICs), explosive compounds (e.g., RDX, PETN, HMX), narcotics (e.g., fentanyl analogs, synthetic cannabinoids), and regulated precursor substances. Data export options include CSV (peak table), PNG (annotated spectrum), and encrypted SQLite archives. Optional CloudLink™ subscription enables secure over-the-air library updates, remote diagnostic telemetry, and centralized fleet management via TLS 1.3–secured API endpoints—fully compatible with enterprise SIEM integration for compliance reporting.

Applications

• First responder hazardous material (HAZMAT) triage: Rapid differentiation between benign household chemicals and high-risk threat agents at incident scenes.
• Customs and border protection: Non-destructive verification of declared chemical shipments against manifest data and treaty-controlled substance schedules (e.g., CWC Annexes, UN Model Regulations).
• Pharmaceutical quality control: At-line identification of active pharmaceutical ingredients (APIs), excipients, and counterfeit tablet coatings during warehouse receipt inspection.
• Environmental field screening: Detection of polycyclic aromatic hydrocarbons (PAHs), chlorinated solvents, and pesticide residues in soil wipe samples or water concentrates.
• Academic and industrial research: In situ reaction monitoring of polymer curing, catalyst deactivation, or solvent evaporation kinetics without sample transfer artifacts.

FAQ

Is the FTIR-800 suitable for quantitative analysis?
The instrument is optimized for qualitative and semi-quantitative identification; absolute quantification requires external calibration with matrix-matched standards and is not supported in default configuration.
Can it analyze gases?
No—this model is configured exclusively for condensed-phase (solid/liquid) analysis via ATR; gas-phase measurement requires dedicated flow-cell accessories not included in standard delivery.
What spectral resolution is achievable in field conditions?
Nominal resolution is 4 cm⁻¹; resolution remains stable across ambient temperatures from −10°C to +50°C due to passive interferometer thermal compensation.
How frequently are spectral libraries updated?
Library updates occur quarterly via CloudLink™ subscription; users may also import custom JCAMP-DX libraries following internal validation protocols.
Does the device meet MIL-STD-810G for drop resistance?
It meets IEC 60068-2-32 drop test requirements (1.2 m onto plywood), but formal MIL-STD-810G certification is pending final third-party validation cycle scheduled for Q4 2024.
