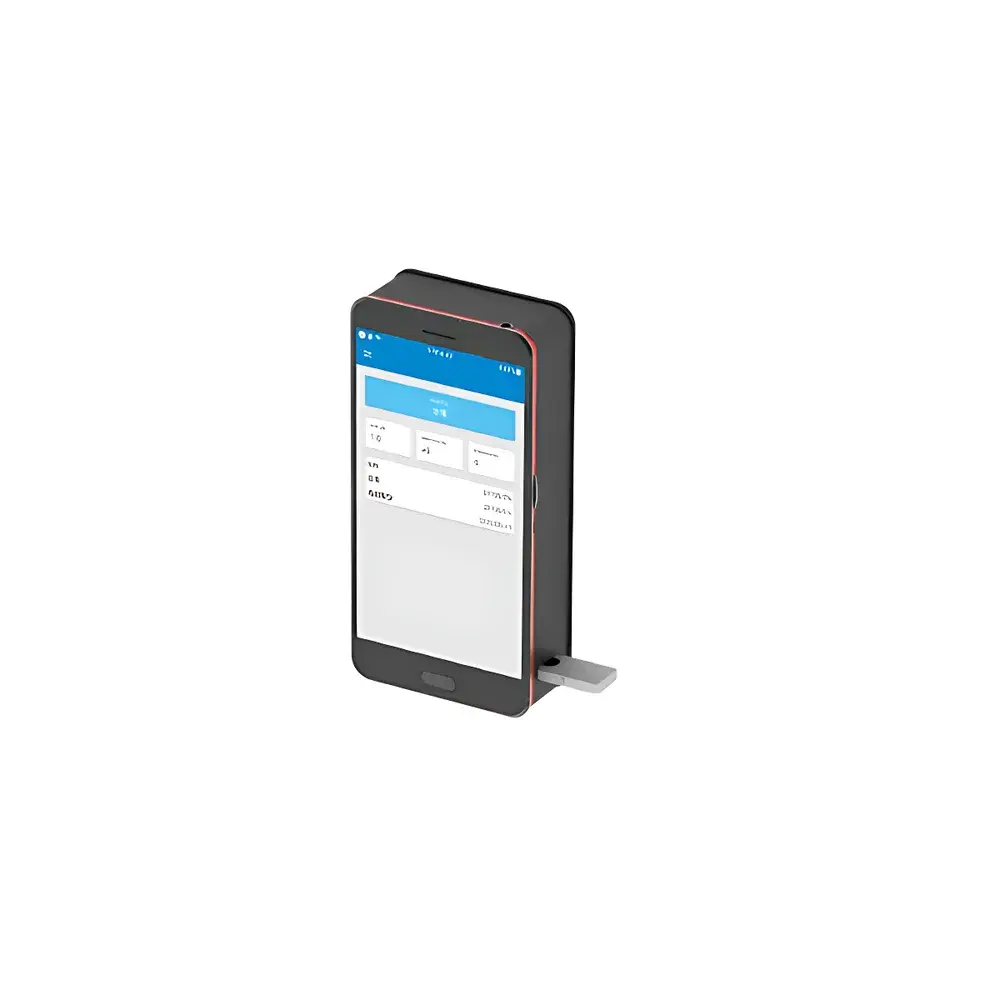

CloudOptek H1 Handheld Trace Narcotics Detection Analyzer
| Brand | CloudOptek |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | H1 |
| Pricing | Available Upon Request |
Overview
The CloudOptek H1 Handheld Trace Narcotics Detection Analyzer is a field-deployable, immunoassay-based rapid screening instrument engineered for law enforcement, border control, and forensic mobile units requiring reliable, on-site identification of trace-level narcotics—including opioids (e.g., fentanyl, heroin), stimulants (e.g., methamphetamine, cocaine), cannabinoids, and synthetic cathinones. It operates on the principle of lateral flow immunoassay (LFIA) coupled with high-sensitivity optical signal transduction via integrated CMOS imaging and proprietary spectral deconvolution algorithms. Unlike conventional LFIA readers relying on manual card insertion and static calibration, the H1 implements dynamic cloud-synchronized assay validation: it automatically retrieves batch-specific calibration curves and reagent metadata directly from CloudOptek’s secure TLS-encrypted cloud platform upon detection of a certified test cartridge. This eliminates manual ID card swiping, mitigates misidentification due to expired or mismatched calibration profiles, and ensures analytical traceability aligned with ISO/IEC 17025–recommended practices for field instrumentation.
Key Features
- Cloud-integrated assay management: Real-time download of batch-certified calibration curves, expiration tracking, and lot-specific performance parameters via encrypted HTTPS API.
- Auto-sensing cartridge interface: Integrated capacitive and optical sensors detect correct insertion, orientation, and authenticity of CloudOptek-certified lateral flow test strips—no mechanical alignment or user-initiated scanning required.
- Sub-second optical readout: High-resolution monochrome CMOS imager captures full-strip reaction zone in <1 second; onboard FPGA-accelerated image processing delivers quantitative intensity ratios (T/C, C/T) with ≤5% CV across repeated measurements.
- End-to-end digital chain-of-custody: Integrated 8-MP autofocus camera captures sample documentation images; GNSS module logs WGS84 coordinates with ±3 m accuracy; optional NFC-enabled ID document scanner extracts MRZ and biometric hashes compliant with ICAO Doc 9303 standards.
- Field-optimized ergonomics: Weighing 285 g with IP54-rated enclosure; operable at –10 °C to +50 °C ambient; 8-hour continuous runtime on removable 3.7 V Li-ion battery (6500 mAh).
Sample Compatibility & Compliance
The H1 supports all CloudOptek-certified lateral flow cartridges designed for oral fluid, nasal swab, surface wipe, and powdered residue samples. Cartridge formats adhere to ASTM E2912–22 “Standard Practice for Immunoassay-Based Screening of Drugs of Abuse in Field Settings.” Device firmware and cloud architecture comply with NIST SP 800-53 Rev. 5 controls for data integrity, audit logging, and cryptographic key management. All cloud-stored analytical records include immutable timestamps, operator IDs (via secure LDAP integration), and GPS-derived geofence validation—supporting GLP-aligned documentation requirements for evidentiary use in jurisdictions recognizing ISO 17025-accredited field screening workflows.
Software & Data Management
The H1 runs embedded Linux (Yocto Project v4.0) with FIPS 140-2 validated cryptographic libraries. Local storage retains raw image data, processed results, and sensor logs for ≥72 hours; all entries are automatically synced to CloudOptek’s AWS GovCloud (US-East) instance upon network availability. The web-based CloudOptek Analytics Portal enables role-based access (admin, analyst, supervisor), customizable dashboards, temporal/spatial heat mapping, and automated alerting for threshold-exceeding events. Audit trails meet FDA 21 CFR Part 11 requirements, including electronic signatures, operation history, and system-level change logs with SHA-256 hashing.
Applications
- Rapid pre-booking triage at police precincts and detention facilities
- Mobile checkpoint screening at airports, seaports, and land border crossings
- Forensic evidence collection during clandestine lab investigations
- Correctional facility contraband interdiction programs
- Public health harm reduction outreach with anonymized aggregate reporting
FAQ
Does the H1 require annual recalibration or routine maintenance?**
No—calibration is intrinsically tied to each consumable cartridge’s certified batch profile; no field recalibration is necessary. Only routine cleaning of the optical window and sensor aperture per manufacturer guidelines is recommended.
Can third-party lateral flow strips be used with the H1?**
No. Only CloudOptek-manufactured, digitally authenticated cartridges with embedded NFC tags are supported to ensure metrological traceability and regulatory compliance.
Is raw image data export supported for independent verification?**
Yes—full-resolution TIFF images and JSON-formatted measurement metadata can be exported via USB-C or SFTP to accredited laboratories for secondary review.
How is data privacy enforced during cloud transmission and storage?**
All communications use TLS 1.3; stored data is encrypted at rest using AES-256-GCM; jurisdiction-specific data residency options are available under contractual agreement.
What training resources are provided for operators?**
CloudOptek delivers role-based e-learning modules (SCORM-compliant), field-deployable quick-reference guides, and quarterly virtual proficiency testing aligned with CAP/CLIA competency assessment frameworks.
