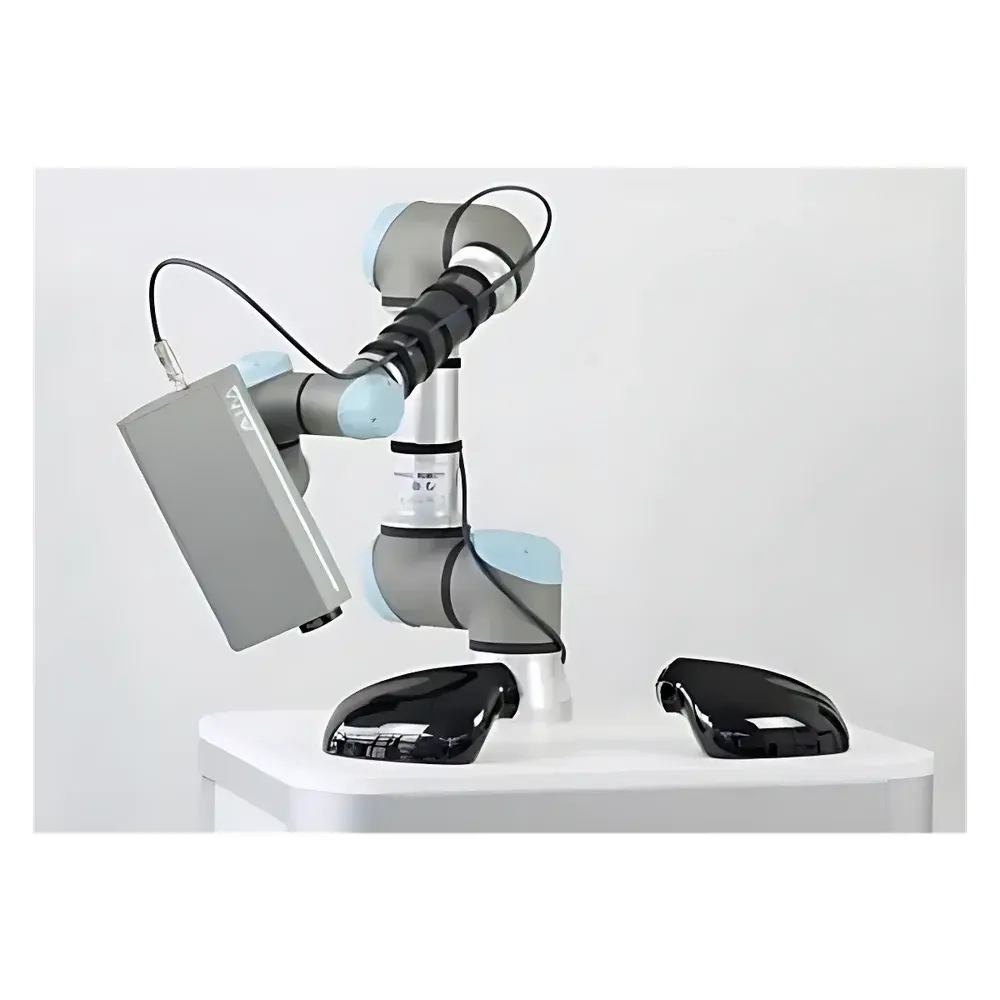

CoatPro Non-Contact Coating Thickness Analyzer by AIM Systems

Overview

The CoatPro Non-Contact Coating Thickness Analyzer is an industrial-grade optical metrology system engineered by AIM Systems (Germany) for real-time, non-destructive quantification of both wet-film and dry-film coating thicknesses across diverse substrate classes. Unlike conventional eddy-current or magnetic induction gauges—limited to conductive or ferromagnetic substrates—the CoatPro employs a dual-mode optical architecture combining spectral reflectance analysis and low-coherence interferometry. This enables absolute thickness determination without physical contact, calibration drift, or surface preparation. The system operates on the principle that interference patterns generated from multi-wavelength light reflected at air-coating and coating-substrate interfaces are uniquely correlated to film thickness and refractive index. By resolving phase shifts across a broadband visible-NIR spectrum (400–1000 nm), CoatPro delivers traceable, NIST-traceable thickness values with sub-micrometer resolution under dynamic production conditions.

Key Features

• True non-contact operation: Zero mechanical wear, no risk of coating damage or contamination during measurement.
• Simultaneous wet/dry film assessment: Real-time wet-film thickness (WFT) acquisition with algorithmic dry-film thickness (DFT) prediction based on solvent evaporation kinetics and material-specific drying models.
• Universal substrate compatibility: Validated on steel, aluminum, stainless steel, ABS, PP, PETG, tempered glass, silicone rubber, carbon fiber composites, and ceramic-coated surfaces.
• Robust geometric adaptability: Integrated multi-angle optical head enables reliable measurements on radii down to 5 mm, surface roughness up to Ra 12.5 µm, and internal cavity walls with diameters ≥18 mm.
• Hazardous area deployment: Certified to IEC 60079-0 (General Requirements) and IEC 60079-11 (Intrinsic Safety ‘ia’), permitting continuous operation in ATEX Zone 1 (gas) and Zone 2 environments without explosion-proof enclosures.
• Embedded industrial connectivity: Native support for EtherNet/IP, PROFINET, and Modbus TCP protocols; RESTful API and OPC UA server included for MES/SCADA integration and custom HMI development.

Sample Compatibility & Compliance

CoatPro has undergone extensive field validation across OEM paint shops, coil coating lines, powder coating ovens, and precision electronics conformal coating facilities. It accommodates solvent-based, waterborne, UV-curable, and 2K polyurethane systems—including metallic effect paints, clearcoats, anti-corrosion primers, PTFE lubricants, and photopolymerizable resins. All measurement algorithms are traceably aligned with ISO 2808 (Paints and varnishes — Determination of film thickness), ASTM D7091 (Standard Practice for Nondestructive Measurement of Dry Film Thickness of Nonmagnetic Coatings Applied to Ferrous Metals and Nonconductive Coatings Applied to Non-Ferrous Metals), and EN ISO 19840 (Paints and varnishes — Corrosion protection of steel structures by protective paint systems — Measurement of thickness of individual layers). Full GLP/GMP audit trail functionality—including user authentication, electronic signatures, and immutable event logging—is enabled per FDA 21 CFR Part 11 requirements.

Software & Data Management

The integrated CoatPro Control Suite provides real-time visualization of thickness profiles, statistical process control (SPC) charts (X-bar/R, Cpk/Ppk), and automated pass/fail decision logic configurable per job ID, batch number, or serial tag. All raw spectral data, processed thickness values, timestamped metadata, and environmental parameters (ambient temperature, humidity, line speed) are stored in a local SQLite database with optional synchronization to SQL Server or cloud-based time-series platforms (e.g., InfluxDB). Reports export in PDF (with embedded digital signature) and CSV formats compliant with internal quality documentation standards. Firmware updates and calibration verification routines are performed remotely via secure HTTPS interface.

Applications

• Automotive body-in-white (BIW) and trim coating QC: Real-time monitoring of e-coat, primer-surfacer, basecoat, and clearcoat layer stacks.
• Industrial coil coating lines: Continuous thickness verification across 0.5–30 m/min line speeds with <±0.5 µm repeatability.
• Aerospace component finishing: Measurement of thermal barrier coatings (TBCs), corrosion-inhibiting primers, and radar-absorbing materials (RAM) on titanium and composite airframes.
• Medical device manufacturing: Verification of biocompatible polymer coatings (e.g., parylene, silicone, hydrogel) on catheters, stents, and surgical instruments.
• Electronics encapsulation: Thickness control of conformal coatings (acrylic, urethane, silicone) on PCBAs subjected to IPC-A-610 Class 3 criteria.

FAQ

Does CoatPro require substrate-specific calibration?
No. The system uses physics-based optical modeling and auto-compensates for substrate reflectivity and refractive index via reference-free spectral inversion algorithms.
Can it measure transparent or semi-transparent coatings?
Yes—CoatPro is specifically validated for clearcoats, anti-reflective films, and optical adhesives where traditional opacity-dependent methods fail.
Is laser safety certification available?
The system utilizes Class 1 LED illumination only—no laser diodes are employed—therefore no IEC 60825 classification is required.
What maintenance intervals are recommended?
Zero scheduled maintenance: Solid-state optical path, 50,000-hour LED lifetime, and sealed IP65-rated housing eliminate consumables and routine servicing.
How is measurement uncertainty quantified and documented?
Each report includes expanded uncertainty (k=2) calculated per GUM (JCGM 100:2008) using type-A (repeatability) and type-B (model parameter, environmental influence) components.
