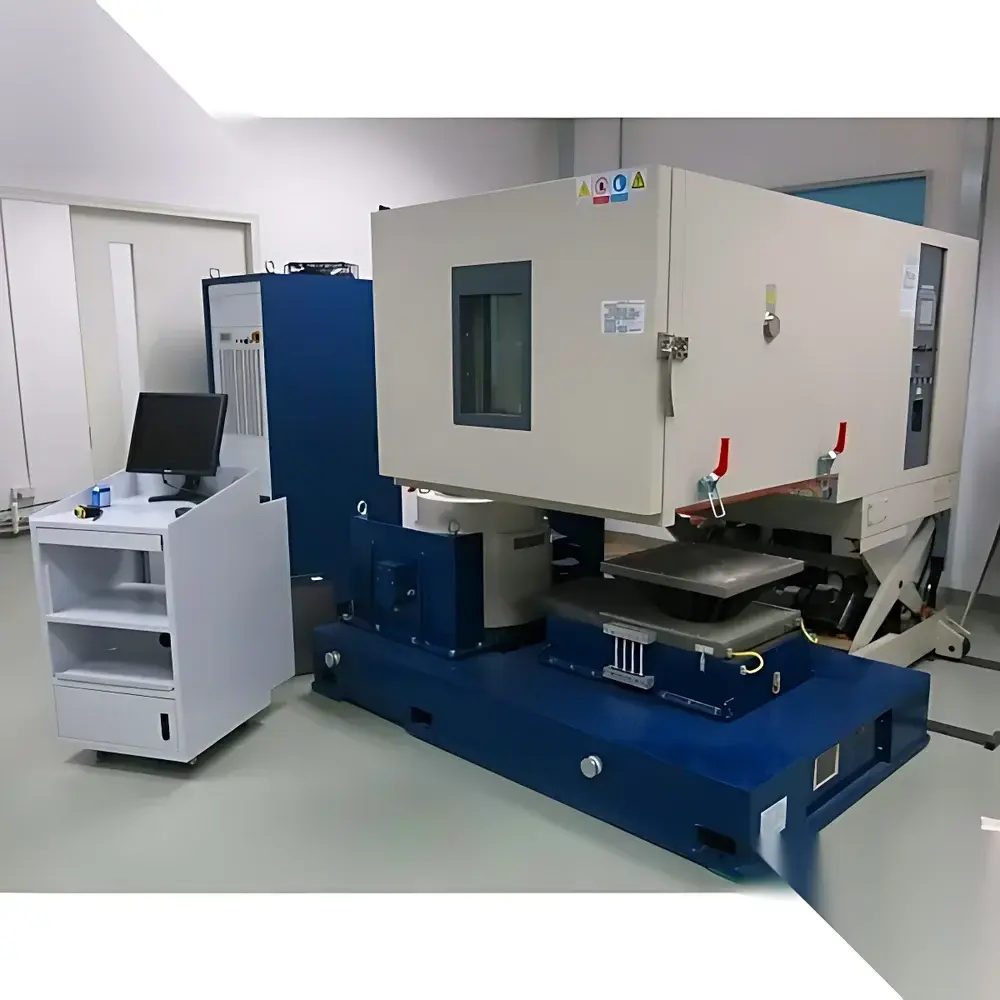

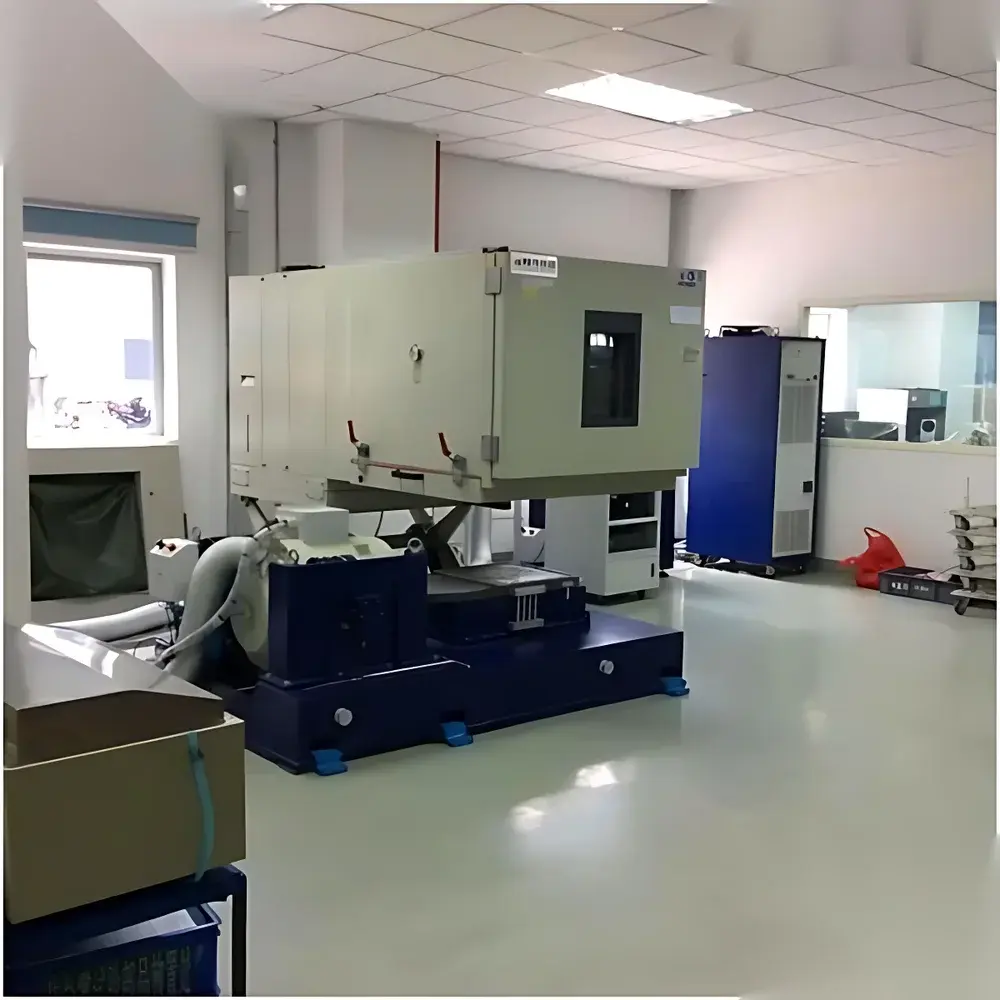

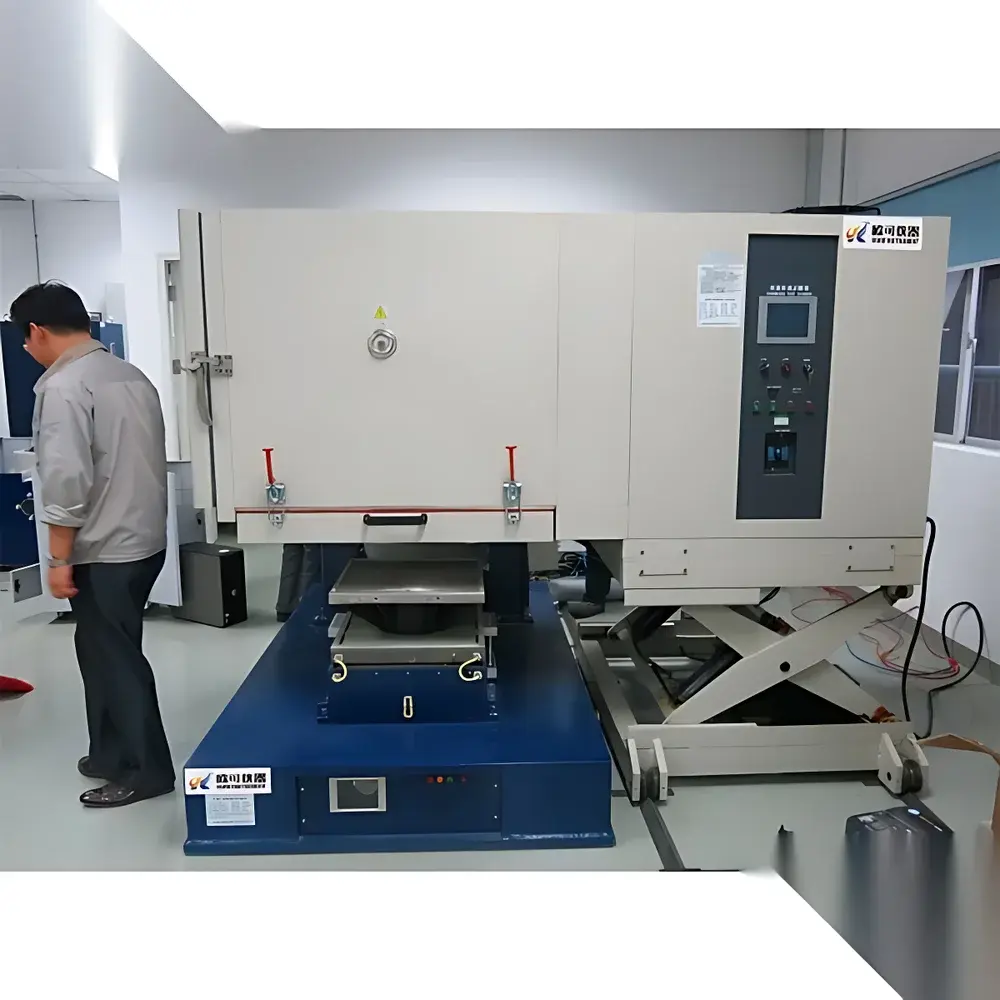

Combined Temperature-Humidity-Vibration Environmental Test Chamber

Overview

The Combined Temperature-Humidity-Vibration Environmental Test Chamber is an integrated reliability testing system engineered for simultaneous and synchronized application of thermal, hygrothermal, and mechanical stress stimuli. It operates on the principle of coupled environmental simulation—precisely controlling chamber temperature (−70 °C to +180 °C), relative humidity (10 %RH to 98 %RH), and electrodynamic vibration (5 Hz to 3000 Hz) within a single test cycle. This triaxial stress combination replicates real-world service conditions encountered by aerospace components, automotive ECUs, medical electronics, and high-reliability PCB assemblies during transport, storage, and operational life. The chamber’s structural integrity is maintained via reinforced stainless-steel inner chamber construction, double-wall vacuum-insulated panels, and a hermetically sealed vibration isolation interface between the shaker table and environmental enclosure—ensuring minimal thermal leakage and mechanical cross-talk.

Key Features

• Four-point synchronous electromagnetic excitation system delivering uniform acceleration distribution across the test table surface (±1.5 dB amplitude deviation over 600 × 600 mm active area)
• Microprocessor-based dual-loop control architecture with real-time feedback compensation for frequency stability (<±0.01 Hz drift over 100-hour continuous operation)
• Stepless amplitude adjustment (0.05–50 g_pk, 0.01–25 mm_p-p) supporting fixed-frequency, swept-sine, random, and programmable vibration profiles
• Embedded amplitude prediction algorithm enabling rapid parameter convergence during setup—reducing commissioning time by up to 40 % compared to manual tuning
• Integrated EMI-hardened control circuitry compliant with IEC 61000-4-3 (radiated immunity) and IEC 61000-4-4 (electrical fast transient immunity)
• Zero-residual magnetic field design: non-magnetic stainless steel table surface and electrostatic-dissipative coating (surface resistivity 10⁶–10⁹ Ω/sq) prevent interference with sensitive magnetic sensors or Hall-effect devices
• Multi-segment timer function supporting up to 999 cycles per program, with user-defined dwell times, ramp rates, and transition logic between temperature/humidity/vibration phases

Sample Compatibility & Compliance

The chamber accommodates test specimens up to 100 kg (with optional load extension kits) and supports standard mounting configurations including ISO 10816-3-compliant accelerometer fixtures and MIL-STD-810H-compatible vibration interfaces. All environmental control subsystems comply with ISO 16750-4 (road vehicles), IEC 60068-2-64 (vibration testing), IEC 60068-2-30 (damp heat cyclic), and ASTM D4332 (conditioning containers). The integrated safety architecture includes redundant over-temperature cutoff (mechanical and electronic), refrigerant high-pressure shutdown, ground-fault circuit interruption (GFCI), and automatic mains disconnection upon any fault detection—meeting UL 61010-1 and EN 61010-1 requirements for laboratory equipment.

Software & Data Management

The system is equipped with Windows-based control software featuring full audit trail capability in accordance with FDA 21 CFR Part 11 requirements—including electronic signatures, user-level access control, and immutable event logging. Real-time waveform visualization (time domain, FFT spectrum, PSD, SRS) is supported alongside automated report generation (PDF/CSV export). Data archiving follows GLP/GMP-aligned practices: all test parameters, setpoints, actual values, alarms, and calibration metadata are timestamped and stored with SHA-256 hash verification. Remote monitoring via Ethernet (TCP/IP) enables integration into centralized lab management systems (LIMS) and enterprise quality databases.

Applications

• Qualification testing of avionics modules under combined thermal cycling and broadband vibration per DO-160 Section 21
• Accelerated life testing of battery management systems (BMS) subjected to humidity-induced corrosion and mechanical shock synergy
• Validation of MEMS sensor packaging integrity under thermo-mechanical fatigue conditions
• Reliability screening of 5G base station RF front-end modules exposed to condensation and resonant vibration
• Development of conformal coatings for military-grade PCBAs using multi-step humidity ramp + resonance dwell protocols
• Failure mode analysis (FMA) of solder joint fatigue in lead-free assemblies under temperature-humidity-vibration interaction

FAQ

What standards does this chamber support for combined environment testing?
It fully implements IEC 60068-2-64 (vibration), IEC 60068-2-30 (damp heat cyclic), and ISO 16750-4 (combined temperature/humidity/vibration profiles for automotive electronics). Custom test sequences can be scripted to match proprietary OEM specifications.
Can the system perform vibration control while maintaining sub-zero temperatures?
Yes—the shaker table is thermally decoupled from the chamber core via a low-conductivity bellows interface, enabling stable vibration execution at −40 °C without condensation or actuator freezing.
Is remote calibration traceability available?
All factory calibrations are NIST-traceable, with certificates issued per ANSI/NCSL Z540-1. On-site calibration verification services are offered annually with documented uncertainty budgets.
Does the software support automated pass/fail evaluation against predefined limits?
Yes—threshold-based alarm triggers and post-test statistical analysis (Cpk, Weibull, failure rate estimation) are embedded in the reporting module.
What is the maximum allowable specimen height inside the chamber?
Standard internal height is 800 mm; optional extended-height models (1200 mm) are available for tall enclosures or stacked assemblies.
