Combined Temperature-Humidity-Vibration Environmental Test Chamber – Multi-Function Electromagnetic Shaker System with Microcomputer Control

Overview

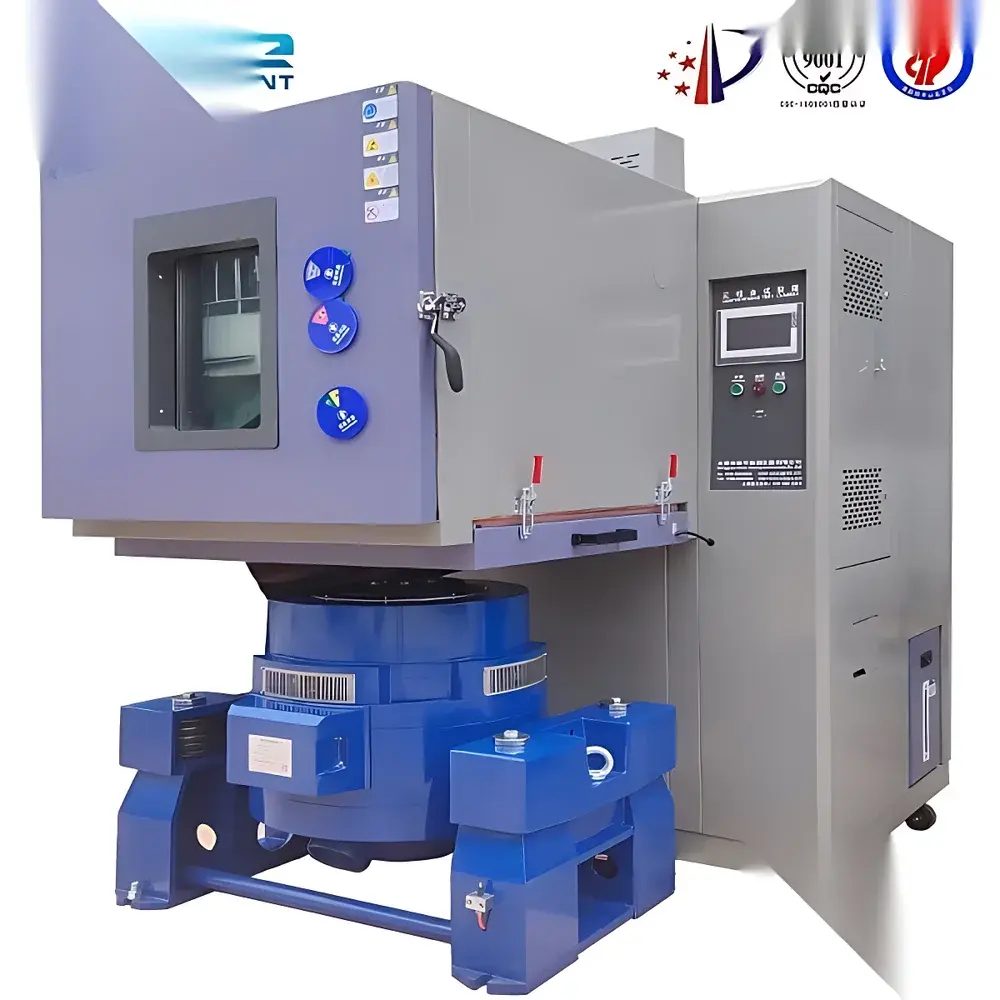

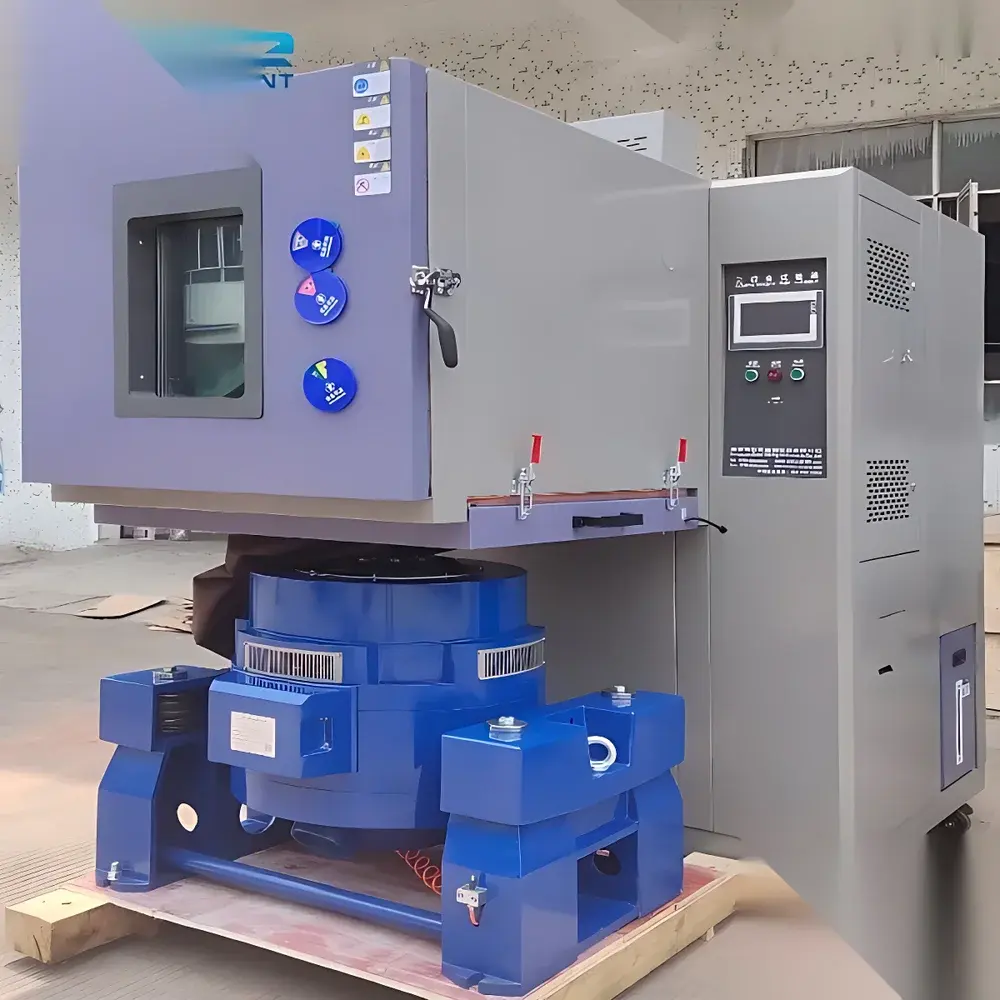

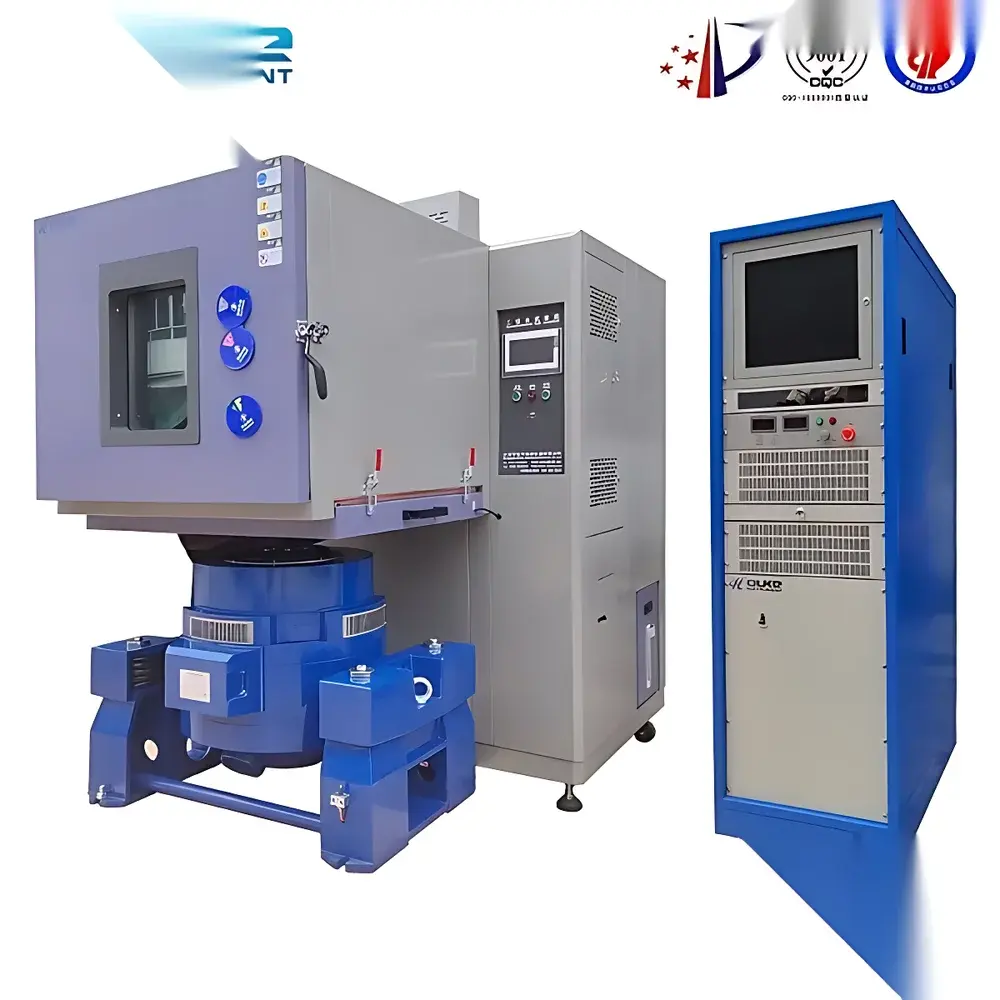

The Combined Temperature-Humidity-Vibration Environmental Test Chamber is an integrated reliability validation platform engineered for accelerated life testing and structural integrity assessment of electromechanical components under realistic multi-stress conditions. Unlike standalone vibration shakers or climate chambers, this system synchronizes thermal cycling (temperature and humidity), mechanical excitation (electromagnetic sinusoidal vibration), and programmable environmental profiles within a single controlled enclosure—enabling true triaxial stress correlation per IEC 60068-2-64, MIL-STD-810H Method 514.7, and GB/T 2423.10–2019. The core actuation mechanism employs a four-point synchronized electromagnetic shaker architecture, delivering uniform modal excitation across the 350 × 350 mm stainless steel table surface without resonance distortion or amplitude drift over extended operation (>100 hr continuous). Frequency synthesis is achieved via high-fidelity digital signal processing (DSP), supporting both fixed-frequency dwell and logarithmic/linear sweep modes with sub-hertz resolution—critical for identifying resonant peaks in printed circuit assemblies, automotive ECUs, and aerospace avionics housings.

Key Features

• Four-point electromagnetic excitation ensures spatially uniform acceleration distribution and eliminates nodal interference—validated by ISO 5347-13 transmissibility mapping.
• Programmable dual-axis (vertical + horizontal) vibration capability enables orthogonal stress superposition, replicating road-induced chassis loads or aircraft taxiing dynamics.
• Microcomputer-based controller with embedded amplitude prediction algorithm allows real-time closed-loop compensation for payload-induced mass damping shifts—maintaining target g-levels within ±1.5% deviation across full frequency bandwidth.
• EMI-shielded drive electronics and non-magnetic stainless steel table eliminate stray magnetic fields and electrostatic accumulation—essential for testing magnetically sensitive sensors (e.g., Hall-effect encoders, MEMS gyroscopes).
• High-resolution frequency control (0.01 Hz display, ±0.1 Hz accuracy) supports precise resonance tracking and narrow-band dwell tests compliant with ASTM D999 and IPC-9701.
• Unlimited multi-segment test sequencing: users define independent time/frequency/amplitude profiles—including jump-frequency transitions, amplitude-to-acceleration mode switching, and hybrid sine-sweep + dwell routines.

Sample Compatibility & Compliance

The chamber accommodates samples up to 100 kg (depending on selected configuration) and integrates seamlessly with standard environmental test fixtures (e.g., PCB mounting brackets, automotive harness clamps, and MIL-STD-1377 adapters). All operational parameters adhere to international standards for laboratory-grade environmental simulation: temperature/humidity control meets IEC 60068-3-5 and GB/T 10586; vibration performance complies with ISO 10816-1 (machinery vibration severity), ISO 5347 (vibration exciter calibration), and GB/T 2423.10 (sinusoidal vibration testing). The system supports GLP-compliant audit trails when paired with optional FDA 21 CFR Part 11–enabled software modules, including electronic signatures, change history logs, and user-access tiering.

Software & Data Management

A Windows-based control suite provides full remote operation, real-time waveform visualization (time-domain and FFT spectra), and automated report generation in PDF/CSV formats. The software architecture includes configurable data sampling rates (up to 50 kHz), synchronized timestamping across thermal and vibrational sensors, and built-in pass/fail threshold logic per test step. Raw datasets are stored in HDF5 format for traceability and post-processing in MATLAB or Python. Optional add-ons include networked fleet monitoring (SNMP/OPC UA), integration with LIMS platforms via REST API, and automated calibration certificate import from accredited metrology labs.

Applications

This system serves as a primary qualification tool in R&D labs and QC departments across industries where field failure modes involve coupled thermal-mechanical stress: automotive Tier-1 suppliers validate infotainment modules under thermal shock + road-spectrum vibration; medical device manufacturers verify implantable sensor housings per ISO 14971 risk analysis; semiconductor packaging houses assess wire-bond fatigue under humidity cycling + resonant frequency dwell; and defense contractors conduct MIL-STD-810G Method 514.6 compliance verification for UAV navigation systems. Its ability to execute repeatable, auditable, and standards-aligned test sequences makes it suitable for internal reliability screening, third-party certification, and regulatory submission dossiers.

FAQ

What standards does this system comply with for vibration testing?
It meets GB/T 2423.10–2019, IEC 60068-2-6, ISO 5347, and MIL-STD-810H Method 514.7 for sinusoidal vibration profiles.
Can the system perform combined temperature, humidity, and vibration simultaneously?
Yes—full tri-stress synchronization is supported, with independent control loops for each domain and cross-coupling compensation algorithms.
Is the vibration table surface magnetically inert?
Yes—the stainless steel table is non-magnetic and electrostatically grounded to prevent interference with magnetic sensors or Hall-effect devices.
Does the software support automated reporting for ISO/IEC 17025 audits?
Yes—optional audit-ready reporting modules include electronic signatures, revision history, and calibration traceability per ISO/IEC 17025:2017 Clause 7.7.
What is the maximum continuous operating time per test sequence?
The system supports uninterrupted operation for up to 9999 hours, with automatic power-fail recovery and resume-from-interrupt functionality.
