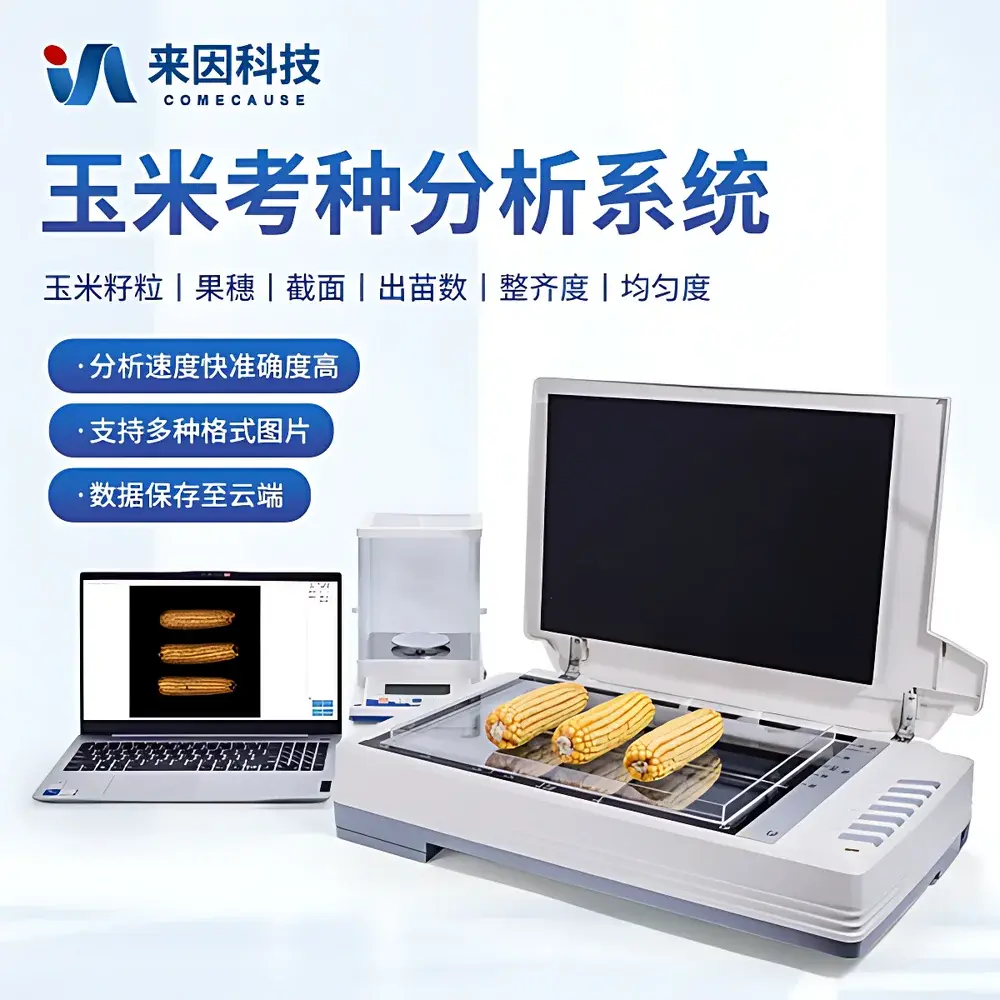

COMECAUSE IN-KZ04 Automated Corn Seed Analysis and Thousand-Kernel Weight System

Overview

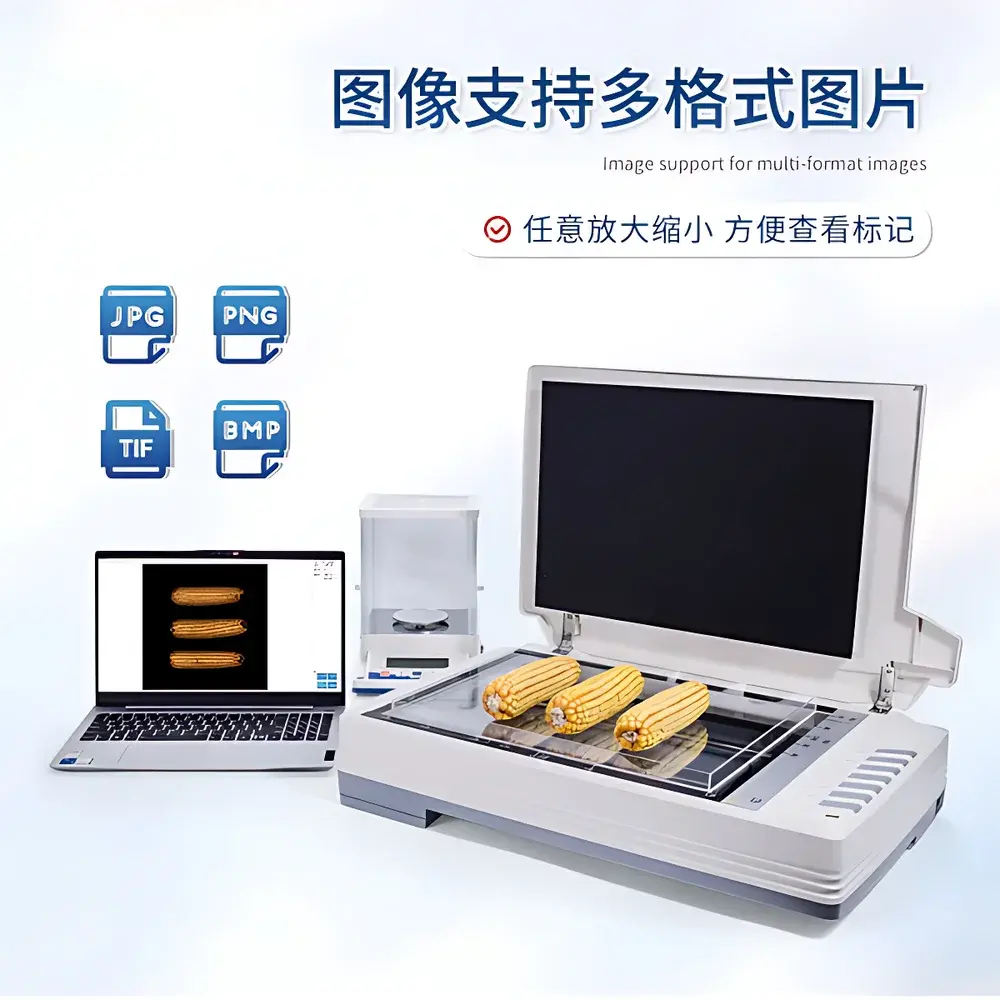

The COMECAUSE IN-KZ04 Automated Corn Seed Analysis and Thousand-Kernel Weight System is a high-throughput, image-based seed metrology platform engineered for quantitative morphological and gravimetric characterization of cereal and leguminous seeds. It operates on the principle of high-resolution digital image acquisition coupled with deterministic computer vision algorithms—specifically calibrated for seed boundary detection, pixel-based geometric measurement, and RGB color space quantification. Unlike manual or semi-automated methods, the IN-KZ04 eliminates operator-dependent variability in seed counting, sizing, and weight extrapolation by integrating synchronized optical imaging (via an A3-format 1600 dpi × 1600 dpi UV-enhanced color scanner), precision mass measurement (RS232-linked analytical balance), and deterministic morphometric computation. Its primary application domain spans seed quality control laboratories, plant breeding programs, national seed certification agencies, and academic agronomy research units requiring GLP-compliant, auditable, and repeatable seed phenotyping data.

Key Features

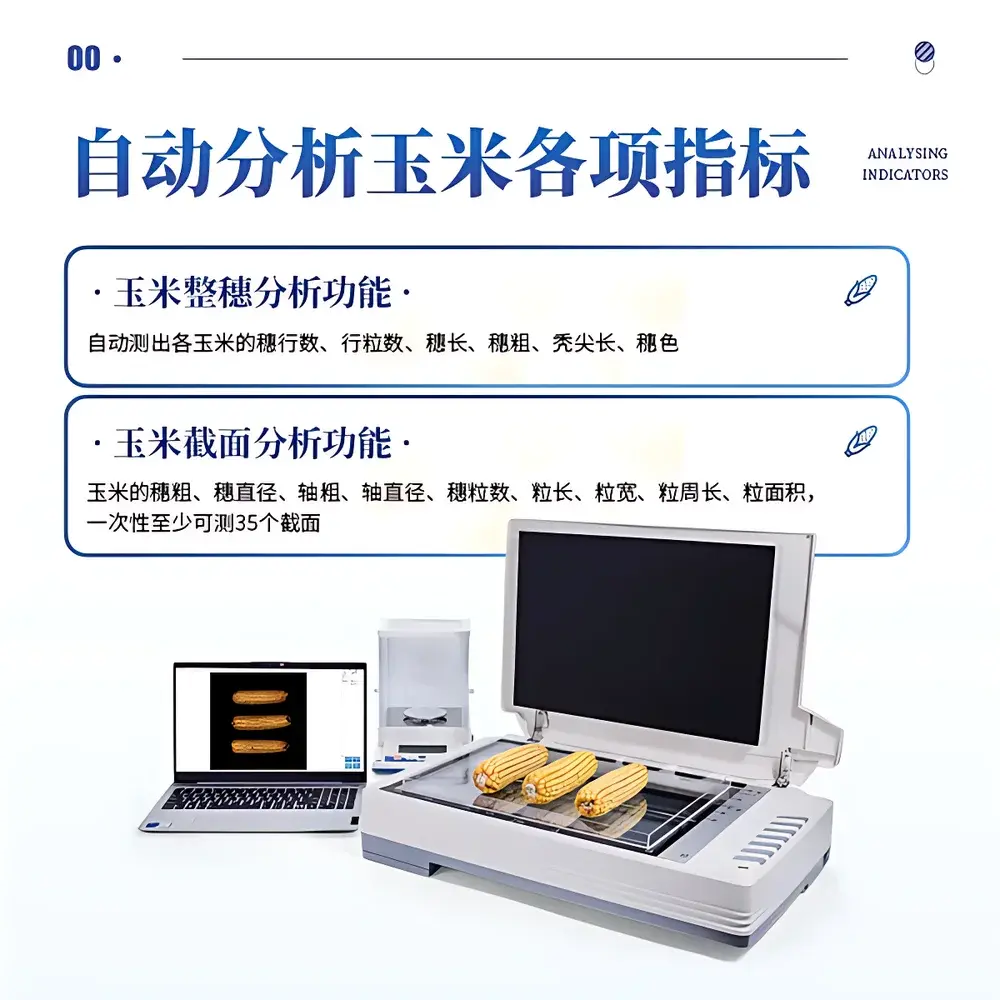

• Multi-modal seed analysis: Simultaneous quantification of individual kernel morphology (length, width, aspect ratio, perimeter, area, color via standardized RGB values), whole-ear architecture (ear length, ear diameter, row number, kernel rows per ear, tip barrenness length, shank thickness), and cross-sectional anatomy (cob diameter, kernel count per section, kernel dimensions).
• Automated thousand-kernel weight (TKW) and hundred-kernel weight (HKW) derivation: Direct integration with calibrated electronic balance enables real-time mass-to-count conversion; system auto-calculates mean, standard deviation, min/max, and coefficient of variation for each batch.
• High-fidelity optical imaging: UV-M1 Plus A3 flatbed scanner with uniform illumination ensures consistent contrast and minimal shadowing—critical for accurate segmentation of translucent or pigmented seeds such as maize, rice, wheat, soybean, rapeseed, peanut, and sesame.

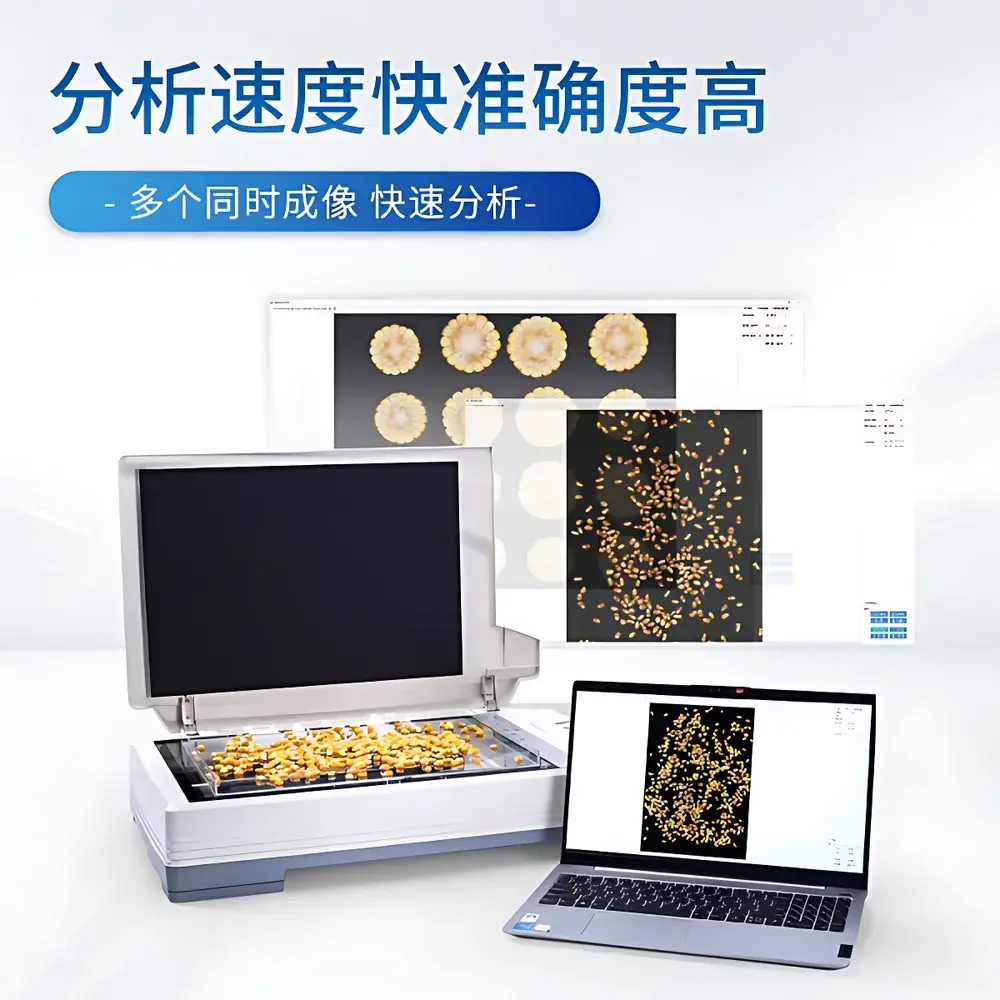

• Deterministic counting and classification: Proprietary edge-detection and watershed segmentation algorithms achieve ≤ ±0.5% counting error; post-acquisition manual correction mode guarantees 100% traceable validation.
• Comprehensive data traceability: Each analysis session generates timestamped metadata (operator ID, device serial, environmental conditions if logged externally), raw images, annotated overlays, and Excel-exported tables with version-controlled file naming.
• Regulatory-ready software architecture: Supports audit trail logging (user actions, parameter changes, result exports), password-protected user roles, and optional 21 CFR Part 11 compliance add-ons for FDA-regulated environments.

Sample Compatibility & Compliance

The IN-KZ04 is validated for use with monocot and dicot seeds exhibiting diameters between 1.5 mm and 25 mm, including but not limited to Zea mays (dent, flint, sweet corn), Oryza sativa, Triticum aestivum, Glycine max, Brassica napus, Arachis hypogaea, and Sesamum indicum. Its measurement methodology aligns with internationally recognized seed testing standards, including ISTA Rules (International Seed Testing Association) Section 5 (Seed Health and Purity), ISO 5725 (Accuracy and Precision of Measurement Methods), and GB/T 3543.3–1995 (Chinese National Standard for Crop Seed Testing—Purity Analysis). The system’s dimensional accuracy and repeatability meet the performance thresholds required for official variety registration trials under UPOV guidelines. All hardware components—including the scanner optics, balance transducer, and tray materials—are selected for long-term stability under laboratory ambient conditions (15–30°C, 30–70% RH).

Software & Data Management

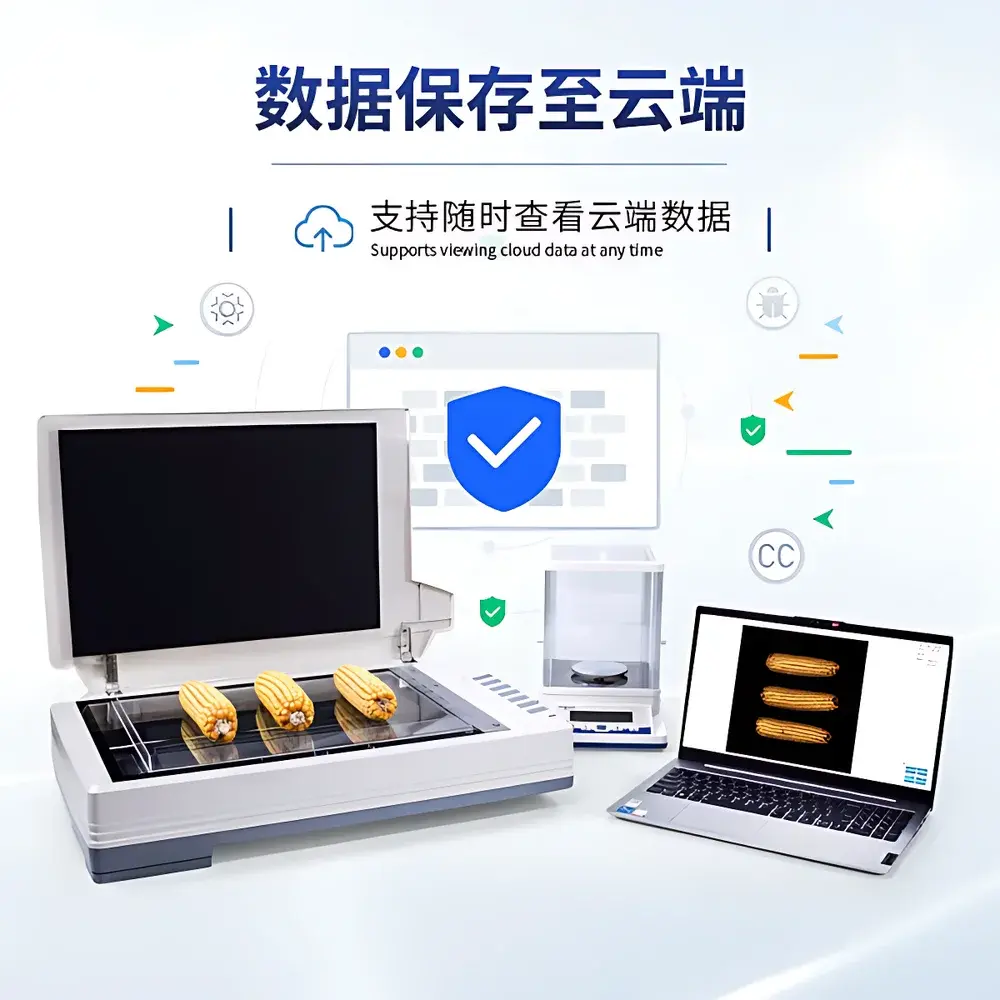

The IN-KZ04 runs proprietary Windows-native software (v4.2+, compatible with Windows 10/11 64-bit) featuring a dual-language GUI (Chinese/English), context-sensitive tooltips, and role-based access control. Image processing pipelines are non-destructive and fully reversible: original scans are preserved unaltered while all measurements derive from duplicate working layers. Data export supports .xlsx (with formula-locked summary sheets), .csv (UTF-8 encoded), and annotated image formats (TIFF with embedded EXIF metadata). Users may configure automated save paths, enable incremental appending to master spreadsheets, and schedule cloud backups to AES-256-encrypted endpoints bound to unique device identifiers. Audit logs record every user-initiated action—including image import, threshold adjustment, manual correction, report generation, and export—with IP address, timestamp, and operator credentials. Optional modules support spectral reflectance calibration, pathogen lesion quantification, and varietal discrimination via supervised ML classifiers trained on validated reference libraries.

Applications

• Plant breeding programs: High-throughput screening of segregating populations for kernel size uniformity, ear architecture traits, and TKW heritability estimates.
• Seed certification labs: Objective verification of purity, germination potential proxies (e.g., kernel plumpness index), and compliance with national labeling requirements for TKW ranges.
• Grain quality assessment: Correlation of morphometric parameters (e.g., length-to-width ratio, surface area) with milling yield, starch content, and cooking quality indices.
• Post-harvest physiology studies: Quantifying physical damage, shriveling, or discoloration across storage durations under controlled humidity/temperature regimes.
• Academic agronomy research: Statistical modeling of genotype-by-environment interactions using multivariate seed trait datasets (n > 10,000 kernels/session).
• Regulatory submissions: Generation of auditable, timestamped datasets supporting DUS (Distinctness, Uniformity, Stability) testing and PVP (Plant Variety Protection) applications.

FAQ

What seed types are supported beyond maize?
The system is validated for rice, wheat, soybean, rapeseed, peanut, sesame, and other small- to medium-sized seeds with distinct boundaries and moderate translucency. Kernel diameter must fall within 1.5–25 mm; highly irregular or clustered seeds (e.g., lettuce, carrot) require pre-processing.
Does the software comply with FDA 21 CFR Part 11?
Base software includes audit trail, electronic signature prompts, and user role management. Full Part 11 compliance requires optional validation package (IQ/OQ/PQ documentation, electronic signature certificate integration, and secure e-signature workflow configuration).
Can the system measure seed viability or vigor?
No—viability and vigor require biochemical or physiological assays (e.g., tetrazolium staining, accelerated aging). The IN-KZ04 quantifies structural and mass-based proxies only (e.g., kernel density, surface defect ratio) which may correlate with—but do not replace—viability testing.
Is calibration required before each use?
Scanner geometric calibration is performed during installation and verified annually; balance calibration follows ISO/IEC 17025 protocols using NIST-traceable weights. Daily verification with reference seed standards is recommended for GLP workflows.
How is data integrity ensured during cloud synchronization?
All uploads are TLS 1.2+ encrypted; device binding uses asymmetric key pairs; server-side storage employs AES-256 encryption at rest. Users retain full ownership and may revoke access or delete cloud records at any time.
