COMECAUSE IN-KZ04 Corn Seed Phenotyping & Grading Analysis System

Overview

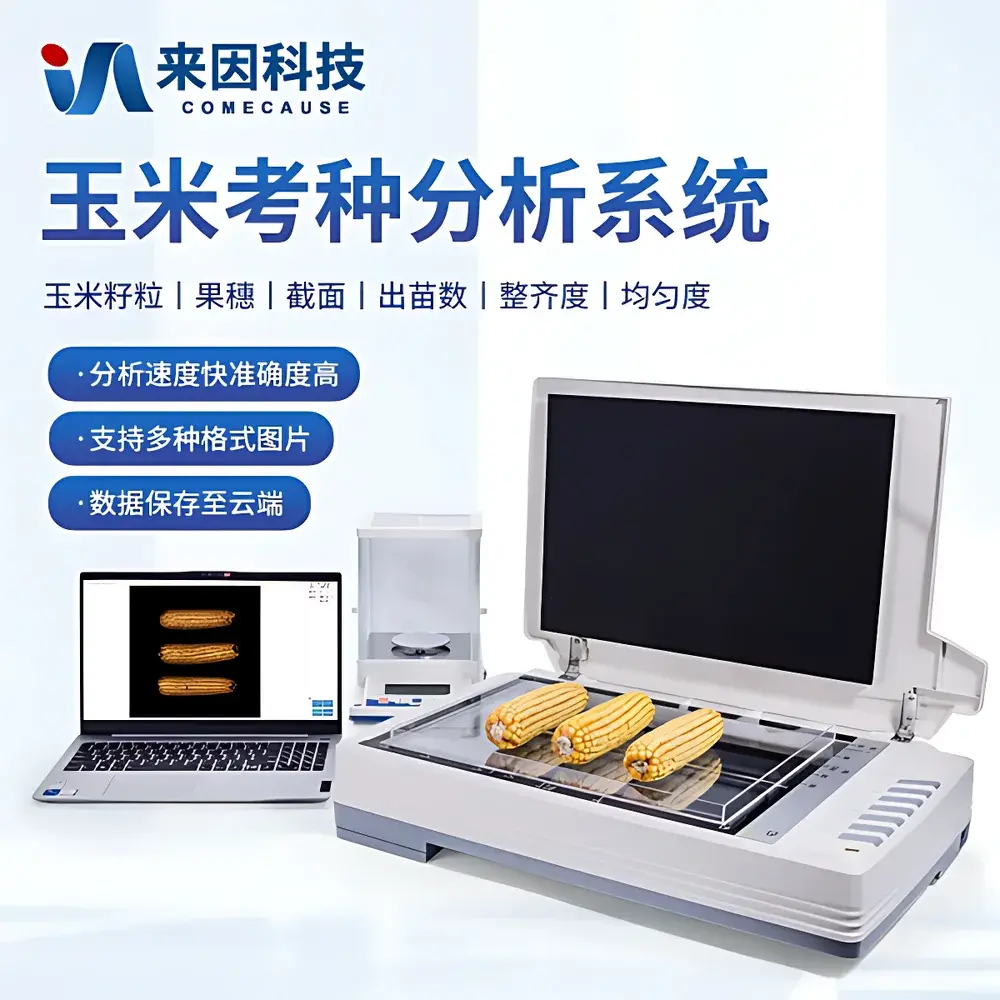

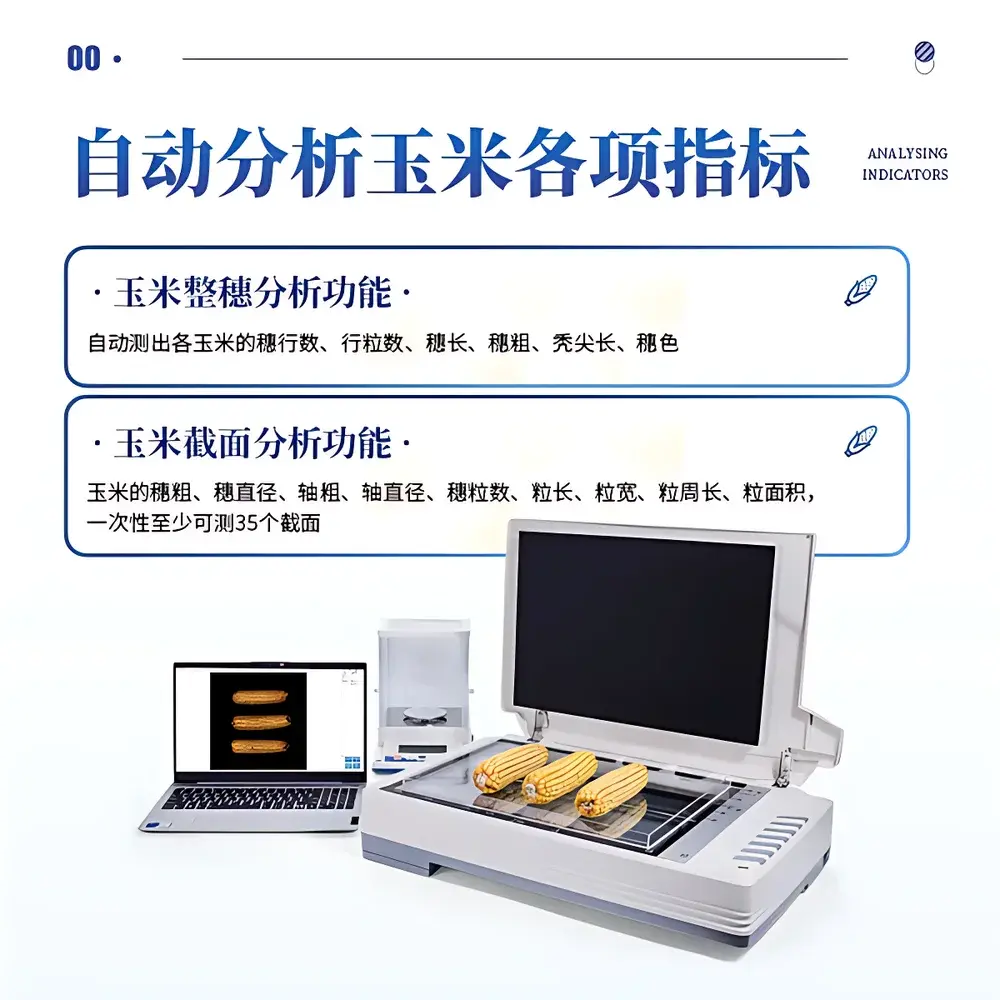

The COMECAUSE IN-KZ04 Corn Seed Phenotyping & Grading Analysis System is a high-throughput, image-based seed metrology platform engineered for precision phenotypic characterization of maize (Zea mays L.) and other small-grain crops. It operates on the principle of digital morphometric analysis—leveraging calibrated high-resolution scanning, adaptive threshold segmentation, and sub-pixel edge detection algorithms to extract biologically meaningful geometric, topological, and chromatic features from static 2D seed images. Unlike manual or semi-automated methods, the IN-KZ04 eliminates inter-operator variability in ear architecture assessment (e.g., row number, kernel count per row), cross-sectional morphology (rachis diameter, kernel perimeter), and single-kernel metrics (length, width, aspect ratio, area, perimeter). Its design adheres to the foundational requirements of seed science workflows defined in ISO 22037 (seed imaging standards), ISTA Rules (International Seed Testing Association), and national seed certification protocols under GB/T 3543 (China National Standard for Seed Testing).

Key Features

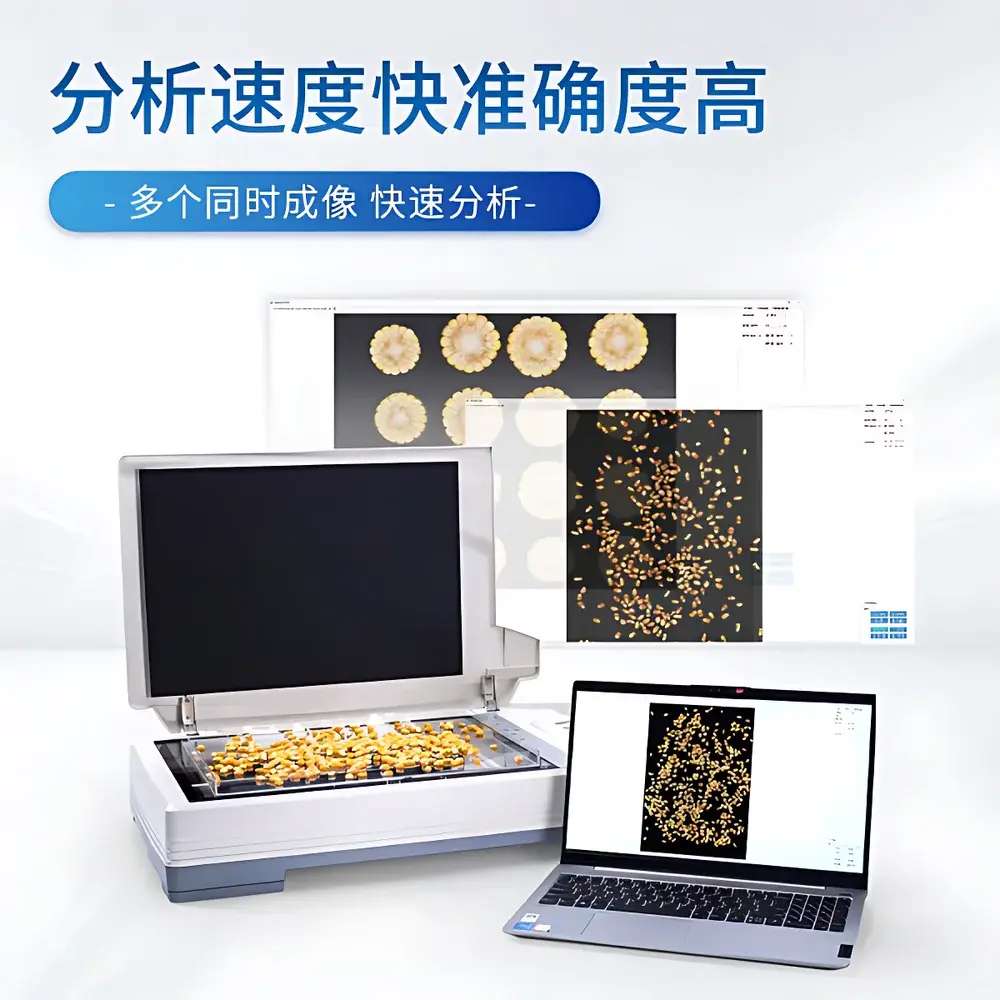

• Multi-scale analysis capability: Simultaneous acquisition and processing of intact ears, transverse sections, and individual kernels within a single workflow.
• A3-format UV-enhanced M1 Plus color scanner delivering 1600 dpi × 1600 dpi optical resolution—optimized for low-contrast maize kernel boundaries and subtle color gradients in pericarp and endosperm.
• Integrated RS232-compatible precision balance enabling real-time mass input; automatic TKW/100KW calculation synchronized with image-derived kernel counts.
• RGB-based quantitative color indexing: Assigns standardized sRGB triplets (e.g., R=182, G=124, B=47) to each kernel or ear region, supporting objective varietal classification and maturity staging.
• Embryo-tip detection module: Uses convolutional feature extraction to identify and enumerate embryonic structures on maize kernels—critical for viability and germination potential assessment.
• Configurable filtering engine: Enables conditional analysis based on user-defined thresholds (e.g., “analyze only kernels > 8.2 mm in length” or “exclude cross-sections with axis diameter < 4.1 mm”).
• Bilingual UI (English/Chinese) with one-click language switching—designed for multinational breeding stations and collaborative trials across APAC and EMEA regions.

Sample Compatibility & Compliance

The IN-KZ04 supports standardized phenotyping of Zea mays L. (dent, flint, sweet, pop), Oryza sativa (indica/japonica), Triticum aestivum, Glycine max, Brassica napus, Arachis hypogaea, and Sesamum indicum. All analytical outputs—including mean kernel length (mm), coefficient of variation (CV%) for shape indices, and TKW (g/1000) —are traceable to NIST-traceable reference weights and ISO 17025-accredited calibration procedures performed during factory commissioning. The system generates immutable operation logs compliant with GLP documentation requirements: timestamps, operator IDs, instrument serial numbers, and version-stamped software build identifiers are embedded in every exported Excel file and cloud-synced dataset. While not FDA 21 CFR Part 11-certified out-of-the-box, the audit trail architecture satisfies pre-audit readiness criteria for regulated seed certification labs.

Software & Data Management

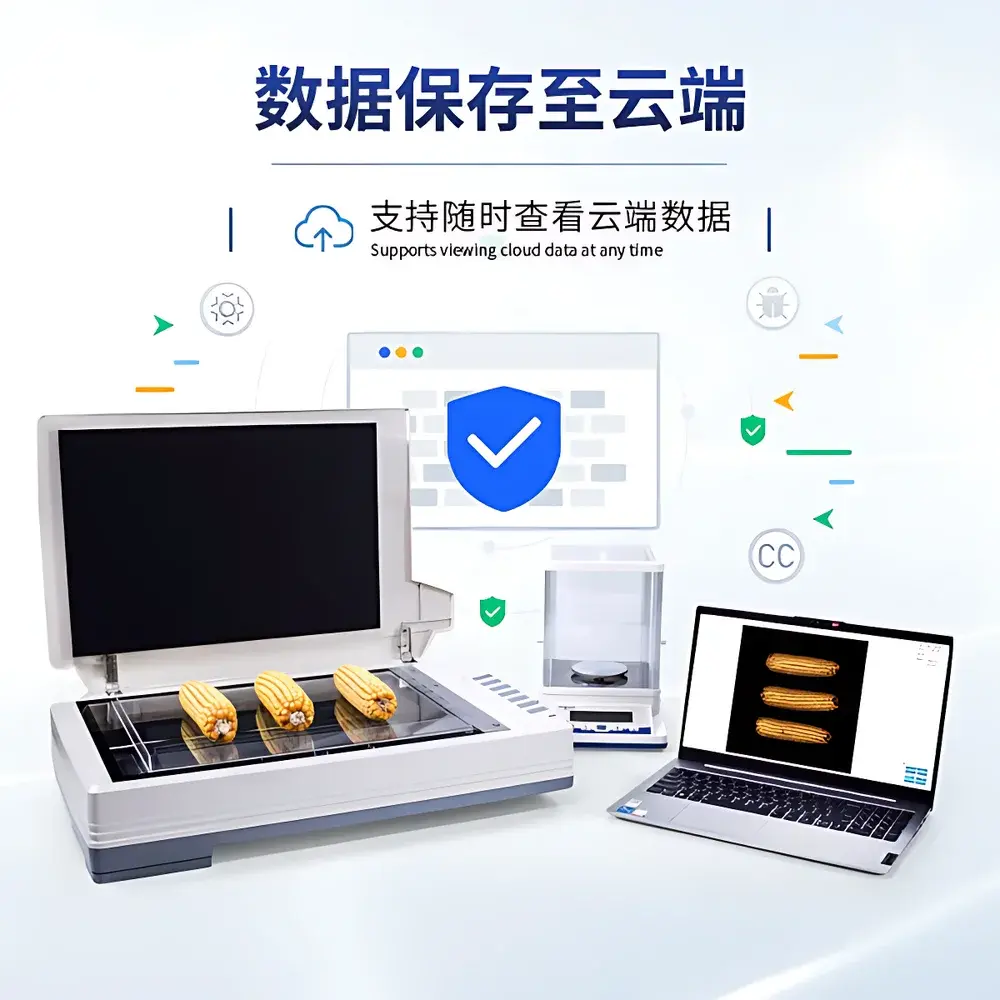

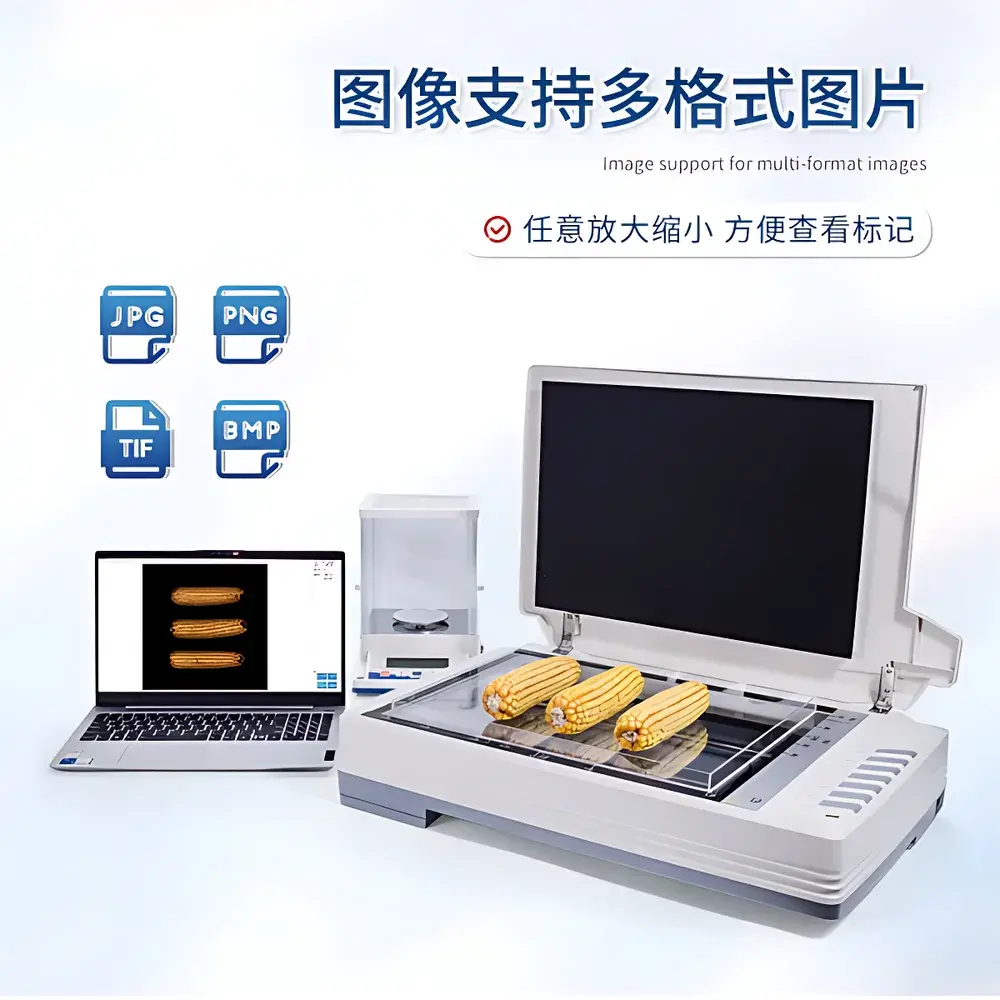

The proprietary IN-KZ04 Analysis Suite runs exclusively on Windows 10 or newer x64 platforms and employs SQLite-backed local database architecture for metadata integrity. Image import supports JPEG, TIFF, BMP, and PNG formats with lossless zoom (up to 8×) and annotation overlays (ROI marking, measurement callouts). Each analysis session auto-generates an Excel (.xlsx) report containing raw measurements, statistical summaries (mean, SD, CV%), and QC flags (e.g., “outlier kernel detected at position X,Y”). Users configure export paths and enable append-mode writing to maintain longitudinal trial databases. Cloud synchronization uses TLS 1.3-encrypted HTTPS channels; datasets are bound to a unique device ID and accessible via browser-based dashboard with role-based permissions (admin/viewer/export-only). Raw image archives and processed data are retained independently—ensuring reproducibility under FAIR (Findable, Accessible, Interoperable, Reusable) principles.

Applications

• Maize breeding programs: High-volume screening of segregating populations for ear architecture QTLs (e.g., kernel row number, cob diameter, tip coverage).
• Seed certification laboratories: Objective validation of varietal purity, uniformity, and TKW compliance per ISTA Rule 5B and GB/T 3543.3.
• Post-harvest quality control: Detection of mechanical damage, shriveling, or fungal discoloration through pixel-intensity variance mapping and chromatic anomaly scoring.
• Grain trade documentation: Generation of auditable, timestamped morphometric certificates for export contracts requiring quantifiable seed specifications.
• Academic seed physiology research: Correlation studies between kernel morphology (e.g., length-to-width ratio) and starch/protein composition, germination rate, or drought tolerance indices.

FAQ

What operating systems are supported?
Windows 10 (64-bit) or later versions only. Windows Server editions and macOS/Linux are not supported.
Can the system analyze seeds other than maize?
Yes—it is validated for rice, wheat, soybean, rapeseed, peanut, and sesame; performance may vary slightly with extreme size/shape outliers (e.g., very elongated or highly irregular seeds).
Is cloud data encryption FIPS 140-2 compliant?
Data in transit uses TLS 1.3; at rest, cloud-stored files are AES-256 encrypted. Full FIPS validation is available upon request for enterprise deployment contracts.
How is measurement traceability ensured?
All geometric calibrations are referenced to NIST-traceable line-pair test targets; mass inputs require ISO/IEC 17025-accredited balances. Calibration certificates are included with shipment.
Does the software support batch processing of legacy image folders?
Yes—batch import mode accepts folder structures containing mixed-format images; metadata (date, operator, variety code) can be assigned globally or per-subfolder.
