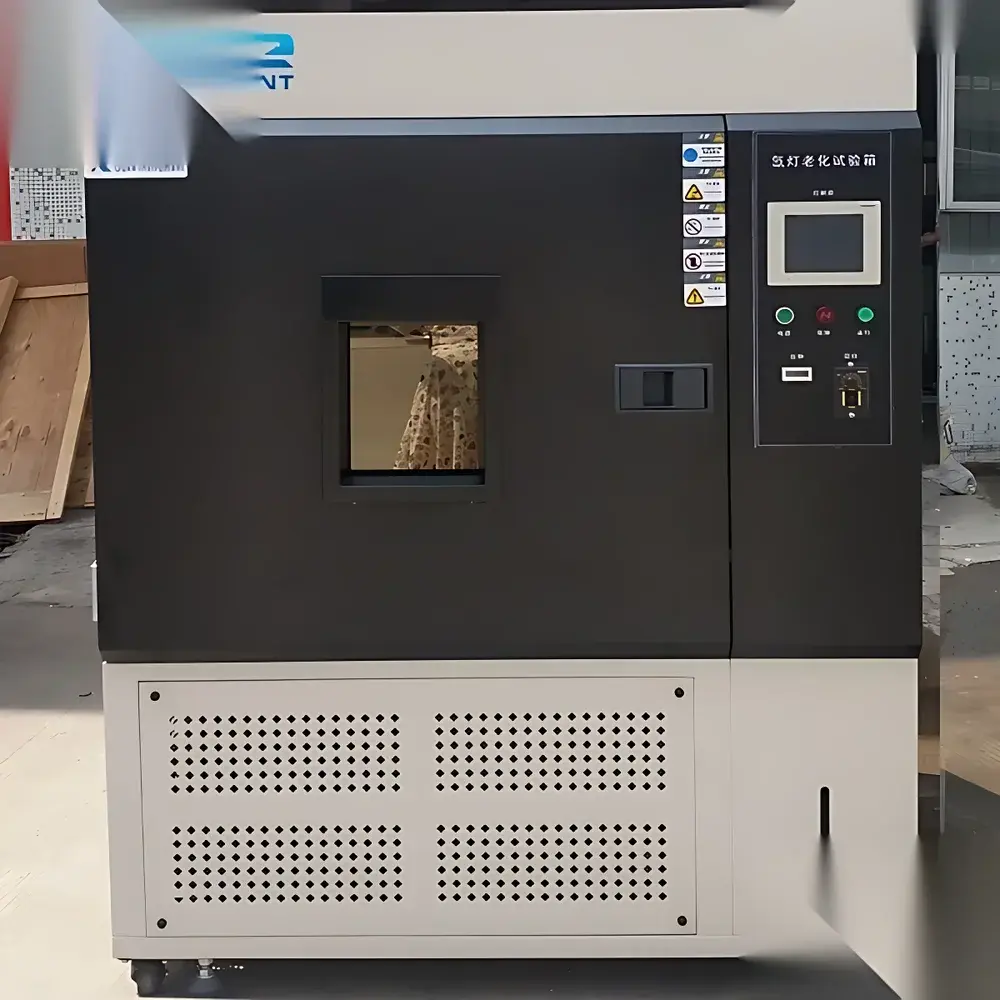

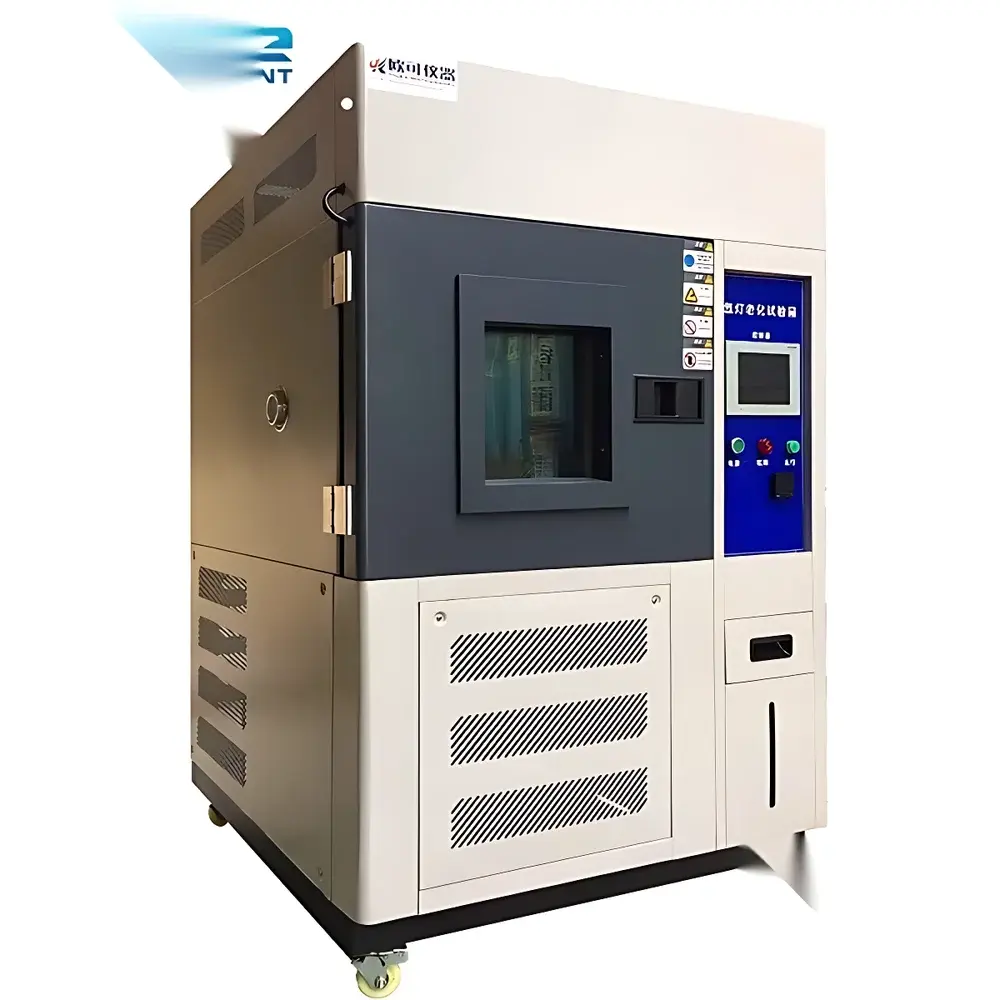

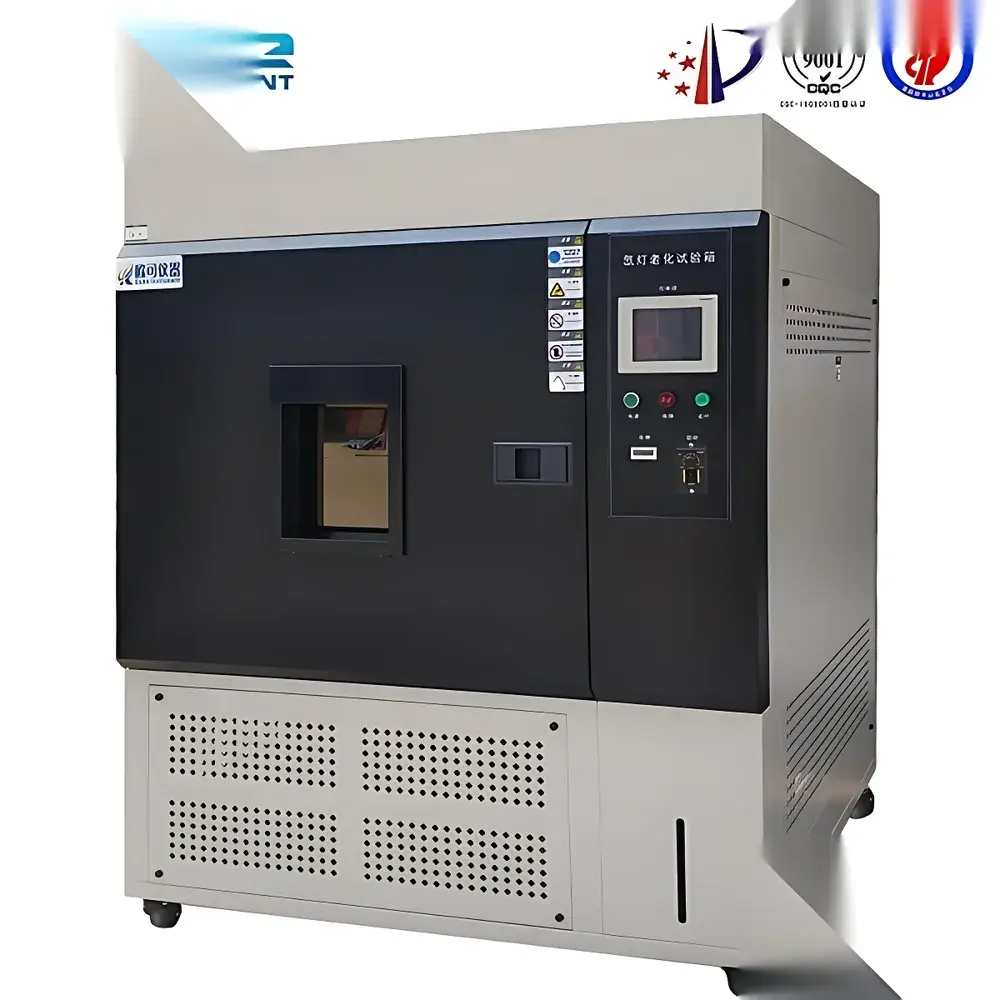

Compact Xenon Arc Weathering Test Chamber OK-XD Series

Overview

The OK-XD Series Compact Xenon Arc Weathering Test Chamber is an engineered solution for accelerated simulation of solar radiation, temperature, humidity, and moisture exposure in laboratory environments. Based on the principles of xenon arc irradiation—where a high-intensity, full-spectrum xenon lamp replicates natural sunlight across UV, visible, and near-infrared wavelengths (300–1200 nm)—this benchtop chamber enables reproducible assessment of photostability, colorfastness, and material degradation mechanisms. Unlike UV fluorescent or metal halide alternatives, xenon arc technology delivers spectral power distribution closely aligned with terrestrial sunlight (CIE No. 85), making it the reference method for evaluating light-induced aging per international standards including ISO 4892-2 and ASTM G155. The chamber supports both light/dark cycling and simultaneous irradiation-humidity-temperature conditioning, essential for testing polymers, coatings, textiles, automotive trim, and architectural materials under realistic climatic stress profiles.

Key Features

• Full-spectrum air-cooled xenon arc lamp system with calibrated irradiance output (550 W/m² ±10% over 300–800 nm; 1000 W/m² ±10% over 300–1200 nm), traceable to NIST-traceable radiometers.
• Integrated water spray function with programmable timing (1–999 minutes), adjustable pressure (70–127 kPa), and selectable intermittent/continuous modes to simulate rain, dew, or condensation cycles.
• Precise black panel temperature control (40–85 °C) and chamber air temperature regulation (0–150 °C), independently monitored via PT100 sensors with ±0.5 °C stability and ±2.0 °C uniformity.
• Dual-mode sample mounting: configurable dual-layer stainless steel mesh trays for flat specimens or a 500 mm diameter rotating turntable (0–3 rpm) to ensure uniform irradiance exposure across irregularly shaped or multi-angle samples.
• Humidity control system capable of maintaining 20–75% RH during irradiation phases and 20–98% RH during dark cycles, with ±2.0% RH stability and ±3.0% RH uniformity across the test volume.
• Robust construction using interior SUS304 stainless steel (corrosion-resistant, non-outgassing) and exterior options of either SUS304 or powder-coated carbon steel for long-term operational integrity.
• Modular design enabling rapid lamp replacement (~1500 h nominal service life) without recalibration; no routine maintenance required beyond periodic filter cleaning and calibration verification.

Sample Compatibility & Compliance

The OK-XD chamber accommodates diverse specimen geometries—including flexible fabrics, rigid plastic panels, painted metal substrates, and composite laminates—via its adaptable fixture system. Its compact footprint and scalable internal volumes (from 100 L to 1000 L) support both R&D-scale screening and pre-compliance validation. The system conforms to key regulatory and industry-standard test protocols: ISO 4892-2 (plastics—methods of exposure to laboratory light sources), ASTM D529 (textile colorfastness to weathering), GB/T 16422-2 (Chinese national standard for plastics exposure), and GB/T 8427 (textile colorfastness to artificial daylight). All operational parameters—including irradiance setpoints, temperature ramps, humidity profiles, and spray sequences—are programmable to replicate specific climatic zones defined in IEC 60068-2-5 and MIL-STD-810H Annex G. Data logging meets GLP/GMP documentation requirements, supporting audit-ready records for quality assurance departments.

Software & Data Management

The chamber operates via an embedded industrial-grade controller with intuitive touch interface, offering preloaded test programs aligned with ISO, ASTM, and GB standards. Real-time monitoring includes irradiance (W/m²), black panel temperature (°C), chamber temperature (°C), relative humidity (% RH), and elapsed spray time (min). All sensor data are timestamped and stored internally (≥30 days) with optional USB export in CSV format. For integration into enterprise QA systems, RS485 Modbus RTU communication enables bidirectional data exchange with LIMS or MES platforms. While not FDA 21 CFR Part 11 compliant out-of-the-box, the system supports external electronic signature workflows when paired with validated third-party software, satisfying traceability and audit trail requirements for regulated industries.

Applications

• Evaluation of color fading and chalking resistance in automotive clearcoats, interior trims, and exterior body panels under simulated South Florida or Arizona exposure conditions.
• Assessment of UV stabilizer efficacy in polyolefin films, PVC roofing membranes, and geotextiles subjected to cyclic irradiation-humidity-spray stress.
• Validation of textile dye migration and crocking behavior in sportswear and upholstery fabrics per GB/T 8427 Class 3–4 performance thresholds.
• Accelerated aging of LED streetlamp housings and polycarbonate lenses to quantify yellowing (Δb*), gloss loss (%), and tensile property retention after 1000–2000 kJ/m² UV dose.
• Pre-screening of architectural sealants and joint compounds for adhesion loss and cracking propensity under combined thermal cycling and moisture ingress.

FAQ

What standards does the OK-XD chamber support?
It is configured to execute test methods per ISO 4892-2, ASTM D529, GB/T 16422-2, GB/T 8427, and other referenced national and international weathering standards.
Can irradiance be calibrated and verified?
Yes—each unit ships with a factory-calibrated broadband radiometer; users may perform periodic verification using NIST-traceable reference sensors.
Is the chamber suitable for testing three-dimensional parts?
Yes—the rotating turntable option (0–3 rpm) ensures uniform exposure across curved, angled, or asymmetric components without manual repositioning.
How often must the xenon lamp be replaced?
At nominal irradiance output (550 W/m²), lamp life averages 1500 hours; replacement is tool-free and requires <5 minutes.
Does the system include humidity control during dark cycles?
Yes—relative humidity is actively controlled from 20% to 98% RH during non-irradiation periods to simulate nocturnal condensation effects.
