Component Oscillation Test System
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |
| Price | USD 21,500 (approx.) |
Overview

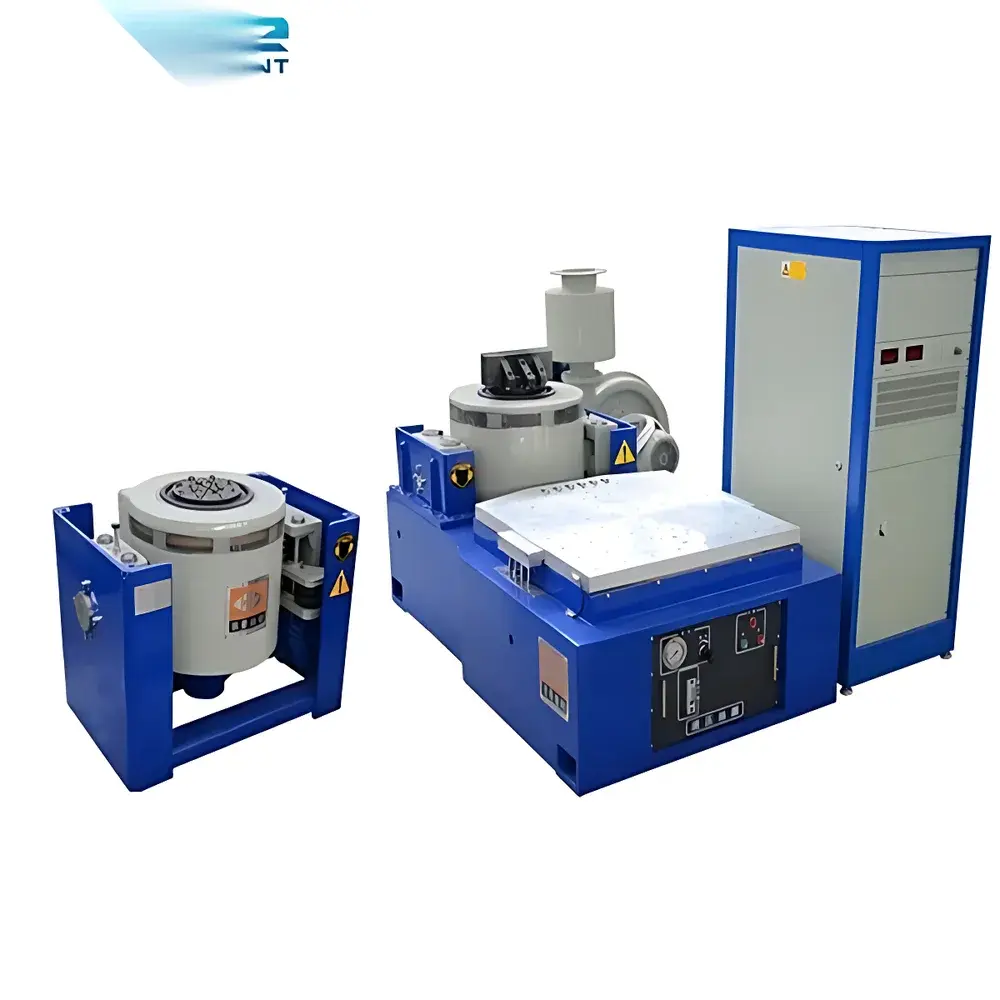

The Component Oscillation Test System is an electrodynamic vibration shaker engineered for rigorous environmental simulation of mechanical and electronic components during transportation and operational life cycles. Based on electromagnetic excitation principles, it generates controlled sinusoidal, swept-sine, and programmable acceleration profiles to replicate real-world road, rail, air, and maritime transport vibration spectra. Designed in accordance with ISO 10326-1, IEC 60068-2-6, and MIL-STD-810H methodologies, the system delivers repeatable, traceable mechanical stress inputs across a defined frequency range (typically 5–2000 Hz) with peak acceleration up to 100 g and displacement amplitude up to ±25 mm — enabling evaluation of structural integrity, solder joint reliability, connector retention, and resonance susceptibility in automotive ECUs, avionics modules, PCB assemblies, and industrial control units.
Key Features

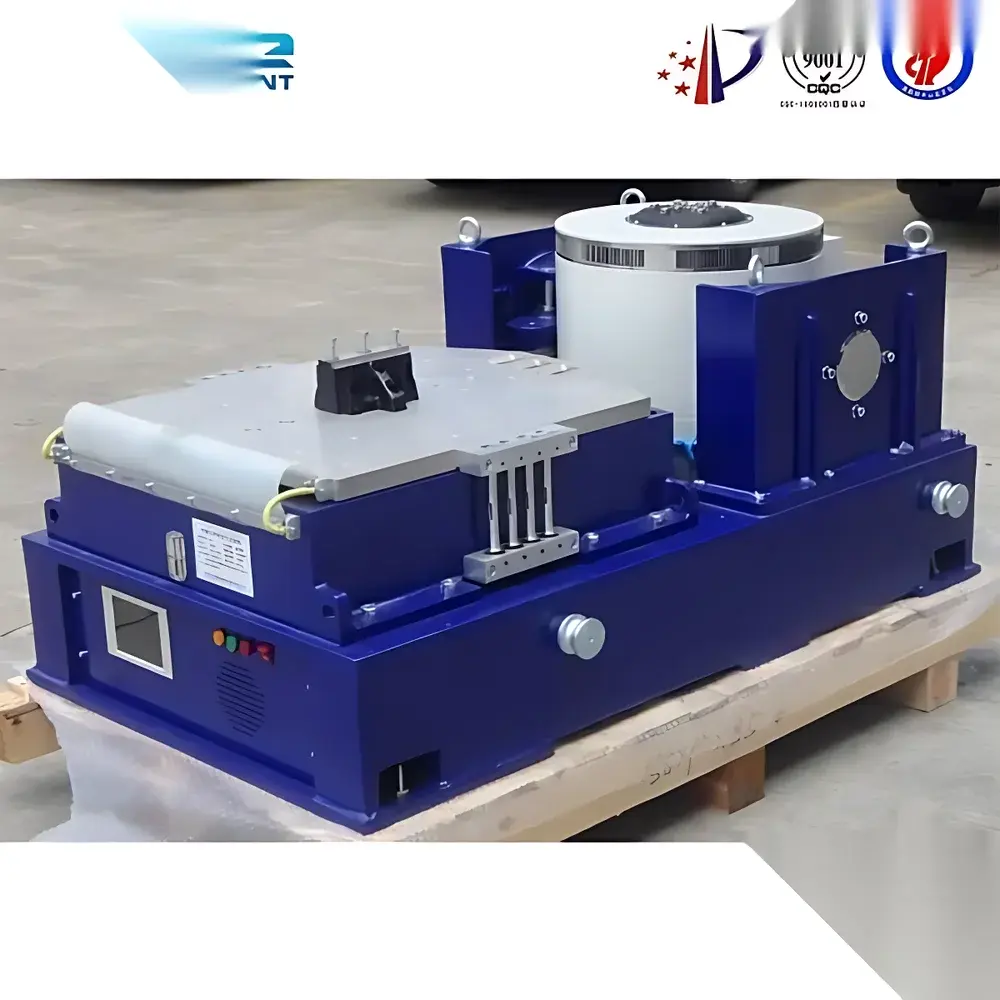

- Precision-engineered electromagnetic shaker head with high-force-to-mass ratio and low moving mass armature for improved high-frequency response and minimal phase distortion.
- Digital frequency controller with PID-regulated closed-loop feedback, enabling stable setpoint tracking under varying load conditions and minimizing drift during extended test durations.
- Multi-mode excitation capability: fixed-frequency sine, linear/logarithmic sweep, programmable time-history waveforms, octave-based frequency doubling, and amplitude-modulated (AM) profiles.
- Integrated anti-electromagnetic-interference (EMI) circuitry compliant with EN 61000-6-4, ensuring signal fidelity and controller stability in electrically noisy laboratory or production-floor environments.

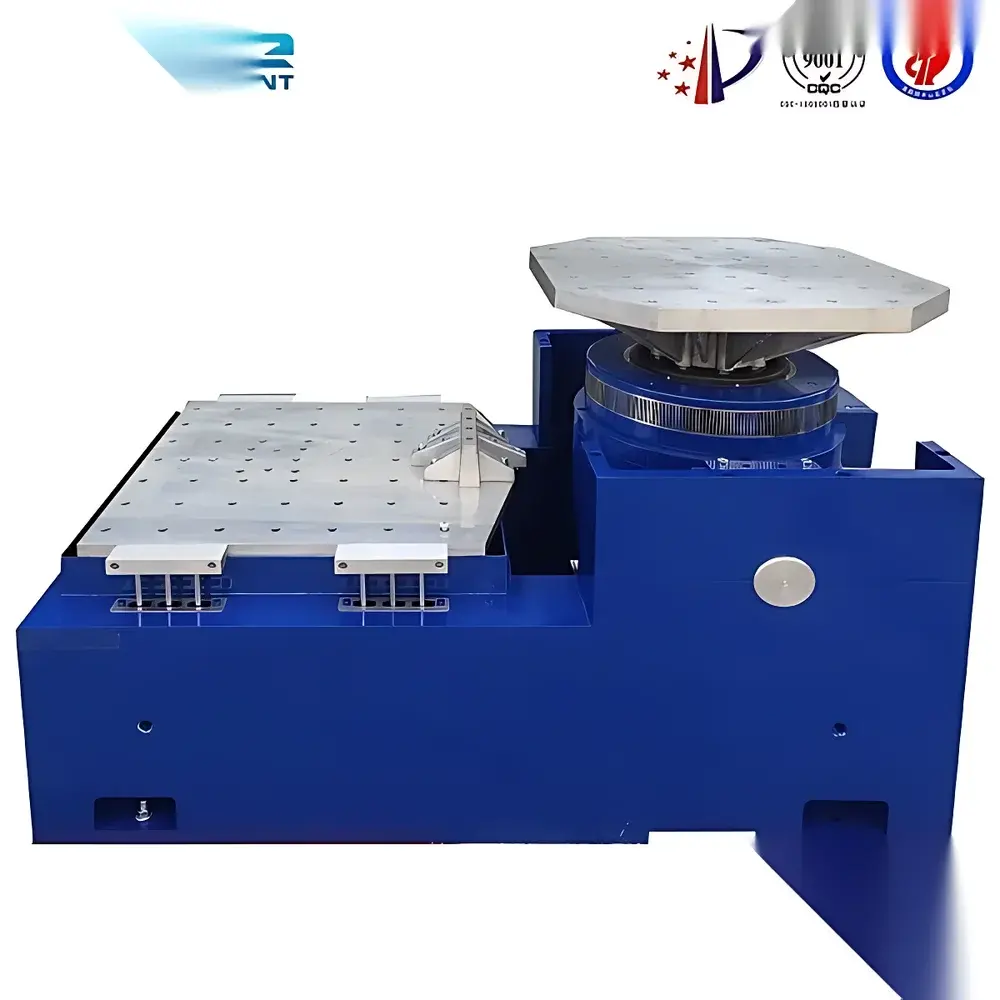

- Self-supporting heavy-duty steel base frame with integrated elastomeric isolation pads — eliminates requirement for anchored foundation or concrete plinth installation.
- Comprehensive safety architecture including earth leakage protection, overcurrent cutoff, fast-acting fuses, fully insulated terminal blocks, and redundant grounding paths meeting IEC 61000-1-2 requirements.
Sample Compatibility & Compliance
The system accommodates test specimens up to 50 kg (standard configuration) with customizable fixture interfaces (e.g., threaded inserts, T-slots, or custom mounting plates). It supports standard test specimen mounting per ASTM D999 (vibration testing of packaged products) and ISO 13373-2 (condition monitoring via vibration analysis). All control firmware and data acquisition modules are designed to support audit-ready operation under GLP and GMP frameworks, with optional 21 CFR Part 11-compliant software packages available for regulated industries including medical device manufacturing and automotive Tier-1 supply chain validation.
Software & Data Management
Control and analysis are performed via a Windows-based PC interface supporting both manual operation and automated script execution. The embedded real-time operating system logs all test parameters—including drive voltage, acceleration feedback, temperature, and elapsed time—with timestamped CSV export. Optional add-ons include FFT spectral analysis, transmissibility mapping, resonance search algorithms, and pass/fail threshold reporting aligned with customer-defined acceptance criteria. Data integrity is preserved through cyclic redundancy checksums and write-once archival modes; full audit trails record operator ID, parameter changes, and emergency stop events.
Applications
- Transportation simulation for automotive sensors, infotainment modules, and battery management systems (BMS).
- Qualification testing of aerospace-grade connectors and avionics enclosures per DO-160 Section 8.
- Reliability screening of consumer electronics PCBAs prior to burn-in and HALT/HASS protocols.
- Vibration fatigue assessment of medical device housings and implantable component subassemblies.
- Verification of packaging integrity for Class III medical devices shipped globally under UN 38.3 and ISTA 3A standards.
FAQ
What is the maximum payload capacity supported without performance derating?
Standard configuration supports 50 kg at full stroke; payloads exceeding 30 kg require verification of center-of-gravity alignment and fixture rigidity to maintain specified acceleration flatness per ISO 10326-1 Annex B.
Does the system comply with regulatory vibration test standards for automotive qualification?
Yes — the system meets the dynamic performance requirements of ISO 16750-3 (road vehicle environmental conditions), SAE J1211 (vibration testing of electrical components), and GMW14872 (general motors component vibration specification).
Can the controller store multiple test profiles for unattended operation?
Up to 100 user-defined test sequences can be saved locally on the controller’s non-volatile memory, each with independent start/stop triggers, dwell times, and safety interlock conditions.
Is remote monitoring and diagnostic support available?
Ethernet and RS-232 interfaces enable remote status polling and firmware updates; optional VNC-enabled remote desktop access allows technical support engineers to assist with configuration and troubleshooting while preserving network security boundaries.
