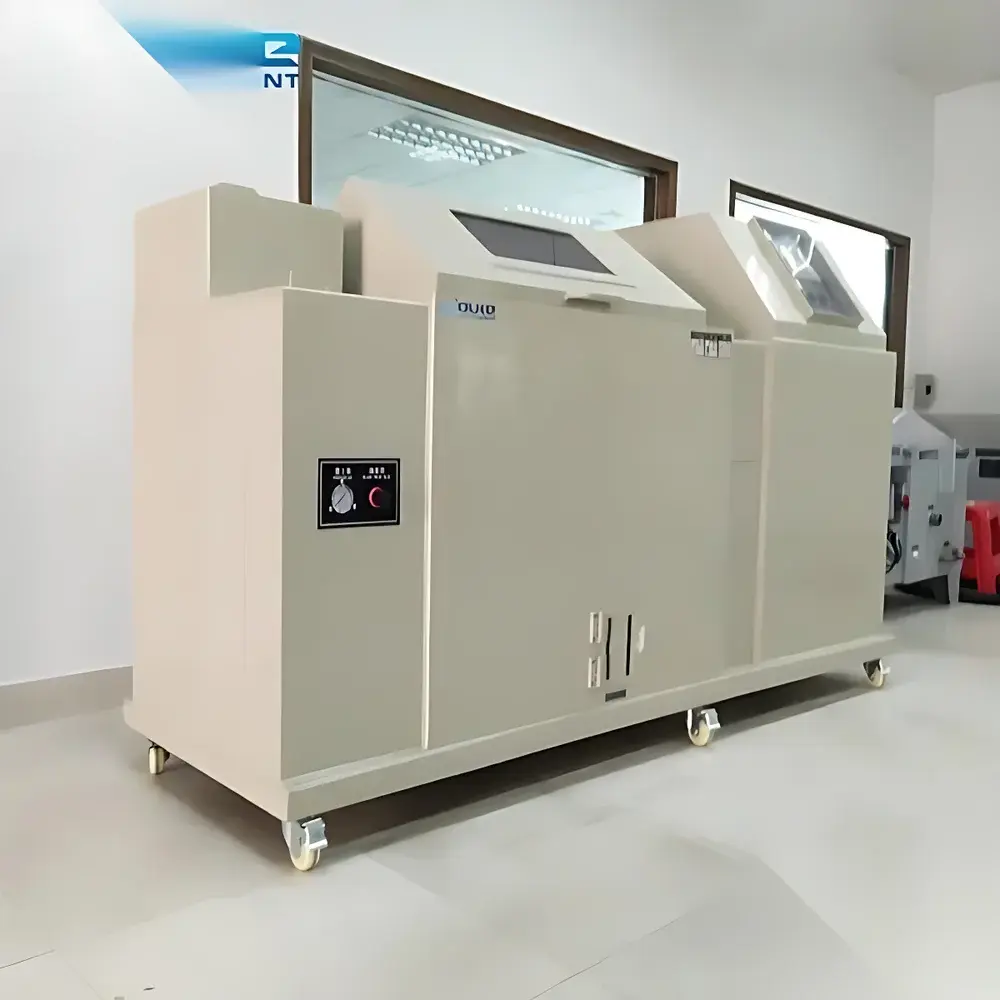

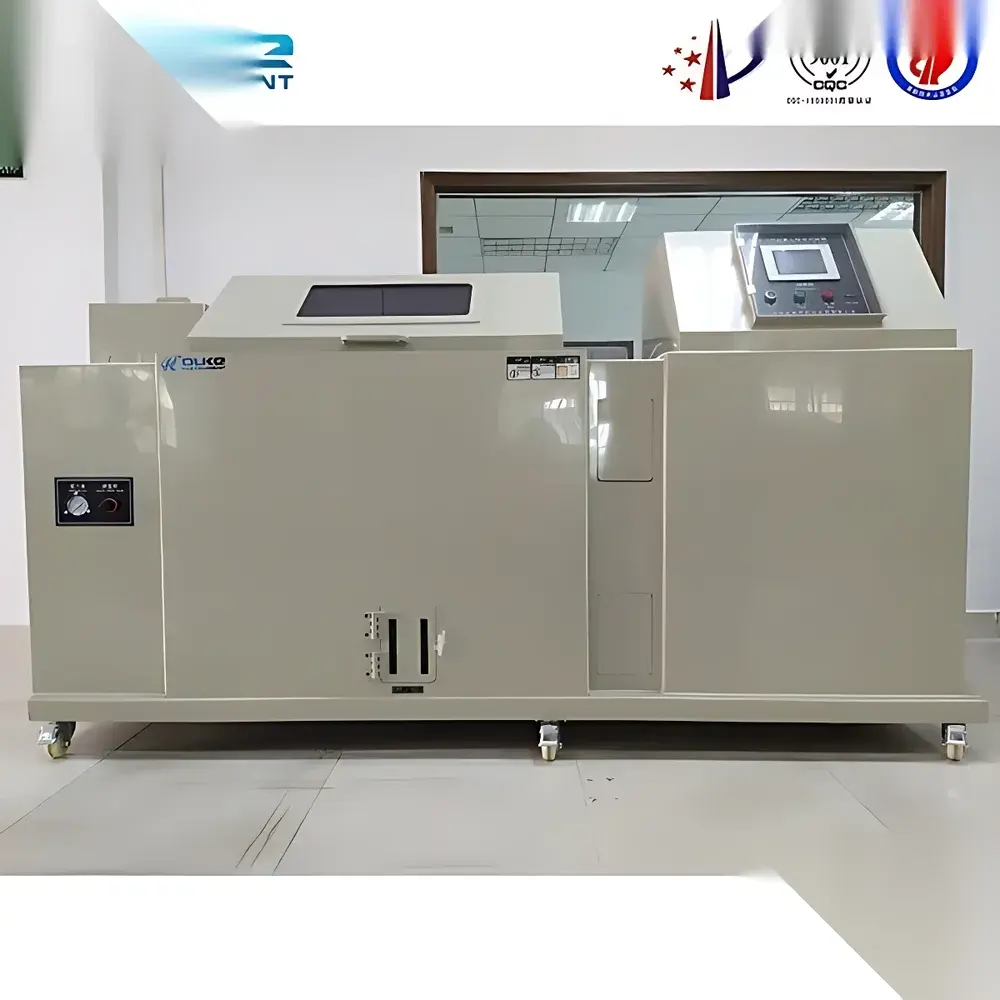

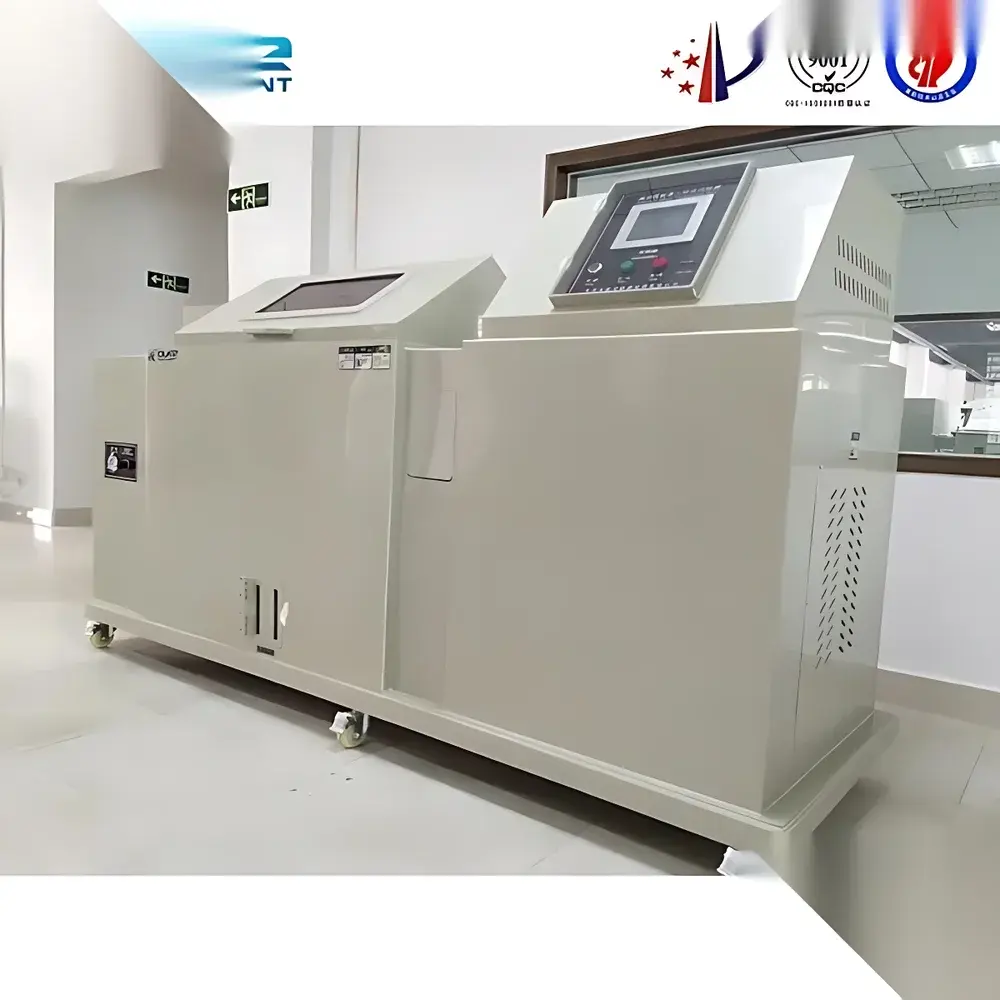

Composite Salt Spray & Climate Test Chamber

Overview

The Composite Salt Spray & Climate Test Chamber is an engineered environmental simulation system designed for accelerated corrosion testing under programmable multi-phase conditions. Unlike conventional single-mode salt fog chambers, this unit integrates sequential or simultaneous control of salt spray, high-humidity, dry-off, ambient storage, and low-temperature phases—enabling realistic replication of field exposure cycles encountered by automotive components, marine hardware, coated metals, and electronic enclosures. Its measurement principle relies on controlled aerosol generation via tower-type pneumatic atomization, coupled with precision PID-regulated chamber temperature and humidity environments. The chamber operates in strict accordance with internationally recognized corrosion test standards—including ASTM B117 (neutral salt spray), ISO 9227 (corrosion testing in artificial atmospheres), and GB/T 2423.17—ensuring data traceability and inter-laboratory comparability required for QC/QA validation and regulatory submissions.

Key Features

• Monolithic fiberglass-reinforced polymer (FRP) chamber body—pressure-molded in one piece with zero seams, eliminating leakage paths and ensuring long-term chemical resistance to NaCl aerosol and acidic condensates.
• Corrosion-resistant internal components: 316 stainless steel sample racks, brass nozzles, copper-free plumbing, and PTFE-coated fluid pathways to prevent metallic ion contamination.
• Dual-mode operation capability: Configurable as standalone salt spray tester (per ASTM B117), standalone humidity chamber (per IEC 60068-2-78), or fully programmable composite cycle tester with up to 99 segments and 100 cycles per program.
• Integrated salt solution pre-heating subsystem—maintains thermal equilibrium between sprayed mist and chamber air, minimizing thermal shock to specimens and improving repeatability of corrosion morphology.
• Water-seal labyrinth door gasket design—eliminates salt fog escape without requiring compressed air seals or silicone lubricants that degrade under UV/thermal cycling.
• Redundant safety architecture: Independent thermal cutoffs, ground-fault circuit interrupters (GFCI), real-time water-level monitoring, and automatic shutdown upon sensor fault or power anomaly.

Sample Compatibility & Compliance

The chamber accommodates flat-panel, structural, and assembled samples up to 600 mm × 600 mm × 500 mm (W×D×H) on standard V-shaped stainless steel racks. Optional fixtures support vertical mounting, angled exposure, and electrical feedthrough configurations. All materials in contact with test atmosphere comply with ASTM D4940 (non-metallic corrosion resistance) and ISO 12944-6 (coating performance evaluation). Calibration and verification procedures align with ISO/IEC 17025 requirements; documentation includes as-delivered temperature uniformity mapping (±2°C across working volume), spray rate verification (1.0–2.0 mL/80 cm²/h), and humidity stability reporting (±3% RH at 95% RH setpoint). System design supports GLP-compliant audit trails when integrated with optional data logging modules.

Software & Data Management

Equipped with a 7-inch TFT-LCD touchscreen HMI running embedded real-time OS, the controller provides intuitive programming of multi-step climate profiles—including dwell times, ramp rates, and conditional branching (e.g., “if humidity >90%, initiate drying phase”). Optional Ethernet/RS485 interface enables remote monitoring and integration into LabVIEW™, MATLAB®, or MES platforms. Data export formats include CSV and PDF reports with timestamps, setpoint deviations, alarm logs, and operator ID tagging—fully compliant with FDA 21 CFR Part 11 when paired with user-access controls and electronic signature modules. Firmware updates are performed via USB; configuration backups preserve all user-defined test protocols and calibration offsets.

Applications

This chamber serves critical roles in materials qualification for aerospace fasteners (per AMS 2700), automotive under-hood components (SAE J2334), galvanized steel substrates (ISO 1461), printed circuit board conformal coatings (IPC-CC-830), and medical device housings (ISO 10993-15). It is routinely deployed in third-party certification labs (e.g., UL, TÜV SÜD, SGS) for IEC 60529 IPX4/IPX5 corrosion validation, MIL-STD-810H Method 509.6 testing, and automotive OEM-specific standards such as GMW14872 and Ford CETP 00.00-L-467. Its composite cycling capability enables failure mode analysis of crevice corrosion, galvanic coupling, and coating delamination under thermally modulated electrolyte exposure—providing insights beyond static salt fog alone.

FAQ

Can this chamber perform standalone humidity testing without salt spray?
Yes—the system supports independent operation in humidity-only, dry-only, or temperature-only modes, with full PID control and data logging.

Is calibration certificate included with shipment?
A factory-verified calibration report (covering chamber temperature, humidity, and spray rate) is provided; NIST-traceable calibration services are available upon request.

What maintenance intervals are recommended?
Weekly inspection of nozzle integrity and filter replacement; quarterly verification of water seal integrity and sensor drift; annual full-system metrological recalibration.

Does it support custom test protocol import (e.g., XML or Excel-based)?
Native support for .csv-based profile import; XML schema conversion tools are available via technical support portal.

Are spare parts and consumables stocked regionally?
All critical spares—including nozzles, PT100 sensors, FRP repair kits, and filtration cartridges—are maintained in EU and North American distribution hubs with 48-hour dispatch.
