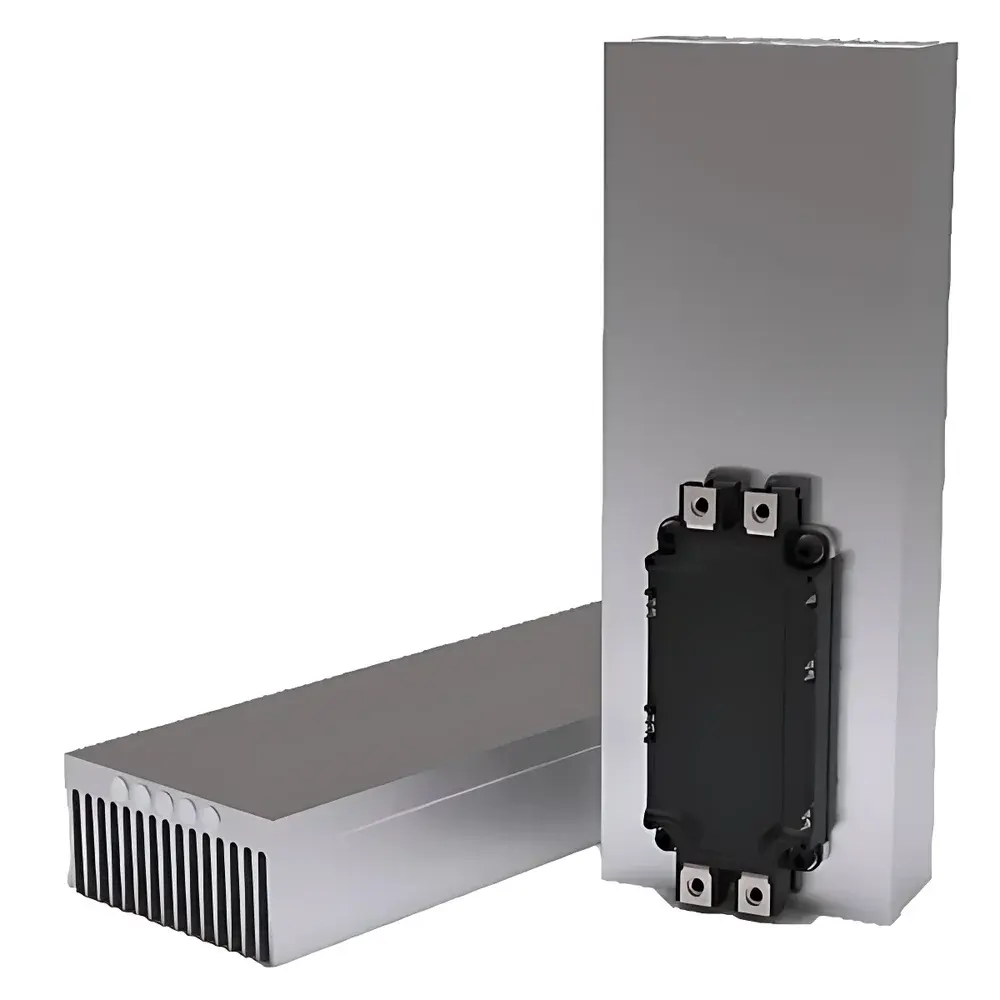

CooliBlade AURORA Advanced Aluminum Thermal Channel Heat Sink
| Brand | CooliBlade |
|---|---|
| Origin | Finland |
| Model | AURORA |
| Construction | Monolithic Aluminum Extrusion with Integrated NEOcore Phase-Change Thermal Channel |
| Thermal Load Capacity | Up to Multi-kilowatt Passive Dissipation |
| Mounting Flexibility | Horizontal or Vertical Integration |
| Compliance | Designed for ISO 9001–certified manufacturing |
| Certifications | CE-marked for industrial equipment integration |
Overview
The CooliBlade AURORA is a high-performance, passive thermal management system engineered for extreme-power-density electronics where spatial constraints, weight limitations, and reliability under ambient thermal stress are critical design parameters. Unlike conventional aluminum finned heat sinks relying solely on conductive and convective heat transfer, the AURORA integrates CooliBlade’s proprietary NEOcore technology — a monolithic, all-aluminum thermal channel architecture that leverages controlled phase-change dynamics (liquid-to-vapor transition within sealed micro-channels) to achieve ultra-low effective thermal resistance across the entire structural volume. This principle operates on enhanced evaporative heat spreading: localized heat input at the base (e.g., from IGBT modules, SiC power converters, or high-brightness LED arrays) triggers rapid vaporization in the embedded thermal channel network; vapor migrates axially through low-resistance pathways and condenses across an extended surface area—optimized via application-specific fin geometry—releasing latent heat efficiently into ambient airflow. The result is uniform temperature distribution, elimination of thermal hotspots, and sustained thermal performance without fans, pumps, or refrigerants.
Key Features
- Monolithic aluminum extrusion construction ensures mechanical robustness, corrosion resistance (per EN 10169 Class C4), and compatibility with standard CNC machining and surface finishing (anodizing per MIL-A-8625 Type II/III).
- NEOcore thermal channel core enables passive, maintenance-free operation with no moving parts, electrolytes, or external fluid loops — eliminating failure modes associated with liquid cooling systems.
- Height-constrained design supports vertical installation in narrow chassis (as low as 25 mm total height), making it suitable for telecom radio units, EV onboard chargers, and modular LED drivers where Z-axis envelope is strictly limited.
- Scalable cross-sectional geometry allows customization of base thickness, channel density, and fin height without retooling — enabling rapid adaptation to customer-specific PCB layouts and thermal interface material (TIM) requirements.
- Thermal performance validated under accelerated life testing per JEDEC JESD22-A108 (temperature cycling) and MIL-STD-810H Method 502.7 (thermal shock), confirming >10,000-hour operational stability at 85°C ambient.
Sample Compatibility & Compliance
The AURORA is engineered for direct-mount integration with high-power semiconductor packages including 62 mm and 17 mm IGBT modules, SiC MOSFET half-bridges, GaN HEMT arrays, and COB-based LED substrates. Its flat, precision-machined base conforms to IPC-7351B land pattern tolerances and supports industry-standard TIMs (e.g., graphite pads, phase-change materials, or metal-filled greases). From a regulatory standpoint, the unit complies with RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006. It is CE-marked per Machinery Directive 2006/42/EC for incorporation into industrial control panels and outdoor-rated enclosures. While not inherently certified to UL 62368-1, its thermal derating curves and mechanical interface specifications support third-party system-level certification when integrated into end-user equipment.
Software & Data Management
The AURORA is a hardware-only passive solution and does not include embedded firmware, sensors, or connectivity interfaces. However, CooliBlade provides comprehensive thermal modeling support via downloadable .STEP and .IGES CAD files, along with validated boundary-condition datasets for ANSYS Icepak, FloTHERM, and COMSOL Multiphysics v6.2+. These include parametric thermal resistance matrices (Rth,j-a, Rth,b-a) across airflow velocities (0–5 m/s), ambient temperatures (−40°C to +85°C), and mounting orientations. All simulation inputs adhere to JEDEC JESD53-10 guidelines for compact thermal modeling, ensuring traceability in GMP-aligned product development workflows requiring audit-ready thermal validation records.
Applications
- 5G Massive MIMO Radio Units: Replaces traditional copper heat pipes and forced-air assemblies in AAU enclosures, reducing cooling subsystem mass by 65% while maintaining junction temperature <105°C at 350 W RF output under 45°C ambient.
- EV Onboard Chargers (OBC) and DC-DC Converters: Enables 11–22 kW OBC designs in under-3U rack formats; validated for continuous operation at 105°C case temperature per ISO 6469-3 safety requirements.
- High-Lumen LED Horticultural Luminaires: Supports 1000+ μmol/m²/s photon flux density with thermal drift <±1.5% over 10,000 hours — meeting IES LM-80 and TM-21 lifetime projection protocols.
- Industrial Variable Frequency Drives (VFD): Accommodates 3-phase 400 VAC inverters up to 75 kW with peak thermal flux >45 W/cm² at the module interface, eliminating need for secondary liquid loops in IP54-rated cabinets.
- Grid-Scale Solar Inverters: Deployed in outdoor NEMA 4X enclosures with passive derating curves validated per IEEE 1547-2018 thermal endurance criteria for unattended 20-year field service.
FAQ
Does the AURORA require any external power or control signals?
No — it is a fully passive thermal solution with zero electrical interface requirements.
Can the AURORA be used in vacuum or high-humidity environments?
It is rated for operation in 5–95% RH non-condensing environments; vacuum use is not supported due to reliance on atmospheric-pressure phase-change dynamics.
What TIM thickness is recommended for optimal interface resistance?
0.1–0.15 mm compressed thickness with 5–8 W/m·K thermal conductivity TIM yields minimum Rth in validation testing.
Is custom anodizing or surface treatment available?
Yes — CooliBlade offers black anodizing (Type III, 25 µm), chromate conversion coating, or bare mill finish per customer specification.
How is thermal performance verified prior to shipment?
Each production lot undergoes infrared thermography mapping per ASTM E1934-19 at three standardized power loads (25%, 50%, 100% nominal) under controlled wind tunnel conditions.
