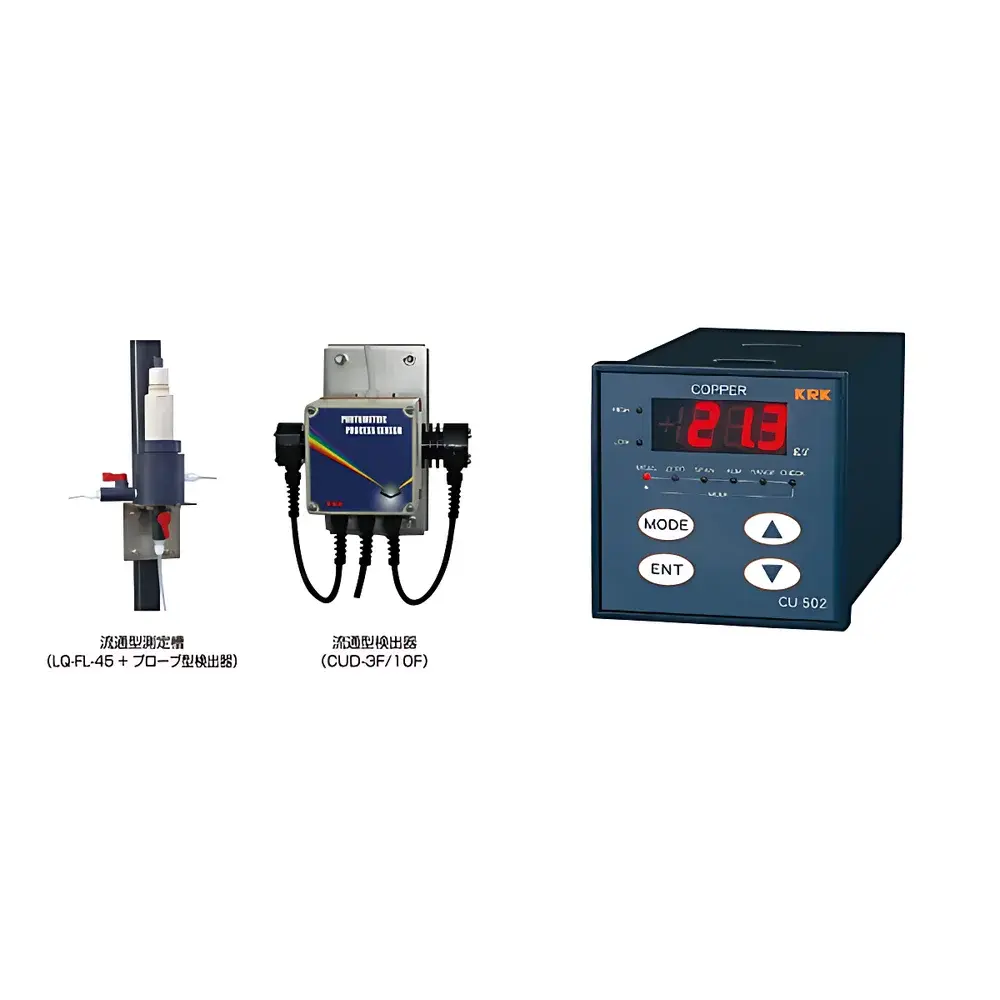

CU-502 Online Copper Ion Monitor for Electroplating Bath

Overview

The CU-502 Online Copper Ion Monitor is an industrial-grade photometric analyzer engineered for continuous, real-time quantification of dissolved Cu²⁺ concentration in acidic copper sulfate electroplating and etching baths. It operates on the principle of AC-modulated absorption photometry—a dual-beam optical architecture wherein a reference LED compensates for intensity drift, thermal aging, and fouling-induced signal attenuation. Unlike single-beam spectrophotometers, the CU-502 employs time-synchronized alternating illumination between measurement and reference channels, enabling robust baseline stability without manual recalibration during extended unattended operation. Designed specifically for high-conductivity, low-pH electrolytes (e.g., 150–250 g/L H₂SO₄ with 40–80 g/L Cu²⁺), the instrument delivers trace-level accuracy under harsh plating line conditions—where temperature fluctuations, particulate carryover, and vapor condensation commonly compromise sensor reliability. Its compact DIN rail-mountable form factor integrates directly into existing process control infrastructure via standard 4–20 mA analog output, supporting closed-loop feedback to dosing pumps or bath replenishment systems.

Key Features

• Dual-beam AC-modulated photometry with built-in LED reference channel for automatic optical drift compensation
• Three user-selectable measurement ranges for Cu²⁺ (0–20, 0–50, 0–80 g/L) and corresponding CuSO₄ equivalents (0–100, 0–200, 0–300 g/L)
• High-speed response: full-scale stabilization within ≤5 seconds (t₉₀), optimized for dynamic bath composition control
• Industrial-grade enclosure rated IP65 for front-panel protection against splashing electrolyte and humid environments
• Isolated 4–20 mA analog output compliant with IEC 61000-6-2/6-4 EMC standards; supports HART protocol for configuration and diagnostics
• Stable operation across −5 °C to +40 °C ambient and up to 85% RH non-condensing humidity
• No reagents, no consumables, no moving parts—designed for >5-year field service life in continuous 24/7 operation

Sample Compatibility & Compliance

The CU-502 is validated for direct inline measurement in clarified, filtered copper sulfate solutions typical of acid sulfate electroplating (e.g., PCB through-hole plating, semiconductor bumping) and printed circuit board (PCB) etching processes. It is compatible with flow cells equipped with quartz or sapphire optical windows (standard 10 mm path length), and requires minimal sample conditioning—no pH adjustment, dilution, or chelation pretreatment. The analyzer meets functional safety requirements per IEC 61508 SIL1 for process monitoring applications and complies with ISO/IEC 17025 traceability frameworks when paired with NIST-traceable Cu²⁺ reference standards. While not certified for regulatory reporting under EPA Method 200.7 or ISO 11885, its performance aligns with ASTM D1688 (Copper in Water by Atomic Absorption) repeatability benchmarks for routine process control use.

Software & Data Management

The CU-502 operates as a standalone analog transmitter and does not require embedded software or local display firmware. Configuration—including range selection, damping filter time constant (0–30 s), and mA output scaling—is performed via front-panel push-button interface with red 3-digit LED readout. For integration into SCADA or DCS platforms, the 4–20 mA signal is fully compatible with Siemens Desigo, Honeywell Experion, Emerson DeltaV, and Rockwell Automation systems. Audit-ready data logging is achieved externally via PLC-based timestamped acquisition or industrial data historians (e.g., OSIsoft PI System). No FDA 21 CFR Part 11 compliance features are included, as the device functions exclusively as a measurement transducer—not a regulated data repository or analytical decision engine.

Applications

• Real-time Cu²⁺ concentration monitoring in acid copper electroplating baths for PCB manufacturing
• Automated control of copper replenishment in semiconductor wafer bumping lines
• Process endpoint detection during copper etch bath regeneration cycles
• Early warning of contamination events (e.g., Fe²⁺/Ni²⁺ ingress, organic breakdown products) via deviation trend analysis
• Supporting statistical process control (SPC) initiatives by feeding stable, low-noise concentration data to Minitab or JMP
• Reducing scrap rates in high-value plating operations through tighter bath parameter windows (±1.5 g/L Cu²⁺)

FAQ

Does the CU-502 require daily calibration?
No—its dual-beam AC-modulated design eliminates the need for daily zero/span calibration. A single factory calibration is sufficient for ≥6 months of stable operation under typical plating line conditions.
Can it measure in turbid or particulate-laden electrolytes?
It requires optically clear, filtered sample streams. Suspended solids >5 µm must be removed upstream using a 5-µm cartridge filter or side-stream centrifugal separator.
Is the output signal compatible with Modbus RTU or Profibus?
No—the CU-502 provides only isolated 4–20 mA analog output. Digital protocols require external signal converters.
What maintenance intervals are recommended?
Quarterly inspection of optical window cleanliness and annual verification against a certified Cu²⁺ standard solution (e.g., 50.0 ± 0.2 g/L CuSO₄ in 180 g/L H₂SO₄).
Can it be installed in explosion-hazard areas?
No—it lacks ATEX, IECEx, or UL Class I Div 2 certification and is intended for general-purpose industrial zones only.
