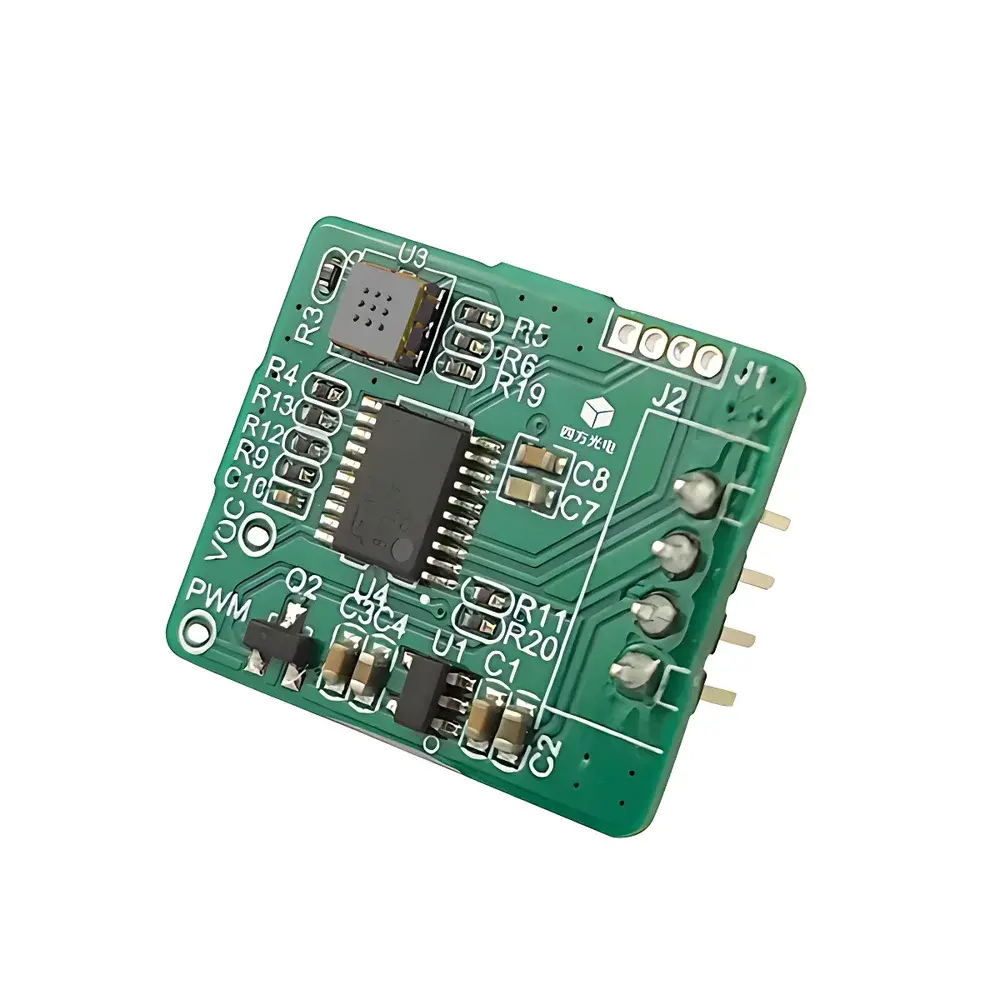

Cubic MS-VOC-V4 MEMS-Based Air Quality Sensor Module

Overview

The Cubic MS-VOC-V4 is a compact, high-reliability MEMS-based metal oxide semiconductor (MOx) air quality sensor module engineered for continuous monitoring of volatile organic compounds (VOCs) and other common indoor air pollutants. Unlike single-gas electrochemical or NDIR sensors, the MS-VOC-V4 employs a calibrated MOx sensing element whose resistance changes proportionally with the concentration of reducing gases—including ethanol (alcohol), formaldehyde, benzene, hydrogen, ammonia, cigarette smoke, and CO₂-equivalent VOC mixtures. The module does not provide absolute gas concentration in ppm but delivers a standardized, temperature- and humidity-compensated relative VOC index (rVOC), enabling consistent air quality assessment across diverse environmental conditions. Its core architecture integrates a micro-heated MOx film on a silicon substrate, optimized for low thermal mass and rapid thermal stabilization—achieving full operational readiness within 180 seconds after power-on. Designed for integration into resource-constrained embedded systems, the MS-VOC-V4 operates at DC 5 V ±0.2 V and consumes less than 100 mW under typical duty-cycled operation.

Key Features

• MEMS-fabricated MOx sensing element with integrated heater and signal conditioning circuitry
• Multi-parameter environmental compensation: onboard temperature sensing + external humidity input support (for algorithmic RH correction)
• Intelligent auto-baseline calibration: dynamically adjusts zero-point reference during periods of clean-air exposure to mitigate long-term drift
• Non-volatile memory storage: baseline offset and calibration history retained across power cycles
• Ruggedized packaging: optional hydrophobic/oil-repellent membrane and silicone gasket enable IP54-level protection against dust, moisture, and oil mist
• Flexible mechanical integration: available in both pin-header (through-hole) and socket-mount configurations for PCB-level assembly
• Low-power architecture: optimized for battery-operated or energy-harvesting applications in smart HVAC and portable air quality monitors

Sample Compatibility & Compliance

The MS-VOC-V4 is intended for ambient air sampling in non-explosive, non-corrosive indoor environments. It is not certified for use in hazardous locations (e.g., ATEX/IECEx Zone 0–2) or medical-grade diagnostic applications. While the sensor exhibits cross-sensitivity to multiple reductive gases, its rVOC output has been empirically validated against standardized test atmospheres per ISO 16000-29 (indoor air—determination of VOCs) and aligned with WHO and GB/T 18883–2022 indoor air quality guidelines. The module complies with RoHS 2011/65/EU and REACH SVHC regulations. For regulatory traceability in GMP or GLP environments, firmware supports configurable logging intervals and timestamped data export—though full 21 CFR Part 11 compliance requires host-system-level implementation of audit trails and electronic signatures.

Software & Data Management

The MS-VOC-V4 supports three digital communication protocols: UART TTL (3.3 V logic level), I²C (7-bit addressable, 100 kHz standard mode), and analog voltage output (0–3 V, rVOC-indexed). All interfaces deliver the same compensated rVOC value, temperature reading, and status flags (e.g., heater ready, calibration active). Cubic provides an open-source Arduino-compatible library and Python SDK for Linux-based gateways, including example scripts for MQTT publishing and CSV time-series logging. Firmware updates are performed via UART bootloader; version history and CRC integrity checks ensure field-upgradability without hardware modification. Data packets include frame synchronization bytes and checksums to guarantee transmission reliability in electrically noisy HVAC control cabinets.

Applications

• Residential and commercial air purifiers requiring real-time VOC load feedback for adaptive fan-speed control
• Smart HVAC controllers and demand-controlled ventilation (DCV) systems compliant with ASHRAE Standard 62.1
• In-vehicle cabin air quality modules for automotive OEMs and Tier-1 suppliers
• IoT-enabled fresh-air intake controllers in school and office building management systems
• Portable indoor air quality (IAQ) meters used by industrial hygienists and facility maintenance teams
• White-goods integration—e.g., refrigerators with odor-detection compartments or range hoods with grease/VOC-triggered extraction

FAQ

Does the MS-VOC-V4 provide ppm-level quantification for individual gases like ethanol or formaldehyde?
No. It outputs a composite rVOC index reflecting total reducing gas load relative to a clean-air baseline—not species-specific concentrations.
Can the sensor be recalibrated in the field without specialized equipment?
Yes. Its auto-baseline algorithm enables zero-point reset during extended exposure to outdoor or filtered air; manual recalibration is optional and supported via UART command set.
What is the expected operational lifetime under continuous 24/7 operation?
Based on accelerated aging tests at 40°C/60% RH, the MOx element maintains ≥90% initial sensitivity for >24 months; performance validation is recommended annually in critical applications.
Is the module compatible with ESP32 or Raspberry Pi Pico platforms?
Yes. Both UART and I²C interfaces are natively supported; Cubic’s reference design includes level-shifting circuitry for 5 V ↔ 3.3 V interoperability.
Does the sensor require pre-conditioning before first use?
Yes. A 48-hour burn-in period at nominal operating voltage is recommended to stabilize baseline resistance and minimize initial drift.
