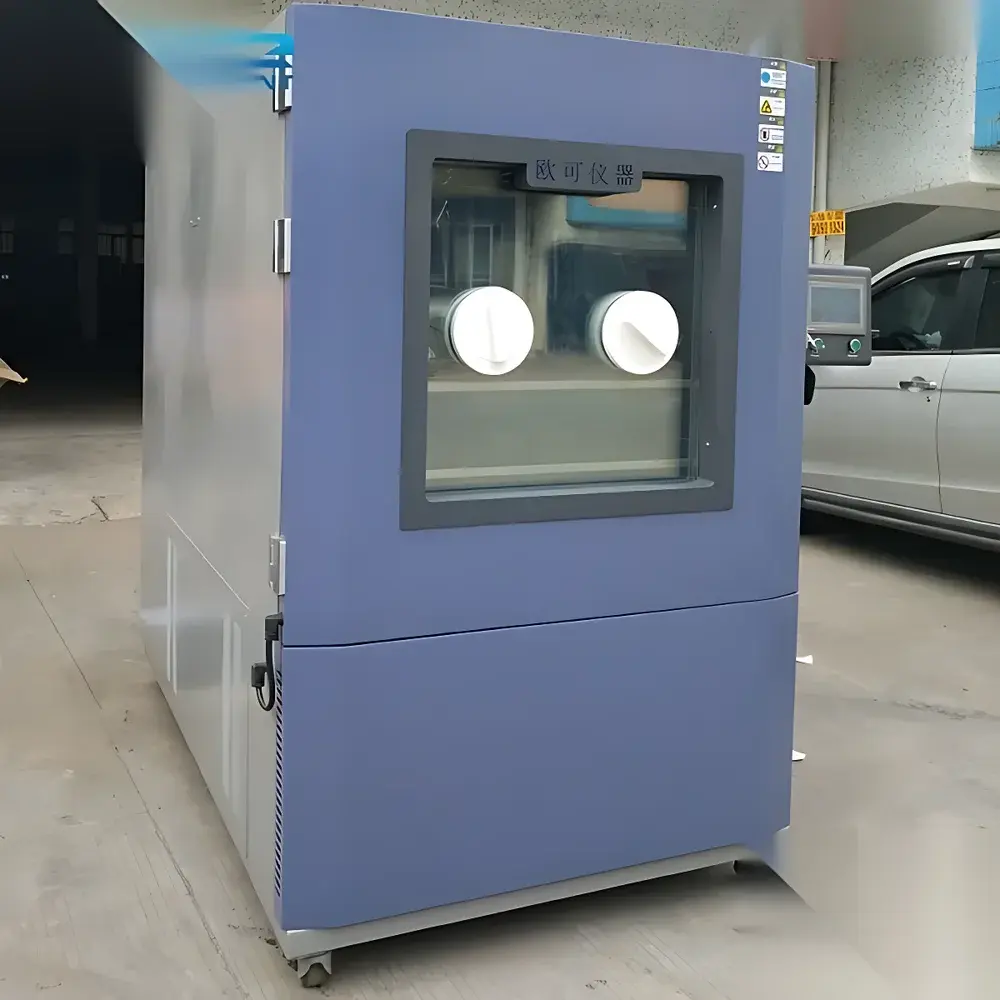

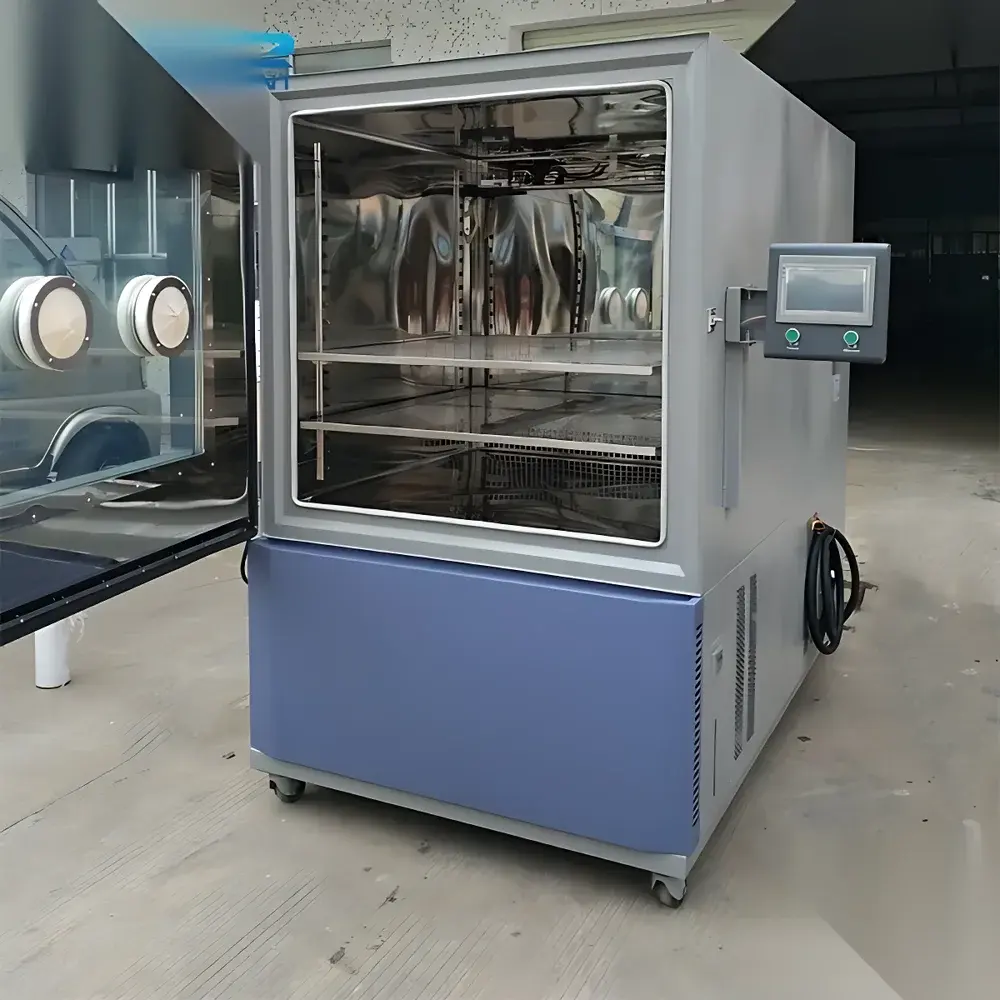

Custom-Built Compact Benchtop Temperature and Humidity Controlled Chamber

Overview

The Custom-Built Compact Benchtop Temperature and Humidity Controlled Chamber is an engineered environmental simulation system designed for precise, repeatable conditioning of materials and components under controlled thermal and hygroscopic stress. Based on the fundamental principles of forced-air convection, thermoelectric humidity generation, and refrigerant-based cooling, this chamber delivers stable, traceable environmental profiles compliant with internationally recognized test standards. It serves as a critical tool in product qualification, reliability assessment, and accelerated aging studies—particularly where space-constrained laboratory environments or non-standard specimen geometries necessitate bespoke internal dimensions and performance specifications.

Key Features

• Full-color, programmable touchscreen controller with intuitive EN/CH bilingual interface supporting multi-segment ramp-soak profiles, real-time trend logging, and alarm history recall.
• Robust dual-stage hermetic refrigeration system using R404A/R23 refrigerant blends, optimized for rapid thermal response and low acoustic emission (<62 dB(A) at 1 m).
• Double-gasketed door seal with high-tensile silicone elastomer gaskets ensures leak-tight integrity across full operating ranges, minimizing humidity drift and energy loss.
• Multi-layer observation window incorporating conductive indium tin oxide (ITO) film prevents condensation buildup during low-temperature/high-humidity cycles—enabling uninterrupted visual monitoring.
• SUS#304 stainless steel construction (both interior and exterior) provides corrosion resistance, non-outgassing surfaces, and compatibility with cleanroom-grade maintenance protocols.
• Dedicated 50 mm diameter feedthrough port (standard left-side location) allows safe integration of external power, signal, or sensor lines without compromising chamber integrity.
• Integrated safety architecture includes over-temperature cutoff, compressor high-pressure shutdown, humidity sensor fault detection, and emergency power disconnect—all logged with timestamps in non-volatile memory.

Sample Compatibility & Compliance

This chamber accommodates diverse sample types—including PCB assemblies, polymer films, battery cells, optical coatings, and pharmaceutical packaging—within customizable internal volumes (80 L to 1000 L). Its design conforms to core environmental test standards required for regulatory submissions and quality audits: MIL-STD-810G Method 501.6 (High Temperature), Method 502.6 (Low Temperature), IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), IEC 60068-2-78 (Steady-State Damp Heat), and IEC 60068-2-30 (Cyclic Damp Heat). Optional configurations support GLP/GMP-aligned validation packages, including IQ/OQ documentation templates, sensor calibration certificates (NIST-traceable), and 21 CFR Part 11-compliant electronic signature modules for audit-ready data handling.

Software & Data Management

The embedded controller supports USB export of time-stamped CSV datasets (temperature, humidity, setpoint, alarms) and optional Ethernet/Wi-Fi connectivity for remote supervision via secure web interface. For enterprise integration, optional PC-based software enables automated report generation (PDF/Excel), statistical process control (SPC) charting, deviation alerting via email/SMS, and synchronization with LIMS or MES platforms. All data records include immutable metadata: operator ID, chamber serial number, firmware version, and environmental sensor calibration expiry dates—ensuring full traceability per ISO/IEC 17025 requirements.

Applications

• Electronics reliability testing: solder joint fatigue evaluation under thermal cycling with humidity bias.
• Aerospace component qualification: verifying seal integrity and material dimensional stability per RTCA DO-160 Section 4/5.
• Automotive ECU validation: assessing long-term performance degradation under combined temperature-humidity stress (e.g., ISO 16750-4).
• Pharmaceutical packaging studies: determining moisture vapor transmission rate (MVTR) impact on blister foil integrity.
• Coating adhesion assessment: evaluating paint, lacquer, or conformal coating failure modes after humid soak exposure.
• Material science research: characterizing hygroscopic expansion coefficients of composites and hydrogels.

FAQ

Can the chamber be validated for GxP-regulated environments?
Yes—optional IQ/OQ protocols, NIST-traceable sensor calibration reports, and 21 CFR Part 11-compliant audit trails are available upon request.
Is remote monitoring supported out of the box?
Standard models include USB data export; Ethernet/Wi-Fi telemetry and cloud dashboard access require the optional Communication Module.
What is the typical lead time for custom configurations?
Standard sizes ship within 4–6 weeks; fully custom mechanical layouts (e.g., asymmetric chambers, integrated load cells) require 10–14 weeks from drawing approval.
Are replacement parts and service support available globally?
Yes—authorized service partners operate in North America, EU, APAC, and EMEA regions; all compressors and controllers carry 24-month warranties.
Does the chamber meet RoHS and REACH compliance requirements?
All structural materials, wiring, and refrigerants comply with EU Directive 2011/65/EU (RoHS2) and Regulation (EC) No 1907/2006 (REACH).
