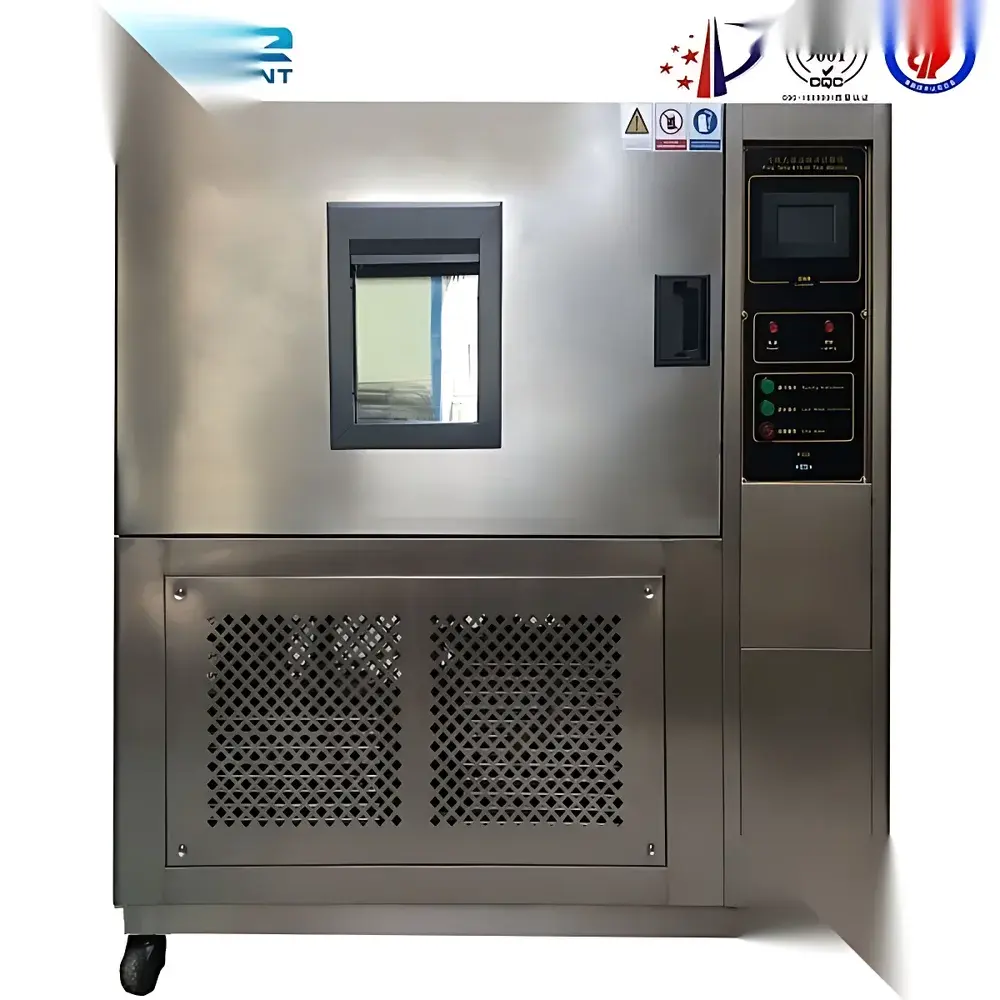

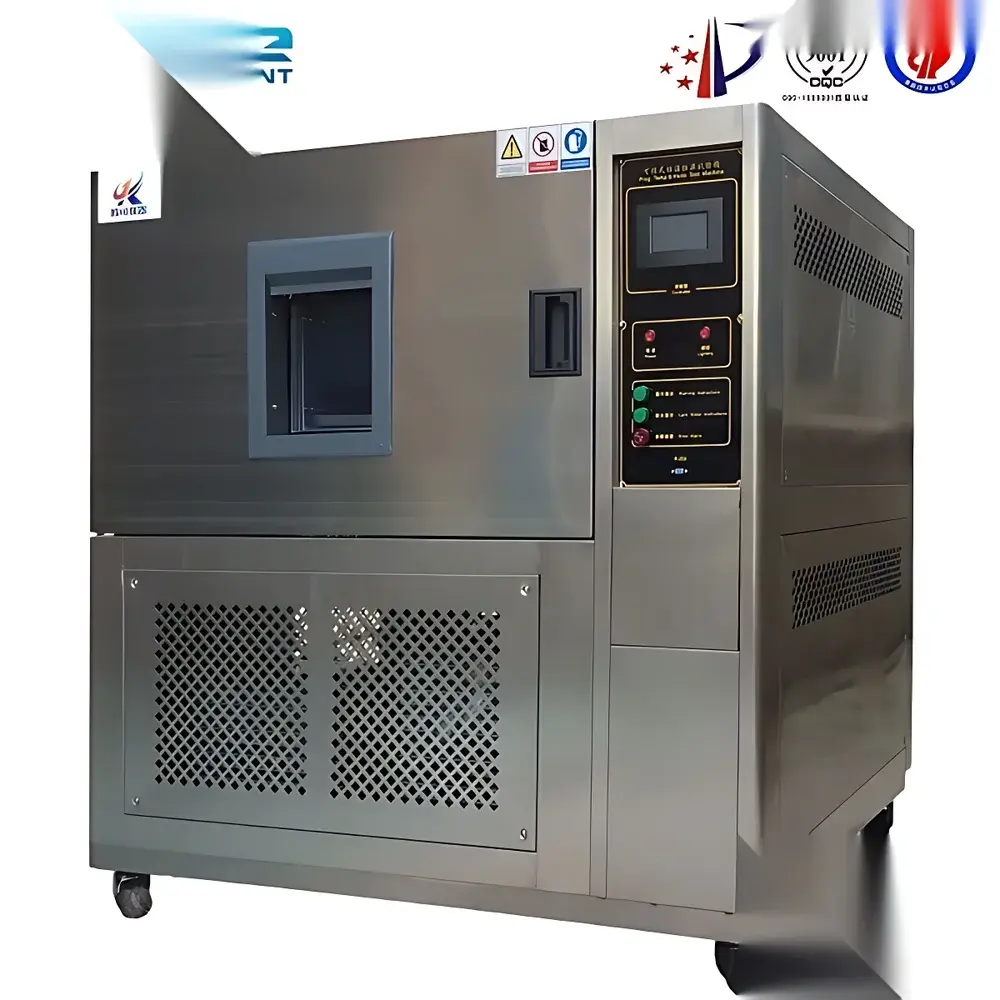

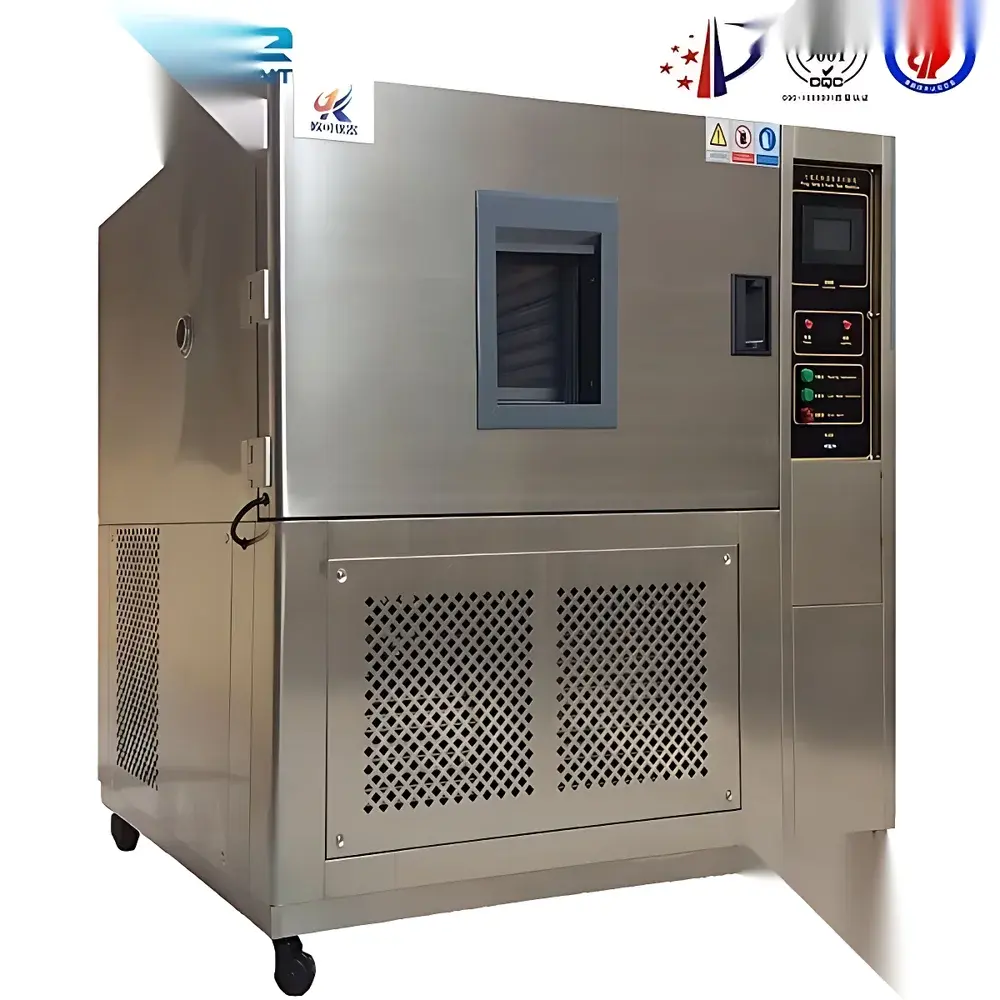

Custom-Built Compact Programmable Temperature and Humidity Chamber

Overview

The Custom-Built Compact Programmable Temperature and Humidity Chamber is an engineered environmental simulation platform designed for precise, repeatable evaluation of material and component behavior under controlled thermal and hygrometric conditions. Based on the thermodynamic principles of vapor compression refrigeration and PID-controlled steam humidification, this chamber delivers stable, programmable profiles compliant with international environmental stress testing protocols. Its compact footprint—available in internal volumes from 80 L to 1000 L—makes it suitable for benchtop integration in QC laboratories, R&D facilities, and production line validation stations where space is constrained but regulatory-grade performance is non-negotiable. The system supports both steady-state and cyclic test profiles, enabling accelerated life testing, qualification per MIL-STD-810, and conformance verification against IEC 60068-2 series standards.

Key Features

• Microprocessor-based color touchscreen controller with intuitive graphical interface and bilingual (English/Chinese) language support for global operator accessibility.
• Double-layer high-tensile silicone rubber gasket sealing between door and chamber body ensures long-term integrity and minimal leakage under dynamic humidity cycling.
• Multi-layer laminated observation window with integrated indium tin oxide (ITO) conductive coating prevents condensation and enables real-time visual monitoring without compromising thermal insulation.
• Hermetically sealed, low-noise dual-stage refrigeration system utilizing environmentally compliant R404A (low-temp stage) and R23 (ultra-low-temp stage) refrigerants, optimized for rapid thermal transitions and extended operational reliability.
• Internal chamber and structural frame fabricated entirely from electropolished SUS#304 stainless steel—resistant to corrosion, oxidation, and chemical exposure during prolonged humidity exposure.
• Integrated safety architecture includes over-temperature, over-humidity, compressor overload, and phase-failure protection, with automatic power cutoff and on-screen fault diagnostics for traceable incident response.

Sample Compatibility & Compliance

The chamber accommodates a broad range of sample geometries via customizable internal dimensions (e.g., OK-TH-80 to OK-TH-1000 variants) and standard Ø50 mm cable/port access. It meets the physical and procedural requirements of multiple internationally recognized test standards, including: IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-78 (steady-state damp heat), IEC 60068-2-30 (cyclic damp heat), GB/T 2423.1–2423.4 (Chinese national equivalents), and GJB 150.3–150.4 (PLA military specifications). While not pre-certified as a Class I medical device or FDA-listed instrument, its design aligns with GLP-aligned laboratory practices, supporting audit-ready documentation when paired with optional data logging modules.

Software & Data Management

The embedded controller supports up to 100 programmable test steps per profile, with ramp/soak sequencing, loop repetition, and breakpoint interruption. Optional RS485/RS232 or Ethernet interfaces enable integration with third-party SCADA systems or LIMS platforms. When equipped with certified data acquisition firmware, the system provides time-stamped, tamper-evident temperature and humidity logs compliant with 21 CFR Part 11 requirements—including electronic signatures, audit trails, and user-level access control—facilitating GMP and ISO/IEC 17025 accreditation workflows.

Applications

This chamber serves critical roles across industries requiring environmental stress validation: electronics component burn-in and solder joint reliability assessment; polymer aging and coating adhesion testing; pharmaceutical packaging stability studies (ICH Q1A–Q1E); automotive ECU and sensor endurance validation; aerospace composite moisture absorption analysis; and academic materials science research involving hygrothermal degradation kinetics. Its programmability and dimensional flexibility make it particularly suited for small-batch qualification, prototype iteration, and supplier incoming inspection protocols.

FAQ

Can the chamber be configured for ultra-low temperatures below −40 °C?
Yes—model variants with dual-stage refrigeration and R23 cascade capability support operation down to −70 °C.

Is the humidity control system capable of maintaining ≤10 %RH?
Standard configuration achieves 20–98 %RH; extended-range humidification/dehumidification modules (10–98 %RH or 5–98 %RH) are available as factory-installed options.

What is the expected service life of the refrigeration system under continuous operation?
With scheduled preventive maintenance (oil change, filter replacement, refrigerant charge verification every 18–24 months), the hermetic compressors are rated for ≥25,000 operating hours.

Does the controller support remote monitoring and alarm notification?
Remote access requires optional Ethernet module and compatible supervisory software; email/SMS alerts are configurable via external gateway integration.

Are calibration certificates traceable to NIST or equivalent national metrology institutes provided?
Factory calibration reports (with uncertainty budgets) are included; ISO/IEC 17025-accredited third-party calibration services are available upon request.
