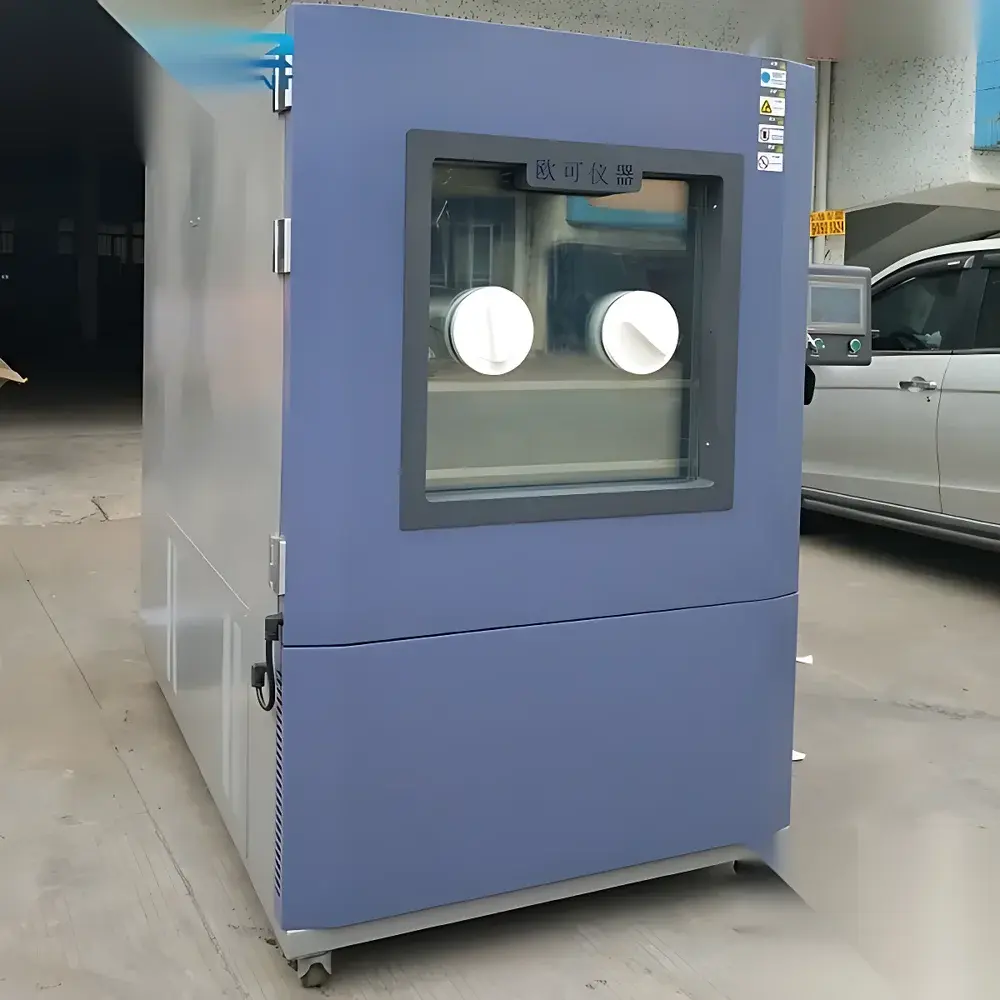

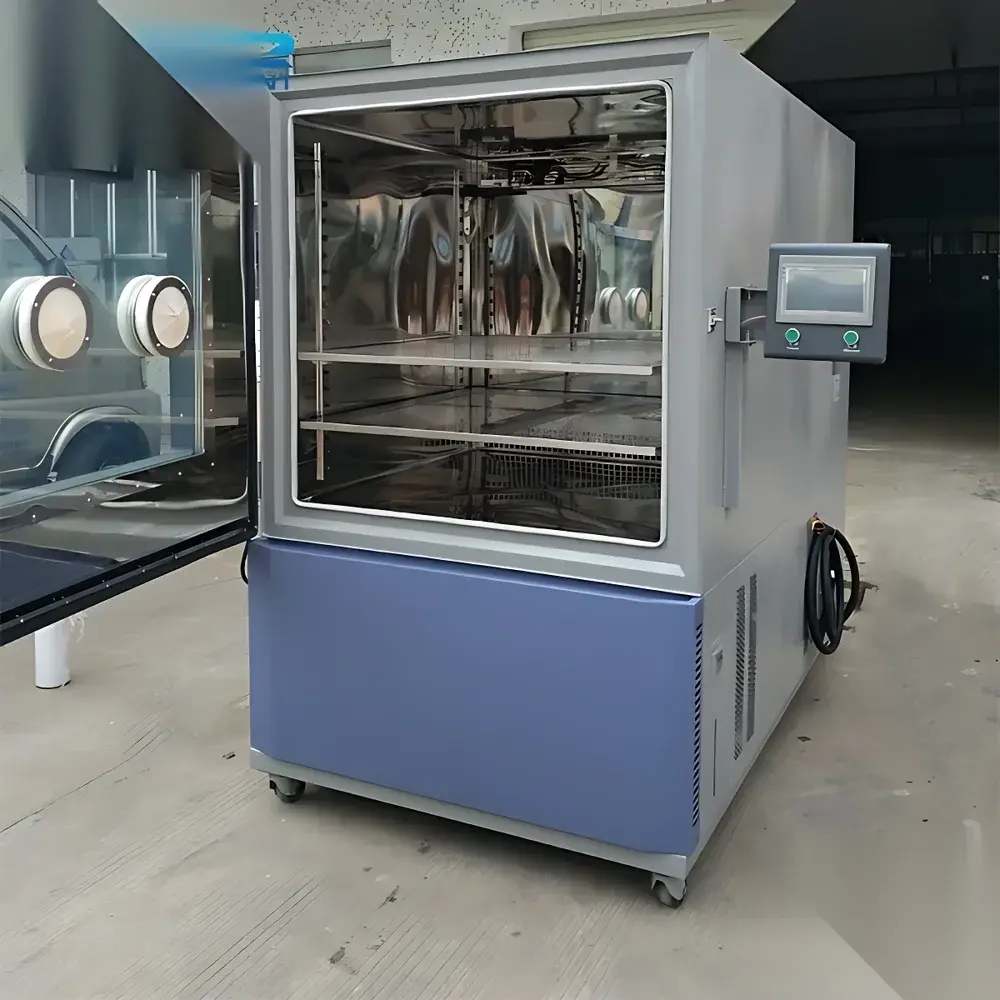

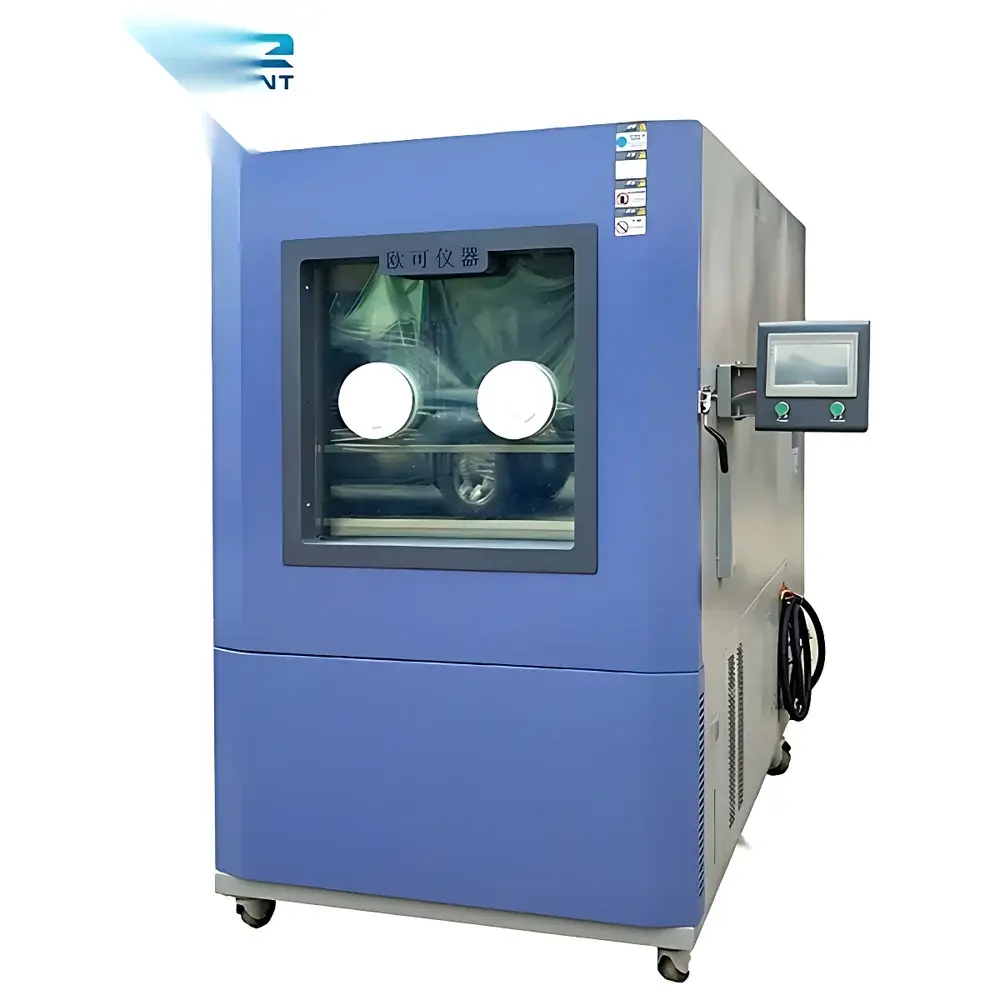

Custom-Built Intelligent Temperature and Humidity Controlled Environmental Test Chamber

Overview

The Custom-Built Intelligent Temperature and Humidity Controlled Environmental Test Chamber is a precision-engineered climatic simulation system designed for rigorous reliability validation of electronic components, aerospace subsystems, automotive ECUs, medical devices, and advanced materials under dynamically controlled thermal and hygrothermal stress conditions. Operating on the principle of forced-air convection combined with dual-stage refrigeration (R404A/R23 cascade system) and steam-based humidification, the chamber delivers stable, repeatable, and traceable environmental profiles across wide operational envelopes. Its architecture supports both steady-state and programmable cycling tests—including temperature-only, humidity-only, and combined temperature-humidity profiles—enabling full compliance with international environmental testing standards required for product qualification, design verification, and regulatory submission.

Key Features

• Intelligent microprocessor-based touch-screen controller with dual-language interface (English/Chinese), real-time trend graphing, and up to 100 programmable test segments per profile.
• High-efficiency, low-noise hermetic compressor system with eco-friendly refrigerants (R404A primary stage, R23 cascade stage for sub-zero operation down to –70°C).
• Full SUS#304 stainless steel construction (interior and exterior), ensuring corrosion resistance, cleanroom compatibility, and long-term dimensional stability.
• Multi-layer insulated observation window with integrated ITO conductive film heating to prevent condensation—enabling unobstructed visual monitoring during high-humidity operation.
• Optimized airflow design with adjustable rear-mounted centrifugal blower ensures uniform temperature and humidity distribution (±0.5°C / ±2.5% RH) throughout the working volume.
• Dual-redundant safety architecture: independent over-temperature cut-off, over-humidity limiter, motor overload protection, and real-time fault diagnostics with audible/visual alerts and automatic mains disconnection.
• Standard Ø50 mm cable port (left-side, silicone-sealed) for external sensor integration, power feedthrough, or signal routing—compatible with MIL-DTL-5015 and DIN 43650 connectors.

Sample Compatibility & Compliance

This chamber accommodates diverse sample geometries—from PCB assemblies and battery modules to packaged pharmaceuticals and polymer composites—within customizable internal volumes (80 L to 1000 L). Optional configurations include reinforced shelves, vibration-isolated mounting plates, and inert gas purge inlets (N₂ or dry air) for oxygen-sensitive testing. The system meets full requirements for MIL-STD-810G, IEC 60068-2 series, and corresponding GB/T and GJB standards. All control algorithms and data logging routines are structured to support GLP/GMP audit readiness: event timestamps, user authentication logs, calibration history tracking, and configurable audit trails aligned with FDA 21 CFR Part 11 principles (when paired with validated software add-ons).

Software & Data Management

Embedded controller firmware supports USB export of CSV-formatted test logs (timestamp, setpoint, actual temp/RH, alarm status) with millisecond-level resolution. Optional PC-based software (Windows 10/11 compatible) enables remote monitoring via Ethernet, automated report generation (PDF/Excel), statistical process control (SPC) charting, and deviation alerting via email/SNMP. Data integrity safeguards include write-protected storage, cyclic redundancy checksums (CRC-32), and optional encrypted backup to network drives. Calibration parameters are digitally signed and password-protected to prevent unauthorized modification—supporting ISO/IEC 17025 traceability workflows.

Applications

• Accelerated life testing of lithium-ion battery cells under thermal cycling and high-RH exposure.
• Qualification of avionics enclosures per DO-160 Section 4 (Temperature) and Section 10 (Humidity).
• Stability studies of sterile drug products per ICH Q1A(R2) and USP <1151>.
• Validation of conformal coating adhesion and delamination resistance on printed circuit boards.
• Material characterization of elastomers, adhesives, and composite laminates under combined thermal-mechanical-hygric loading.
• Environmental stress screening (ESS) of military-grade electronics prior to HALT/HASS deployment.

FAQ

Can this chamber be configured for rapid thermal cycling (e.g., 10°C/min ramp rates)?
Yes—high-performance variants with upgraded compressors, enhanced heat exchangers, and auxiliary liquid nitrogen injection (LNI) interfaces can achieve ramp rates up to 15°C/min. Contact engineering support for custom thermal performance specifications.
Is NIST-traceable calibration documentation included?
Standard delivery includes factory calibration certificates for temperature and humidity sensors (traceable to NIST via A2LA-accredited lab). Full 3-point calibration reports and on-site recalibration services are available as optional add-ons.
What power supply options are supported beyond AC380V 3-phase?
Units can be engineered for AC208V, AC400V, or DC24V auxiliary control circuits upon request. Voltage tolerance, frequency stability, and harmonic distortion limits comply with IEC 61000-4-30 Class A requirements.
Are validation protocols (IQ/OQ/PQ) provided?
Comprehensive validation templates compliant with ASTM E2500-13 and EU Annex 15 are supplied. Customers may engage our qualified validation engineers for on-site execution, including sensor mapping, alarm response verification, and protocol sign-off.
How is humidity controlled below 10% RH?
Sub-10% RH operation requires optional desiccant dehumidification or nitrogen purge integration—both fully integrated into the control loop with automatic dew point compensation and moisture sensor feedback.
