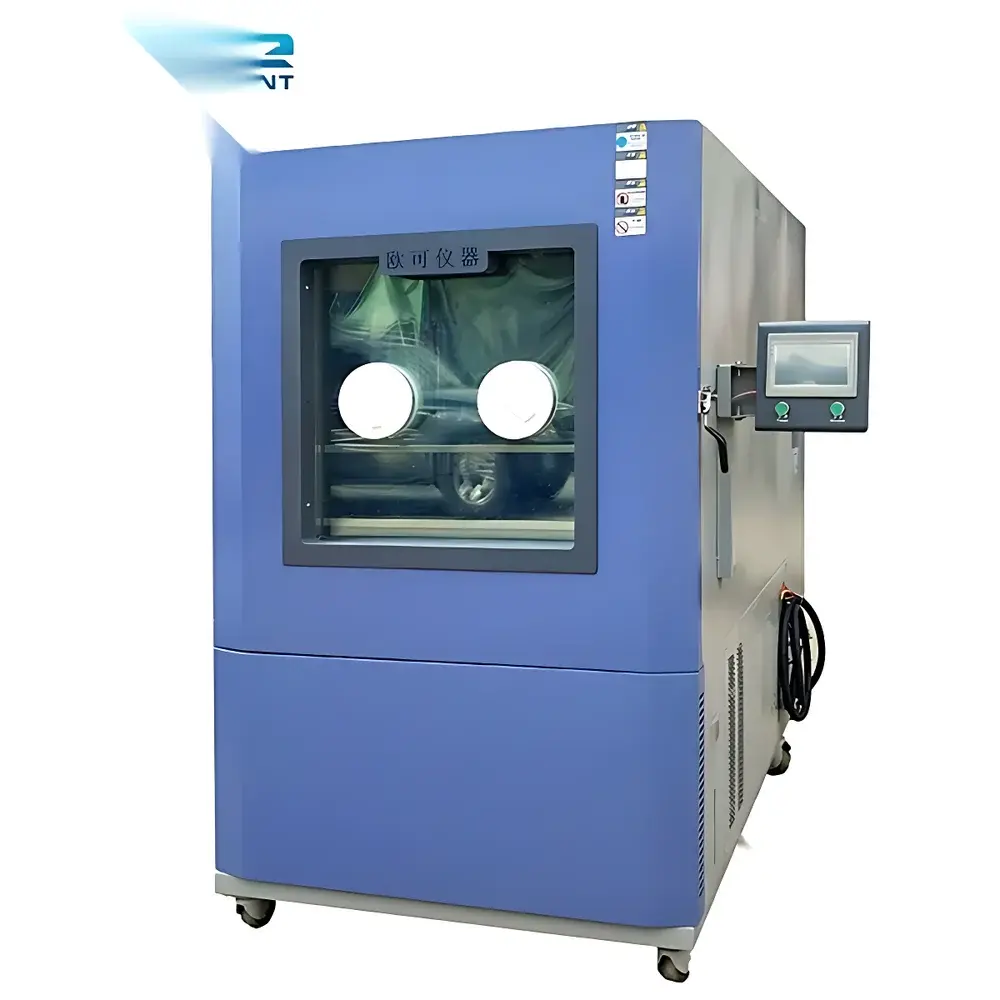

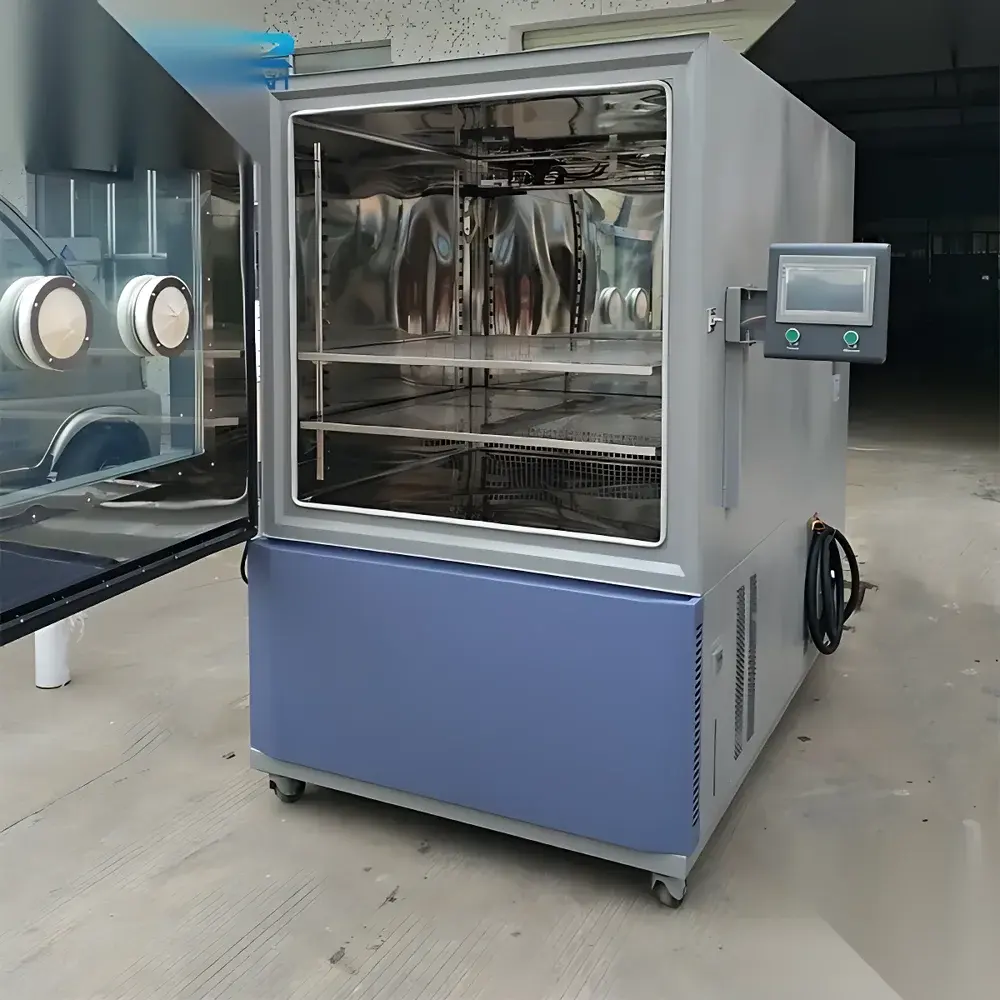

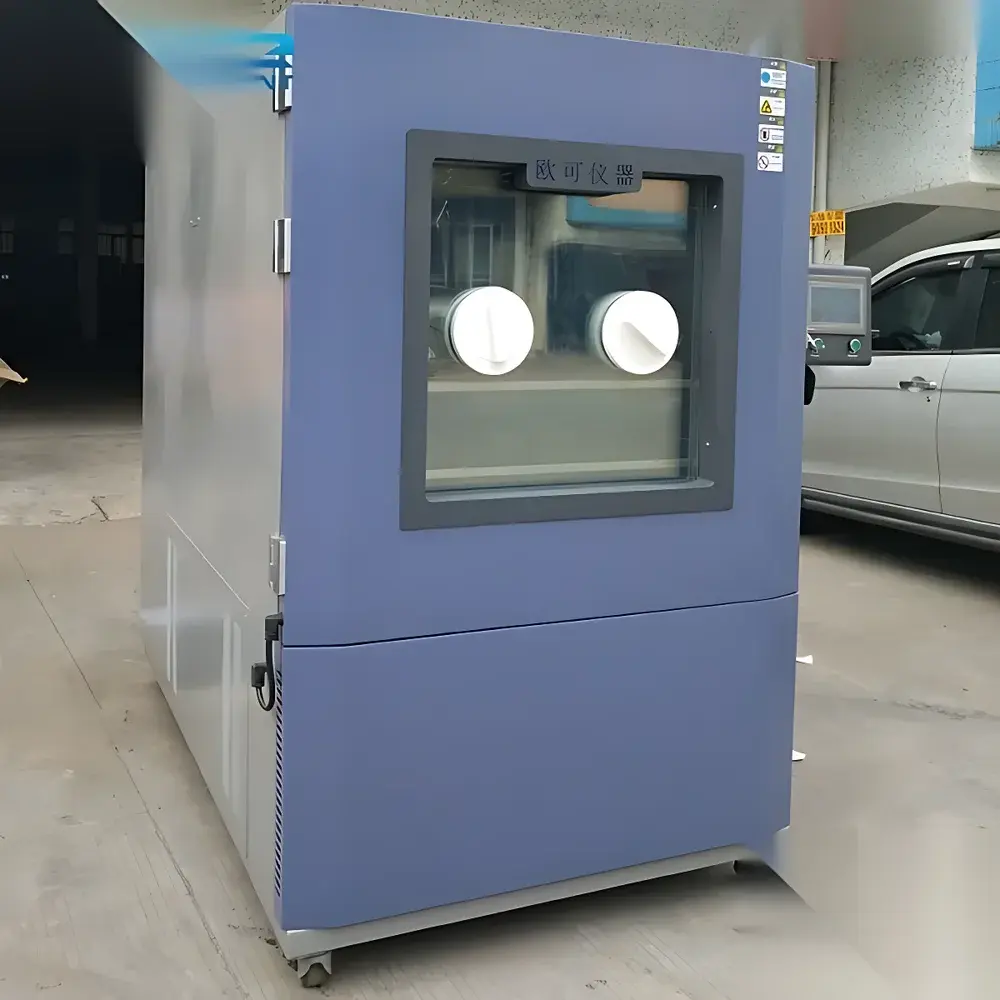

Custom-Built Mini Programmable Temperature and Humidity Chamber

Overview

The Custom-Built Mini Programmable Temperature and Humidity Chamber is an engineered environmental simulation system designed for precise, repeatable conditioning of small- to medium-sized samples under controlled thermal and hygrometric profiles. Based on the principle of forced-air convection combined with dual-stage refrigeration and steam-based humidification, it delivers stable, traceable climatic conditions compliant with internationally recognized test standards—including MIL-STD-810G, IEC 60068-2 series, and GB/T 2423.1–2423.4. Unlike generic benchtop chambers, this unit is fully customizable in internal volume (from 80 L to 1000 L), temperature range (−70 °C to +150 °C), and humidity capability (20–98 %RH as standard; extended down to 5 %RH upon request), making it suitable for qualification testing in electronics reliability labs, polymer aging studies, pharmaceutical stability assessment, and aerospace component validation.

Key Features

• Full-color 7-inch TFT touchscreen controller with intuitive drag-and-drop profile programming, real-time graphing, and dual-language support (English/Chinese) for global lab integration.
• Hermetically sealed, low-noise dual-stage refrigeration system utilizing environmentally compliant R404A/R23 refrigerant blend—optimized for rapid thermal transitions and long-term operational stability.
• Internal and external chamber walls constructed from electropolished SUS#304 stainless steel, ensuring corrosion resistance, cleanability, and compliance with ISO 14644-1 Class 8 cleanroom-compatible environments.
• Triple-sealed observation window featuring laminated tempered glass with integrated transparent conductive oxide (ITO) film—enabling unobstructed visual monitoring without condensation or electrostatic interference.
• Dual high-tensile silicone door gaskets provide >99.9% sealing integrity at extreme low-humidity and sub-zero conditions, verified per ASTM E283 leakage criteria.
• Single 50 mm diameter feedthrough port (left-side mounted) fitted with removable rubber grommet—designed for safe routing of power, signal, or sensor cables without compromising chamber integrity.
• Integrated safety architecture includes over-temperature cut-off, compressor high-pressure shutdown, humidity sensor fault detection, and real-time alarm logging with auto-power isolation on critical failure.

Sample Compatibility & Compliance

This chamber accommodates a broad spectrum of sample geometries and material classes—including PCB assemblies, battery cells, optical sensors, medical device packaging, elastomeric seals, and coated substrates—without requiring structural modification. Its modular internal layout supports optional accessories such as calibrated PT100 probe mounts, USB data-logging interfaces, and inert gas purge kits (N₂ or dry air). The system meets essential regulatory requirements for environmental stress screening: GJB 150.3–150.4 (China MIL), IEC 60068-2-1 (cold), -2-2 (dry heat), -2-30 (cyclic damp heat), and GB/T 2423.1–2423.4. While not pre-certified for FDA 21 CFR Part 11, its controller supports audit-trail-enabled firmware (optional upgrade) and can be validated per IQ/OQ/PQ protocols under GLP or GMP frameworks.

Software & Data Management

The embedded controller stores up to 100 programmable test profiles with 999 segments each, supporting ramp-soak-step sequences, cycling modes, and conditional branching logic. All runtime data—including chamber setpoints, actual readings, alarm events, and system status—are timestamped and logged internally at user-selectable intervals (1 s to 60 min). Export is supported via USB 2.0 to CSV or Excel-compatible formats. For networked labs, optional Ethernet/WiFi modules enable remote monitoring and control through secure HTTP/HTTPS endpoints, compatible with LabVIEW™, Python-based SCADA integrations, and enterprise LIMS platforms. Raw data files include metadata headers specifying calibration dates, operator ID, and environmental context—facilitating traceability per ISO/IEC 17025 Clause 7.7.

Applications

• Accelerated life testing of consumer electronics under temperature-humidity cycling (e.g., JEDEC JESD22-A104D).
• Stability assessment of active pharmaceutical ingredients (APIs) and final drug products per ICH Q1A(R2) guidelines.
• Evaluation of adhesive bond strength retention in automotive trim components exposed to tropical conditions.
• Validation of moisture barrier performance in flexible OLED encapsulation films.
• Pre-conditioning of reference standards prior to metrological calibration in national metrology institutes.
• Material compatibility screening for space-grade polymers undergoing thermal vacuum correlation tests.

FAQ

Can this chamber be validated for GxP-regulated environments?
Yes—when equipped with optional 21 CFR Part 11-compliant firmware and paired with NIST-traceable calibration certificates (available separately), the system supports full IQ/OQ/PQ documentation packages aligned with FDA, EMA, and PMDA expectations.
What is the typical lead time for a custom configuration?
Standard configurations ship within 6–8 weeks after order confirmation; fully bespoke builds (e.g., non-standard dimensions, ultra-low humidity, or explosion-proof variants) require 12–16 weeks, subject to engineering review.
Is remote diagnostics supported?
The base controller includes RS485 Modbus RTU for local PLC interfacing; Ethernet-based remote diagnostics and predictive maintenance alerts are available via the optional IoT Gateway Module.
How is humidity accuracy maintained across the full operating range?
Humidity is measured using a dual-capacitive polymer sensor with automatic drift compensation and factory-calibrated against chilled-mirror hygrometry (±0.8 %RH uncertainty at 25 °C/50 %RH per ISO 18434-1).
Are third-party calibration services available?
Yes—certified field service engineers provide on-site temperature/humidity mapping (per ISO 14644-3 Annex B) and sensor recalibration using accredited primary standards, with full documentation issued per ISO/IEC 17025.
