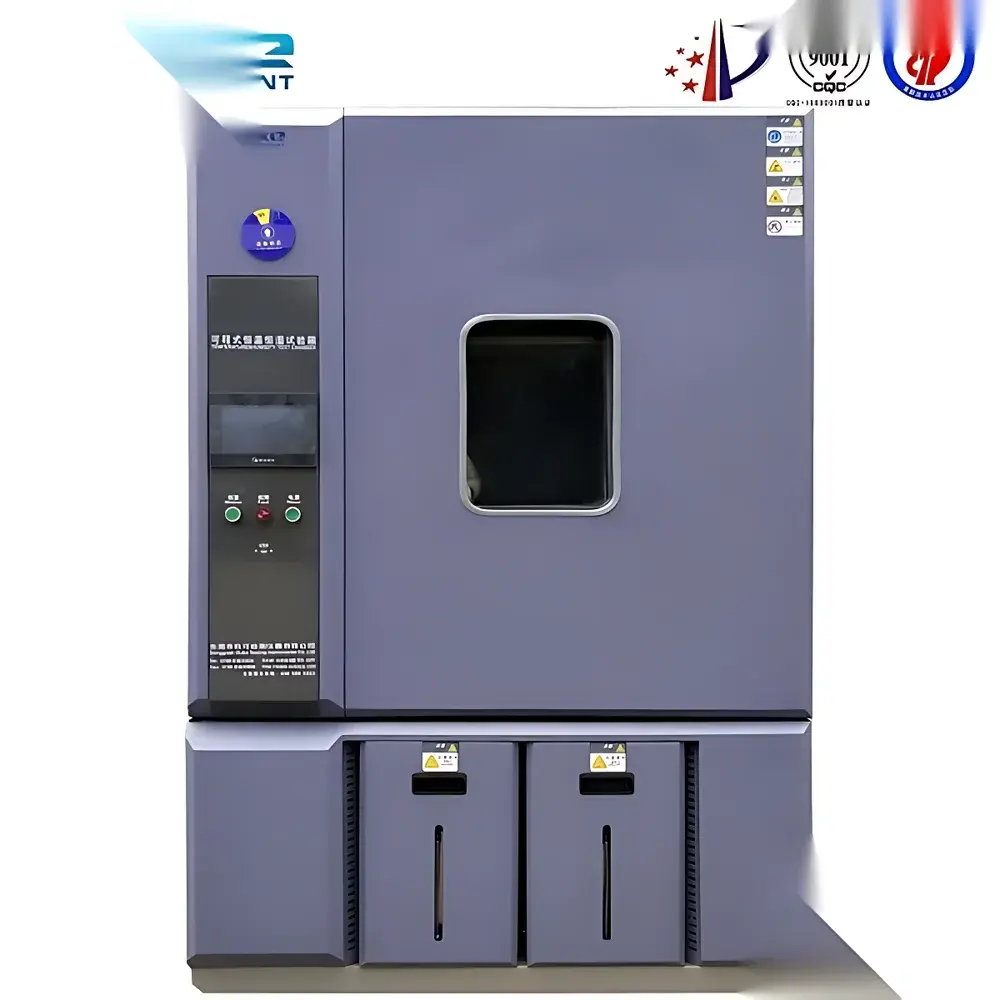

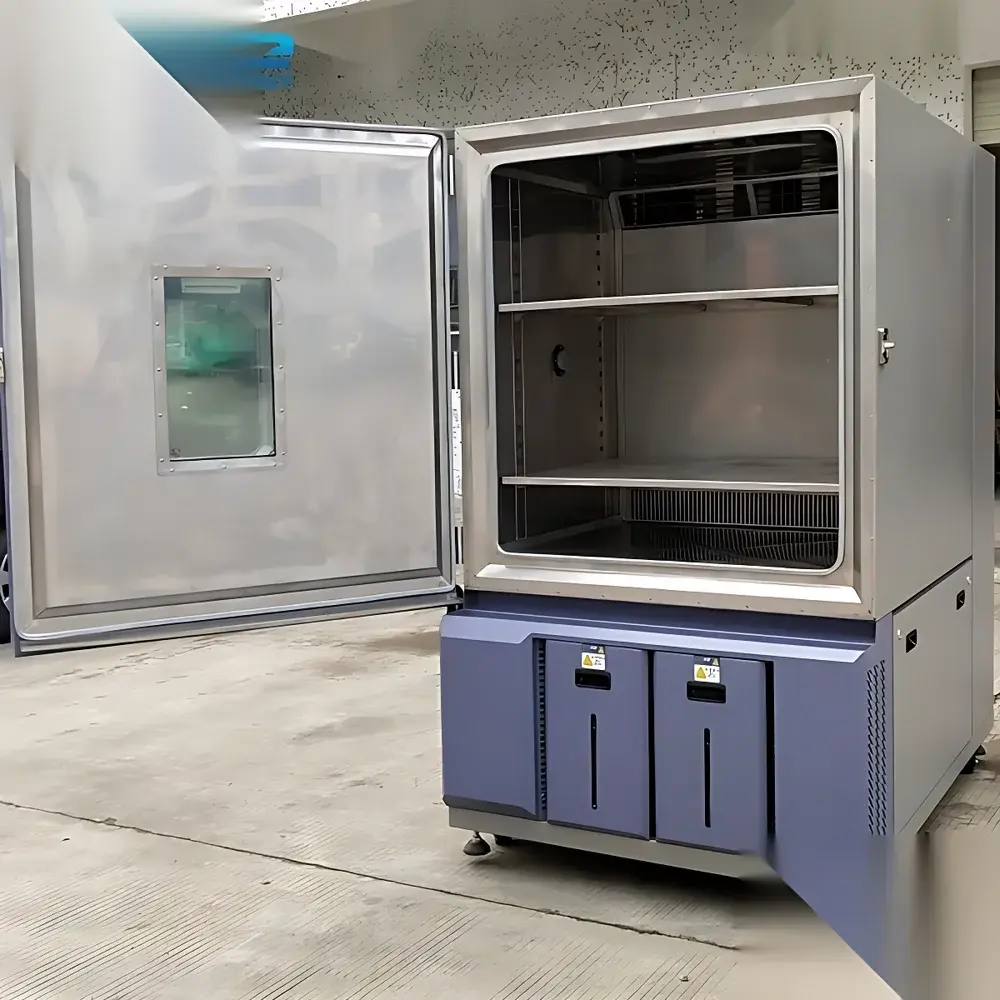

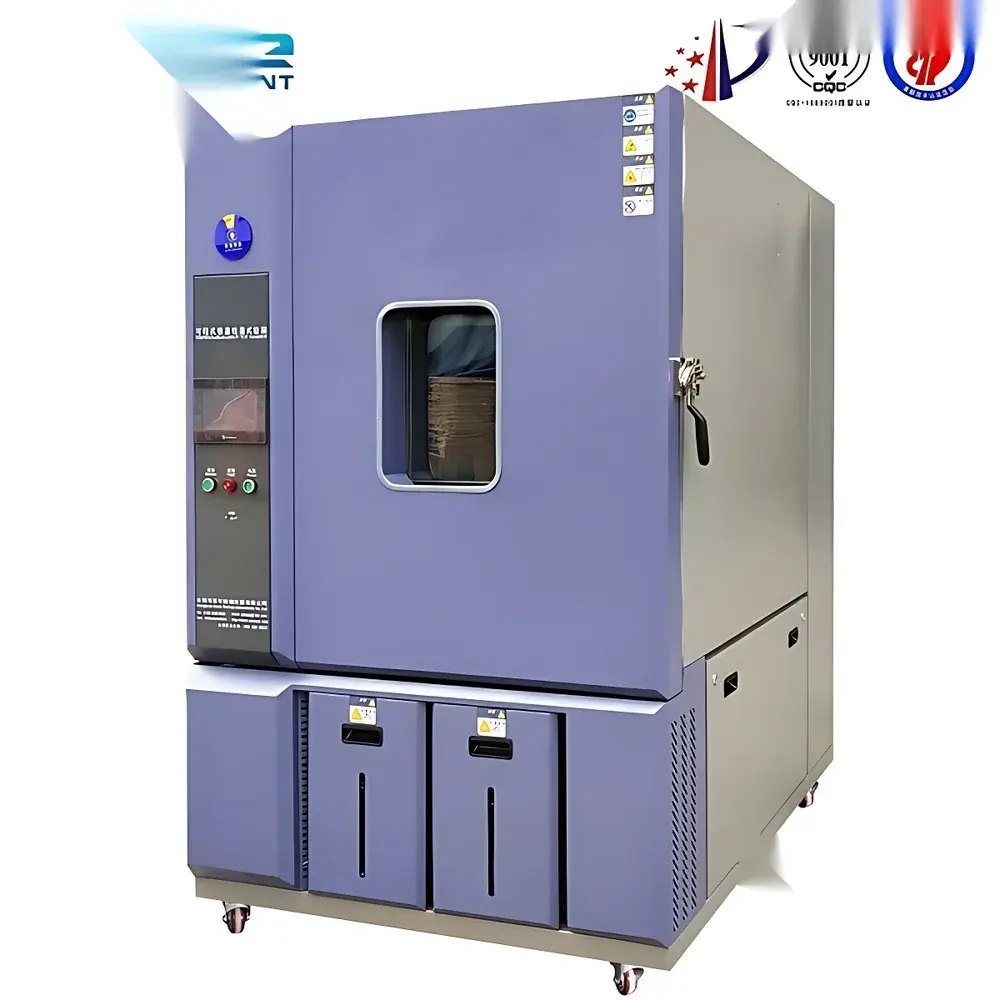

Customizable High-Low Temperature Cycling Humidity Chamber

Overview

The Customizable High-Low Temperature Cycling Humidity Chamber is a precision-engineered environmental simulation system designed for accelerated reliability testing of electronic components, aerospace subsystems, automotive ECUs, medical devices, polymer materials, and industrial coatings under rigorously controlled thermal and hygrothermal stress profiles. Operating on the fundamental principles of forced-air convection, multi-stage refrigeration thermodynamics, and saturated steam humidification, this chamber delivers repeatable, traceable, and standards-compliant environmental conditioning across wide operational envelopes. Its architecture integrates dual-stage cascade refrigeration for deep-cold capability down to –70 °C, PID-controlled electric heating elements with redundant thermal fusing, and ultrasonic humidification with dehumidification bypass—enabling stable, low-drift humidity control from 5 %RH to 98 %RH. The chamber is not a generic “off-the-shelf” unit but a platform engineered for integration into formal quality management systems—including ISO/IEC 17025-accredited laboratories and FDA-regulated R&D facilities—where test method validity, instrument calibration traceability (to NIST or equivalent national metrology institutes), and audit-ready data integrity are mandatory.

Key Features

• Modular structural design with fully customizable internal volume (from 80 L to 1000 L), allowing precise matching to DUT footprint, mass loading, and airflow requirements.
• SUS#304 stainless steel construction throughout—interior chamber, insulation housing, and external cladding—ensuring long-term corrosion resistance in high-humidity and condensing environments.
• Triple-glazed observation window with sputtered ITO (indium tin oxide) conductive film enables uninterrupted visual monitoring without thermal distortion or fogging, even during rapid temperature transitions.
• 7-inch industrial-grade PLC-based touchscreen controller with embedded real-time clock, 100-segment programmable profile storage, and USB data export (CSV format); supports both English and Chinese UI languages.
• Dual-stage hermetic scroll compressors (EU/US-manufactured) using environmentally compliant R404A/R23 refrigerant blend—optimized for energy efficiency, low acoustic emission (<65 dB(A)), and extended service life under continuous cycling duty.
• Integrated safety architecture featuring 11 independent hardware interlocks—including compressor high-pressure cutout, phase-loss detection, door-open sensor, and over-temperature limiter—with automatic mains disconnection and persistent fault-code logging.
• Standard Ø50 mm test port (left-side mounted, silicone-sealed) for signal line, power feedthrough, or sensor extension—compatible with standard MIL-DTL-38999 or M12 cable glands.

Sample Compatibility & Compliance

This chamber accommodates a broad spectrum of test specimens—from PCB assemblies and lithium-ion battery modules to composite airframe panels and pharmaceutical packaging—without compromising thermal homogeneity or humidity fidelity. Sample loading configurations are validated per IEC 60068-3-5 (temperature uniformity) and IEC 60068-3-6 (humidity uniformity), with performance verified at multiple spatial locations using calibrated Class A PT100 sensors and capacitive RH probes. The system complies with key international test standards including IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (cyclic damp heat), MIL-STD-810H Methods 501.7, 502.7, and 507.6, as well as China’s GB/T 2423 series and GJB 150 series military specifications. It supports GLP/GMP-aligned operation via optional audit trail firmware (21 CFR Part 11-compliant user authentication, electronic signatures, and immutable event logs).

Software & Data Management

While the onboard controller provides full local operation—including profile editing, real-time graphing, alarm history, and manual override—the chamber is compatible with optional PC-based supervisory software (Windows 10/11, 64-bit). This software enables remote monitoring via Ethernet (TCP/IP), automated report generation (PDF/Excel), statistical process control (SPC) charting of chamber deviation metrics, and synchronization with enterprise LIMS or MES platforms via OPC UA or Modbus TCP. All logged data—including setpoints, actual values, alarm timestamps, and controller status flags—are time-stamped with microsecond resolution and stored in non-volatile memory with battery-backed retention (>72 h). Calibration records, maintenance logs, and verification reports can be archived within the same database structure to satisfy ISO 9001:2015 clause 7.1.5 and ISO/IEC 17025:2017 clause 6.4 requirements.

Applications

• Accelerated life testing of automotive infotainment systems under combined thermal shock and humidity ingress conditions (per ISO 16750-4).
• Qualification of avionics enclosures per DO-160G Section 4 (operational temperature) and Section 10 (humidity).
• Stability assessment of active pharmaceutical ingredients (APIs) and final dosage forms under ICH Q1A(R2) long-term and accelerated storage conditions.
• Evaluation of solder joint reliability in high-density PCBs using JEDEC JESD22-A104 temperature cycling profiles.
• Material compatibility testing of elastomeric seals and adhesives exposed to repeated freeze-thaw cycles and condensation events.
• Environmental stress screening (ESS) of newly manufactured electronics prior to burn-in and functional test.

FAQ

Is this chamber suitable for HALT or HASS applications?
Yes—when configured with enhanced ramp rates (up to 15 °C/min, optional), extended low-temperature capability (–70 °C), and integrated vibration interface ports, it serves as a cost-effective platform for early-stage reliability screening. However, dedicated HALT chambers offer higher acceleration factors and multi-axis vibration coupling.
Can the controller support custom test profiles required by internal SOPs?
Absolutely. The PLC-based controller allows creation of up to 100 multi-step profiles, each with independent ramp/soak parameters, humidity setpoints, and conditional branching (e.g., “hold until RH reaches 95 %”). Profiles can be imported/exported via USB flash drive.
What calibration documentation is provided upon delivery?
Each unit ships with a Factory Calibration Certificate traceable to NIST (or equivalent NMIs), covering temperature (–70 °C to +150 °C) and humidity (20–98 %RH) at three spatial points. Optional UKAS-accredited field calibration and IQ/OQ documentation packages are available.
Does the system support remote diagnostics and preventive maintenance alerts?
Yes—the controller logs compressor run hours, refrigerant pressure trends, and heater duty cycle. With optional Ethernet connectivity and cloud gateway, predictive maintenance analytics (e.g., refrigerant charge depletion estimation) can be enabled via subscription-based firmware modules.
Are replacement parts and technical support available globally?
All critical components—including compressors, controllers, humidifiers, and sensors—are stocked in regional distribution hubs (USA, Germany, Singapore). Technical support includes 24/7 remote troubleshooting, on-site service contracts, and certified technician training programs.
