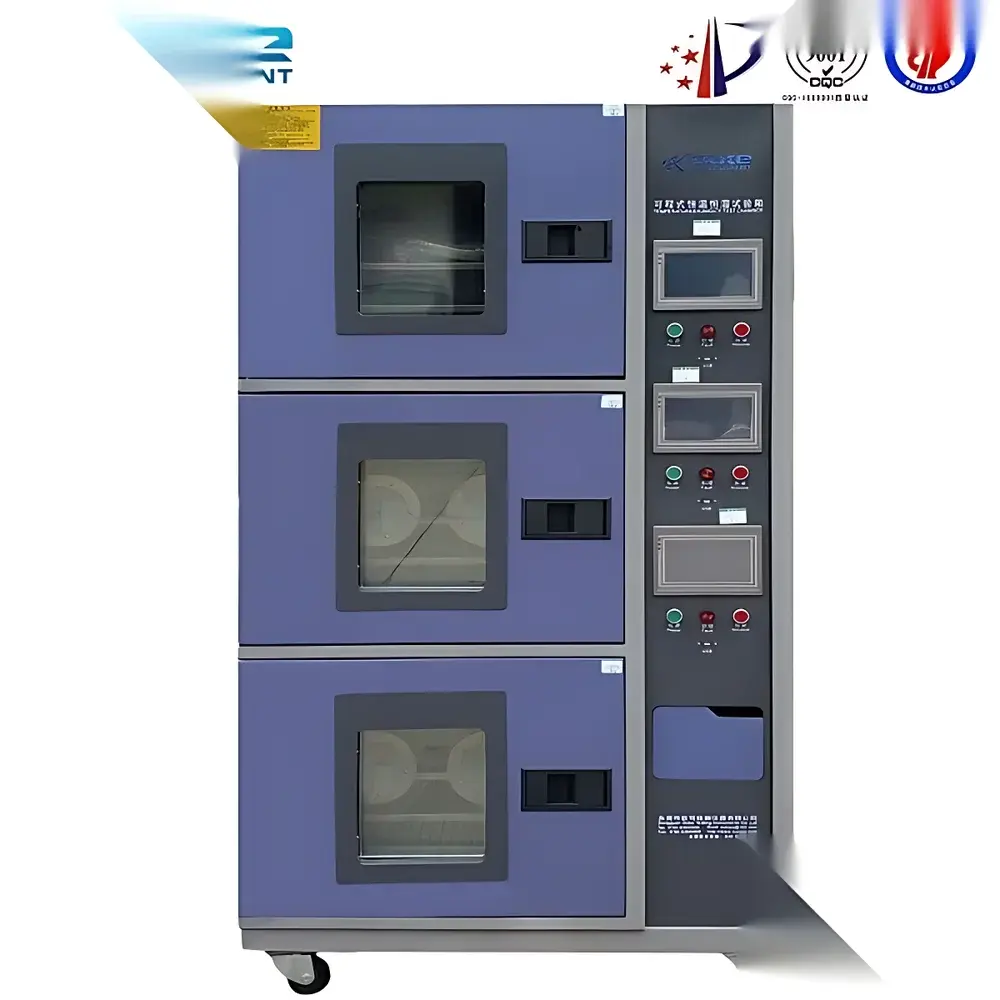

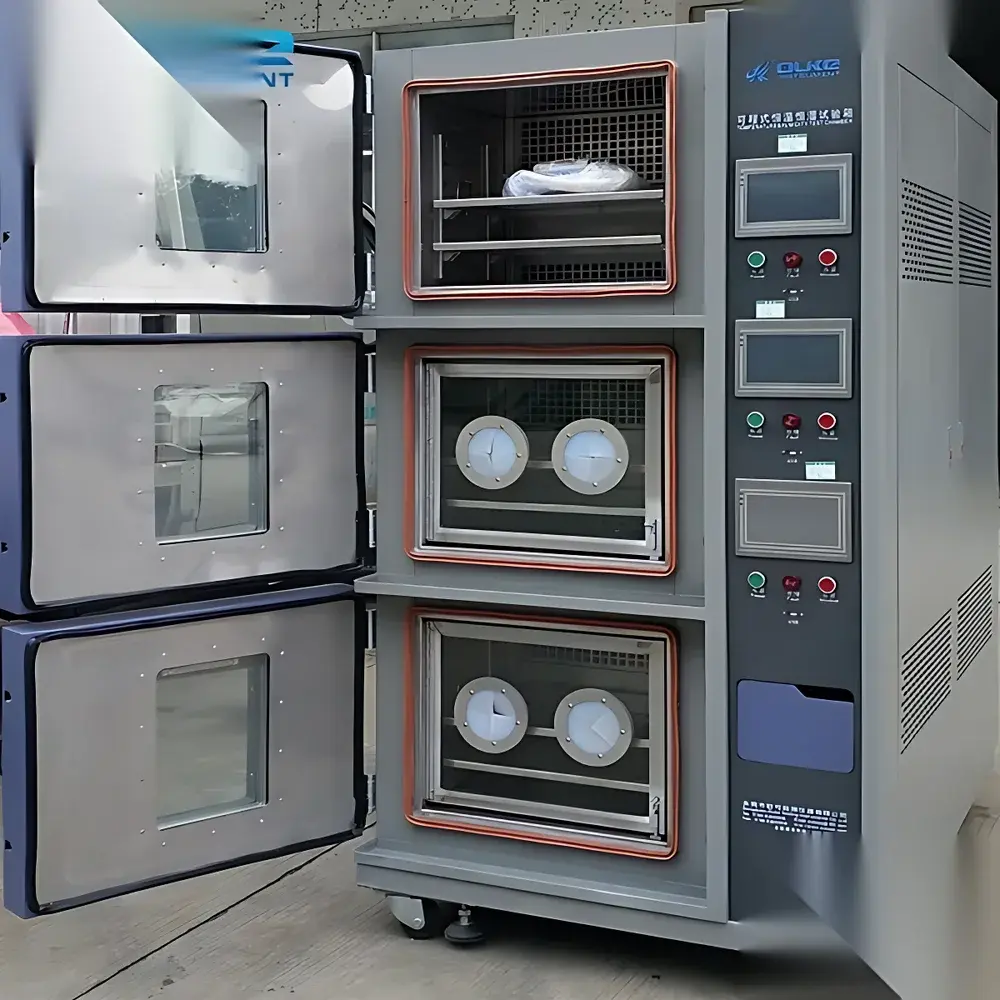

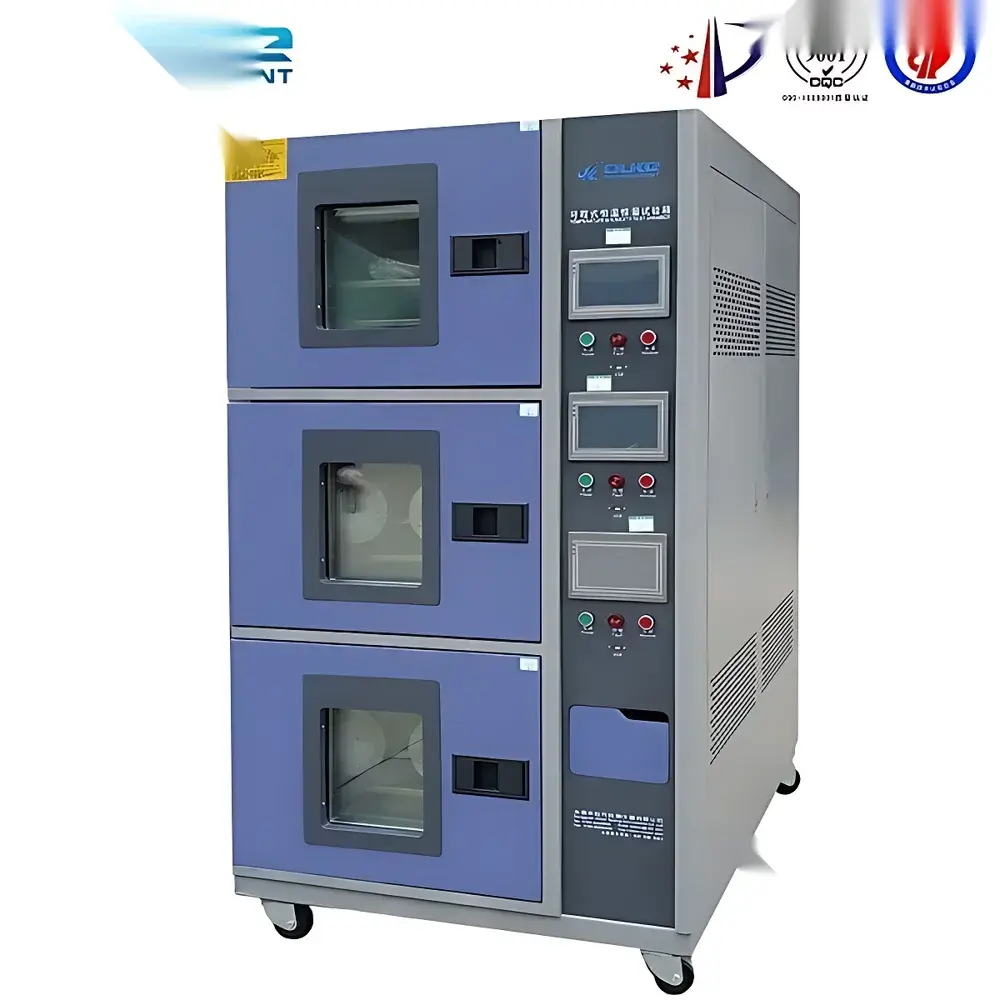

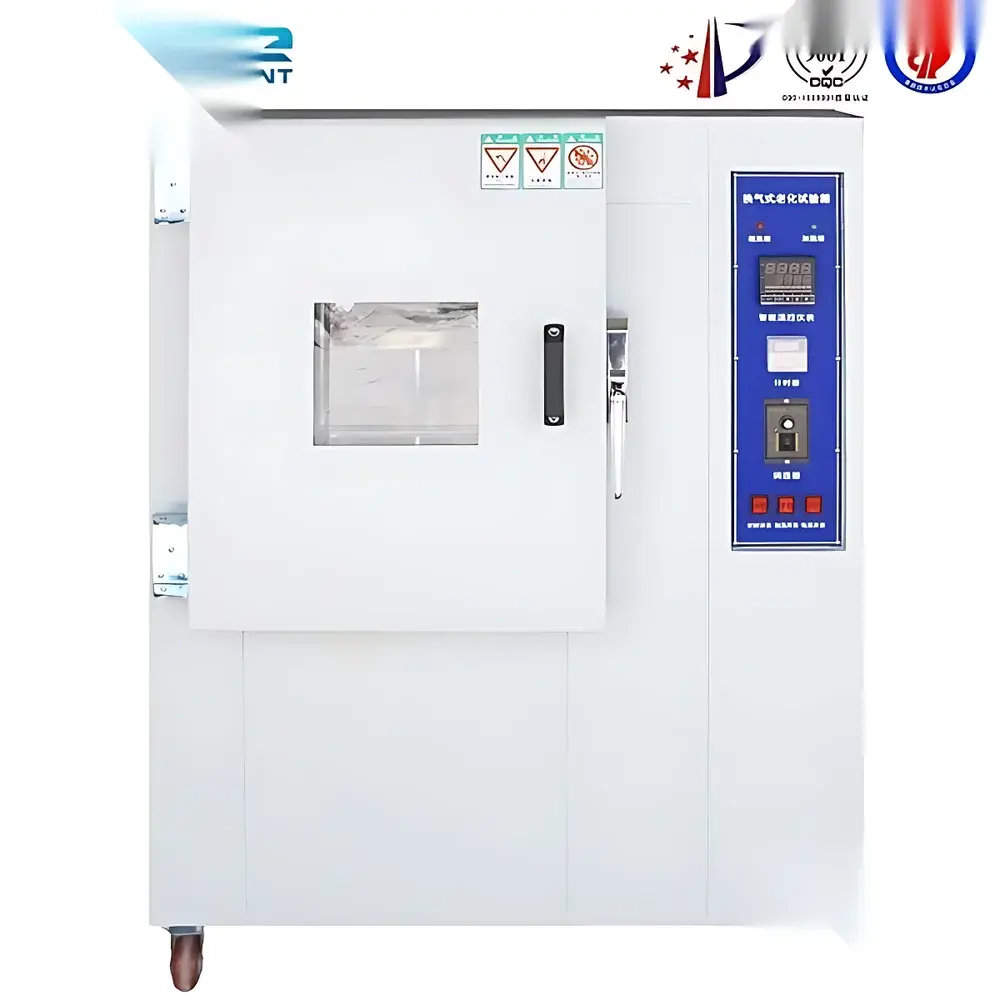

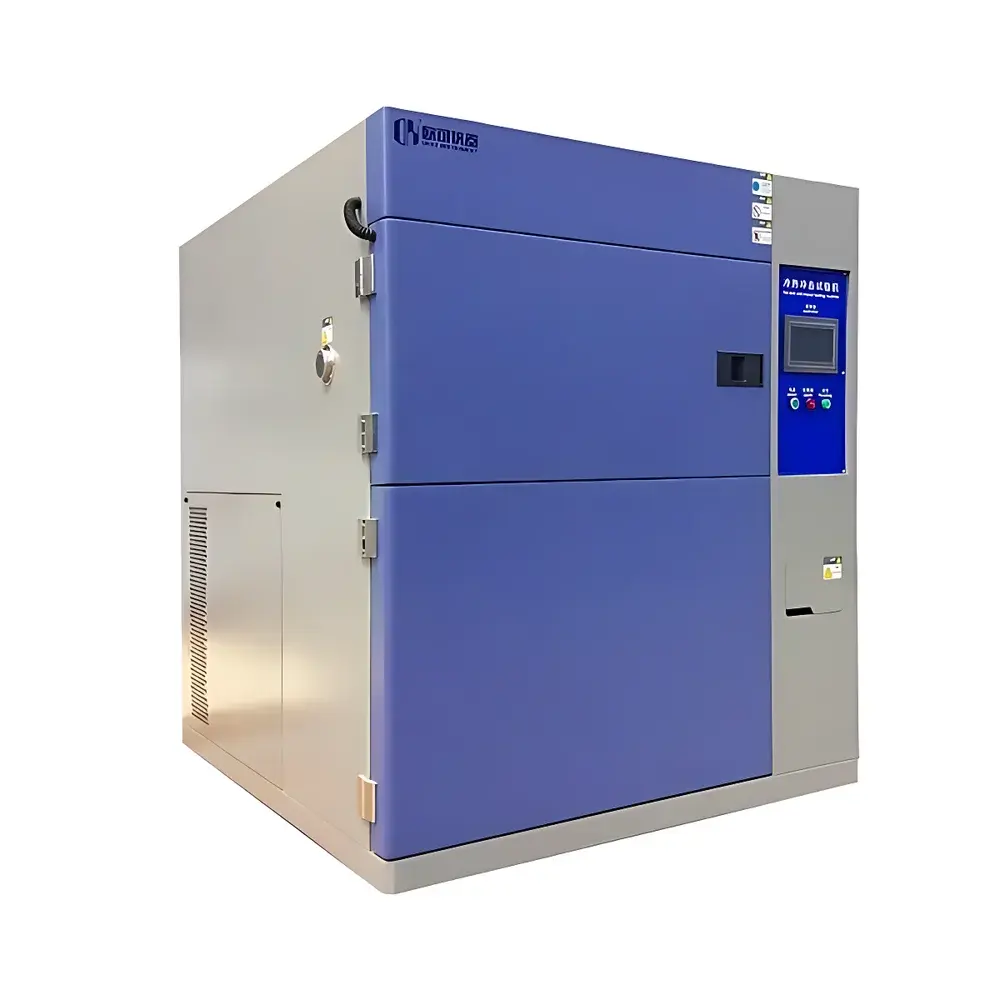

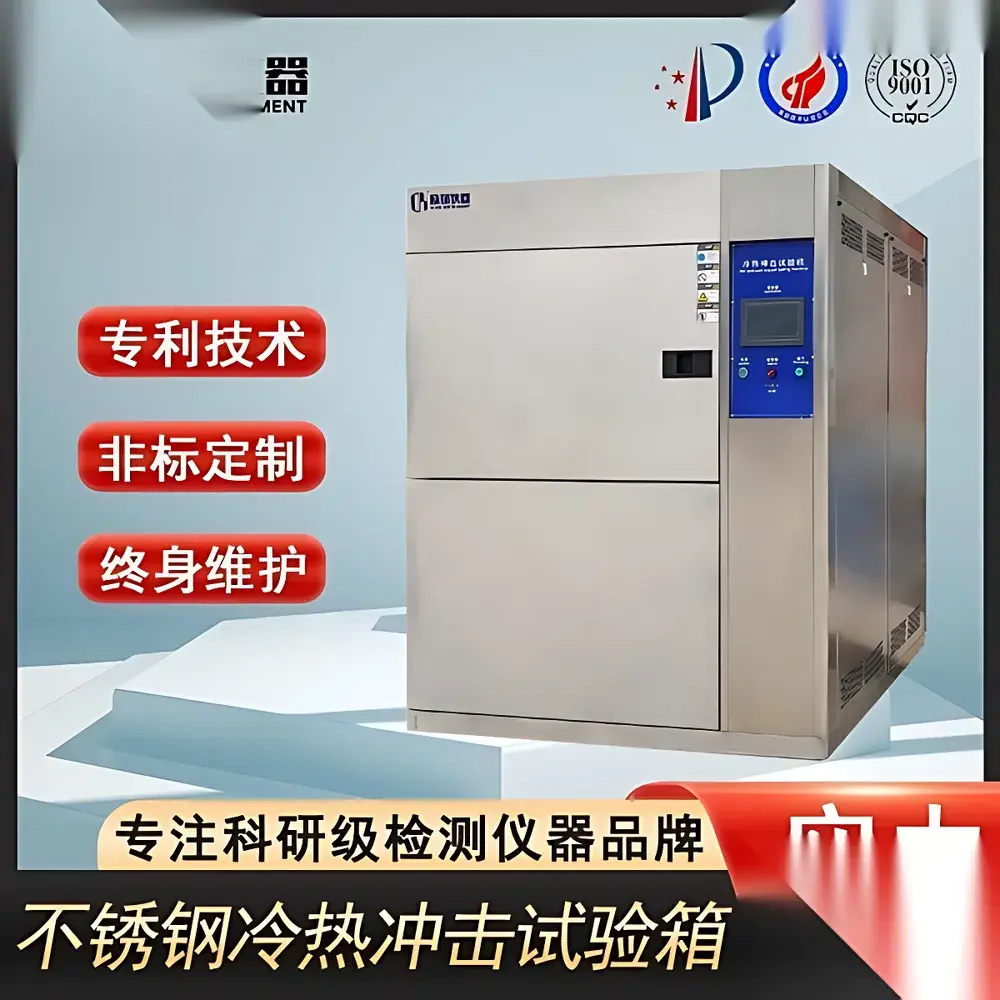

Customizable Programmable Thermal Cycling Chamber – OEM/ODM Brand

Overview

The Customizable Programmable Thermal Cycling Chamber is an engineered environmental simulation system designed for rigorous reliability validation of electronic components, aerospace subsystems, automotive ECUs, medical devices, and advanced materials under controlled temperature and humidity stress profiles. Based on the principle of forced-air convection thermal regulation with dual-stage refrigeration and precision PID-driven humidification/dehumidification, this chamber delivers repeatable, traceable, and standards-compliant environmental exposure across wide operational envelopes. Its architecture supports both steady-state and programmable ramp-soak-cycle profiles—including rapid thermal transients, extended dwell periods, and humidity-coupled thermal cycling—enabling accelerated life testing (ALT), HALT/HASS pre-screening, and qualification per military, industrial, and regulatory test protocols.

Key Features

• Full-custom engineering capability: Internal dimensions (W×H×D), temperature/humidity ranges, ramp rates, and interface configurations are tailored to client product footprint and test methodology requirements.
• High-fidelity control system: 7-inch full-color capacitive touchscreen HMI with real-time graphical trend display, multi-segment program editing (up to 999 steps), and automatic data logging (timestamped temp/RH values at user-defined intervals).
• Robust thermal management: Dual-stage hermetically sealed compressors (original European or North American OEM units) paired with R404A/R23 refrigerant blend ensure stable operation from -70°C to +150°C without oil migration or performance drift.
• Optimized chamber integrity: Seamless SUS#304 stainless steel interior and exterior construction; double-gasketed door seal with high-tensile silicone; multi-layer laminated viewing window with transparent conductive ITO coating for anti-fog clarity during condensing cycles.
• Integrated safety architecture: Over-temperature, over-humidity, compressor overload, phase failure, and sensor fault detection trigger immediate power cutoff and on-screen alarm with diagnostic code (e.g., E03 = RH sensor open circuit).
• Test port and utility integration: Standard Ø50 mm left-side feedthrough (IP65-rated plug), two adjustable SUS#304 shelves, four locking casters with leveling feet, and 2.5 m AC380V/50Hz/3-phase-5-wire power cable routed rearward.

Sample Compatibility & Compliance

This chamber accommodates diverse sample geometries—from PCB assemblies and battery modules to structural composites and sealed enclosures—via configurable internal volume options (80 L to 1000 L). All standard configurations meet ISO/IEC 17025 calibration traceability requirements when operated with certified reference sensors. The system is validated for compliance with MIL-STD-810G Method 501.6 (High Temperature), Method 502.6 (Low Temperature), IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), IEC 60068-2-78 (Steady-State Damp Heat), and IEC 60068-2-30 (Cyclic Damp Heat). Optional factory-installed validation packages include IQ/OQ documentation aligned with GLP and GMP environments, supporting FDA 21 CFR Part 11 audit readiness through electronic signature-capable software logs.

Software & Data Management

Standard firmware includes USB export of CSV-formatted test logs (time-stamped temperature, humidity, setpoint, and alarm history) with optional Ethernet connectivity for remote monitoring via Modbus TCP or OPC UA. For regulated labs, the optional PC-based software suite provides 21 CFR Part 11-compliant user access control (role-based permissions), electronic audit trails, automated report generation (PDF/Excel), and deviation alerting via email/SMS. All data files are SHA-256 hashed and timestamped using NTP-synchronized clocks to ensure integrity and non-repudiation.

Applications

• Electronics reliability: Solder joint fatigue assessment, capacitor leakage current drift, connector contact resistance variation under thermal cycling.
• Aerospace component qualification: Avionics box thermal shock survivability, composite material coefficient of thermal expansion (CTE) characterization.
• Automotive electronics: Engine control unit (ECU) functional stability across -40°C startup to +125°C under-hood conditions.
• Battery R&D: Lithium-ion cell impedance hysteresis mapping, electrolyte volatility analysis, SEI layer growth kinetics under humid thermal aging.
• Pharmaceutical packaging: Blister pack moisture permeation rate validation, cold-chain container thermal lag profiling.

FAQ

Can the chamber be configured for ultra-low temperatures below -70°C?
Yes—custom variants with cascade refrigeration systems support operational ranges down to -85°C or -100°C upon engineering review and thermal load calculation.
Is third-party calibration certification included with delivery?
Factory calibration with NIST-traceable reference sensors is standard; ISO/IEC 17025-accredited calibration certificates are available as a value-added service.
What level of software validation support is provided for FDA-regulated users?
IQ/OQ protocols, risk assessments, and 21 CFR Part 11 configuration documentation are supplied with the optional Validation Support Package.
Are humidity control and recovery times specified under dynamic thermal cycling conditions?
Humidity recovery time is characterized per IEC 60068-3-5: typically ≤15 minutes from 20% to 98% RH at 40°C; performance remains within ±3% RH tolerance during simultaneous ±3°C/min temperature transitions.
Can the controller interface integrate with existing MES or LIMS platforms?
Yes—native Modbus TCP and optional OPC UA drivers enable bi-directional communication with major manufacturing execution and laboratory information management systems.
