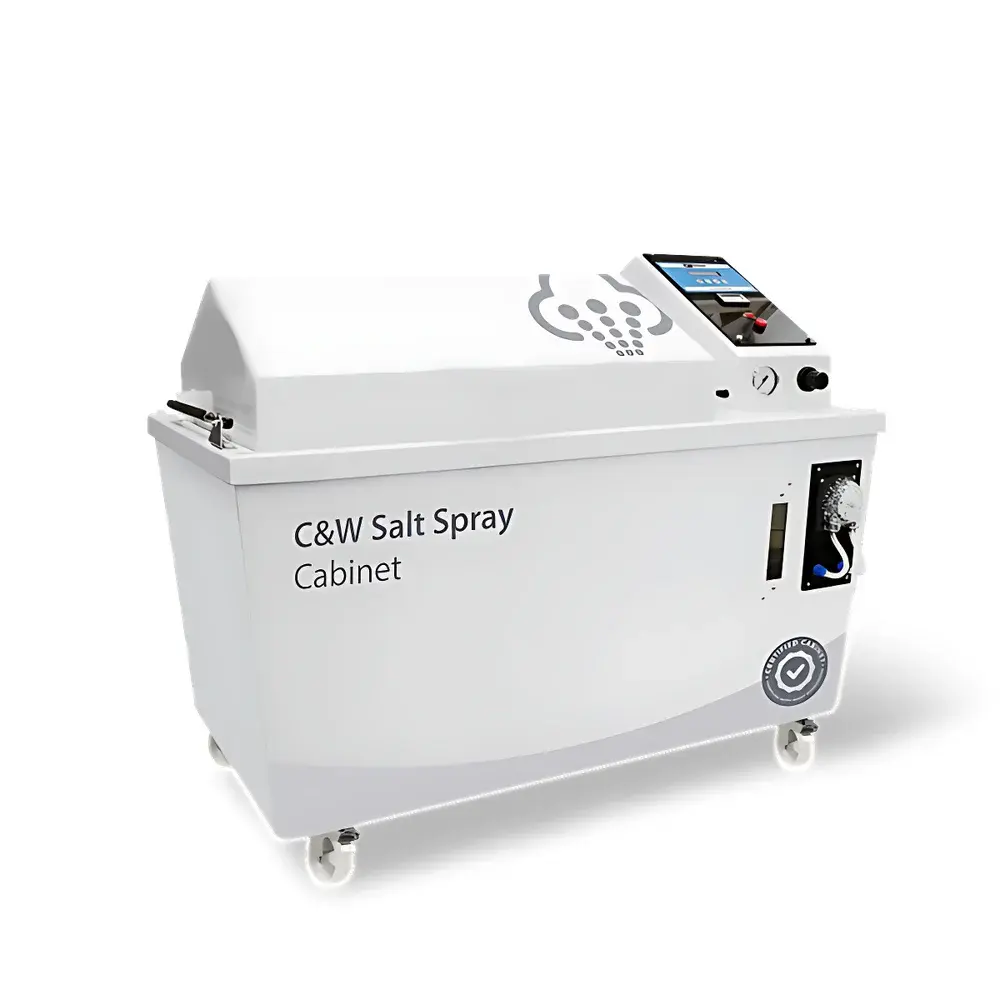

C&W CW Series Salt Spray Test Chamber

Overview

The C&W CW Series Salt Spray Test Chamber is a precision-engineered environmental test system developed by C&W — a Netherlands-based manufacturer specializing in corrosion testing instrumentation under the TQC Sheen group. Designed in strict accordance with internationally recognized accelerated corrosion standards including ASTM B117, ISO 9227, JIS Z2241, and DIN 50021, this chamber employs a controlled salt fog (NaCl aerosol) generation method to simulate aggressive atmospheric corrosion conditions. The system operates via a compressed-air atomization principle: filtered, oil-free air is saturated in a heated humidifier tower, then mixed with pre-conditioned salt solution to produce a stable, uniform fog with defined droplet size distribution and deposition rate. Its microprocessor-controlled architecture ensures reproducible test cycles across temperature, humidity, spray duration, drying phases, and air-purge intervals — critical for comparative material evaluation, coating qualification, and quality assurance in automotive, aerospace, marine, and electronics manufacturing.

Key Features

• Corrosion-resistant chamber construction using specially formulated flame-retardant glass-reinforced polyester (GRP), offering high chemical resistance and thermal stability in aggressive saline environments.
• Integrated saturated air humidifier tower with NiCr alloy heating elements, automatic water refill, overtemperature cut-off, and digital temperature display (65 °C ±1 °C).
• External 114 L mobile salt solution reservoir with built-in filtration, enabling up to 14 days of uninterrupted operation depending on model and test intensity.
• Precision pneumatic regulation: dual-stage pressure monitoring (2–4 bar for spray; 6–8 bar for purge), calibrated flowmeter for salt solution delivery, and adjustable air diffuser for consistent fog density.
• Ergonomic “soft-touch” waterproof membrane control panel with full-screen digital display, intuitive navigation, and real-time parameter visualization (temperature, cycle stage, elapsed time, remaining count).
• Programmable multi-phase test sequences: configurable spray / dry / air-purge cycles with independent timing (0–9999 minutes per phase); up to seven stored methods with cycle counter and residual run tracking.
• Apex lid with gas-spring assist ensures secure sealing, thermal insulation, and operator safety; modular design with casters and detachable cover facilitates installation in space-constrained laboratories.

Sample Compatibility & Compliance

The CW Series accommodates flat-panel specimens, suspended components, and complex geometries via standard sample racks and hanging fixtures. Internal chamber dimensions range from 600 × 450 × 375 mm (CW1001, 100 L) to 2000 × 1000 × 850 mm (CW1020, 2000 L), supporting both small-batch R&D validation and large-scale production lot testing. All models are engineered to maintain strict compliance with regulatory frameworks governing materials certification: test data integrity is supported by GLP-aligned operation logs, non-volatile memory retention, and optional audit-trail-capable controllers compliant with FDA 21 CFR Part 11 requirements when integrated with validated software platforms. Chamber calibration procedures follow ISO/IEC 17025 traceable protocols, and temperature uniformity is verified per IEC 60068-2-11.

Software & Data Management

While the base controller provides standalone operation with local data logging (cycle start/end timestamps, temperature history, phase transitions), optional PC interface modules enable remote monitoring and export of CSV-formatted test records. When deployed with TQC Sheen’s certified LabControl Suite, the system supports automated report generation aligned with ISO 17025 documentation standards, electronic signature workflows, and long-term archival with version-controlled test method libraries. All controllers retain event logs with timestamped alarms (e.g., low solution level, overtemperature, pressure deviation), ensuring full traceability during internal audits or third-party certification reviews.

Applications

This chamber is routinely employed in QC/QA laboratories for evaluating the corrosion resistance of metallic substrates, electroplated finishes, organic coatings (epoxy, polyurethane, zinc-rich primers), anodized aluminum, and passivated stainless steel components. Typical use cases include: ASTM B117-compliant salt fog exposure of automotive brake calipers; ISO 9227 cyclic testing of marine-grade fasteners; qualification of anti-corrosion pretreatments for EV battery enclosures; and accelerated aging studies of printed circuit board conformal coatings under combined thermal-saline stress. Its precise control over spray deposition rate, chamber temperature homogeneity, and inter-phase transition timing makes it suitable for comparative benchmarking across supplier lots and formulation iterations.

FAQ

What standards does the C&W CW Series comply with?
It is fully compatible with ASTM B117, ISO 9227, JIS Z2241, DIN 50021, and GB/T 2423.17 — supporting both neutral salt spray (NSS) and acetic acid salt spray (AASS) variants where configured.
Is the salt solution reservoir integrated or external?
The 114 L reservoir is externally mounted, mobile, and features integrated filtration and level monitoring — minimizing contamination risk and simplifying maintenance.
Can the chamber perform cyclic corrosion tests (CCT)?
Yes. The microprocessor controller supports fully programmable sequences combining salt spray, drying, and conditioned air purge phases — essential for GM 9540P, SAE J2334, and VDA 621-415 protocols.
What safety protections are included?
Overtemperature cutoff (hardware and software), low-water shutoff in the humidifier tower, low-solution-level alarm (optional), and fail-safe door interlock prevent uncontrolled operation.
How is temperature uniformity maintained inside the chamber?
Via NTC-sensor feedback loops, PID-controlled heating elements, insulated GRP walls, and optimized airflow distribution — validated to ±1 °C tolerance across the working volume per IEC 60068-3-5.
