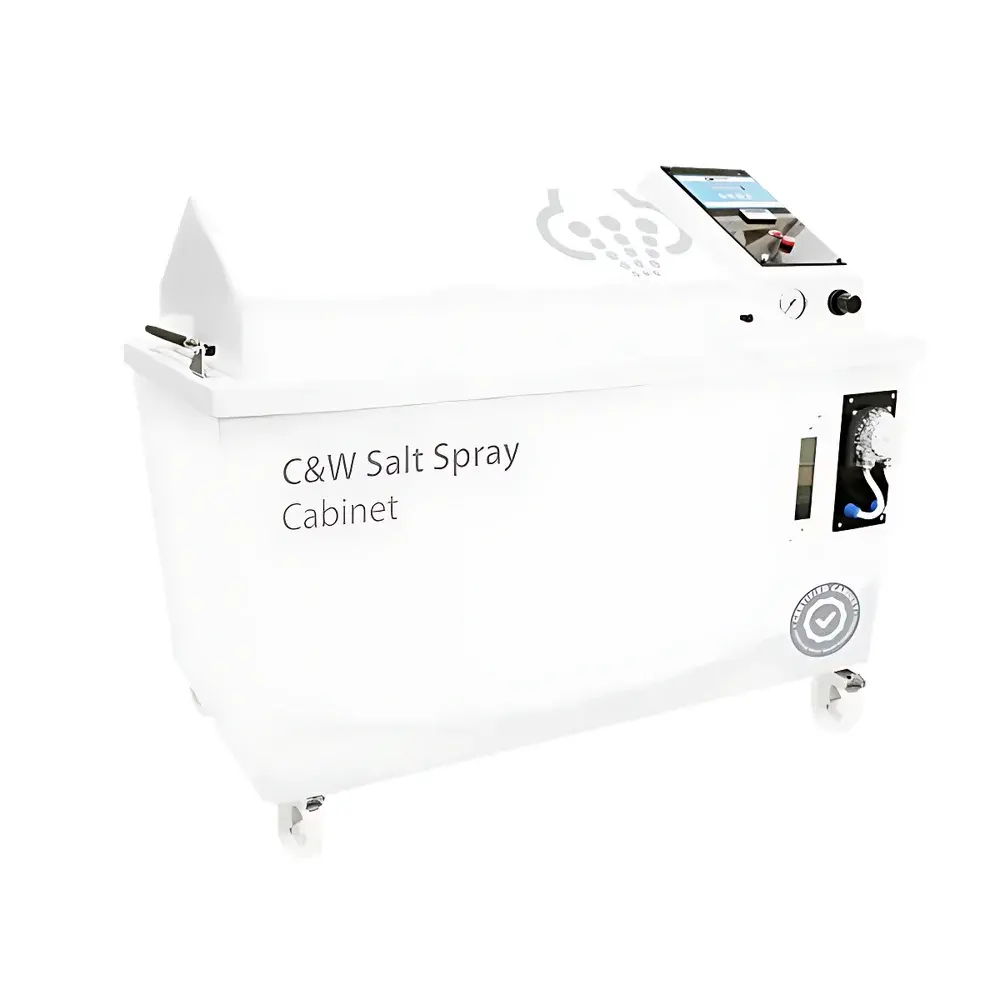

C&W CW1001 Advanced Salt Spray Test Chamber

Overview

The C&W CW1001 Advanced Salt Spray Test Chamber is a precision-engineered environmental test system designed for accelerated corrosion evaluation of metallic substrates, coated components, and protective surface treatments. Based on the standardized salt fog (neutral salt spray, NSS) principle defined in ASTM B117 and ISO 9227, the chamber generates a continuous, highly reproducible chloride-laden aerosol environment under tightly controlled thermal and pneumatic conditions. Its core measurement mechanism relies on regulated compressed air atomization of pre-conditioned sodium chloride solution, enabling uniform fog deposition across standardized test specimens. Engineered for long-term stability and metrological traceability, the CW1001 meets or exceeds the operational and calibration requirements of global automotive OEMs, aerospace suppliers, and regulatory bodies enforcing GLP-compliant materials qualification protocols.

Key Features

• Direct air-atomized spray system with precision-machined brass nozzles and integrated pressure regulation (8.44 kg/cm²), ensuring consistent droplet size distribution and minimal nozzle clogging.
• Digital NTC-sensor-based temperature control with ±1 °C accuracy over the full operating range (ambient to 55 °C), validated per IEC 60068-2-2 and ISO 17025 traceable calibration practices.
• Modular external salt solution reservoir (114 L capacity) equipped with integral deionization filter (TDS < 50 mg/L threshold), automatic level monitoring, and UV-inhibiting polymer construction to suppress microbial growth.
• Human-centered control interface featuring IP65-rated waterproof membrane keypad, full-screen LCD display, and microprocessor-based controller supporting up to seven programmable test profiles.
• Corrosion-resistant GRP (glass-reinforced polyester) chamber body with flame-retardant formulation, thermal insulation layer, and pneumatically assisted lid sealing mechanism for leak-tight operation.
• Integrated air purge subsystem with adjustable timing (0–9999 min), enabling automated removal of residual salt aerosol prior to specimen retrieval—critical for minimizing post-test handling artifacts.
• Compressor-independent air supply architecture: compatible with externally sourced clean, dry, oil-free compressed air (2–4 bar, 3.5 cfm @ 15 psi), eliminating internal lubrication contamination risks.

Sample Compatibility & Compliance

The CW1001 accommodates flat panels (up to 72 specimens per standard rack), suspended components, and geometrically complex assemblies via configurable sample supports—including non-metallic, corrosion-inert fixtures. All chamber configurations are validated against internationally harmonized test standards including ASTM B117 (NSS), ASTM G85 Annex A1–A5 (acidified and cyclic variants), ISO 9227 (NSS, AASS, CASS), EN ISO 7253, DIN 50021, JIS Z 2371, and major OEM specifications such as Ford CETP 00.00-L-467, GMW 14872, VW PV1210, and BMW GS 90031. The system supports full audit readiness for FDA 21 CFR Part 11–compliant environments when paired with optional electronic log modules and role-based access controls.

Software & Data Management

While the base CW1001 operates via embedded microcontroller firmware, optional Ethernet-enabled data logging modules provide real-time acquisition of chamber temperature, fog collection rate, air pressure, and cycle stage status. Exportable CSV logs include timestamped metadata compliant with ISO/IEC 17025 documentation requirements. Firmware supports secure parameter locking, user-defined alarm thresholds (e.g., low reservoir level, overtemperature), and event-driven notifications via relay outputs. Optional validation packages include IQ/OQ documentation templates aligned with ASTM E2500 and EU Annex 11 guidelines.

Applications

The CW1001 serves critical roles in R&D laboratories and QC departments across industries where long-term corrosion resistance is mission-critical: automotive body panels and fasteners; marine-grade aluminum alloys and stainless steels; aerospace fastener coatings (e.g., cadmium, zinc-nickel); printed circuit board conformal coatings; galvanized steel sheet used in infrastructure; and decorative chrome plating on consumer electronics housings. Its reliability in generating statistically robust failure mode data supports accelerated life modeling, supplier qualification audits, and regulatory submissions under REACH, RoHS, and MIL-STD-810H Section 509.

FAQ

What standards does the CW1001 fully comply with?
ASTM B117, ISO 9227, EN ISO 7253, DIN 50021, JIS Z 2371, SAE J2334, and all major OEM specifications referenced in the compliance section.
Is compressed air supplied internally or externally?
Externally—clean, dry, oil-free compressed air (2–4 bar) must be provided via 10 mm ID tubing; no internal compressor is included.
Can the CW1001 perform cyclic corrosion testing (CCT)?
The CW1001 supports basic spray/dry/purge cycles; for full Prohesion® or multi-stage humidity-salt-dry cycling, the CW1004 or CW1010 modular platform is recommended.
What water quality is required for operation?
Deionized water or municipal tap water with total dissolved solids (TDS) ≤ 50 mg/L is mandatory to prevent scaling and nozzle blockage.
Does the system include fog collection verification tools?
Yes—calibrated glass funnels and measuring cylinders (per ISO 9227 Annex B) are supplied as standard accessories for daily fog deposition rate validation.
